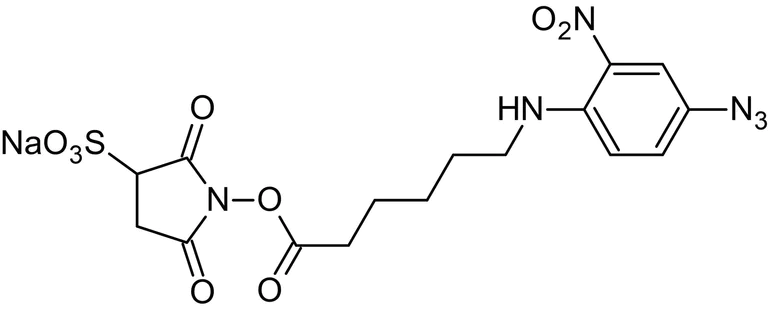

Sulfo-SANPAH, primary amine-nitrophenylazide crosslinker

Key facts

CAS number

102568-43-4

Purity

>90%

Form

Solid

form

Molecular weight

470.4 Da

Molecular formula

C₁₆H₁₈N₆O₉S

PubChem

3035866

Nature

Synthetic

Solubility

Soluble in water to 10 mM

Biochemical name

Sulfosuccinimidyl 6-((4-azido-2-nitrophenyl)amino)hexanoate

Biological description

Heterobifunctional photoreactive (at 320-350 nm), long arm (18.2 angstrom) primary amine-nitrophenylazide crosslinker. NHS-ester containing crosslinking agent. Contains a photosensitive phenyl azide group on one end and an amine-reactive N-hydroxysuccinimide on the other.

Canonical smiles

C1C(C(=O)N(C1=O)OC(=O)CCCCCNC2=C(C=C(C=C2)N=[N+]=[N-])[N+](=O)[O-])S(=O)(=O)O

InChi

InChI=1S/C16H18N6O9S/c17-20-19-10-5-6-11(12(8-10)22(26)27)18-7-3-1-2-4-15(24)31-21-14(23)9-13(16(21)25)32(28,29)30/h5-6,8,13,18H,1-4,7,9H2,(H,28,29,30)

InChiKey

UPNUQQDXHCUWSG-UHFFFAOYSA-N

IUPAC Name

1-[6-(4-azido-2-nitroanilino)hexanoyloxy]-2,5-dioxopyrrolidine-3-sulfonic acid
