AK4 KO cell line available to order. KO validated by Western blot. Free of charge wild type control provided. Knockout achieved by using CRISPR/Cas9, Homozygous: 2 bp insertion in exon 2.

Be the first to review this product! Submit a review

Images

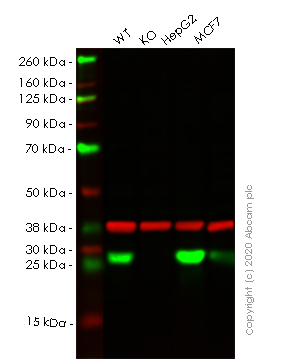

Western blot - Human AK4 (AK3L1) knockout HeLa cell line (AB265331), expandable thumbnail
  • Sanger Sequencing - Human AK4 (AK3L1) knockout HeLa cell line (AB265331), expandable thumbnail

Publications

Key facts

Cell type
HeLa
Species or organism
Human
Tissue
Cervix
Form
Liquid
Knockout validation
Sanger Sequencing, Western blot
Mutation description
Knockout achieved by using CRISPR/Cas9, Homozygous: 2 bp insertion in exon 2

Alternative names

AK3L2, AK4, ATP-AMP transphosphorylase, Adenylate kinase 3 like 1, Adenylate kinase 3-like, Adenylate kinase isoenzyme 4, mitochondrial, GTP:AMP phosphotransferase, KAD4_HUMAN, MGC166959, adenylate kinase 4, mitochondrial adenylate kinase 3, nucleoside-triphosphate adenylate kinase

Recommended products

AK4 KO cell line available to order. KO validated by Western blot. Free of charge wild type control provided. Knockout achieved by using CRISPR/Cas9, Homozygous: 2 bp insertion in exon 2.

Key facts

Cell type
HeLa
Form
Liquid
Mutation description
Knockout achieved by using CRISPR/Cas9, Homozygous: 2 bp insertion in exon 2
Disease
Adenocarcinoma
Concentration
Loading...

Properties

Gene name
AK4
Gene editing type
Knockout
Gene editing method
CRISPR technology
Knockout validation
Sanger Sequencing, Western blot
Zygosity
Homozygous

Quality control

STR analysis
CSF1PO, D13S317, D7S820, D5S818, TH01, D16S539, TPOX

Cell culture

Biosafety level
EU: 2 US: 2
Adherent/suspension
Adherent
Gender
Female

Handling procedures

Initial handling guidelines

Upon arrival, the vial should be stored in liquid nitrogen vapor phase and not at -80°C. Storage at -80°C may result in loss of viability.

1. Thaw the vial in 37°C water bath for approximately 1-2 minutes.
2. Transfer the cell suspension (0.8 mL) to a 15 mL/50 mL conical sterile polypropylene centrifuge tube containing 8.4 mL pre-warmed culture medium, wash vial with an additional 0.8 mL culture medium (total volume 10 mL) to collect remaining cells, and centrifuge at 201 x g (rcf) for 5 minutes at room temperature. 10 mL represents minimum recommended dilution. 20 mL represents maximum recommended dilution.
3. Resuspend the cell pellet in 5 mL pre-warmed culture medium and count using a haemocytometer or alternative cell counting method seed all remaining cells into a T25.
4. Incubate the culture at 37°C incubator with 5% CO2. Check the culture one day after revival and continue to check until 80% confluent. Media change can be given if needed.
5. Once confluent passage into an appropriate flask at a density of 2x104 cells/cm2. Seeding density is given as a guide only and should be scaled to align with individual lab schedules. Cultures should be monitored daily.

Subculture guidelines
  • All seeding densities should be based on cell counts gained by established methods.
  • A guide seeding density of 2x104 cells/cm2 is recommended.
  • Cells should be passaged when they have achieved 80-90% confluence.
Culture medium
DMEM (High Glucose) + 10% FBS
Cryopreservation medium
Cell Freezing Medium-DMSO Serum free media, contains 8.7% DMSO in MEM supplemented with methyl cellulose.

Storage

Shipped at conditions
Dry Ice
Appropriate short-term storage conditions
-196°C
Appropriate long-term storage conditions
-196°C

Notes

Recommended control: Human wild-type HeLa cell line (ab255928). Please note a wild-type cell line is not automatically included with a knockout cell line order, if required please add recommended wild-type cell line at no additional cost using the code WILDTYPE-TMTK1.

We will provide viable cells that proliferate on revival.

This product is subject to limited use licenses from The Broad Institute, ERS Genomics Limited and Sigma-Aldrich Co. LLC, and is developed with patented technology. For full details of the licenses and patents please refer to our limited use license and patent pages.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

AK3L1 also known as adenylate kinase 3-like 1 is an enzyme with a molecular mass of approximately 26 kDa. This protein primarily catalyzes the reversible transfer of phosphate groups between ATP and AMP. AK3L1 is expressed mainly in the mitochondrial matrix playing a fundamental role in nucleotide metabolism. By facilitating energy transfer within the mitochondria AK3L1 ensures the availability of ATP and maintains cellular energy homeostasis.

Biological function summary

AK3L1 regulates mitochondrial energy metabolism and supports cellular functions. It operates as part of a network managing the mitochondrial adenylate kinase isoform family participating in mitochondrial phosphotransfer systems. AK3L1 contributes to sustaining energy balance especially in tissues with high-energy demand like muscle and brain. Within these systems AK3L1 interacts with other adenylate kinases and mitochondrial proteins to balance nucleotide ratios and prevent energy deficits.

Pathways

AK3L1 integrates into the wider cellular energy regulation and oxidative phosphorylation pathways. It supports the cellular energy landscape by linking to the citric acid cycle and oxidative phosphorylation essential for ATP production. AK3L1 coordinates with proteins like AK2 influencing energy metabolism and ensuring effective cellular processes. By aligning with these pathways AK3L1 plays a significant role in ensuring efficient bioenergetic processes.

Associated diseases and disorders

AK3L1 features involvement in conditions such as mitochondrial myopathy and neurodegenerative disorders. Its dysfunction can disrupt mitochondrial energy balance linking it to diseases characterized by energy production deficits. The protein closely interacts with AK2 and other mitochondrial enzymes whose imbalance can further contribute to disease development. Understanding AK3L1's role provides insight into potential therapeutic targets for these disorders addressing the underlying mitochondrial dysfunctions.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

2 product images

Downloads

Product protocols

For this product, it's our understanding that no specific protocols are required. You can:

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.

For licensing inquiries, please contact partnerships@abcam.com
