HK2 KO cell line available to order. KO validated by Next Generation Sequencing. Free of charge wild type control provided. Knockout achieved by CRISPR/Cas9 X = 5 bp deletion Frameshift: 99%.
Images
Key facts
- Cell type
- HEK-293
- Species or organism
- Human
- Tissue
- Kidney
- Form
- Liquid
- Knockout validation
- Next Generation Sequencing
- Mutation description
- Knockout achieved by CRISPR/Cas9 X = 5 bp deletion Frameshift: 99%
Alternative names
DKFZp686M1669, HK 2, HK II, HXK2_HUMAN, Hexokinase 2 muscle, Hexokinase type II, Hexokinase-2, Muscle form hexokinase
Recommended products
HK2 KO cell line available to order. KO validated by Next Generation Sequencing. Free of charge wild type control provided. Knockout achieved by CRISPR/Cas9 X = 5 bp deletion Frameshift: 99%.
Key facts
- Cell type
- HEK-293
- Species or organism
- Human
- Tissue
- Kidney
- Form
- Liquid
- Knockout validation
- Next Generation Sequencing
- Mutation description
- Knockout achieved by CRISPR/Cas9 X = 5 bp deletion Frameshift: 99%
- Concentration
Properties
- Gene name
- HK2
- Gene editing type
- Knockout
- Gene editing method
- CRISPR technology
- Knockout validation
- Next Generation Sequencing
Quality control
- STR analysis
- CSF1PO, D13S317, D7S820, D5S818, TH01, D16S539, TPOX
Cell culture
- Biosafety level
- EU: 2 US: 2
- Adherent/suspension
- Adherent
- Gender
- Female
Handling procedures
- Initial handling guidelines
Upon arrival, the vial should be stored in liquid nitrogen vapor phase and not at -80°C. Storage at -80°C may result in loss of viability.
1. Thaw the vial in 37°C water bath for approximately 1-2 minutes.
2. Transfer the cell suspension (0.8 mL) to a 15 mL/50 mL conical sterile polypropylene centrifuge tube containing 8.4 mL pre-warmed culture medium, wash vial with an additional 0.8 mL culture medium (total volume 10 mL) to collect remaining cells, and centrifuge at 201 x g (rcf) for 5 minutes at room temperature. 10 mL represents minimum recommended dilution. 20 mL represents maximum recommended dilution.
3. Resuspend the cell pellet in 5 mL pre-warmed culture medium and count using a haemocytometer or alternative cell counting method seed all remaining cells into a T25.
4. Incubate the culture at 37°C incubator with 5% CO2. Check the culture one day after revival and continue to check until 80% confluent. Media change can be given if needed.
5. Once confluent passage into an appropriate flask at a density of 2x104 cells/cm2. Seeding density is given as a guide only and should be scaled to align with individual lab schedules. Cultures should be monitored daily.- Subculture guidelines
- All seeding densities should be based on cell counts gained by established methods.
- A guide seeding density of 2x104 cells/cm2 is recommended.
- Cells should be passaged when they have achieved 80-90% confluence.
- Culture medium
- DMEM (High Glucose) + 10% FBS
- Cryopreservation medium
- Cell Freezing Medium-DMSO Serum free media, contains 8.7% DMSO in MEM supplemented with methyl cellulose.
Storage
- Shipped at conditions
- Dry Ice
- Appropriate short-term storage conditions
- -196°C
- Appropriate long-term storage conditions
- -196°C
Notes
Western blot data indicates that the CRISPR gene edit may have resulted in a truncation of the protein of interest. Please see data images.
Recommended control: Human wild-type HEK-293 cell line (ab259776). Please note a wild-type cell line is not automatically included with a knockout cell line order, if required please add recommended wild-type cell line at no additional cost using the code WILDTYPE-TMTK1.
We will provide viable cells that proliferate on revival.
This product is subject to limited use licenses from The Broad Institute and ERS Genomics Limited, and is developed with patented technology. For full details of the limited use licenses and relevant patents please refer to our limited use license and patent pages.
Product promise
We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.
In the unlikely event of one of our products not working as expected, you are covered by our product promise.
Full details and terms and conditions can be found here:
Terms & Conditions.
3 product images

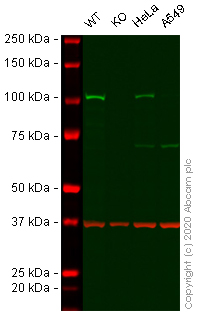

Western blot - Human HK2 (Hexokinase II) knockout HEK-293 cell line (ab269485)
Lanes 1 - 4: Merged signal (red and green). Green - Anti-Hexokinase II antibody [EPR20839] ab209847 observed at 110 kDa. Red - loading control Anti-GAPDH antibody [6C5] - Loading Control ab8245 (Mouse anti-GAPDH antibody [6C5]) observed at 37kDa.Anti-Hexokinase II antibody [EPR20839] ab209847 was shown to react with Hexokinase II in wild-type HEK-293 cells in western blot with loss of signal observed in HK2 knockout sample. Wild-type and HK2 knockout HEK-293 cell lysates were subjected to SDS-PAGE. Membranes were blocked in 3% milk in TBS-T (0.1% Tween®) before incubation with Anti-Hexokinase II antibody [EPR20839] ab209847 and Anti-GAPDH antibody [6C5] - Loading Control ab8245 (Mouse anti-GAPDH antibody [6C5]) overnight at 4° at a 1 in 1000 Dilution and a 1 in 20000 dilution respectively. Blots were incubated with Goat anti-Rabbit IgG H&L (IRDye® 800CW) preabsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) and Goat anti-Mouse IgG H&L (IRDye® 680RD) preabsorbed (Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.
All lanes: Western blot - Anti-Hexokinase II antibody [EPR20839] (Anti-Hexokinase II antibody [EPR20839] ab209847) at 1/1000 dilution
Lane 1: Wild-type HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate at 20 µg
Lane 2: HK2 knockout HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate at 20 µg
Lane 2: Western blot - Human HK2 (Hexokinase II) knockout HEK-293 cell line (ab269485)
Lane 3: HeLa (Human epithelial cell line from cervix adenocarcinoma) whole cell lysate at 20 µg
Lane 4: A549 (Human lung carcinoma cell line) whole cell lysate at 20 µg
Performed under reducing conditions.
Predicted band size: 102 kDa
Observed band size: 110 kDa

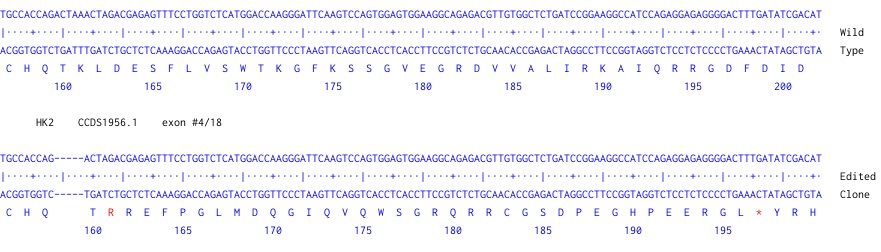

Next Generation Sequencing - Human HK2 (Hexokinase II) knockout HEK-293 cell line (ab269485)
Knockout achieved by CRISPR/Cas9; X = 5 bp deletion; Frameshift: 99%
Next Generation Sequencing - Human HK2 (Hexokinase II) knockout HEK-293 cell line (ab269485)
5 bp deletion after Gln159 of the WT protein
