AB261856

Human NDRG1 knockout HEK-293 cell line

Be the first to review this product! Submit a review

|

(0 Publication)

NDRG1 KO cell line available to order. KO validated by Next Generation Sequencing, Western blot. Free of charge wild type control available. Knockout achieved by CRISPR/Cas9 X = 7 bp deletion Frameshift = 100%. To order both knockout and wild-type control cells: select '2 x 1000000 Cells/vial'. To order only knockout cells: select '1000000 Cells/vial'.
2 Images

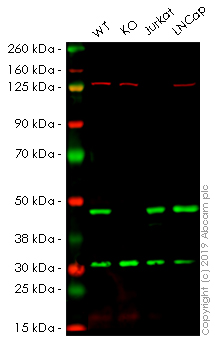

Western blot - Human NDRG1 knockout HEK-293 cell line (AB261856)
  • WB

Lab

Western blot - Human NDRG1 knockout HEK-293 cell line (AB261856)

Lanes 1 - 4 : Merged signal (red and green). Green - ab124689 observed at 43 kDa. Red - loading control ab130007 observed at 130 kDa.

ab124689 was shown to recognize in wild-type HEK-293 cells as signal was lost at the expected MW in NDRG1 knockout cells. Additional cross-reactive bands were observed in the wild-type and knockout cells. Wild-type and NDRG1 knockout samples were subjected to SDS-PAGE. ab124689 and ab130007 (Mouse anti-Vinculin loading control) were incubated overnight at 4° at 1/10000 dilution and 1/20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye® 800CW) preabsorbed ab216773 and Goat anti-Mouse IgG H&L (IRDye® 680RD) preabsorbed ab216776 secondary antibodies at 1/20000 dilution for 1 hour at room temperature before imaging.

Lanes 1 - 4:

Western blot - Anti-NDRG1 antibody [EPR5593] (<a href='/en-us/products/primary-antibodies/ndrg1-antibody-epr5593-ab124689'>ab124689</a>) at 1/10000 dilution

Lane 1:

Western blot - Alexa Fluor® 647 Anti-NDRG1 antibody [EPR5593] (<a href='/en-us/products/primary-antibodies/alexa-fluor-647-ndrg1-antibody-epr5593-ab199471'>ab199471</a>)

Lane 1:

Wild-type HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate at 20 µg

Lane 2:

NDRG1 knockout HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate at 20 µg

Lane 2:

Western blot - Human NDRG1 knockout HEK-293 cell line (ab261856)

Lane 3:

Jurkat (Human T cell leukemia cell line from peripheral blood) whole cell lysate at 20 µg

Lane 4:

LNCaP (Human prostate cancer cell line) whole cell lysate at 20 µg

Predicted band size: 43 kDa

false

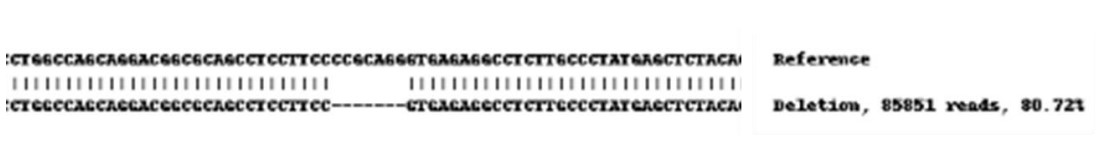

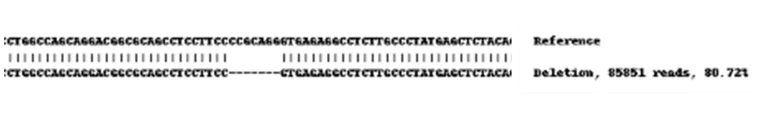

Next Generation Sequencing - Human NDRG1 knockout HEK-293 cell line (AB261856)
  • NGS

Lab

Next Generation Sequencing - Human NDRG1 knockout HEK-293 cell line (AB261856)

X = 7 bp deletion

Key facts

Cell type

HEK-293

Species or organism

Human

Tissue

Kidney

Form

Liquid

form

Knockout validation

Next Generation Sequencing,Western blot

Mutation description

Knockout achieved by CRISPR/Cas9 X = 7 bp deletion Frameshift = 100%

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "WB": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

Product details

We will provide viable cells that proliferate on revival.

This product is subject to limited use licenses from The Broad Institute and ERS Genomics Limited, and is developed with patented technology. For full details of the limited use licenses and relevant patents please refer to our limited use license and patent pages.

What's included?

{ "values": { "2x1000000Cellsvial": { "sellingSize": "2 x 1000000 Cells/vial", "publicAssetCode":"ab261856-2x1000000Cells_vial", "assetComponentDetails": [ { "size":"1 x 1000000 Cells/vial", "name":"ab259776 Human wild-type HEK-293 cell line", "number":"AB261856-CMP02" }, { "size":"1 x 1000000 Cells/vial", "name":"ab261856 Human NDRG1 knockout HEK-293 cell line", "number":"AB261856-CMP01" } ] }, "1000000Cellsvial": { "sellingSize": "1000000 Cells/vial", "publicAssetCode":"ab261856-1000000Cells_vial", "assetComponentDetails": [ { "size":"1 x 1000000 Cells/vial", "name":"ab261856 Human NDRG1 knockout HEK-293 cell line", "number":"AB261856-CMP01", "productcode":"" } ] } } }

Properties and storage information

Gene name
NDRG1
Gene editing type
Knockout
Gene editing method
CRISPR technology
Knockout validation
Next Generation Sequencing, Western blot
Shipped at conditions
Dry Ice
Appropriate short-term storage conditions
-196°C
Appropriate long-term storage conditions
-196°C

Handling procedures

Initial handling guidelines

Upon arrival, the vial should be stored in liquid nitrogen vapor phase and not at -80°C. Storage at -80°C may result in loss of viability.

1. Thaw the vial in 37°C water bath for approximately 1-2 minutes.
2. Transfer the cell suspension (0.8 mL) to a 15 mL/50 mL conical sterile polypropylene centrifuge tube containing 8.4 mL pre-warmed culture medium, wash vial with an additional 0.8 mL culture medium (total volume 10 mL) to collect remaining cells, and centrifuge at 201 x g (rcf) for 5 minutes at room temperature. 10 mL represents minimum recommended dilution. 20 mL represents maximum recommended dilution.
3. Resuspend the cell pellet in 5 mL pre-warmed culture medium and count using a haemocytometer or alternative cell counting method seed all remaining cells into a T25.
4. Incubate the culture at 37°C incubator with 5% CO2. Check the culture one day after revival and continue to check until 80% confluent. Media change can be given if needed.
5. Once confluent passage into an appropriate flask at a density of 2x104 cells/cm2. Seeding density is given as a guide only and should be scaled to align with individual lab schedules. Cultures should be monitored daily.

Subculture guidelines
  • All seeding densities should be based on cell counts gained by established methods.
  • A guide seeding density of 2x104 cells/cm2 is recommended.
  • Cells should be passaged when they have achieved 80-90% confluence.
Culture medium

DMEM (High Glucose) + 10% FBS

Cryopreservation medium

Cell Freezing Medium-DMSO Serum free media, contains 8.7% DMSO in MEM supplemented with methyl cellulose.

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

NDRG1 or N-Myc downstream-regulated gene 1 also known as Cap43 Drg-1 and RTP is a protein that plays key roles in various cellular processes. It has a molecular mass of approximately 43 kDa. NDRG1 is ubiquitously expressed with higher levels in the brain heart liver and kidney. The protein also exhibits a significant presence in cytoplasm but can translocate to the nucleus depending on the cellular context and stimuli.
Biological function summary

NDRG1 functions in cell growth regulation stress response and apoptosis influencing differentiation and potentially acting as a tumor suppressor. It does not directly form part of a larger protein complex but interacts with other proteins to mediate its effects. Its involvement in cellular homeostasis places it as a significant player in maintaining normal cell physiology.

Pathways

NDRG1 is involved in the hypoxia and stress response pathways regulating cellular responses to low oxygen and oxidative stress. It interacts with HIF-1α a critical regulator of the cellular response to hypoxia and also modulates PTEN and p53 proteins that are important for cell cycle control and apoptosis. These pathways and interactions reflect its function in cellular regulatory networks.

NDRG1 has associations with cancer and Charcot-Marie-Tooth disease type 4D. In cancer abnormal expression of NDRG1 has been linked to tumor progression and metastasis where it interacts with proteins like E-cadherin to influence cell adhesion and migration. In Charcot-Marie-Tooth disease mutations in the NDRG1 gene disrupt normal nerve function pointing to its importance in peripheral nervous system health.

Quality control

STR analysis

CSF1PO, D13S317, D7S820, D5S818, TH01, D16S539, TPOX

Cell culture

Biosafety level

EU: 2 US: 2

Adherent/suspension

Adherent

Gender

Female
