NR2C2 KO cell line available to order. Free of charge wild type control provided. Knockout achieved by using CRISPR/Cas9, 16 bp deletion in exon 6 and Insertion of the selection cassette in exon 6.
Images
Key facts
- Cell type
- HEK-293T
- Species or organism
- Human
- Tissue
- Kidney
- Form
- Liquid
- Knockout validation
- Sanger Sequencing
- Mutation description
- Knockout achieved by using CRISPR/Cas9, 16 bp deletion in exon 6 and Insertion of the selection cassette in exon 6
Alternative names
NR2C2_HUMAN, Nuclear hormone receptor TR4, Nuclear receptor subfamily 2 group C member 2, Orphan nuclear receptor TAK1, Orphan nuclear receptor TR4, TAK1, TR2R1, TR4 nuclear hormone receptor, Testicular nuclear receptor 4, Testicular receptor 4, hTAK1
Recommended products
NR2C2 KO cell line available to order. Free of charge wild type control provided. Knockout achieved by using CRISPR/Cas9, 16 bp deletion in exon 6 and Insertion of the selection cassette in exon 6.
Key facts
- Cell type
- HEK-293T
- Species or organism
- Human
- Tissue
- Kidney
- Form
- Liquid
- Knockout validation
- Sanger Sequencing
- Mutation description
- Knockout achieved by using CRISPR/Cas9, 16 bp deletion in exon 6 and Insertion of the selection cassette in exon 6
- Concentration
Properties
- Gene name
- NR2C2
- Gene editing type
- Knockout
- Gene editing method
- CRISPR technology
- Knockout validation
- Sanger Sequencing
Quality control
- STR analysis
- CSF1PO, D13S317, D7S820, D5S818, TH01, D16S539, TPOX
Cell culture
- Biosafety level
- EU: 2 US: 2
- Adherent/suspension
- Adherent
- Gender
- Female
Handling procedures
- Subculture guidelines
- All seeding densities should be based on cell counts gained by established methods.
- A guide seeding density of 2x104 cells/cm2 is recommended.
- Cells should be passaged when they have achieved 80-90% confluence.
- Culture medium
- DMEM (High Glucose) + 10% FBS
- Cryopreservation medium
- Cell Freezing Medium-DMSO Serum free media, contains 8.7% DMSO in MEM supplemented with methyl cellulose.
Storage
- Shipped at conditions
- Dry Ice
- Appropriate short-term storage conditions
- -196°C
- Appropriate long-term storage conditions
- -196°C
Notes
Western blot data indicates that the CRISPR gene edit may have resulted in a truncation of the protein of interest. Please see data images.
Recommended control: Human wild-type HEK293T cell line (ab255449). Please note a wild-type cell line is not automatically included with a knockout cell line order, if required please add recommended wild-type cell line at no additional cost using the code WILDTYPE-TMTK1.
We will provide viable cells that proliferate on revival.
This product is subject to limited use licenses from The Broad Institute, ERS Genomics Limited and Sigma-Aldrich Co. LLC, and is developed with patented technology. For full details of the licenses and patents please refer to our limited use license and patent pages.
Supplementary info
- This supplementary information is collated from multiple sources and compiled automatically.
- Activity summary
TR4 also known as testicular receptor 4 or NR2C2 is a nuclear receptor that belongs to the steroid hormone receptor superfamily. It acts as a transcription factor regulating the expression of specific genes. TR4 has a molecular weight of approximately 68 kDa. We find TR4 expression in various tissues including the testis prostate and kidney reflecting its diverse roles in different cellular processes.
- Biological function summary
TR4 significantly influences reproductive development and metabolic processes. It plays an important role in regulating genes involved in lipid and glucose metabolism. TR4 does not function alone; it often forms complexes with other proteins to exert its effects on gene expression. The formation of these complexes enhances its ability to control a wide range of biological activities.
- Pathways
TR4 actively participates in the insulin signaling and androgen receptor pathways. It modulates the action of insulin by influencing genes associated with glucose metabolism impacting energy homeostasis. In the androgen receptor pathway TR4 shares regulatory roles with proteins like AR and NR2C1 ensuring proper development and function of reproductive organs. Its involvement in these pathways exemplifies its role in maintaining metabolic and reproductive health.
- Associated diseases and disorders
Scientists link TR4 with metabolic syndrome and prostate cancer. Abnormal TR4 expression or function associates with disrupted glucose and lipid metabolism contributing to metabolic syndrome. In prostate cancer TR4 interacts with the androgen receptor affecting tumor growth and progression. Understanding these connections helps in exploring TR4 as a potential therapeutic target for these conditions.
Product promise
We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.
In the unlikely event of one of our products not working as expected, you are covered by our product promise.
Full details and terms and conditions can be found here:
Terms & Conditions.
4 product images

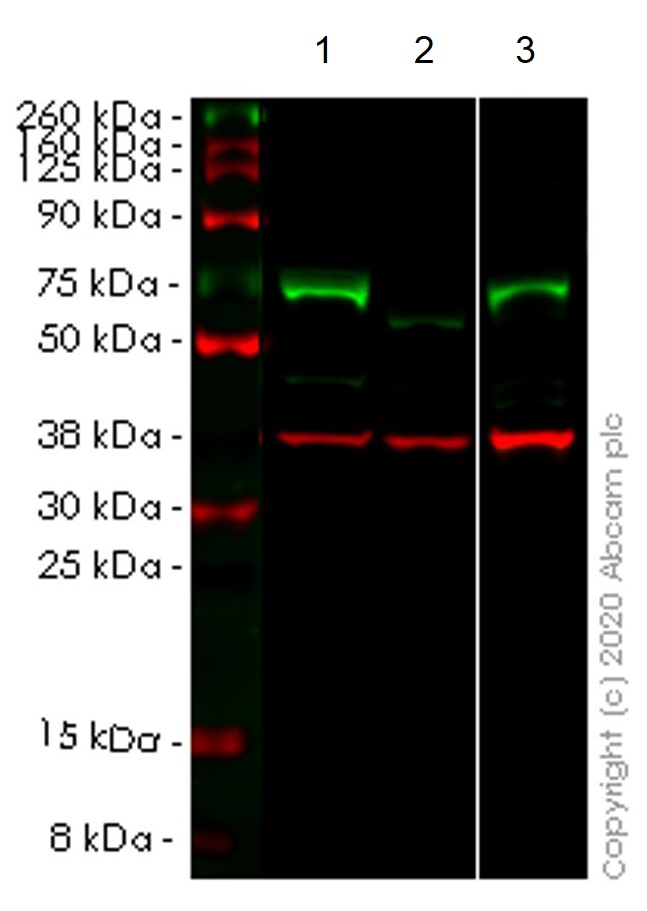

Western blot - Human NR2C2 (TR4) knockout HEK-293T cell line (ab266228)
Lanes 1-3: Merged signal (red and green). Green - Anti-TR4 antibody [EPR1773(2)] ab109301 observed at 67 kDa. Red - loading control Anti-GAPDH antibody [6C5] - Loading Control ab8245 observed at 36 kDa.Anti-TR4 antibody [EPR1773(2)] ab109301 Anti-TR4 antibody [EPR1773(2)] was shown to specifically react with TR4 in wild-type HEK293T cells. The band observed in CRISPR/Cas9 edited cell line ab266228 (CRISPR/Cas9 edited cell lysate Human NR2C2 (TR4) knockout HEK-293T cell lysate ab257563) lane below 67 kDa may represent truncated forms and cleaved fragments. This has not been investigated further. Wild-type and TR4 CRISPR/Cas9 edited samples were subjected to SDS-PAGE. Anti-TR4 antibody [EPR1773(2)] ab109301 and Anti-GAPDH antibody [6C5] - Loading Control (Anti-GAPDH antibody [6C5] - Loading Control ab8245) were incubated at room temperature for 2.5 hours at 1 in 1000 dilution and 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) and Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed (Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.
All lanes: Western blot - Anti-TR4 antibody [EPR1773(2)] (Anti-TR4 antibody [EPR1773(2)] ab109301) at 1/1000 dilution
Lane 1: Wild-type HEK293T cell lysate at 20 µg
Lane 2: NR2C2 CRISPR/Cas9 edited HEK293T cell lysate at 20 µg
Lane 2: Western blot - Human NR2C2 (TR4) knockout HEK-293T cell line (ab266228)
Lane 3: HeLa cell lysate at 20 µg
SecondaryAll lanes: Western blot - Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) at 1/10000 dilution
Predicted band size: 65 kDa
Observed band size: 67 kDa
Cell Culture - Human NR2C2 (TR4) knockout HEK-293T cell line (ab266228)
Representative images NR2C2 knockout HEK293T cells, low and high confluency examples (top left and right respectively) and wild-type HEK293T cells, low and high confluency (bottom left and right respectively) showing typical adherent, epithelial-like morphology. Images were captured at 10X magnification using a EVOS M5000 microscope.
Sanger Sequencing - Human NR2C2 (TR4) knockout HEK-293T cell line (ab266228)
Allele-2: Insertion of the selection cassette in exon 6.
Sanger Sequencing - Human NR2C2 (TR4) knockout HEK-293T cell line (ab266228)
Allele-1: 16 bp deletion in exon6
