AB269507

Human NRP1 knockout A549 cell line

Be the first to review this product! Submit a review

|

(0 Publication)

NRP1 KO cell line available to order. KO validated by Next Generation Sequencing, Western blot. Free of charge wild type control available. Knockout achieved by CRISPR/Cas9 X = 1 bp deletion Frameshift = 99.52%. To order both knockout and wild-type control cells: select '2 x 1000000 Cells/vial'. To order only knockout cells: select '1000000 Cells/vial'.

View Alternative Names

A5 protein, BDCA4, BLOOD DENDRITIC CELL ANTIGEN 4, NP 1, NPN1, NRP, NRP1_HUMAN, Neuropilin-1, VEGF165R, Vascular endothelial cell growth factor 165 receptor, transmembrane receptor

2 Images
Western blot - Human NRP1 knockout A549 cell line (AB269507)
  • WB

Lab

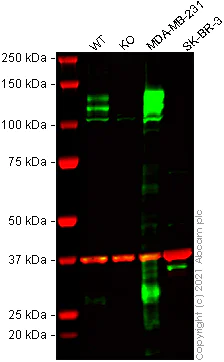

Western blot - Human NRP1 knockout A549 cell line (AB269507)

False colour image of Western blot : Anti-Neuropilin 1 antibody [EPR3113] staining at 1/1000 dilution shown in green; Mouse anti-GAPDH antibody [6C5] (ab8245) loading control staining at 1/20000 dilution shown in red. In Western blot ab81321 was shown to bind specifically to Neuropilin 1. A band was observed at 125/135 kDa in wild-type A549 cell lysates with no signal observed at this size in NRP1 knockout cell line ab269507 (knockout cell lysate ab269669). To generate this image wild-type and NRP1 knockout A549 cell lysates were analysed. First samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3 % milk in TBS-0.1 % Tween® 20 (TBS-T) before incubation with primary antibodies overnight at 4°. Blots were washed four times in TBS-T incubated with secondary antibodies for 1 h at room temperature washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit IgG H&L (IRDye® 800CW) preabsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye® 680RD) preabsorbed (ab216776) at 1/20000 dilution.

All lanes:

Western blot - Anti-Neuropilin 1 antibody [EPR3113] (<a href='/en-us/products/primary-antibodies/neuropilin-1-antibody-epr3113-ab81321'>ab81321</a>) at 1/1000 dilution

Lane 1:

Wild-type A549 cell lysate at 20 µg

Lane 2:

NRP1 knockout A549 cell lysate at 20 µg

Lane 2:

Western blot - Human NRP1 knockout A549 cell line (ab269507)

Lane 3:

MDA-MB-231 cell lysate at 20 µg

Lane 4:

SK-BR-3 cell lysate at 20 µg

Predicted band size: 103 kDa

Observed band size: 125-135 kDa

false

Next Generation Sequencing - Human NRP1 knockout A549 cell line (AB269507)
  • NGS

Supplier Data

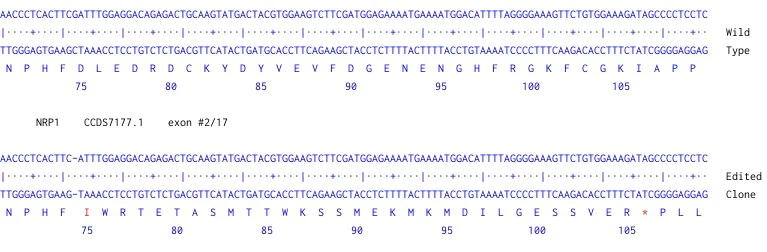

Next Generation Sequencing - Human NRP1 knockout A549 cell line (AB269507)

1 bp deletion after Phe74 of the WT protein

Key facts

Cell type

A549

Species or organism

Human

Tissue

Lung

Form

Liquid

form

Knockout validation

Next Generation Sequencing,Western blot

Mutation description

Knockout achieved by CRISPR/Cas9 X = 1 bp deletion Frameshift = 99.52%

Disease

Carcinoma

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "NGS": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" }, "WB": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

Product details

We will provide viable cells that proliferate on revival.

This product is subject to limited use licenses from The Broad Institute and ERS Genomics Limited, and is developed with patented technology. For full details of the limited use licenses and relevant patents please refer to our limited use license and patent pages.

What's included?

{ "values": { "2x1000000Cellsvial": { "sellingSize": "2 x 1000000 Cells/vial", "publicAssetCode":"ab269507-2x1000000Cells_vial", "assetComponentDetails": [ { "size":"1 x 1000000 Cells/vial", "name":"ab269507 Human NRP1 knockout A549 cell line", "number":"AB269507-CMP01" }, { "size":"1 x 1000000 Cells/vial", "name":"ab259777 Human wild-type A549 cell line", "number":"AB269507-CMP02" } ] }, "1000000Cellsvial": { "sellingSize": "1000000 Cells/vial", "publicAssetCode":"ab269507-1000000Cells_vial", "assetComponentDetails": [ { "size":"1 x 1000000 Cells/vial", "name":"ab269507 Human NRP1 knockout A549 cell line", "number":"AB269507-CMP01", "productcode":"" } ] } } }

Properties and storage information

Gene name
NRP1
Gene editing type
Knockout
Gene editing method
CRISPR technology
Knockout validation
Next Generation Sequencing, Western blot
Shipped at conditions
Dry Ice
Appropriate short-term storage conditions
-196°C
Appropriate long-term storage conditions
-196°C

Handling procedures

Initial handling guidelines

Upon arrival, the vial should be stored in liquid nitrogen vapor phase and not at -80°C. Storage at -80°C may result in loss of viability.

1. Thaw the vial in 37°C water bath for approximately 1-2 minutes.
2. Transfer the cell suspension (0.8 mL) to a 15 mL/50 mL conical sterile polypropylene centrifuge tube containing 8.4 mL pre-warmed culture medium, wash vial with an additional 0.8 mL culture medium (total volume 10 mL) to collect remaining cells, and centrifuge at 201 x g (rcf) for 5 minutes at room temperature. 10 mL represents minimum recommended dilution. 20 mL represents maximum recommended dilution.
3. Resuspend the cell pellet in 5 mL pre-warmed culture medium and count using a haemocytometer or alternative cell counting method seed all remaining cells into a T25.
4. Incubate the culture at 37°C incubator with 5% CO2. Check the culture one day after revival and continue to check until 80% confluent. Media change can be given if needed.
5. Once confluent passage into an appropriate flask at a density of 2x104 cells/cm2. Seeding density is given as a guide only and should be scaled to align with individual lab schedules. Cultures should be monitored daily.

Subculture guidelines
  • All seeding densities should be based on cell counts gained by established methods.
  • A guide seeding density of 2x104 cells/cm2 is recommended.
  • Cells should be passaged when they have achieved 80-90% confluence.
  • Do not allow the cell density to exceed 7x104 cells/cm2.
Culture medium

F-12K + 10% FBS

Cryopreservation medium

Cell Freezing Medium-DMSO Serum free media, contains 8.7% DMSO in MEM supplemented with methyl cellulose.

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

Neuropilin-1 also known as NRP1 is a transmembrane protein with a significant role in the nervous and vascular systems. It has a molecular mass of approximately 130 kDa. Neuropilin-1 expression occurs broadly in tissues including neurons endothelial cells and tumor cells. Its structure includes a large extracellular domain that binds various ligands mediating several cellular functions. Neuropilin-1 is sometimes targeted in experiments using methods like neuropilin-1 ELISA and PE immunofluorescence to study its distribution and function in different tissues.
Biological function summary

Neuropilin-1 serves as a co-receptor for both the Vascular Endothelial Growth Factor (VEGF) and Semaphorin family proteins. It plays an important role in processes such as angiogenesis axonal guidance and the immune system. Neuropilin-1 does not function alone; it forms complexes with neuropilin-2 and other receptors like Plexin and VEGFR enhancing signal transduction pathways for angiogenesis and neuronal development. This involvement allows cells to respond appropriately to their environment especially during organismal development and repair processes.

Pathways

Neuropilin-1 facilitates interactions within the VEGF and Semaphorin pathways. In the VEGF pathway Neuropilin-1 enhances binding and signaling efficiency with VEGF closely working alongside VEGFR to promote endothelial cell survival migration and new blood vessel formation. In the Semaphorin pathway Neuropilin-1 interacts with Plexins mediating neuronal pathfinding and axonal growth. These interactions highlight Neuropilin-1's adaptive capabilities in various physiological processes critical for system development.

Neuropilin-1 is linked to pathological conditions like cancer and cardiovascular diseases. Neuropilin-1 overexpression is frequently observed in tumors driving cancer progression through enhanced angiogenesis and tissue invasion closely interacting with proteins like VEGF-A. In cardiovascular disease Neuropilin-1 contributes to abnormal blood vessel formation and stability. By studying Neuropilin-1 and other biomarkers like CD304 FITC researchers aim to develop therapeutic strategies targeting its role in these diseases.

Quality control

STR analysis

CSF1PO, D13S317, D7S820, D5S818, TH01, D16S539, TPOX

Cell culture

Biosafety level

EU: 1 US: 1

Adherent/suspension

Adherent

Gender

Male
