TOMM70 KO cell line available to order. KO validated by Western blot. Free of charge wild type control provided. Knockout achieved by using CRISPR/Cas9, 1 bp insertion in exon 1 and 95 bp insertion in exon 1.
Images
Key facts
- Cell type
- HeLa
- Species or organism
- Human
- Tissue
- Cervix
- Form
- Liquid
- Knockout validation
- Western blot
- Mutation description
- Knockout achieved by using CRISPR/Cas9, 1 bp insertion in exon 1 and 95 bp insertion in exon 1
Alternative names
FLJ9047, Mitochondrial import receptor subunit TOM70, Mitochondrial precursor proteins import receptor, TOM70_HUMAN, Tomm70a, Translocase of outer membrane 70 kDa subunit, Translocase of outer membrane TOM70, Translocase of outer mitochondrial membrane 70 homolog A
Recommended products
TOMM70 KO cell line available to order. KO validated by Western blot. Free of charge wild type control provided. Knockout achieved by using CRISPR/Cas9, 1 bp insertion in exon 1 and 95 bp insertion in exon 1.
Key facts
- Cell type
- HeLa
- Species or organism
- Human
- Tissue
- Cervix
- Form
- Liquid
- Knockout validation
- Western blot
- Mutation description
- Knockout achieved by using CRISPR/Cas9, 1 bp insertion in exon 1 and 95 bp insertion in exon 1
- Disease
- Adenocarcinoma
- Concentration
Properties
- Gene name
- TOMM70
- Gene editing type
- Knockout
- Gene editing method
- CRISPR technology
- Knockout validation
- Western blot
Quality control
- STR analysis
- CSF1PO, D13S317, D7S820, D5S818, TH01, D16S539, TPOX
Cell culture
- Biosafety level
- EU: 2 US: 2
- Adherent/suspension
- Adherent
- Gender
- Female
Handling procedures
- Initial handling guidelines
Upon arrival, the vial should be stored in liquid nitrogen vapor phase and not at -80°C. Storage at -80°C may result in loss of viability.
1. Thaw the vial in 37°C water bath for approximately 1-2 minutes.
2. Transfer the cell suspension (0.8 mL) to a 15 mL/50 mL conical sterile polypropylene centrifuge tube containing 8.4 mL pre-warmed culture medium, wash vial with an additional 0.8 mL culture medium (total volume 10 mL) to collect remaining cells, and centrifuge at 201 x g (rcf) for 5 minutes at room temperature. 10 mL represents minimum recommended dilution. 20 mL represents maximum recommended dilution.
3. Resuspend the cell pellet in 5 mL pre-warmed culture medium and count using a haemocytometer or alternative cell counting method seed all remaining cells into a T25.
4. Incubate the culture at 37°C incubator with 5% CO2. Check the culture one day after revival and continue to check until 80% confluent. Media change can be given if needed.
5. Once confluent passage into an appropriate flask at a density of 2x104 cells/cm2. Seeding density is given as a guide only and should be scaled to align with individual lab schedules. Cultures should be monitored daily.- Subculture guidelines
- All seeding densities should be based on cell counts gained by established methods.
- A guide seeding density of 2x104 cells/cm2 is recommended.
- Cells should be passaged when they have achieved 80-90% confluence.
- Culture medium
- DMEM (High Glucose) + 10% FBS
- Cryopreservation medium
- Cell Freezing Medium-DMSO Serum free media, contains 8.7% DMSO in MEM supplemented with methyl cellulose.
Storage
- Shipped at conditions
- Dry Ice
- Appropriate short-term storage conditions
- -196°C
- Appropriate long-term storage conditions
- -196°C
Notes
We will provide viable cells that proliferate on revival.
This product is subject to limited use licenses from The Broad Institute, ERS Genomics Limited and Sigma-Aldrich Co. LLC, and is developed with patented technology. For full details of the licenses and patents please refer to our limited use license and patent pages.
Product promise
We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.
In the unlikely event of one of our products not working as expected, you are covered by our product promise.
Full details and terms and conditions can be found here:
Terms & Conditions.
3 product images

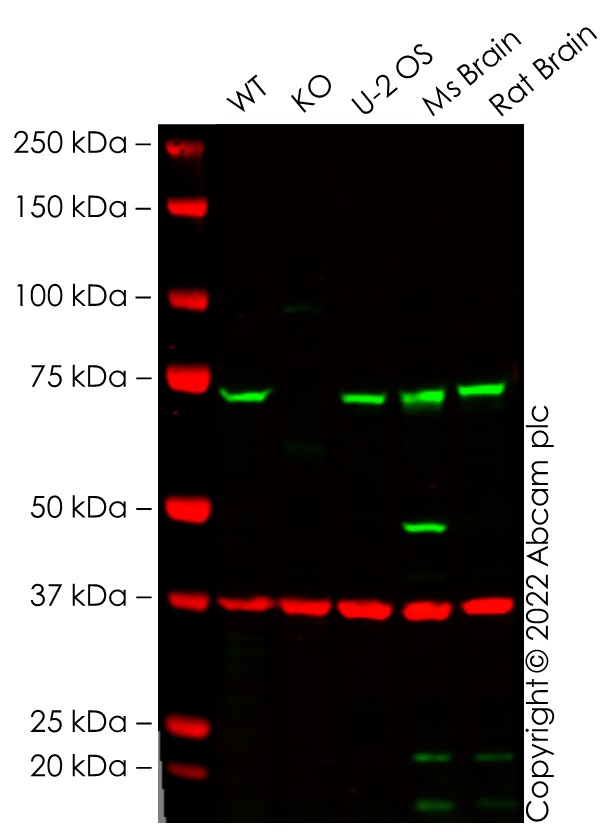

Western blot - Human TOMM70A (TOM70) knockout HeLa cell line (ab265396)
False colour image of Western blot: Anti-TOM70 antibody [EPR26576-162] staining at 1/1000 dilution, shown in green; Mouse anti-GAPDH antibody [6C5] (Anti-GAPDH antibody [6C5] - Loading Control ab8245) loading control staining at 1/20000 dilution, shown in red. In Western blot, Anti-TOM70 antibody [EPR26576-162] ab289977 was shown to bind specifically to TOM70. A band was observed at 72 kDa in wild-type HeLa cell lysates with no signal observed at this size in TOMM70 knockout cell line ab265396 (knockout cell lysate Human TOMM70A (TOM70) knockout HeLa cell lysate ab258732). To generate this image, wild-type and TOMM70 knockout HeLa cell lysates were analysed. First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3 % milk in TBS-0.1 % Tween® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution.
All lanes: Western blot - Anti-TOM70 antibody [EPR26576-162] (Anti-TOM70 antibody [EPR26576-162] ab289977) at 1/1000 dilution
Lane 1: Wild-type HeLa cell lysate at 20 µg
Lane 2: Western blot - Human TOMM70A (TOM70) knockout HeLa cell lysate (Human TOMM70A (TOM70) knockout HeLa cell lysate ab258732) at 20 µg
Lane 3: U-2 OS cell lysate at 20 µg
Lane 4: Mouse Brain cell lysate at 20 µg
Lane 5: Rat Brain cell lysate at 20 µg
SecondaryAll lanes: Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution
Predicted band size: 67 kDa
Observed band size: 72 kDa
Sanger Sequencing - Human TOMM70A (TOM70) knockout HeLa cell line (ab265396)
Allele-1: 1 bp insertion in exon 1.
Sanger Sequencing - Human TOMM70A (TOM70) knockout HeLa cell line (ab265396)
Allele-2: 95 bp insertion in exon 1.
