Human VDAC1 (Porin) knockout HEK-293T cell line
- Advanced Validation
- What is this?
Be the first to review this product! Submit a review
|
(0 Publication)
VDAC1 KO cell line available to order. KO validated by Western blot. Free of charge wild type control provided. Knockout achieved by using CRISPR/Cas9, Homozygous: 2 bp deletion in exon 2.
View Alternative Names
MGC111064, Mitochondrial Porin, N2441, OMP2, Outer mitochondrial membrane protein porin 1, Plasmalemmal porin, Porin 31HL, Porin 31HM, VDAC, VDAC1_HUMAN, Voltage dependent anion channel 1, Voltage-dependent anion-selective channel protein 1, YNL055C, YNL2441C, hVDAC1
- WB
Unknown

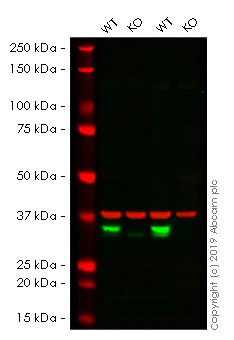

Western blot - Human VDAC1 (Porin) knockout HEK-293T cell line (AB255444)
Lanes 1-4 : Merged signal (red and green). Green - ab14734 observed at 17 kDa. Red - loading control ab181602 observed at 37 kDa.
ab14734 was shown to react with VDAC1 / Porin in HEK-293T wildtype. Loss of signal was observed when knockout sample ab263839 was used. Wild-type and VDAC1 / Porin knockout samples were subjected to SDS-PAGE. ab14734 and Anti-GAPDH antibody EPR16891] - Loading Control (ab181602) were incubated overnight at 4° at 1 in 1000 dilution and 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed (ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.
All lanes:
Western blot - Anti-VDAC1/Porin + VDAC3 antibody [20B12AF2] - Mitochondrial Loading Control (<a href='/en-us/products/primary-antibodies/vdac1-porin-vdac3-antibody-20b12af2-mitochondrial-loading-control-ab14734'>ab14734</a>) at 1/1000 dilution
Lane 1:
Wild-type Hap1 cell lysate at 20 µg
Lane 2:
VDAC1 knockout Hap1 cell lysate at 20 µg
Lane 2:
Western blot - Human VDAC1 (Porin) knockout HEK-293T cell line (ab255444)
Lane 3:
Wild-type HEK-293T cell lysate at 20 µg
Lane 4:
VDAC1 knockout HEK-293T cell lysate at 20 µg
Secondary
All lanes:
Western blot - Goat anti-Mouse IgG H&L (IRDye® 800CW) preadsorbed (<a href='/en-us/products/secondary-antibodies/goat-mouse-igg-h-l-irdye-800cw-preadsorbed-ab216772'>ab216772</a>) at 1/20000 dilution
Predicted band size: 31 kDa
Observed band size: 17 kDa,37 kDa
false
- Sanger seq
Unknown
Sanger Sequencing - Human VDAC1 (Porin) knockout HEK-293T cell line (AB255444)
Homozygous : 2 bp deletion in exon2
Reactivity data
Product details
Recommended control: Human wild-type HEK293T cell line (ab255449). Please note a wild-type cell line is not automatically included with a knockout cell line order, if required please add recommended wild-type cell line at no additional cost using the code WILDTYPE-TMTK1.
We will provide viable cells that proliferate on revival.
This product is subject to limited use licenses from The Broad Institute and ERS Genomics Limited, and is developed with patented technology. For full details of the limited use licenses and relevant patents please refer to our limited use license and patent pages.
What's included?
Properties and storage information
Gene name
Gene editing type
Gene editing method
Knockout validation
Zygosity
Shipped at conditions
Appropriate short-term storage conditions
Appropriate long-term storage conditions
Handling procedures
Initial handling guidelines
Upon arrival, the vial should be stored in liquid nitrogen vapor phase and not at -80°C. Storage at -80°C may result in loss of viability.
1. Thaw the vial in 37°C water bath for approximately 1-2 minutes.
2. Transfer the cell suspension (0.8 mL) to a 15 mL/50 mL conical sterile polypropylene centrifuge tube containing 8.4 mL pre-warmed culture medium, wash vial with an additional 0.8 mL culture medium (total volume 10 mL) to collect remaining cells, and centrifuge at 201 x g (rcf) for 5 minutes at room temperature. 10 mL represents minimum recommended dilution. 20 mL represents maximum recommended dilution.
3. Resuspend the cell pellet in 5 mL pre-warmed culture medium and count using a haemocytometer or alternative cell counting method seed all remaining cells into a T25.
4. Incubate the culture at 37°C incubator with 5% CO2. Check the culture one day after revival and continue to check until 80% confluent. Media change can be given if needed.
5. Once confluent passage into an appropriate flask at a density of 2x104 cells/cm2. Seeding density is given as a guide only and should be scaled to align with individual lab schedules. Cultures should be monitored daily.
Subculture guidelines
- All seeding densities should be based on cell counts gained by established methods.
- A guide seeding density of 2x104 cells/cm2 is recommended.
- Cells should be passaged when they have achieved 80-90% confluence.
Culture medium
DMEM (High Glucose) + 10% FBS
Cryopreservation medium
Cell Freezing Medium-DMSO Serum free media, contains 8.7% DMSO in MEM supplemented with methyl cellulose.
Supplementary information
This supplementary information is collated from multiple sources and compiled automatically.
Biological function summary
VDAC1 acts as a pore-forming unit within the mitochondrial membrane allowing for the passage of small hydrophilic molecules. It is not part of a larger complex but works closely with other proteins to maintain mitochondrial function. VDAC1 regulates the entry and exit of proteins and ions essential for mitochondrial homeostasis and cellular energy production. By controlling the exchange of inorganic phosphate adenine nucleotides and Ca2+ VDAC1 influences both mitochondrial and cellular metabolism.
Pathways
VDAC1 is involved in apoptosis and energy production pathways. It associates with proteins such as the Bcl-2 family in the apoptosis pathway influencing cell survival and programmed cell death. In energy production VDAC1 works in conjunction with the adenine nucleotide translocase facilitating ATP and ADP exchanges that are critical for maintaining cellular energy levels.
Quality control
STR analysis
CSF1PO, D13S317, D7S820, D5S818, TH01, D16S539, TPOX
Cell culture
Biosafety level
EU: 2 US: 2
Adherent/suspension
Adherent
Gender
Female
Target data
Product promise
Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
