ioMotor Neurons™ - Human iPSC derived cells

• FuncS

Supplier Data

Functional Studies - ioMotor Neurons™ - Human iPSC derived cells (AB317486)

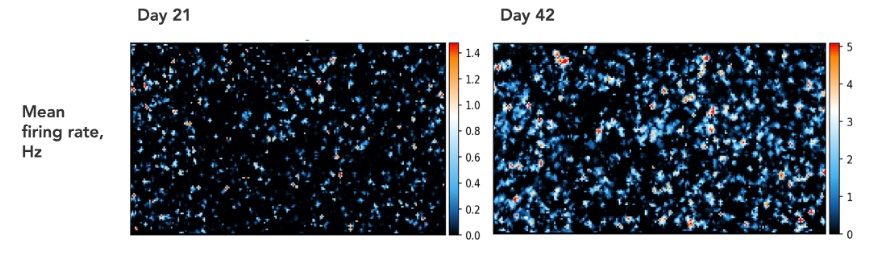

ioMotor Neurons are functional – showing activity in astrocyte co-culture that increases over time as networks mature. Mean firing rates (electrode spike count divided by the total time of the recording period) is shown to increase substantially throughout the course of the experiment, as demonstrated by multielectrode array activity (MEA).

• FuncS

Supplier Data

Functional Studies - ioMotor Neurons™ - Human iPSC derived cells (AB317486)

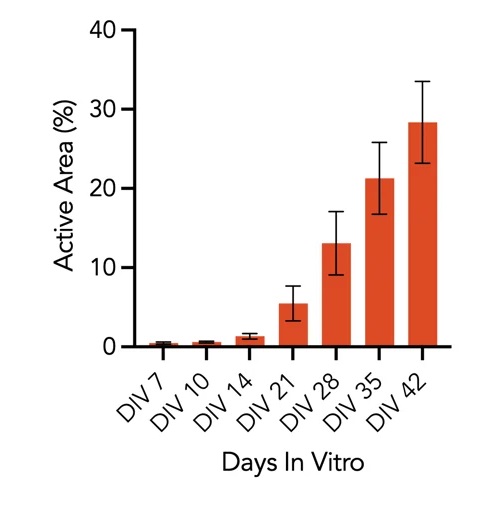

Spontaneous neuronal activity is exhibited from as early as day 14 and continues to increase up to the final measured timepoint, day 42.

• LM

Supplier Data

Light Microscopy - ioMotor Neurons™ - Human iPSC derived cells (AB317486)

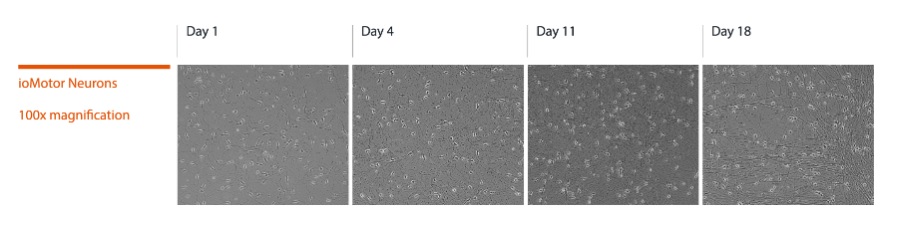

ioMotor Neurons form a homogenous neuronal network by day 4. ioMotor Neurons mature rapidly and form homogenous populations over 18 days. Day 1 to 18 post thawing; 100X magnification.

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - ioMotor Neurons™ - Human iPSC derived cells (AB317486)

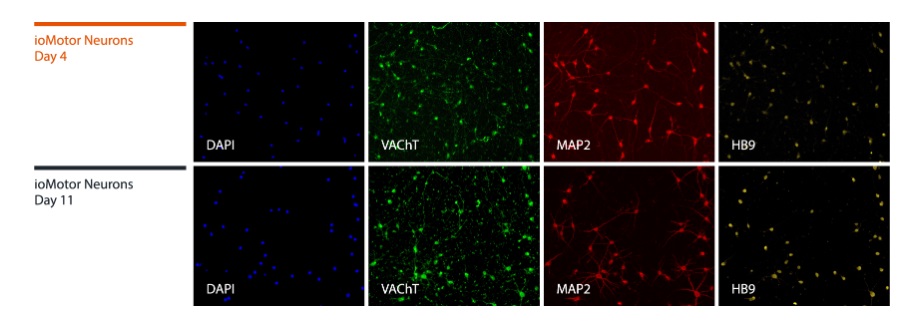

Immunocytochemistry shows protein expression of key motor neuron markers. Immunofluorescent staining on post-revival day 4 and day 11 demonstrates homogenous expression of the pan-neuronal protein MAP2, motor neuron specific marker HB9, the cholinergic marker VAChT and nuclear staining (DAPI).

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - ioMotor Neurons™ - Human iPSC derived cells (AB317486)

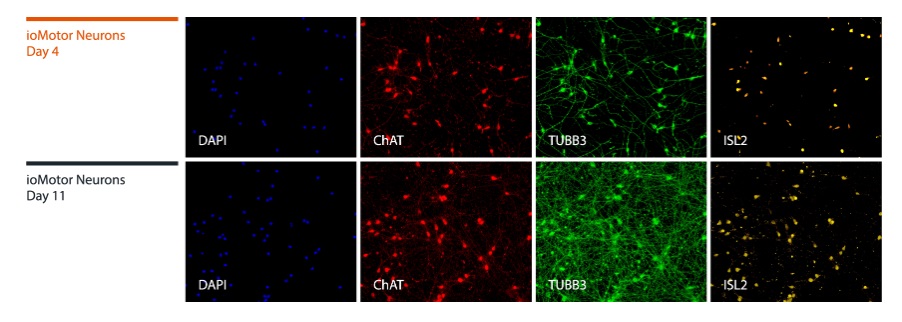

Immunocytochemistry shows protein expression of key motor neuron markers. Immunofluorescent staining on post-revival day 4 and day 11 demonstrates homogenous expression of the pan-neuronal protein TUBB3, motor neuron specific marker ISL2, the cholinergic marker ChAT and nuclear staining (DAPI).

• Sequencing

Supplier Data

Sequencing - ioMotor Neurons™ - Human iPSC derived cells (AB317486)

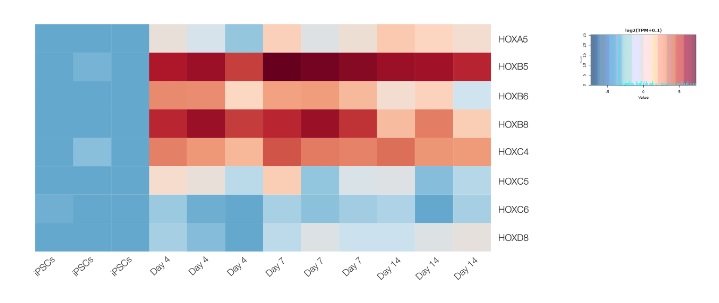

Bulk RNA-sequencing exhibits a HOX gene signature indicative of a spinal motor neuron (cervical region) identity. Expression of HOX genes was evaluated using bulk RNA sequencing data. This heatmap shows expression of genes from the B cluster and expression of HOXC4 and HOXC5, although at lower levels. This data, together with the marker expression from single cell RNA sequencing, suggests that ioMotor Neurons have a spinal cord (cervical region) identity. Note, this data is from cells in continuous culture and not cryopreserved cells.

• RT-PCR

Supplier Data

RT-PCR - ioMotor Neurons™ - Human iPSC derived cells (AB317486)

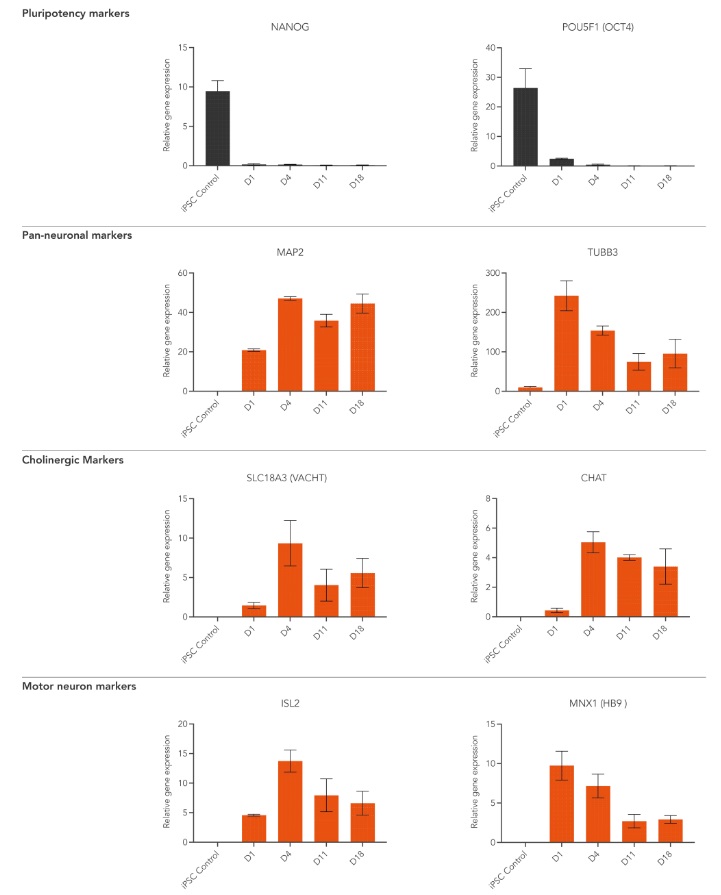

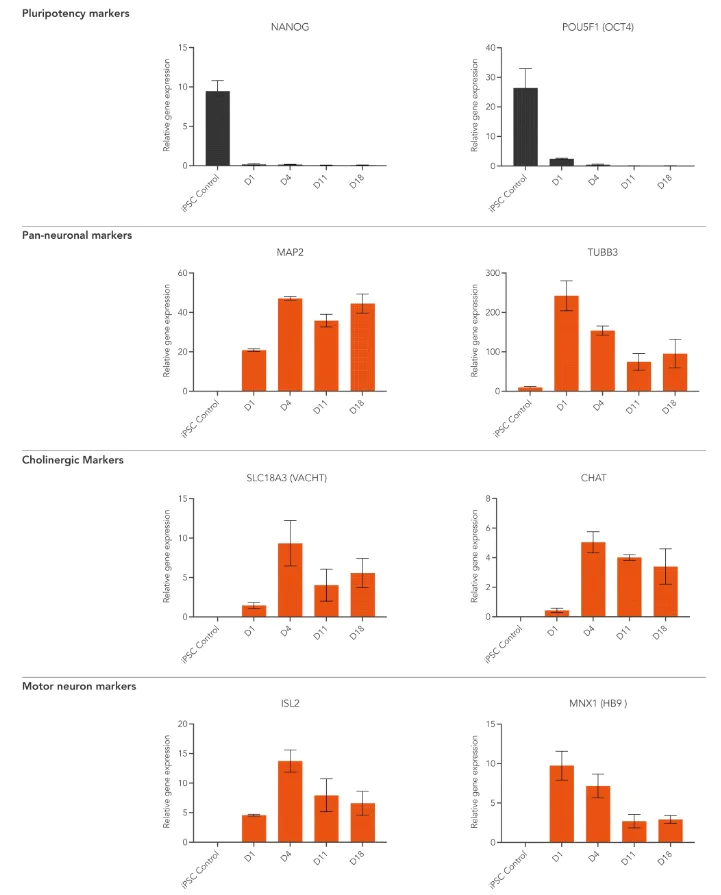

RT-qPCR shows gene expression of key motor neuron markers. RT-qPCR gene expression on post-revival days 1, 4, 11 & 18 demonstrates rapid acquisition of motor neuron genotype, shown by the expression of pan-neuronal, cholinergic & key lower motor neuron markers from as early as day 1. Pluripotency markers NANOG and OCT4 are swiftly downregulated.

• Sequencing

Supplier Data

Sequencing - ioMotor Neurons™ - Human iPSC derived cells (AB317486)

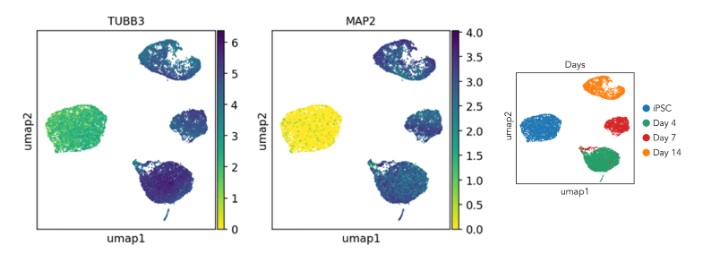

Single cell RNA-sequencing shows ioMotor Neurons form a pure population (>99.9%) of neurons.

Single cell RNA-sequencing analysis was performed with ioMotor Neurons at four timepoints : day 0 (iPSCs), 4, 7, and 14. Gene expression was assessed by 10x Genomics single cell RNA-sequencing. Note, this data is from cells in continuous culture and not cryopreserved cells. By day 14, the population has a distinct expression profile indicating a pure population (>99.9%) of post-mitotic neurons, demonstrated through the expression pan-neuronal markers MAP2 and TUBB3.

• Sequencing

Supplier Data

Sequencing - ioMotor Neurons™ - Human iPSC derived cells (AB317486)

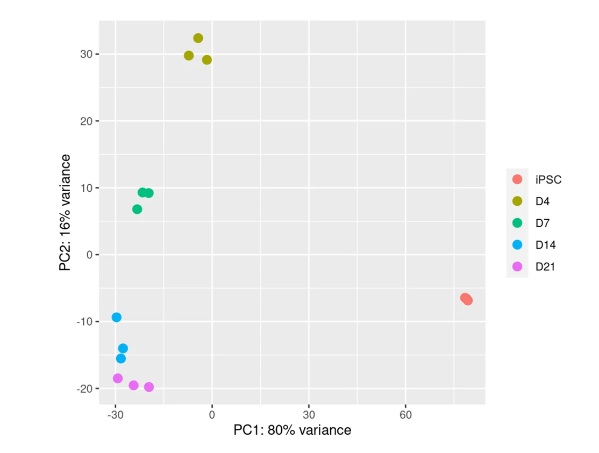

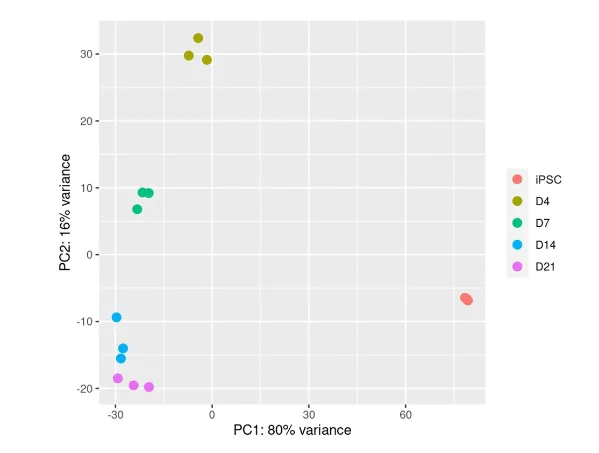

Bulk RNA-sequencing demonstrates high batch-to-batch consistency of ioMotor Neurons. Bulk RNA sequencing analysis was performed on three independent batches of ioMotor Neurons at three different time points throughout the reprogramming protocol. Principal component analysis represents the variance in gene expression between the batches of ioMotor Neurons. This analysis shows high consistency between each batch of ioMotor Neurons at each given timepoint. Populations of ioMotor Neurons with equivalent expression profiles can be generated consistently from every vial, allowing confidence in experimental reproducibility. Note, this data is from cells in continuous culture and not cryopreserved cells.

• Sequencing

Supplier Data

Sequencing - ioMotor Neurons™ - Human iPSC derived cells (AB317486)

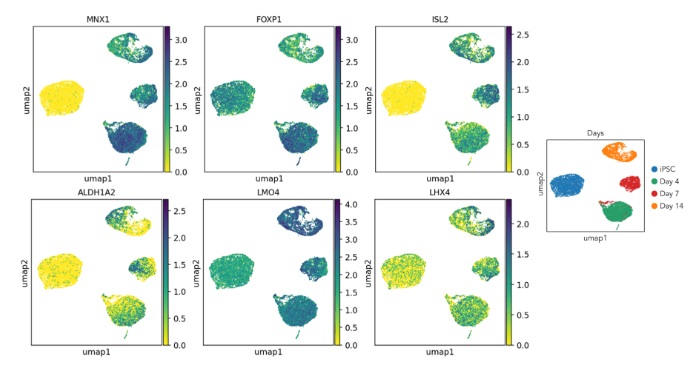

Single cell RNA-sequencing shows ioMotor Neurons express key spinal motor neuron markers, >80% of cells express MNX1 on day 14.

Starting from day 4, the expression of the key spinal motor neuron marker genes MNX1 (HB9), FOXP1, and ISL2 is detected in the culture, with >80% of cells expressing MNX1 on day 14. These percentages are likely to be an underestimation due to limitation of single cell RNA sequencing, as ICC for HB9 & ISL2 shows homogeneous expression of these markers in our cultures.

• Sequencing

Supplier Data

Sequencing - ioMotor Neurons™ - Human iPSC derived cells (AB317486)

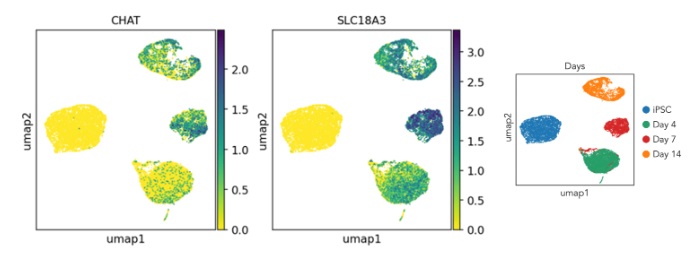

Single cell RNA-sequencing shows a high proportion of ioMotor Neurons express cholinergic markers by day 7. Within 7 days, the expression of the key cholinergic marker genes CHAT & SLC18A3 (VAChT) are detected in a high proportion of ioMotor Neurons.
