AXL KO cell lysate available now. KO validated by Western blot. Free of charge wild type control included. Knockout achieved by using CRISPR/Cas9, 1 bp insertion in exon 7.

Be the first to review this product! Submit a review

Images

Western blot - Human AXL knockout HeLa cell lysate (AB257152), expandable thumbnail
  • Sanger Sequencing - Human AXL knockout HeLa cell lysate (AB257152), expandable thumbnail

Key facts

Cell type
HeLa
Species or organism
Human
Tissue
Cervix
Knockout validation
Sanger Sequencing, Western blot
Mutation description
Knockout achieved by using CRISPR/Cas9, 1 bp insertion in exon 7.

Alternative names

What's included?

1 Kit
Components
Human AXL knockout HeLa cell lysate
1 x 100 µg
Human wild-type HeLa cell lysate
1 x 100 µg

Recommended products

AXL KO cell lysate available now. KO validated by Western blot. Free of charge wild type control included. Knockout achieved by using CRISPR/Cas9, 1 bp insertion in exon 7.

Key facts

Cell type
HeLa
Mutation description
Knockout achieved by using CRISPR/Cas9, 1 bp insertion in exon 7.
Disease
Adenocarcinoma
Concentration
Loading...

Properties

Gene name
AXL
Gene editing type
Knockout
Gene editing method
CRISPR technology
Knockout validation
Sanger Sequencing, Western blot

Quality control

STR analysis
CSF1PO, D13S317, D7S820, D5S818, TH01, D16S539, TPOX

Cell culture

Biosafety level
EU: 2 US: 2
Adherent/suspension
Adherent
Gender
Female

Storage

Shipped at conditions
Ambient - Can Ship with Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C

Notes


Knockout cell lysate achieved by CRISPR/Cas9.

Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

Lysate preparation: Our lysates are made using RIPA buffer to which we add a protease inhibitor cocktail and phosphatase inhibitor cocktail (ratio: 300:100:10). This means that the protein of interest is denatured. If you require a native form of the protein please use the live cell version. Please refer to our lysis protocol for further details on how our lysates are prepared.

User storage instructions: Lyophilizate may be stored at 4°C. After reconstitution, store at -20°C for short-term storage or -80°C for long-term storage.

This product is subject to limited use licenses from The Broad Institute, ERS Genomics Limited and Sigma-Aldrich Co. LLC, and is developed with patented technology. For full details of the licenses and patents please refer to our limited use license and patent pages.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

The Axl protein also known as AXL receptor tyrosine kinase plays a significant role in cell signaling. It has a molecular weight of approximately 98 kDa. Axl is a transmembrane receptor that is expressed in a variety of tissues including the immune system reproductive organs and the central nervous system. It is mainly recognized for transmitting signals from the extracellular matrix into the cytoplasm by binding with its ligand Gas6.

Biological function summary

Axl is important in mediating cell survival proliferation and migration. It functions as part of the TAM family of receptors which also includes Tyro3 and Mer. Axl often forms complexes with these receptors to facilitate efficient signaling. This interaction triggers phosphorylation events that activate downstream signaling proteins reinforcing its influence in cellular functions.

Pathways

Axl is deeply involved in the PI3K-Akt and MAPK signaling pathways which are central to cellular growth and survival. In these pathways Axl interacts closely with proteins like PI3K and Akt to regulate processes such as apoptosis and metabolism. Its interaction with these pathways places Axl as an important modulator of intracellular signaling cascades.

Associated diseases and disorders

Axl has been implicated in cancer progression and immune response dysregulation. In many cancer types Axl overexpression links to tumor invasion metastasis and resistance to therapy. Moreover Axl’s role in autoimmune diseases becomes evident through its association with the Gas6 protein. Exploring these connections furthers understanding of how Axl's aberrant activity influences health and disease.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

2 product images

  • Western blot - Human AXL knockout HeLa cell lysate (ab257152), expandable thumbnail

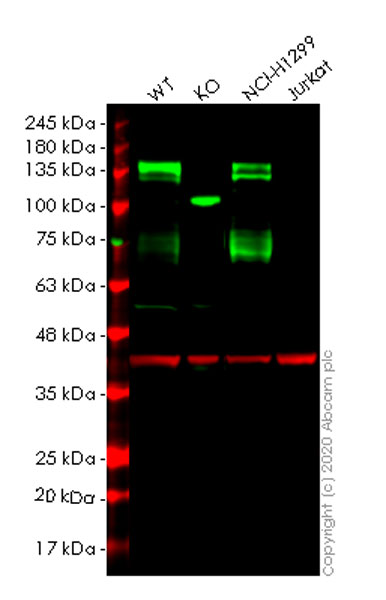

    Western blot - Human AXL knockout HeLa cell lysate (ab257152)

    Western blot: Anti-Axl antibody [EPR21107] (Anti-Axl antibody [EPR21107] ab215205) staining at 1:1000 dilution, shown in green; Anti-GAPDH antibody [6C5] - Loading Control (Anti-GAPDH antibody [6C5] - Loading Control ab8245) shown in red.

    Anti-Axl antibody [EPR21107] ab215205 was shown to bind specifically to Axl. A band was observed at 140 kDa in wild-type HeLa cell lysates with no signal observed at this size in Axl CRISPR-Cas9 edited cell line Human AXL knockout HeLa cell line ab265392 (CRISPR-Cas9 edited cell lysate ab257152). The band observed in the CRISPR-Cas9 edited lysate lane below 90 kDa is likely to represent a truncated form of Axl. This has not been investigated further and the functional properties of the gene product have not been determined.

    Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit IgG H&L (IRDye® 800CW) preabsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) and Goat anti-Mouse IgG H&L (IRDye® 680RD) preabsorbed (Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776) at 1/10000 dilution.

    All lanes: Western blot - Anti-Axl antibody [EPR21107] (Anti-Axl antibody [EPR21107] ab215205) at 1/1000 dilution

    Lane 1: Wild-type HeLa cell lysate at 20 µg

    Lane 2: AXL knockout HeLa cell lysate at 20 µg

    Lane 2: Western blot - Human AXL knockout HeLa cell line (Human AXL knockout HeLa cell line ab265392)

    Lane 2: Western blot - Human AXL knockout HeLa cell lysate (ab257152)

    Lane 3: NCI-H1299 cell lysate at 20 µg

    Lane 4: Jurkat cell lysate at 20 µg

    Performed under reducing conditions.

    Predicted band size: 98 kDa

    Observed band size: 80140 kDa

  • Sanger Sequencing - Human AXL knockout HeLa cell lysate (ab257152), expandable thumbnail

    Sanger Sequencing - Human AXL knockout HeLa cell lysate (ab257152)

    Homozygous: 1 bp insertion in exon 7.
