CLOCK KO cell lysate available now. Free of charge wild type control included. Knockout achieved by using CRISPR/Cas9, 1 bp deletion in exon11.

Be the first to review this product! Submit a review

Images

Western blot - Human CLOCK (KAT13D) knockout HeLa cell lysate (AB258364), expandable thumbnail
  • Sanger Sequencing - Human CLOCK (KAT13D) knockout HeLa cell lysate (AB258364), expandable thumbnail

Key facts

Cell type
HeLa
Species or organism
Human
Tissue
Cervix
Knockout validation
Sanger Sequencing
Mutation description
Knockout achieved by using CRISPR/Cas9, 1 bp deletion in exon11.

Alternative names

What's included?

1 Kit
Components
Human CLOCK knockout HeLa cell lysate
1 x 100 µg
Human wild-type HeLa cell lysate
1 x 100 µg

Recommended products

CLOCK KO cell lysate available now. Free of charge wild type control included. Knockout achieved by using CRISPR/Cas9, 1 bp deletion in exon11.

Key facts

Cell type
HeLa
Mutation description
Knockout achieved by using CRISPR/Cas9, 1 bp deletion in exon11.
Disease
Adenocarcinoma
Concentration
Loading...

Properties

Gene name
CLOCK
Gene editing type
Knockout
Gene editing method
CRISPR technology
Knockout validation
Sanger Sequencing

Quality control

STR analysis
CSF1PO, D13S317, D7S820, D5S818, TH01, D16S539, TPOX

Cell culture

Biosafety level
EU: 2 US: 2
Adherent/suspension
Adherent
Gender
Female

Storage

Shipped at conditions
Ambient - Can Ship with Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C

Notes


Knockout cell lysate achieved by CRISPR/Cas9.

Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

Lysate preparation: Our lysates are made using RIPA buffer to which we add a protease inhibitor cocktail and phosphatase inhibitor cocktail (ratio: 300:100:10). This means that the protein of interest is denatured. If you require a native form of the protein please use the live cell version. Please refer to our lysis protocol for further details on how our lysates are prepared.

User storage instructions: Lyophilizate may be stored at 4°C. After reconstitution, store at -20°C for short-term storage or -80°C for long-term storage.

This product is subject to limited use licenses from The Broad Institute and ERS Genomics Limited, and is developed with patented technology. For full details of the limited use licenses and relevant patents please refer to our limited use license and patent pages.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

KAT13D also known as CLOCK is a gene coding for a protein weighing approximately 97 kDa. The CLOCK protein mainly functions as a transcription factor with histone acetyltransferase activity hence its involvement in chromatin remodeling. This protein is highly expressed in the suprachiasmatic nucleus of the brain pancreas and heart. It regulates expression of genes through folding DNA and influencing transcriptional activity playing a significant role in maintaining circadian rhythms. Scientists often use phrases such as 'anti-CLOCK' 'anticlock' or 'anti-clock' when studying its mechanisms as these highlight the protein's regulatory role.

Biological function summary

The CLOCK protein acts as an important component of the circadian rhythm machinery. It forms a heterodimer complex with BMAL1 which activates transcription of other core clock genes. This process drives the rhythmic expression of various genes essential for physiological and behavioral rhythms. Through this function CLOCK influences the timing of many body systems such as sleep-wake cycles feeding and metabolism. By doing so it sets a steady rhythm to coordinate bodily processes with environmental light-dark cycles ensuring optimal biological activity during appropriate times of the day.

Pathways

The CLOCK protein plays an important role in the circadian signaling pathway where its function involves intricate feedback loops. It controls the oscillation of gene expression alongside other clock proteins like PER and CRY. This feedback mechanism is part of the circadian rhythm regulation pathway which directly influences processes such as hormone regulation and cell cycle progression. CLOCK’s relationship with BMAL1 PER and CRY in these pathways highlights its indispensable role in maintaining the synchronization of endogenous biological rhythms with external time cues.

Associated diseases and disorders

Disruption of the CLOCK gene is associated with diseases such as sleep disorders and mood disorders. Alterations in CLOCK function can lead to irregular sleep patterns such as in the case of delayed sleep phase disorder owing to its role in the circadian timing system. Moreover irregular rhythms in CLOCK expression have been linked to mood disorders like bipolar disorder. The association between CLOCK dysfunction and these disorders highlights its importance alongside its interaction with proteins like CRY and PER in maintaining mental health stability.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

2 product images

  • Western blot - Human CLOCK (KAT13D) knockout HeLa cell lysate (ab258364), expandable thumbnail

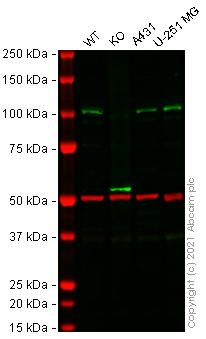

    Western blot - Human CLOCK (KAT13D) knockout HeLa cell lysate (ab258364)

    Lane 1: Wild-type HeLa cell lysate 20 μg
    Lane 2: CLOCK knockout HeLa cell lysate 20 μg
    Lane 3: A431 cell lysate 20 μg
    Lane 4: U-251 MG cell lysate 20 μg
    False colour image of Western blot: Anti-KAT13D / CLOCK antibody staining at 1/2000 dilution, shown in green; Mouse anti-Alpha Tubulin [DM1A] (Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291) loading control staining at 1/20000 dilution, shown in red. In Western blot, Anti-KAT13D / CLOCK antibody ab93804 was shown to bind specifically to KAT13D / CLOCK. A band was observed at 100 kDa in wild-type HeLa cell lysates with no signal observed at this size in CLOCK knockout cell line Human CLOCK (KAT13D) knockout HeLa cell line ab265301 (knockout cell lysate ab258364). The band observed in the knockout lysate lane below 100 kDa is likely to represent a truncated form of KAT13D / CLOCK. This has not been investigated further and the functional properties of the gene product have not been determined. To generate this image, wild-type and CLOCK knockout HeLa cell lysates were analysed.First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 5 % milk in TBS-0.1 % Tween® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit IgG H&L (IRDye® 800CW) preabsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) and Goat anti-Mouse IgG H&L (IRDye® 680RD) preabsorbed (Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776) at 1/20000 dilution.

    All lanes: Western blot - Anti-KAT13D / CLOCK antibody (Anti-KAT13D / CLOCK antibody ab93804) at 1/2000 dilution

    Lane 1: Wild-type HeLa cell lysate at 20 µg

    Lane 2: CLOCK knockout HeLa cell lysate at 20 µg

    Lane 2: Western blot - Human CLOCK (KAT13D) knockout HeLa cell line (Human CLOCK (KAT13D) knockout HeLa cell line ab265301)

    Lane 3: A431 cell lysate at 20 µg

    Lane 4: U-251 MG cell lysate at 20 µg

    Performed under reducing conditions.

    Predicted band size: 95 kDa

    Observed band size: 100 kDa

  • Sanger Sequencing - Human CLOCK (KAT13D) knockout HeLa cell lysate (ab258364), expandable thumbnail

    Sanger Sequencing - Human CLOCK (KAT13D) knockout HeLa cell lysate (ab258364)

    Homozygous: 1 bp deletion in exon11
