Human IRS2 knockout HEK-293 cell lysate
Be the first to review this product! Submit a review
|
(0 Publication)
- WB
Lab

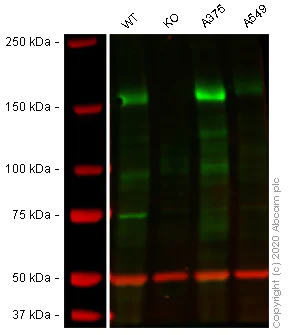

Western blot - Human IRS2 knockout HEK-293 cell lysate (AB264506)
Lane 1 : Wild-type HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate 20 ug
Lane 2 : IRS2 knockout HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate 20 ug
Lane 3 : A-375 cell lysate 20 ug
Lane 4 : A549 (Human lung carcinoma cell line) whole cell lysate 20 ug
Lanes 1 - 4 : Merged signal (red and green). Green - ab134101 observed at 160 kDa. Red - loading control ab7291 (Mouse anti-Alpha Tubulin [DM1A]) observed at 55kDa.
ab134101 was shown to react with IRS2 in wild-type HEK-293 cells in western blot with loss of signal observed in IRS2 knockout cell line ab264013 (knockout cell lysate ab264506). Wild-type and IRS2 knockout HEK-293 cell lysates were subjected to SDS-PAGE. Membranes were blocked in 3% milk in TBS-T (0.1% Tween®) before incubation with ab134101 and ab7291 (Mouse anti-Alpha Tubulin [DM1A]) overnight at 4°C at a 1 in 1000 dilution and a 1 in 20000 dilution respectively. Blots were incubated with Goat anti-Rabbit IgG H&L (IRDye® 800CW) preabsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye® 680RD) preabsorbed (ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.
All lanes:
Western blot - Anti-IRS2 antibody [EPR904(2)] (<a href='/en-us/products/primary-antibodies/irs2-antibody-epr9042-ab134101'>ab134101</a>) at 1/1000 dilution
Lane 1:
Wild-type HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate at 20 µg
Lane 2:
IRS2 knockout HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate at 20 µg
Lane 2:
Western blot - Human IRS2 knockout HEK-293 cell line (<a href='/en-us/products/cell-lines/human-irs2-knockout-hek-293-cell-line-ab264013'>ab264013</a>)
Lane 3:
A-375 cell lysate at 20 µg
Lane 4:
A549 (Human lung carcinoma cell line) whole cell lysate at 20 µg
Predicted band size: 137 kDa,25 kDa
Observed band size: 160 kDa
false
- WB
Lab

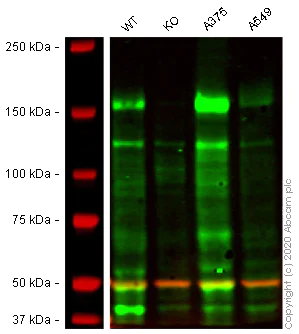

Western blot - Human IRS2 knockout HEK-293 cell lysate (AB264506)
Lane 1 : Wild-type HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate 20 ug
Lane 2 : IRS2 knockout HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate 20 ug
Lane 3 : A-375 cell lysate 20 ug
Lane 4 : A549 (Human lung carcinoma cell line) whole cell lysate 20 ug
Lanes 1 - 4 : Merged signal (red and green). Green - ab133276 observed at 160 kDa. Red - loading control ab7291 (Mouse anti-Alpha Tubulin [DM1A]) observed at 55kDa.
ab133276 was shown to react with IRS2 in wild-type HEK-293 cells in western blot with loss of signal observed in IRS2 knockout cell line ab264013 (knockout cell lysate ab264506). Wild-type and IRS2 knockout HEK-293 cell lysates were subjected to SDS-PAGE. Membranes were blocked in 3% milk in TBS-T (0.1% Tween®) before incubation with ab133276 and ab7291 (Mouse anti-Alpha Tubulin [DM1A]) overnight at 4°C at a 1 in 1000 dilution and a 1 in 20000 dilution respectively. Blots were incubated with Goat anti-Rabbit IgG H&L (IRDye® 800CW) preabsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye® 680RD) preabsorbed (ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.
All lanes:
Western blot - Anti-IRS2 antibody [EPR1650(2)] (<a href='/en-us/products/primary-antibodies/irs2-antibody-epr16502-ab133276'>ab133276</a>) at 1/1000 dilution
Lane 1:
Wild-type HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate at 20 µg
Lane 2:
IRS2 knockout HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate at 20 µg
Lane 2:
Western blot - Human IRS2 knockout HEK-293 cell line (<a href='/en-us/products/cell-lines/human-irs2-knockout-hek-293-cell-line-ab264013'>ab264013</a>)
Lane 3:
A-375 cell lysate at 20 µg
Lane 4:
A549 (Human lung carcinoma cell line) whole cell lysate at 20 µg
Predicted band size: 137 kDa
Observed band size: 160 kDa
false
Complementary Products
Cell Lines & Lysates
AB261678
Human SLC2A1 (Glucose Transporter GLUT1) knockout A549 cell lysate
- 0
- 0
Reactivity data
Product details
Knockout cell lysate achieved by CRISPR/Cas9.
REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.
Lysate preparation: Our lysates are made using RIPA buffer to which we add a protease inhibitor cocktail and phosphatase inhibitor cocktail (ratio: 300:100:10). This means that the protein of interest is denatured. If you require a native form of the protein please use the live cell version. Please refer to our lysis protocol for further details on how our lysates are prepared.
User storage instructions: Lyophilizate may be stored at 4°C. After reconstitution, store at -20°C for short-term storage or -80°C for long-term storage.
This product is subject to limited use licenses from The Broad Institute and ERS Genomics Limited, and is developed with patented technology. For full details of the limited use licenses and relevant patents please refer to our limited use license and patent pages.
What's included?
Properties and storage information
Gene name
Gene editing type
Gene editing method
Knockout validation
Shipped at conditions
Appropriate short-term storage conditions
Appropriate long-term storage conditions
Supplementary information
This supplementary information is collated from multiple sources and compiled automatically.
Biological function summary
IRS2 acts in signal transduction and is a part of the insulin and insulin-like growth factor signaling pathways. IRS2 does not function alone but interacts with other molecules to propagate signals that regulate cellular processes. It is essential for glucose homeostasis and lipid metabolism playing a critical role in maintaining energy balance within the organism. IRS2 also mediates other biological processes like cell growth and differentiation.
Pathways
With regards to pathways IRS2 is involved in the insulin signaling and mTOR pathways. It serves as an important junction between metabolic and growth-promoting signals. Activation of IRS2 through insulin receptors leads to downstream signaling involving PI3K and Akt essential for mediating metabolic actions of insulin. It also interacts with mTOR a central protein in cell growth regulation. These pathways illustrate the integration of IRS2 in broader cellular responses to growth signals and energy availability.
Quality control
STR analysis
CSF1PO, D13S317, D7S820, D5S818, TH01, D16S539, TPOX
Cell culture
Biosafety level
EU: 2 US: 2
Adherent/suspension
Adherent
Gender
Female
