Human PDE4B knockout HeLa cell lysate
Be the first to review this product! Submit a review
|
(0 Publication)
PDE4B KO cell lysate available now. KO validated by Western blot. Free of charge wild type control included. Knockout achieved by using CRISPR/Cas9, 19 bp deletion in exon12 and 1 bp insertion in exon12.
View Alternative Names
5''-cyclic phosphodiesterase 4B, DKFZp686F2182, DPDE4, MGC126529, OTTHUMP00000010652, OTTHUMP00000010653, OTTHUMP00000010654, OTTHUMP00000010656, OTTHUMP00000232365, PDE IVB, PDE32, PDE4B5, PDE4B_HUMAN, Phosphodiesterase 4B, Phosphodiesterase 4B cAMP specific, Phosphodiesterase 4B, cAMP specific (phosphodiesterase E4 dunce homolog, Drosophila), cAMP-specific 3'', cAMP-specific 3',5'-cyclic phosphodiesterase 4B, cAMP-specific phosphodiesterase-4 B isoform, dunce-like phosphodiesterase E4
- WB
Lab

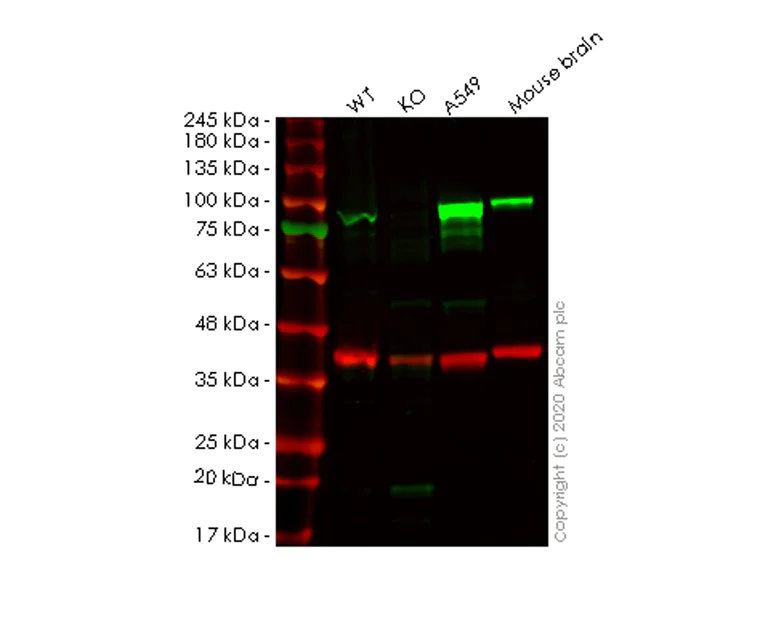

Western blot - Human PDE4B knockout HeLa cell lysate (AB257576)
Lane 1 : Wild-type HeLa cell lysate (20 ug)
Lane 2 : PDE4B knockout HeLa cell lysate (20 ug)
Lane 3 : A549 cell lysate (20 ug)
Lane 4 : Mouse brain tissue lysate (20 ug)
ab170939 was shown to specifically react with PDE4B in wild-type HeLa cells. Loss of signal was observed when knockout cell line ab265259 (knockout cell lysate ab257576) was used. Wild-type and PDE4B knockout samples were subjected to SDS-PAGE. ab170939 and Anti-GAPDH antibody [6C5] - Loading Control (ab8245) were incubated overnight at 4oC at 1 in 500 dilution and 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed (ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.
All lanes:
Western blot - Anti-PDE4B antibody [EPR11830] (<a href='/en-us/products/primary-antibodies/pde4b-antibody-epr11830-ab170939'>ab170939</a>) at 1/500 dilution
Lane 1:
Wild-type HeLa cell lysate at 20 µg
Lane 2:
PDE4B knockout HeLa cell lysate at 20 µg
Lane 2:
Western blot - Human PDE4B knockout HeLa cell line (<a href='/en-us/products/cell-lines/human-pde4b-knockout-hela-cell-line-ab265259'>ab265259</a>)
Lane 3:
A549 cell lysate at 20 µg
Lane 4:
Mouse brain tissue lysate at 20 µg
Secondary
All lanes:
Western blot - Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-irdye-800cw-preadsorbed-ab216773'>ab216773</a>) at 1/10000 dilution
Predicted band size: 83 kDa
Observed band size: 83 kDa
false
- Sanger seq
Unknown
Sanger Sequencing - Human PDE4B knockout HeLa cell lysate (AB257576)
Allele-2 : 1 bp insertion in exon12
- Sanger seq
Unknown
Sanger Sequencing - Human PDE4B knockout HeLa cell lysate (AB257576)
Allele-1 : 19 bp deletion in exon12
Reactivity data
Product details
Knockout cell lysate achieved by CRISPR/Cas9.
REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.
Lysate preparation: Our lysates are made using RIPA buffer to which we add a protease inhibitor cocktail and phosphatase inhibitor cocktail (ratio: 300:100:10). This means that the protein of interest is denatured. If you require a native form of the protein please use the live cell version. Please refer to our lysis protocol for further details on how our lysates are prepared.
User storage instructions: Lyophilizate may be stored at 4°C. After reconstitution, store at -20°C for short-term storage or -80°C for long-term storage.
This product is subject to limited use licenses from The Broad Institute, ERS Genomics Limited and Sigma-Aldrich Co. LLC, and is developed with patented technology. For full details of the licenses and patents please refer to our limited use license and patent pages.
What's included?
Properties and storage information
Gene name
Gene editing type
Gene editing method
Knockout validation
Shipped at conditions
Appropriate short-term storage conditions
Appropriate long-term storage conditions
Supplementary information
This supplementary information is collated from multiple sources and compiled automatically.
Biological function summary
PDE4B plays a significant role in modulating intracellular signaling by controlling the levels of cAMP a second messenger involved in various cellular processes. As part of the larger PDE4 family complex PDE4B assists in fine-tuning immune responses and inflammatory processes. This enzyme modulates the activity of protein kinase A (PKA) impacting processes such as cell proliferation differentiation and apoptosis.
Pathways
PDE4B operates within the cAMP signaling pathway which is essential for transducing extracellular signals into cellular responses. This pathway involves interaction with other proteins such as PKA and CREB (cAMP response element-binding protein) which are critical for regulating gene expression and cellular functions. PDE4B's ability to modulate this pathway makes it fundamental in controlling the dynamics of cellular signaling.
Quality control
STR analysis
CSF1PO, D13S317, D7S820, D5S818, TH01, D16S539, TPOX
Cell culture
Biosafety level
EU: 2 US: 2
Adherent/suspension
Adherent
Gender
Female
