AB261661

Human PHF6 (PHD finger protein 6) knockout HEK-293 cell lysate

Be the first to review this product! Submit a review

|

(0 Publication)

PHF6 KO cell lysate available now. KO validated by Next Generation Sequencing, Western blot. Free of charge wild type control included. Knockout achieved by CRISPR/Cas9 X = 1 bp deletion.
2 Images

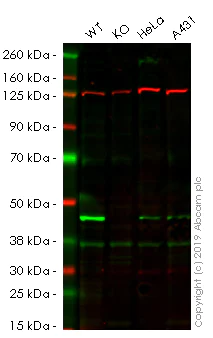

Western blot - Human PHF6 (PHD finger protein 6) knockout HEK-293 cell lysate (AB261661)
  • WB

Lab

Western blot - Human PHF6 (PHD finger protein 6) knockout HEK-293 cell lysate (AB261661)

Lane 1 : Wild-type HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate 20 ug

Lane 2 : PHF6 knockout HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate 20 ug

Lane 3 : HeLa (Human epithelial cell line from cervix adenocarcinoma) whole cell lysate 20 ug

Lane 4 : A-431 (Human epidermoid carcinoma cell line) whole cell lysate 20 ug

Lanes 1 - 4 : Merged signal (red and green). Green - ab170929 observed at 41 kDa. Red - loading control, ab130007, observed at 130 kDa.

ab170929 was shown to recognize PHD finger protein 6/PHF6 in wild-type HEK-293 cells as signal was lost at the expected MW in PHF6 knockout cell line ab261722 (knockout cell lysate ab261661). Additional cross-reactive bands were observed in the wild-type and knockout cell lysate. Wild-type and PHF6 knockout samples were subjected to SDS-PAGE. The membrane was blocked with 3% milk. ab170929 and ab130007 (Mouse anti Vinculin loading control) were incubated overnight at 4°C at 1/5000 dilution and 1/20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye® 800CW) preabsorbed ab216773 and Goat anti-Mouse IgG H&L (IRDye® 680RD) preabsorbed ab216776 secondary antibodies at 1/20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-PHD finger protein 6/PHF6 antibody [EPR11996(B)] (<a href='/en-us/products/primary-antibodies/phd-finger-protein-6-phf6-antibody-epr11996b-ab170929'>ab170929</a>) at 1/5000 dilution

Lane 1:

Wild-type HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate at 20 µg

Lane 2:

PHF6 knockout HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate at 20 µg

Lane 2:

Western blot - Human PHF6 (PHD finger protein 6) knockout HEK-293 cell line (<a href='/en-us/products/cell-lines/human-phf6-phd-finger-protein-6-knockout-hek-293-cell-line-ab261722'>ab261722</a>)

Lane 3:

HeLa (Human epithelial cell line from cervix adenocarcinoma) whole cell lysate at 20 µg

Lane 4:

A-431 (Human epidermoid carcinoma cell line) whole cell lysate at 20 µg

Predicted band size: 41 kDa

false

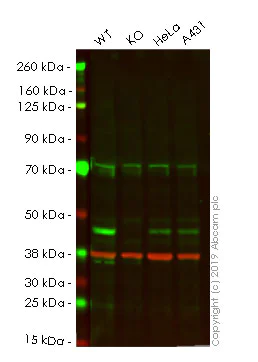

Western blot - Human PHF6 (PHD finger protein 6) knockout HEK-293 cell lysate (AB261661)
  • WB

Lab

Western blot - Human PHF6 (PHD finger protein 6) knockout HEK-293 cell lysate (AB261661)

Lane 1 : Wild-type HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate 20 ug

Lane 2 : PHF6 knockout HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate 20 ug

Lane 3 : HeLa (Human epithelial cell line from cervix adenocarcinoma) whole cell lysate 20 ug

Lane 4 : A-431 (Human epidermoid carcinoma cell line) whole cell lysate 20 ug

Lanes 1 - 4 : Merged signal (red and green). Green - ab173304 observed at 41 kDa. Red - loading control, ab130007, observed at 130 kDa.

ab173304 was shown to recognize PHD finger protein 6 in wild-type HEK-293 cells as signal was lost at the expected MW in PHF6 knockout cell line ab261722 (knockout cell lysate ab261661). Additional cross-reactive bands were observed in the wild-type and knockout samples. Wild-type and PHF6 knockout samples were subjected to SDS-PAGE. The membrane was blocked with 3% milk. ab173304 and ab130007 (Mouse anti-Vinculin loading control) were incubated overnight at 4°C at 1/1000 dilution and 1/20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye® 800CW) preabsorbed ab216773 and Goat anti-Mouse IgG H&L (IRDye® 680RD) preabsorbed ab216776 secondary antibodies at 1/20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-PHD finger protein 6/PHF6 antibody [EPR11997] (<a href='/en-us/products/primary-antibodies/phd-finger-protein-6-phf6-antibody-epr11997-ab173304'>ab173304</a>) at 1/1000 dilution

Lane 1:

Wild-type HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate at 20 µg

Lane 2:

PHF6 knockout HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate at 20 µg

Lane 3:

HeLa (Human epithelial cell line from cervix adenocarcinoma) whole cell lysate at 20 µg

Lane 4:

A-431 (Human epidermoid carcinoma cell line) whole cell lysate at 20 µg

Predicted band size: 41 kDa

false

Key facts

Cell type

HEK-293

Species or organism

Human

Tissue

Kidney

Knockout validation

Next Generation Sequencing,Western blot

Mutation description

Knockout achieved by CRISPR/Cas9 X = 1 bp deletion

style
left-column

Complementary Products

Cell Lines & Lysates

AB257600

Human PPID (Cyclophilin 40) knockout HeLa cell lysate

Western blot - Human PPID (Cyclophilin 40) knockout HeLa cell lysate (AB257600)

  • 0
  • 0
Cell Lines & Lysates

AB257738

Human TFG (TRK fused gene) knockout HeLa cell lysate

Western blot - Human TFG (TRK fused gene) knockout HeLa cell lysate (AB257738)

  • 0
  • 0
Cell Lines & Lysates

AB257790

Human USP9X knockout HeLa cell lysate

Western blot - Human USP9X knockout HeLa cell lysate (AB257790)

  • 0
  • 0
Cell Lines & Lysates

AB257160

Human NONO (nmt55 / p54nrb) knockout HEK-293T cell lysate

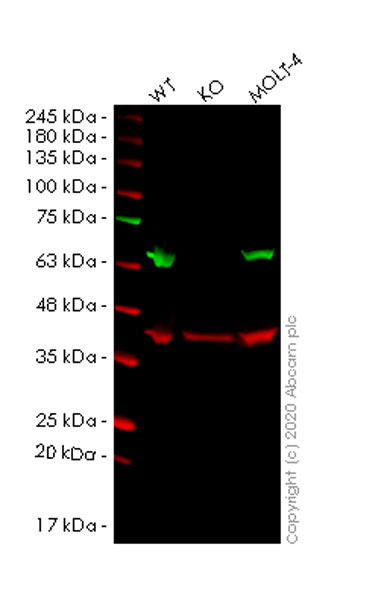

Western blot - Human NONO (nmt55 / p54nrb) knockout HEK-293T cell lysate (AB257160)

  • 0
  • 0
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "WB": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column

Product details

Knockout cell lysate achieved by CRISPR/Cas9.

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

Lysate preparation: Our lysates are made using RIPA buffer to which we add a protease inhibitor cocktail and phosphatase inhibitor cocktail (ratio: 300:100:10). This means that the protein of interest is denatured. If you require a native form of the protein please use the live cell version. Please refer to our lysis protocol for further details on how our lysates are prepared.

User storage instructions: Lyophilizate may be stored at 4°C. After reconstitution, store at -20°C for short-term storage or -80°C for long-term storage.

This product is subject to limited use licenses from The Broad Institute and ERS Genomics Limited, and is developed with patented technology. For full details of the limited use licenses and relevant patents please refer to our limited use license and patent pages.

style
left-column

What's included?

{ "values": { "1Kit": { "sellingSize": "1 Kit", "publicAssetCode":"ab261661-1Kit", "assetComponentDetails": [ { "size":"1 x 100 µg", "name":"Human PHF6 knockout HEK293 cell lysate", "number":"AB261661-CMP02", "productcode":"" }, { "size":"1 x 100 µg", "name":"Human wild-type HEK-293 cell lysate", "number":"AB261661-CMP01", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Gene name
PHF6
Gene editing type
Knockout
Gene editing method
CRISPR technology
Knockout validation
Next Generation Sequencing, Western blot
Shipped at conditions
Ambient - Can Ship with Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

PHD finger protein 6 also known as PHF6 is a protein with a molecular mass of approximately 43 kDa. It consists of two PHD domains which are zinc finger-like motifs playing roles in chromatin remodeling. PHF6 expresses widely in various tissues with noticeable levels in the brain and hematopoietic cells indicating its significance in these areas. Alternate names for PHF6 include ZNF312 and BORJ although PHF6 is the most commonly referred designation.
Biological function summary

PHF6 involves a range of cellular processes including regulation of transcription and chromatin structure modification. PHF6 can bind to certain DNA sequences and proteins to influence gene expression. It interacts with chromatin remodeling complexes indicating a role in maintaining chromatin accessibility for transcription factors. The protein's PHD domains contribute to its ability to engage in these interactions impacting the transcriptional activity of target genes.

Pathways

PHF6 interacts with transcriptional and chromatin remodeling pathways. It plays a role in the interplay between chromatin and transcriptional machinery which is critical for regulating gene expression. PHF6 associates with proteins such as nucleophosmin and other chromatin regulators influencing pathways like the Notch signaling pathway which is vital for cellular differentiation and development. These interactions highlight its involvement in genetic regulation within developmental pathways.

Mutations in PHF6 link to Börjeson-Forssman-Lehmann syndrome (BFLS) a rare genetic disorder affecting neurological development. Additionally PHF6 mutations recurrently appear in T-cell acute lymphoblastic leukemia (T-ALL) highlighting a role in hematological malignancies. In the context of T-ALL PHF6 interacts with proteins like Notch1 which drives leukemic proliferation when dysregulated. These associations make PHF6 a significant focus for understanding and potentially targeting specific genetic disorders and cancers.
style
left-column

Quality control

STR analysis

CSF1PO, D13S317, D7S820, D5S818, TH01, D16S539, TPOX

style
left-column

Cell culture

Biosafety level

EU: 2 US: 2

Adherent/suspension

Adherent

Gender

Female

style
left-column
