Human PLXNB2 (Plexin B2/MM1) knockout HEK-293 cell lysate
Be the first to review this product! Submit a review
|
(0 Publication)
PLXNB2 KO cell lysate available now. KO validated by Next Generation Sequencing, Western blot. Free of charge wild type control included. Knockout achieved by CRISPR/Cas9; X = 1 bp insertion, 5 bp deletion.
View Alternative Names
KIAA0315, MM1, PLXN B2, Plexin B2
- WB
Supplier Data

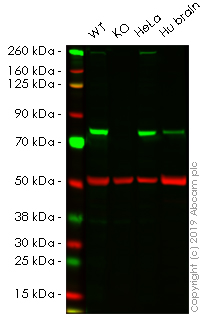

Western blot - Human PLXNB2 (Plexin B2/MM1) knockout HEK-293 cell lysate (AB269633)
Lane 1 : Wild-type HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate 20 ug
Lane 2 : PLXNB2 knockout HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate 20 ug
Lane 3 : HeLa (Human epithelial cell line from cervix adenocarcinoma) whole cell lysate 20 ug
Lane 4 : Human brain whole cell lysate 20 ug
Lanes 1 - 4 : Merged signal (red and green). Green - ab193355 observed at 80 kDa. Red - loading control, ab7291, observed at 50 kDa.
ab193355 was shown to specifically react with in wild-type HEK-293 cells as signal was lost in PLXNB2 knockout cell line ab269468 (knockout cell lysate ab269633). Wild-type and PLXNB2 knockout samples were subjected to SDS-PAGE. The membrane was blocked with 3% milk. ab193355 and ab7291 (Mouse anti-Tubulin loading control) were incubated overnight at 4°C at 1/5000 dilution and 1/20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye® 800CW) preabsorbed ab216773 and Goat anti-Mouse IgG H&L (IRDye® 680RD) preabsorbed ab216776 secondary antibodies at 1/20000 dilution for 1 hour at room temperature before imaging.
All lanes:
Western blot - Anti-Plexin B2/MM1 antibody [EPR9965] (<a href='/en-us/products/primary-antibodies/plexin-b2-mm1-antibody-epr9965-ab193355'>ab193355</a>) at 1/5000 dilution
Lane 1:
Wild-type HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate at 20 µg
Lane 2:
PLXNB2 knockout HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate at 20 µg
Lane 2:
Western blot - Human PLXNB2 (Plexin B2/MM1) knockout HEK-293 cell line (<a href='/en-us/products/cell-lines/human-plxnb2-plexin-b2-mm1-knockout-hek-293-cell-line-ab269468'>ab269468</a>)
Lane 3:
HeLa (Human epithelial cell line from cervix adenocarcinoma) whole cell lysate at 20 µg
Lane 4:
Human brain whole cell lysate at 20 µg
Predicted band size: 204 kDa
Observed band size: 80 kDa
false
Reactivity data
Product details
Knockout cell lysate achieved by CRISPR/Cas9.
REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.
Lysate preparation: Our lysates are made using RIPA buffer to which we add a protease inhibitor cocktail and phosphatase inhibitor cocktail (ratio: 300:100:10). This means that the protein of interest is denatured. If you require a native form of the protein please use the live cell version. Please refer to our lysis protocol for further details on how our lysates are prepared.
User storage instructions: Lyophilizate may be stored at 4°C. After reconstitution, store at -20°C for short-term storage or -80°C for long-term storage.
This product is subject to limited use licenses from The Broad Institute, ERS Genomics Limited and Sigma-Aldrich Co. LLC, and is developed with patented technology. For full details of the licenses and patents please refer to our limited use license and patent pages.
What's included?
Properties and storage information
Gene name
Gene editing type
Gene editing method
Knockout validation
Shipped at conditions
Appropriate short-term storage conditions
Appropriate long-term storage conditions
Supplementary information
This supplementary information is collated from multiple sources and compiled automatically.
Biological function summary
Plexin B2 plays a role in cellular signaling processes that are essential for neural patterning and tissue morphogenesis. It binds with semaphorins particularly Sema4C to guide axonal repulsion in neural development. Plexin B2 forms part of a receptor complex that helps cells interpret external semaphorin signals influencing cell movement and positioning. These interactions contribute to the remodeling of neural circuits which is important during both prenatal development and adult neural function.
Pathways
Plexin B2 participates in pathways engaging Rho GTPases which are important for cytoskeletal organization and cell movement. Plexin B2 influences the RhoA and Rac1 pathways impacting actin cytoskeleton dynamics and cell adhesion processes. These pathways where Plexin B2 acts with other Rho family proteins help transmit the changes induced by semaphorin binding altering cellular orientation and migration.
Quality control
STR analysis
CSF1PO, D13S317, D7S820, D5S818, TH01, D16S539, TPOX
Cell culture
Biosafety level
EU: 2 US: 2
Adherent/suspension
Adherent
Gender
Female
