AB257037

Human PPIB (Cyclophilin B) knockout HeLa cell lysate

Be the first to review this product! Submit a review

|

(0 Publication)

PPIB KO cell lysate available now. KO validated by Western blot. Free of charge wild type control included. Knockout achieved by using CRISPR/Cas9, Homozygous: 2 bp insertion in exon 1.

View Alternative Names

AA408962, AA553318, AI844835, CYP-S1, CYPB, Cphn 2, CyP 20b, Cyclophilin B, Cyclophilin like protein, EC 5.2.1.8, MGC14109, MGC2224, OI9, PPIB_HUMAN, PPIase, PPIase B, Peptidyl prolyl cis trans isomerase B precursor, Peptidyl-prolyl cis-trans isomerase B, Peptidylprolyl isomerase B, Rotamase, Rotamase B, S-cyclophilin, SCYLP, peptidylprolyl isomerase B (cyclophilin B)

3 Images

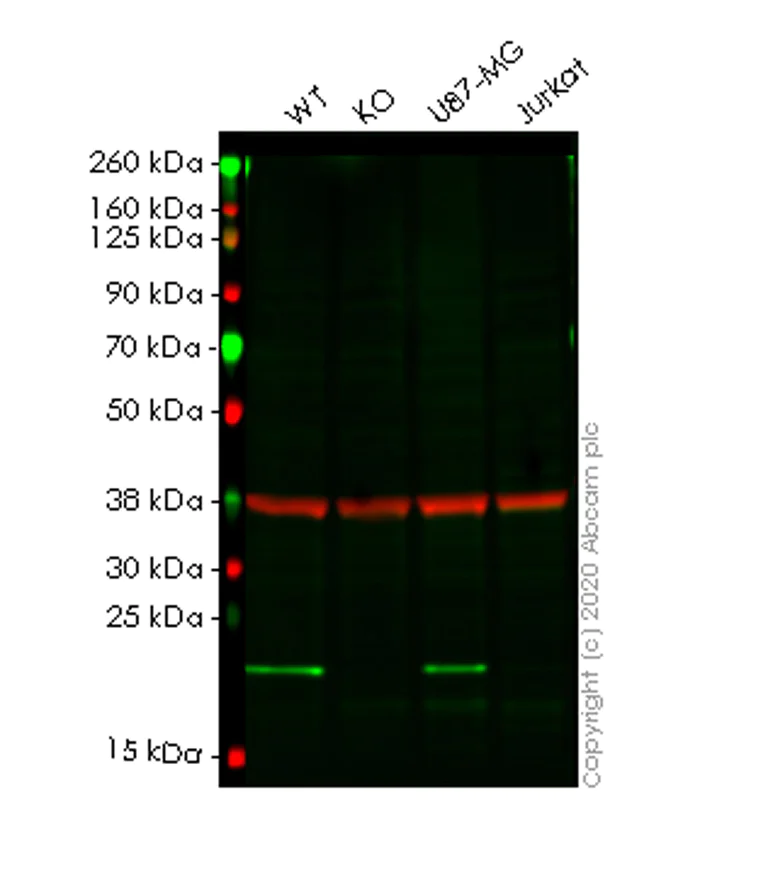

Western blot - Human PPIB (Cyclophilin B) knockout HeLa cell lysate (AB257037)
  • WB

Lab

Western blot - Human PPIB (Cyclophilin B) knockout HeLa cell lysate (AB257037)

Lane 1 : Wild-type HeLa (Human epithelial cell line from cervix adenocarcinoma) whole cell lysate (20 ug)
Lane 2 : PPIB knockout HeLa (Human epithelial cell line from cervix adenocarcinoma) whole cell lysate (20 ug)
Lane 3 : U-87 MG (Human glioblastoma-astrocytoma epithelial cell line) whole cell lysate (20 ug)
Lane 4 : Jurkat (Human T cell leukemia cell line from peripheral blood) whole cell lysate (20 ug)

ab178397 was shown to specifically react with Cyclophilin B in wild-type HeLa cells. Loss of signal was observed when knockout cell line ab261746 (knockout cell lysate ab257037) was used. Wild-type and Cyclophilin B knockout samples were subjected to SDS-PAGE. ab178397 and Anti-GAPDH antibody [6C5] - Loading Control (ab8245) were incubated overnight at 4oC at 1 in 1000 dilution and 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed (ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-Cyclophilin B antibody [EPR12703(B)] - Loading Control (<a href='/en-us/products/primary-antibodies/cyclophilin-b-antibody-epr12703b-loading-control-ab178397'>ab178397</a>) at 1/1000 dilution

Lane 1:

Wild-type HeLa (Human epithelial cell line from cervix adenocarcinoma) whole cell lysate at 20 µg

Lane 2:

PPIB knockout HeLa (Human epithelial cell line from cervix adenocarcinoma) whole cell lysate at 20 µg

Lane 2:

Western blot - Human PPIB (Cyclophilin B) knockout HeLa cell line (<a href='/en-us/products/cell-lines/human-ppib-cyclophilin-b-knockout-hela-cell-line-ab261746'>ab261746</a>)

Lane 3:

U-87 MG (Human glioblastoma-astrocytoma epithelial cell line) whole cell lysate at 20 µg

Lane 4:

Jurkat (Human T cell leukemia cell line from peripheral blood) whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-irdye-800cw-preadsorbed-ab216773'>ab216773</a>) at 1/10000 dilution

Predicted band size: 24 kDa

Observed band size: 24 kDa

false

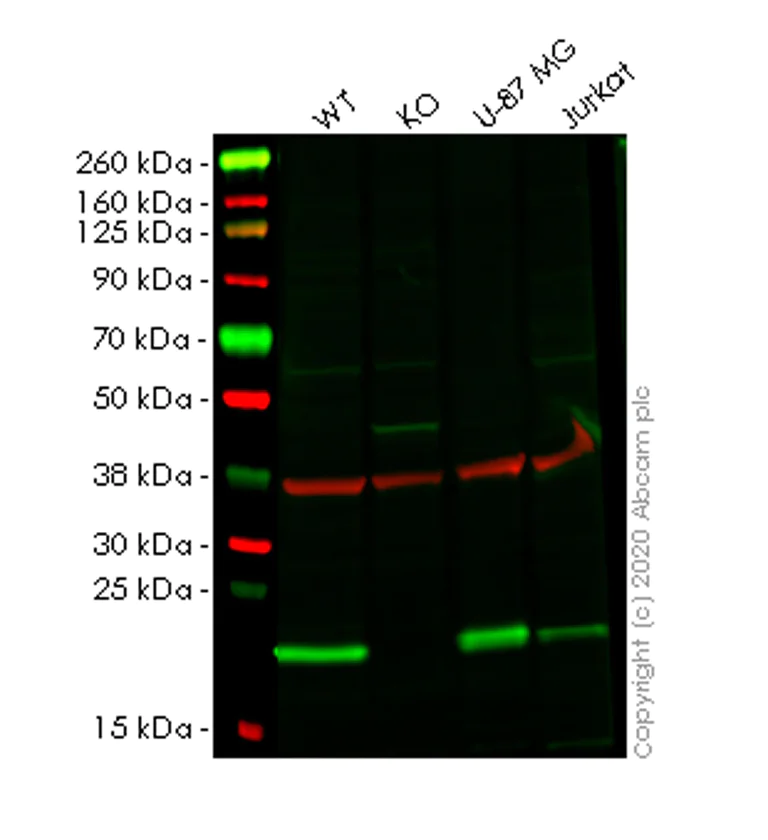

Western blot - Human PPIB (Cyclophilin B) knockout HeLa cell lysate (AB257037)
  • WB

Lab

Western blot - Human PPIB (Cyclophilin B) knockout HeLa cell lysate (AB257037)

Lane 1 : Wild-type HeLa (Human epithelial cell line from cervix adenocarcinoma) whole cell lysate (20 ug)
Lane 2 : PPIB knockout HeLa (Human epithelial cell line from cervix adenocarcinoma) whole cell lysate (20 ug)
Lane 3 : U-87 MG (Human glioblastoma-astrocytoma epithelial cell line) whole cell lysate (20 ug)
Lane 4 : Jurkat (Human T cell leukemia cell line from peripheral blood) whole cell lysate (20 ug)

ab236760 was shown to specifically react with Cyclophilin B in wild-type HeLa cells. Loss of signal was observed when knockout cell line ab261746 (knockout cell lysate ab257037) was used. Wild-type and Cyclophilin B knockout samples were subjected to SDS-PAGE. ab236760 and Anti-GAPDH antibody [6C5] - Loading Control (ab8245) were incubated overnight at 4oC at 1 in 1000 dilution and 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed (ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-Cyclophilin B antibody [CL3901] - Loading Control (<a href='/en-us/products/primary-antibodies/cyclophilin-b-antibody-cl3901-loading-control-ab236760'>ab236760</a>) at 1/1000 dilution

Lane 1:

Wild-type HeLa (Human epithelial cell line from cervix adenocarcinoma) whole cell lysate at 20 µg

Lane 2:

PPIB knockout HeLa (Human epithelial cell line from cervix adenocarcinoma) whole cell lysate at 20 µg

Lane 2:

Western blot - Human PPIB (Cyclophilin B) knockout HeLa cell line (<a href='/en-us/products/cell-lines/human-ppib-cyclophilin-b-knockout-hela-cell-line-ab261746'>ab261746</a>)

Lane 3:

U-87 MG (Human glioblastoma-astrocytoma epithelial cell line) whole cell lysate at 20 µg

Lane 4:

Jurkat (Human T cell leukemia cell line from peripheral blood) whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-irdye-800cw-preadsorbed-ab216773'>ab216773</a>) at 1/10000 dilution

Predicted band size: 24 kDa

Observed band size: 24 kDa

false

Sanger Sequencing - Human PPIB (Cyclophilin B) knockout HeLa cell lysate (AB257037)
  • Sanger seq

Unknown

Sanger Sequencing - Human PPIB (Cyclophilin B) knockout HeLa cell lysate (AB257037)

Homozygous : 2 bp insertion in exon 1

Key facts

Cell type

HeLa

Species or organism

Human

Tissue

Cervix

Knockout validation

Sanger Sequencing,Western blot

Mutation description

Knockout achieved by using CRISPR/Cas9, Homozygous: 2 bp insertion in exon 1.

Disease

Adenocarcinoma

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "WB": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column

Product details

Knockout cell lysate achieved by CRISPR/Cas9.

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

Lysate preparation: Our lysates are made using RIPA buffer to which we add a protease inhibitor cocktail and phosphatase inhibitor cocktail (ratio: 300:100:10). This means that the protein of interest is denatured. If you require a native form of the protein please use the live cell version. Please refer to our lysis protocol for further details on how our lysates are prepared.

User storage instructions: Lyophilizate may be stored at 4°C. After reconstitution, store at -20°C for short-term storage or -80°C for long-term storage.

This product is subject to limited use licenses from The Broad Institute, ERS Genomics Limited and Sigma-Aldrich Co. LLC, and is developed with patented technology. For full details of the licenses and patents please refer to our limited use license and patent pages.

style
left-column

What's included?

{ "values": { "1Kit": { "sellingSize": "1 Kit", "publicAssetCode":"ab257037-1Kit", "assetComponentDetails": [ { "size":"1 x 100 µg", "name":"Human PPIB knockout HeLa cell lysate", "number":"AB257037-CMP02", "productcode":"" }, { "size":"1 x 100 µg", "name":"Human wild-type HeLa cell lysate", "number":"AB257037-CMP01", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Gene name
PPIB
Gene editing type
Knockout
Gene editing method
CRISPR technology
Knockout validation
Sanger Sequencing, Western blot
Zygosity
Homozygous
Shipped at conditions
Ambient - Can Ship with Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
style
left-column
style
left-column

Quality control

STR analysis

CSF1PO, D13S317, D7S820, D5S818, TH01, D16S539, TPOX

style
left-column

Cell culture

Biosafety level

EU: 2 US: 2

Adherent/suspension

Adherent

Gender

Female

style
