AB263833

Human SMAD2 knockout HeLa cell lysate

Be the first to review this product! Submit a review

|

(0 Publication)

SMAD2 KO cell lysate available now. KO validated by Western blot. Free of charge wild type control included. Knockout achieved by using CRISPR/Cas9, 1 bp deletion in exon2 and 1 bp insertion in exon2.
5 Images
Western blot - Human SMAD2 knockout HeLa cell lysate (AB263833)
  • WB

Supplier Data

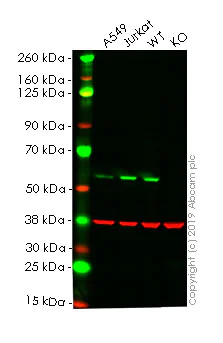

Western blot - Human SMAD2 knockout HeLa cell lysate (AB263833)

Lane 1 : A549 cell lysate (20 μg)

Lane 2 : Jurkat cell lysate (20 μg)

Lane 3 : Wild-type HeLa cell lysate (20 μg)

Lane 4 : SMAD2 knockout HeLa cell lysate (20 μg)

Lanes 1 - 4 : Merged signal (red and green). Green - ab40855 observed at 58 kDa. Red - loading control, ab8245 observed at 37 kDa.

ab40855 was shown to react with Smad2 in wild-type HeLa. Loss of signal was observed when knockout cell line ab255430 (knockout cell lysate ab263833) was used. Wild-type and Smad2 knockout samples were subjected to SDS-PAGE. ab40855 and Anti-GAPDH antibody [6C5] - Loading Control (ab8245) were incubated overnight at 4°C at 1 in 2000 dilution and 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed (ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-Smad2 antibody [EP784Y] (<a href='/en-us/products/primary-antibodies/smad2-antibody-ep784y-ab40855'>ab40855</a>) at 1/2000 dilution

Lane 1:

A549 cell lysate at 20 µg

Lane 2:

Jurkat cell lysate at 20 µg

Lane 2:

Western blot - Human SMAD2 knockout HeLa cell line (<a href='/en-us/products/cell-lines/human-smad2-knockout-hela-cell-line-ab255430'>ab255430</a>)

Lane 3:

Wild-type HeLa cell lysate at 20 µg

Lane 4:

SMAD2 knockout HeLa cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-irdye-800cw-preadsorbed-ab216773'>ab216773</a>) at 1/20000 dilution

Predicted band size: 52 kDa

Observed band size: 37 kDa,55 kDa

false

Western blot - Human SMAD2 knockout HeLa cell lysate (AB263833)
  • WB

Lab

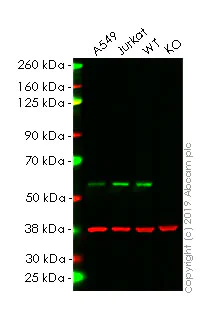

Western blot - Human SMAD2 knockout HeLa cell lysate (AB263833)

Lane 1 : A549 cell lysate (20 μg)

Lane 2 : Jurkat cell lysate (20 μg)

Lane 3 : Wild-type HeLa cell lysate (20 μg)

Lane 4 : SMAD2 knockout HeLa cell lysate (20 μg)

Lanes 1 - 4 : Merged signal (red and green). Green - ab33875 observed at 58 kDa. Red - loading control, ab8245 observed at 37 kDa.

ab33875 was shown to react with Smad2 in wild-type HeLa. Loss of signal was observed when knockout cell line ab255430 (knockout cell lysate ab263833) was used. Wild-type and Smad2 knockout samples were subjected to SDS-PAGE. ab33875 and Anti-GAPDH antibody [6C5] - Loading Control (ab8245) were incubated overnight at 4°C at 1 in 1000 dilution and 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed (ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-Smad2 antibody [EP567Y] (<a href='/en-us/products/primary-antibodies/smad2-antibody-ep567y-ab33875'>ab33875</a>) at 1/1000 dilution

Lane 1:

Wild-type A549 cell lysate at 20 µg

Lane 2:

Jurkat cell lysate at 20 µg

Lane 2:

Western blot - Human SMAD2 knockout HeLa cell line (<a href='/en-us/products/cell-lines/human-smad2-knockout-hela-cell-line-ab255430'>ab255430</a>)

Lane 3:

Wild-type HeLa cell lysate at 20 µg

Lane 4:

SMAD2 knockout HeLa cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-irdye-800cw-preadsorbed-ab216773'>ab216773</a>) at 1/20000 dilution

Predicted band size: 52 kDa

Observed band size: 37 kDa,58 kDa

false

Western blot - Human SMAD2 knockout HeLa cell lysate (AB263833)
  • WB

Lab

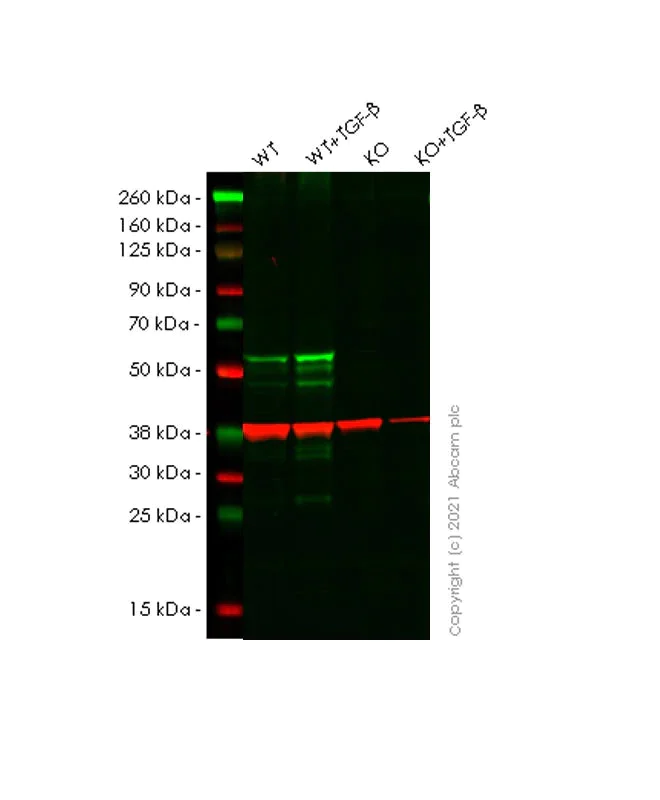

Western blot - Human SMAD2 knockout HeLa cell lysate (AB263833)

Blocking and diluting buffer and concentration : Intercept® (TBS) Blocking Buffer diluted with an equal volume of 0.1% TBS

Lane 1 : Wild-type HeLa (human cervix adenocarcinoma epithelial cell), whole cell lysate, 20 ug

Lane 2 : Wild-type HeLa (human cervix adenocarcinoma epithelial cell) treated with 20 ng/ml TGF beta1 for 15 minutes, whole cell lysate, 20 ug

Lane 3 : Smad2 knockout HeLa (human cervix adenocarcinoma epithelial cell), whole cell lysate, 20 ug

Lane 4 : Smad2 knockout HeLa (human cervix adenocarcinoma epithelial cell), treated with 20 ng/ml TGF beta1 for 15 minutes, whole cell lysate, 20 ug

Lanes 1-4 : Merged signal (red and green). Green - ab280888 observed at 60 kDa. Red - loading control ab8245 (Mouse monoclonal [6C5] to GAPDH) observed at 36 kDa.

ab280888 Anti-Smad2 (phospho S467) antibody [EPR23681-40] was shown to specifically react with Smad2 in wild-type HeLa cells. Loss of signal was observed when knockout cell line ab255430 (knockout cell lysate ab263833) was used. Wild-type and Smad2 knockout samples were subjected to SDS-PAGE.

ab280888 and Anti-GAPDH antibody [6C5] - Loading Control (ab8245) were incubated at 4℃ overnight at 1 in 1000 dilution and 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed (ab216776) secondary antibodies at 1 in 10000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-Smad2 (phospho S467) antibody [EPR23681-40] (<a href='/en-us/products/primary-antibodies/smad2-phospho-s467-antibody-epr23681-40-ab280888'>ab280888</a>) at 1/1000 dilution

Lane 1:

Wild-type HeLa (human cervix adenocarcinoma epithelial cell), whole cell lysate at 20 µg

Lane 2:

Wild-type HeLa (human cervix adenocarcinoma epithelial cell) treated with 20 ng/ml TGF beta1 for 15 minutes, whole cell lysate at 20 µg

Lane 3:

Smad2 knockout HeLa (human cervix adenocarcinoma epithelial cell), whole cell lysate at 20 µg

Lane 4:

Smad2 knockout HeLa (human cervix adenocarcinoma epithelial cell), treated with 20 ng/ml TGF beta1 for 15 minutes, whole cell lysate at 20 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG H&L (IRDye® 800CW) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-irdye-800cw-preadsorbed-ab216773'>ab216773</a>) and Goat Anti-Mouse IgG H&L (IRDye® 680RD) (<a href='/en-us/products/secondary-antibodies/goat-mouse-igg-h-l-irdye-680rd-preadsorbed-ab216776'>ab216776</a>) at 1/20000 dilution

Predicted band size: 52 kDa

Observed band size: 60 kDa

false

Sanger Sequencing - Human SMAD2 knockout HeLa cell lysate (AB263833)
  • Sanger seq

Unknown

Sanger Sequencing - Human SMAD2 knockout HeLa cell lysate (AB263833)

Allele-2 : 1 bp insertion in exon2

Sanger Sequencing - Human SMAD2 knockout HeLa cell lysate (AB263833)
  • Sanger seq

Unknown

Sanger Sequencing - Human SMAD2 knockout HeLa cell lysate (AB263833)

Allele-1 : 1 bp deletion in exon2

Key facts

Cell type

HeLa

Species or organism

Human

Tissue

Cervix

Knockout validation

Sanger Sequencing,Western blot

Mutation description

Knockout achieved by using CRISPR/Cas9, 1 bp deletion in exon2 and 1 bp insertion in exon2.

Disease

Adenocarcinoma

style
left-column

Complementary Products

Primary Antibodies

AB202445

Anti-Smad2 + Smad3 antibody [EPR19557-4] - ChIP Grade

20ul selling size|RabMAb|Advanced Validation|Recombinant

Flow Cytometry (Intracellular) - Anti-Smad2 + Smad3 antibody [EPR19557-4] - ChIP Grade (AB202445)

  • 3
  • 1
Proteins & Peptides

AB217407

Recombinant human Vitronectin/S-Protein (Animal Free)

  • 0
  • 0
Proteins & Peptides

AB85329

Recombinant Human Smad2 protein

SDS-PAGE - Recombinant Human Smad2 protein (AB85329)

  • 0
  • 0
Proteins & Peptides

AB7535

Native Human Collagen III protein

SDS-PAGE - Native Human Collagen III protein (AB7535)

  • 4
  • 3
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "WB": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column

Product details

Knockout cell lysate achieved by CRISPR/Cas9.

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

Lysate preparation: Our lysates are made using RIPA buffer to which we add a protease inhibitor cocktail and phosphatase inhibitor cocktail (ratio: 300:100:10). This means that the protein of interest is denatured. If you require a native form of the protein please use the live cell version. Please refer to our lysis protocol for further details on how our lysates are prepared.

User storage instructions: Lyophilizate may be stored at 4°C. After reconstitution, store at -20°C for short-term storage or -80°C for long-term storage.

This product is subject to limited use licenses from The Broad Institute, ERS Genomics Limited and Sigma-Aldrich Co. LLC, and is developed with patented technology. For full details of the licenses and patents please refer to our limited use license and patent pages.

style
left-column

What's included?

{ "values": { "1Kit": { "sellingSize": "1 Kit", "publicAssetCode":"ab263833-1Kit", "assetComponentDetails": [ { "size":"1 x 100 µg", "name":"Human SMAD2 knockout HeLa cell lysate", "number":"AB263833-CMP02", "productcode":"" }, { "size":"1 x 100 µg", "name":"Human wild-type HeLa cell lysate", "number":"AB263833-CMP01", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Gene name
SMAD2
Gene editing type
Knockout
Gene editing method
CRISPR technology
Knockout validation
Sanger Sequencing, Western blot
Shipped at conditions
Ambient - Can Ship with Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

Smad2 also known as Mothers against decapentaplegic homolog 2 (MAD2) or MADR2 is a signaling protein involved in the transforming growth factor-beta (TGF-β) receptor pathway. Smad2 has a molecular mass of approximately 58 kDa and expresses in various tissues including epithelial mesenchymal and endothelial cells. Smad2 undergoes phosphorylation on serine residues in response to TGF-β signaling converting it into phosphorylated forms often referred to as p-Smad2 or phospho-Smad2. These phosphorylated forms are critical for the relay of signals from the cell surface to the nucleus.
Biological function summary

Smad2 acts as an intracellular mediator for TGF-β signaling a pathway important for regulating cell proliferation differentiation and apoptosis. Smad2 typically functions as part of a heteromeric complex with Smad4 another key player in TGF-β signaling. Upon activation phosphorylated Smad2 combines with Smad4 to form a complex that translocates into the nucleus. This complex then binds to specific DNA sequences to regulate the transcription of target genes involved in processes such as cell growth inhibition and extracellular matrix production.

Pathways

Smad2 is integral to the TGF-β and activin receptor signaling pathways. These pathways are essential in controlling cell growth and immune responses. Smad2 interacts with other proteins such as Smad3 in addition to Smad4 to modulate gene expression effectively. The interaction between Smad2 and these proteins ensures precise control of cellular responses to external stimuli emphasizing its pivotal role in maintaining cellular homeostasis.

Smad2 correlates with various pathological conditions including fibrosis and cancer. Aberrant Smad2 signaling can contribute to the development of these diseases as excessive TGF-β signaling promotes fibrotic tissue deposition and tumor progression. Smad2 connects with other proteins like Smad3 in these pathological contexts both acting as mediators of abnormal cellular behaviors. Understanding the regulatory mechanisms of Smad2 can help develop therapeutic strategies against disorders linked to dysregulated TGF-β signaling.
style
left-column

Quality control

STR analysis

CSF1PO, D13S317, D7S820, D5S818, TH01, D16S539, TPOX

style
left-column

Cell culture

Biosafety level

EU: 2 US: 2

Adherent/suspension

Adherent

Gender

Female

style
