ZYX KO cell lysate available now. KO validated by Western blot. Free of charge wild type control included. Knockout achieved by using CRISPR/Cas9, 19 bp deletion in exon2 and 1 bp deletion in exon2.
Images
Key facts
- Cell type
- HEK-293T
- Species or organism
- Human
- Tissue
- Kidney
- Knockout validation
- Sanger Sequencing, Western blot
- Mutation description
- Knockout achieved by using CRISPR/Cas9, 19 bp deletion in exon2 and 1 bp deletion in exon2.
Alternative names
ESP 2, HED 2, ZYX protein, ZYX_HUMAN, Zyxin, Zyxin-2
What's included?
Recommended products
ZYX KO cell lysate available now. KO validated by Western blot. Free of charge wild type control included. Knockout achieved by using CRISPR/Cas9, 19 bp deletion in exon2 and 1 bp deletion in exon2.
Key facts
- Cell type
- HEK-293T
- Species or organism
- Human
- Tissue
- Kidney
- Knockout validation
- Sanger Sequencing, Western blot
- Mutation description
- Knockout achieved by using CRISPR/Cas9, 19 bp deletion in exon2 and 1 bp deletion in exon2.
- Concentration
Properties
- Gene name
- ZYX
- Gene editing type
- Knockout
- Gene editing method
- CRISPR technology
- Knockout validation
- Sanger Sequencing, Western blot
Quality control
- STR analysis
- CSF1PO, D13S317, D7S820, D5S818, TH01, D16S539, TPOX
Cell culture
- Biosafety level
- EU: 2 US: 2
- Adherent/suspension
- Adherent
- Gender
- Female
Storage
- Shipped at conditions
- Ambient - Can Ship with Ice
- Appropriate short-term storage conditions
- -20°C
- Appropriate long-term storage conditions
- -20°C
Notes
Knockout cell lysate achieved by CRISPR/Cas9.
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.
Lysate preparation: Our lysates are made using RIPA buffer to which we add a protease inhibitor cocktail and phosphatase inhibitor cocktail (ratio: 300:100:10). This means that the protein of interest is denatured. If you require a native form of the protein please use the live cell version. Please refer to our lysis protocol for further details on how our lysates are prepared.
User storage instructions: Lyophilizate may be stored at 4°C. After reconstitution, store at -20°C for short-term storage or -80°C for long-term storage.
This product is subject to limited use licenses from The Broad Institute and ERS Genomics Limited, and is developed with patented technology. For full details of the limited use licenses and relevant patents please refer to our limited use license and patent pages.
Supplementary info
- This supplementary information is collated from multiple sources and compiled automatically.
- Activity summary
Zyxin also known as ZYX is a mechanical regulator associated with cell adhesion and signaling. This protein has a molecular mass of approximately 61 kDa and shows expression in various cell types including those in the heart liver and lungs. As a component of focal adhesions zyxin plays a role in cytoskeletal dynamics by interacting with actin filaments and facilitating the formation of stress fibers.
- Biological function summary
The protein has important roles in cellular processes such as migration and morphology. Zyxin often forms part of a larger protein complex that includes VASP and α-actinin which contribute to cell scaffolding and structural integrity. It serves as an organizer for cytoskeletal proteins ensuring proper cell movement and adaptability to cellular stress. Its actin-binding capacity enables it to regulate structural changes necessary for cellular adaptation to environmental stimuli.
- Pathways
This protein is essential in the regulation of actin cytoskeleton associated pathways and adherens junction signaling. Zyxin interacts with Ena/VASP proteins which are significant in actin filament elongation helping regulate dynamic changes in cell shape and motility. Its relationship with LIM domain-containing proteins positions zyxin within pathways related to cell proliferation and signal transduction.
- Associated diseases and disorders
Zyxin has been implicated in cancer progression especially in metastasis where altered cell adhesion and movement play a role. It also relates to cardiovascular diseases due to its involvement in mechanotransduction pathways critical to heart muscle function. In cancer zyxin influences the activity of YAP/TAZ transcription regulators affecting tumor cell behavior. In cardiovascular scenarios the protein interacts with paxillin to mediate responses to mechanical load changes impacting heart disease progression.
Product promise
We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.
In the unlikely event of one of our products not working as expected, you are covered by our product promise.
Full details and terms and conditions can be found here:
Terms & Conditions.
5 product images

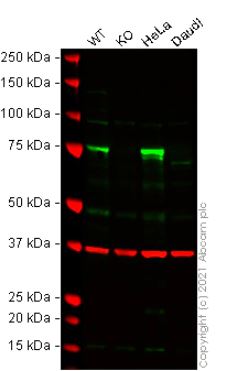

Western blot - Human ZYX (Zyxin) knockout HEK-293T cell lysate (ab257809)
Lane 1: Wild-type HEK-293T cell lysate, 20 ugLane 2: ZYX knockout HEK-293T cell lysate, 20 ug
Lane 3: HeLa cell lysate, 20 ug
Lane 4: Daudi cell lysate, 20 ug
False colour image of Western blot: Anti-Zyxin antibody - N-terminal staining at 1/1000 dilution, shown in green; Mouse anti-GAPDH antibody [6C5] (Anti-GAPDH antibody [6C5] - Loading Control ab8245) loading control staining at 1/20000 dilution, shown in red. In Western blot. Anti-Zyxin antibody - N-terminal ab229757 was shown to bind specifically to Zyxin. A band was observed at 75 kDa in wild-type HEK-293T cell lysates with no signal observed at this size in ZYX knockout cell line Human ZYX (Zyxin) knockout HEK-293T cell line ab266503 (knockout cell lysate ab257809). The band observed in the knockout lysate lane below 75 kDa is likely to represent a truncated form of Zyxin. This has not been investigated further and the functional properties of the gene product have not been determined. To generate this image, wild-type and ZYX knockout HEK-293T cell lysates were analysed. First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 5 % milk in TBS-0.1 % Tween® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit IgG H&L (IRDye® 800CW) preabsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) and Goat anti-Mouse IgG H&L (IRDye® 680RD) preabsorbed (Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776) at 1/20000 dilution.

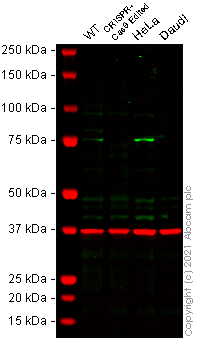

Western blot - Human ZYX (Zyxin) knockout HEK-293T cell lysate (ab257809)
Lane 1: Wild-type HEK-293T cell lysate, 20 ugLane 2: ZYX knockout HEK-293T cell lysate, 20 ug
Lane 3: HeLa cell lysate, 20 ug
Lane 4: Daudi cell lysate, 20 ug
False colour image of Western blot: Anti-Zyxin antibody [ZOL301] staining at 1/1000 dilution, shown in green; Rabbit Anti-GAPDH antibody [EPR16891] (Anti-GAPDH antibody [EPR16891] - Loading Control ab181602) loading control staining at 1/20000 dilution, shown in red. In Western blot, Anti-Zyxin antibody [ZOL301] ab50391 was shown to bind specifically to Zyxin. A band was observed at 75 kDa in wild-type HEK-293T cell lysates with no signal observed at this size in ZYX CRISPR-Cas9 edited cell line Human ZYX (Zyxin) knockout HEK-293T cell line ab266503 (CRISPR-Cas9 edited cell lysate ab257809). The band observed in the CRISPR-Cas9 edited lysate lane below 75 kDa is likely to represent a truncated form of Zyxin. This has not been investigated further and the functional properties of the gene product have not been determined. To generate this image, wild-type and ZYX CRISPR-Cas9 edited HEK-293T cell lysates were analysed. First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3 % milk in TBS-0.1 % Tween® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Mouse IgG H&L (IRDye® 800CW) preabsorbed (Goat anti-Mouse IgG H&L (IRDye® 800CW) preadsorbed ab216772) and Goat anti-Rabbit IgG H&L (IRDye® 680RD) preabsorbed (Goat Anti-Rabbit IgG H&L (IRDye® 680RD) preadsorbed ab216777) at 1/20000 dilution.
All lanes: Western blot - Anti-Zyxin antibody [ZOL301] (Anti-Zyxin antibody [ZOL301] ab50391) at 1/1000 dilution
Lane 1: Wild-type HEK-293T cell lysate at 20 µg
Lane 2: ZYX CRISPR-Cas9 edited HEK-293T cell lysate at 20 µg
Lane 3: HeLa cell lysate at 20 µg
Lane 4: Daudi cell lysate at 20 µg
Performed under reducing conditions.
Predicted band size: 61 kDa
Observed band size: 75 kDa

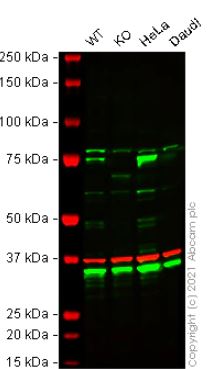

Western blot - Human ZYX (Zyxin) knockout HEK-293T cell lysate (ab257809)
Lane 1: Wild-type HEK-293T cell lysate, 20 ugLane 2: ZYX knockout HEK-293T cell lysate, 20 ug
Lane 3: HeLa cell lysate, 20 ug
Lane 4: Daudi cell lysate, 20 ug
False colour image of Western blot: Anti-Zyxin antibody [EPR4302] staining at 1/20000 dilution, shown in green; Mouse anti-GAPDH antibody [6C5] (Anti-GAPDH antibody [6C5] - Loading Control ab8245) loading control staining at 1/20000 dilution, shown in red. In Western blot, Anti-Zyxin antibody [EPR4302] ab109316 was shown to bind specifically to Zyxin. A band was observed at 75 kDa in wild-type HEK-293T cell lysates with no signal observed at this size in ZYX knockout cell line Human ZYX (Zyxin) knockout HEK-293T cell line ab266503 (knockout cell lysate ab257809). The band observed in the knockout lysate lane below 75 kDa is likely to represent a truncated form of Zyxin. This has not been investigated further and the functional properties of the gene product have not been determined. To generate this image, wild-type and ZYX knockout HEK-293T cell lysates were analysed. First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in fluorescent western blot (TBS-based) blocking solution before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit IgG H&L (IRDye® 800CW) preabsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) and Goat anti-Mouse IgG H&L (IRDye® 680RD) preabsorbed (Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776) at 1/20000 dilution.
Sanger Sequencing - Human ZYX (Zyxin) knockout HEK-293T cell lysate (ab257809)
Allele-1: 19 bp deletion in exon2
Sanger Sequencing - Human ZYX (Zyxin) knockout HEK-293T cell lysate (ab257809)
Allele-2: 1 bp deletion in exon2
