AB195224

AMCA Conjugation Kit (Fast) - Lightning-Link®

Be the first to review this product! Submit a review

|

(4 Publications)

AMCA Conjugation Kit (Fast) - Lightning-Link® (ab195224) offers several standout features:

- Rapid Conjugation: achieve AMCA labeling in under 20 minutes with just 30 seconds of hands-on time.
- High Efficiency: ensures 100% antibody recovery, meaning no loss of valuable antibodies.
- Versatility: suitable for conjugating antibodies, proteins, and peptides. AMCA-labeled antibodies can be used immediately in applications such as Western blot, ELISA, and Immunohistochemistry (IHC) without further purification.
- AMCA (aminomethylcoumarin acetate/AMC/Coumarin) is a blue fluorescent dye with an excitation wavelength of 352nm and a maximal emission of 452nm.
1 Images

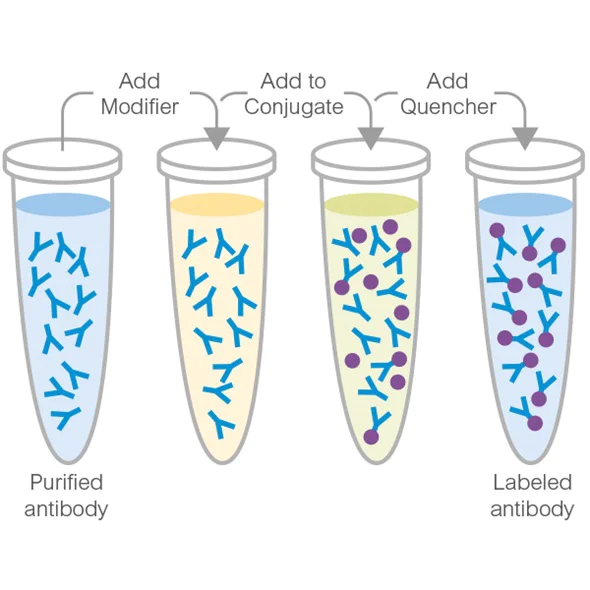

Schematic Diagram - AMCA Conjugation Kit (Fast) - Lightning-Link® (AB195224)
  • Schematic Diagram

Supplier Data

This illustration demonstrates a general procedure of how the Lightning-Link®(Fast) labeling technology enables the direct labeling of antibodies or proteins.

Simply pipette your antibody or biomolecule of choice into the vial of a lyophilized mixture containing the label of interest and incubate for just 15 minutes. Please see the ab195224 protocol booklet for more details.

Learn more about our Lightning-Link® conjugation kits here

Key facts

Product details

AMCA Conjugation Kit / AMCA Labeling Kit (ab195224) uses a simple and quick process for AMCA labeling / conjugation of antibodies. It can also be used to conjugate other proteins or peptides. Learn about our antibody labeling kits and their advantages.

To conjugate an antibody to AMCA using this kit:
- add modifier to antibody and incubate for 15 mins
- add quencher and incubate for 5 mins
The AMCA conjugated antibody can be used immediately in WB, ELISA, IHC etc. No further purification is required and 100% of the antibody is recovered for use.

Learn about buffer compatibility below; for incompatible buffers and low antibody concentrations, use our rapid antibody purification and concentration kits. Use the FAQ to learn more about the technology, or about conjugating other proteins and peptides to AMCA.

Custom size conjugation kits up to 100 mg are available on demand. Please contact us to discuss your requirements.

This product is manufactured by Expedeon, an Abcam company, and was previously called Lightning-Link® Rapid AMCA Labeling Kit. 313-0015 is the same as the 1 mg size. 313-0030 is the same as the 3 x 10 ug size. 313-0010 is the same as the 3 x 100 ug size. 313-0005 is the same as the 100 ug size.

Amount and volume of antibody for conjugation to AMCA

Kit size Recommended
amount of antibody1
Maximum
amount of antibody
Maximum antibody
volume2
3 x 10 μg 3 x 10 μg 3 x 20 μg 3 x 10 μL
100 μg 1 x 100 μg 1 x 200 μg 1 x 100 μL
3 x 100 μg 3 x 100 μg 3 x 200 μg 3 x 100 μL
1 mg 1 x 1 mg 1 x 2 mg 1 x 1 mL

1 Using the maximum amount of antibody may result in less labelling per antibody.

2 Ideal antibody concentration is 1mg/ml. 0.5 - 1 mg/ml can be used if the maximum antibody volume is not exceeded. Antibodies > 2mg/ml or < 0.5 mg/ml should be diluted /concentrated.

Buffer Requirements for Conjugation

Buffer should be pH 6.5-8.5.

Compatible buffer constituents
If a concentration is shown, then the constituent should be no more than the concentration shown. If several constituents are close to the limit of acceptable concentration, then this can inhibit conjugation.

50mM / 0.6% Tris1 0.1% BSA2 50% glycerol
0.1% sodium azide PBS Potassium phosphate
Sodium chloride HEPES Sucrose
Sodium citrate EDTA Trehalose

1 Tris buffered saline is almost always ≤ 50 mM / 0.6%
2 BSA can also interfere with the use of the conjugated antibody in tissue staining.

Incompatible buffer constituents

Thiomerosal Proclin Glycine
Arginine Glutathione DTT

If a constituent of the buffer containing your antibody or protein is not listed above, please contact us.

Only purified antibodies are suitable for use, ie. where other proteins, peptides, or amino acids are not present: antibodies in ascites fluid, serum or hybridoma culture media are incompatible.

Storing and handling conjugation kits

Lyophilized Lightning-Link® components are hygroscopic.

Kits are intentionally shipped at ambient temperature with silica gel to avoid exposure to moisture. Upon receipt, store the kit frozen and protect from moisture. Before opening the outer container, allow the lyophilized components to reach room temperature to minimize condensation.

What's included?

{ "values": { "3x10g": { "sellingSize": "3 x 10 µg", "publicAssetCode":"ab195224-3x10ug", "assetComponentDetails": [ { "size":"1 x 200 µL", "name":"Modifier reagent", "number":"AB195224-CMP03" }, { "size":"1 x 200 µL", "name":"Quencher reagent", "number":"AB195224-CMP02" }, { "size":"3 x 10 µg", "name":"AMCA Conjugation Mix", "number":"AB195224-CMP01" } ] }, "3x100g": { "sellingSize": "3 x 100 µg", "publicAssetCode":"ab195224-3x100ug", "assetComponentDetails": [ { "size":"3 x 100 µg", "name":"AMCA Conjugation Mix", "number":"AB195224-CMP01" }, { "size":"1 x 200 µL", "name":"Modifier reagent", "number":"AB195224-CMP03" }, { "size":"1 x 200 µL", "name":"Quencher reagent", "number":"AB195224-CMP02" } ] }, "1mg": { "sellingSize": "1 mg", "publicAssetCode":"ab195224-1mg", "assetComponentDetails": [ { "size":"1 x 1 mg", "name":"AMCA Conjugation Mix", "number":"AB195224-CMP01" }, { "size":"1 x 200 µL", "name":"Quencher reagent", "number":"AB195224-CMP02" }, { "size":"1 x 200 µL", "name":"Modifier reagent", "number":"AB195224-CMP03" } ] }, "100g": { "sellingSize": "100 µg", "publicAssetCode":"ab195224-100ug", "assetComponentDetails": [ { "size":"1 x 100 µg", "name":"AMCA Conjugation Mix", "number":"AB195224-CMP01", "productcode":"" }, { "size":"1 x 200 µL", "name":"Quencher reagent", "number":"AB195224-CMP02", "productcode":"" }, { "size":"1 x 200 µL", "name":"Modifier reagent", "number":"AB195224-CMP03", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Ambient - Cannot Ship with Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
-20°C
