AB270030

Antibody Biotinylation Check Kit

Be the first to review this product! Submit a review

|

(0 Publication)

Antibody Biotinylation Check Kit (ab270030) is an easy-to-use immunochromatography test that allows you to confirm the successful conjugation of biotin to an antibody.

- Suitable for use with our Lightning-Link® Biotin antibody labelling kits, as well as other biotinylation technologies.
-Detects successful biotinylated conjugation in 10 miutes
2 Images
Functional Studies - Antibody Biotinylation Check Kit (AB270030)
  • FuncS

Supplier Data

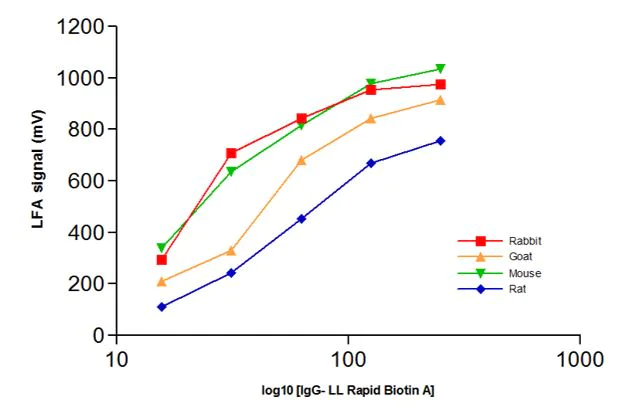

Functional Studies - Antibody Biotinylation Check Kit (AB270030)

Polyclonal antibodies from rabbit, goat, mouse and rat have been conjugated with Lightning-Link® Rapid Biotin A and run on Protein A / G strips at different concentrations, together with 0.4OD gold conjugated streptavidin. Antibodies from all species provided a red visible line on the strips.

Schematic Diagram - Antibody Biotinylation Check Kit (AB270030)
  • Schematic Diagram

Unknown

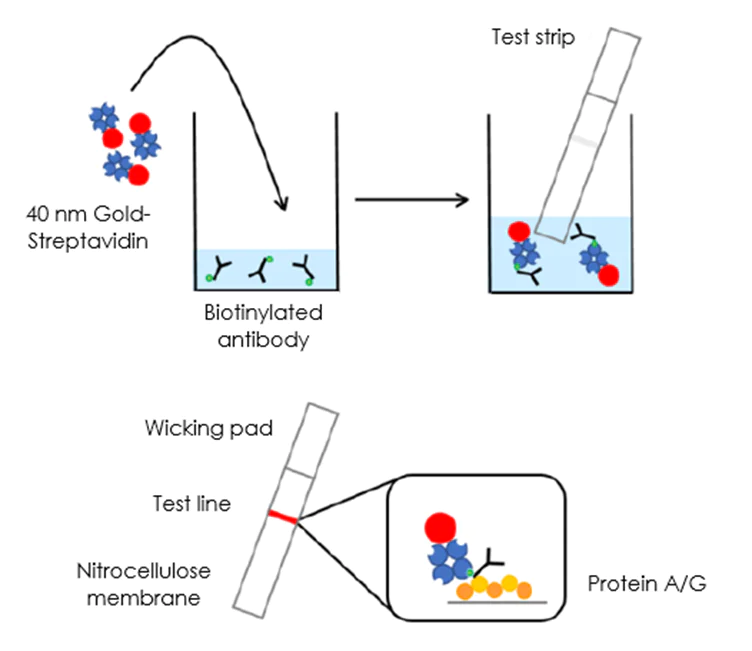

Schematic Diagram - Antibody Biotinylation Check Kit (AB270030)

How the kit works :

The nitrocellulose membrane contains a Test line of immobilized Protein A and Protein G. Both Protein A and Protein G have a high affinity for the Fc region of a variety of IgG molecules. The membrane also contains an absorbent pad to promote and control the flow of sample through the nitrocellulose. The biotinylated antibody is run on the Protein A/G Strip together with 40 nm gold conjugated streptavidin as the detection label. Biotin binds to streptavidin with exceptionally high affinity and when the biotinylated antibody flows along the nitrocellulose, upon binding to the Protein A and Protein G concentrated on the Test line, a visible red line appears on the strip.

Key facts

Product details

Antibody Biotinylation Check Kit (ab270030) is a quick immunochromatography test that allows you to confirm the successful antibody biotinylation in one easy step, and without the need for any specialized or costly equipment. Unlike traditional methods of assessing the success of biotinylation, such as HABA assays, which can be tedious and time consuming, this kit requires only 10 minutes to perform and very small quantities of your antibody conjugate.

The key component of the kit is a nitrocellulose membrane containing a Test line of immobilized Protein A and Protein G with high affinity for the Fc region of a variety of IgG molecules, and a 40 nm Gold-Streptavidin conjugate for detection. When the biotinylated antibody is mixed with the Gold-Streptavidin conjugate, it forms a complex that flows along the nitrocellulose membrane and binds to the Protein A and Protein G on the Test line. A visible red line appears on the strip confirming successful conjugation.

Benefits:

Quick and easy qualitative test to check success of conjugation

Compatible with antibody conjugates generated with Lightning-Link® Biotin conjugation kits (ab201795 and ab201796)

No costly equipment required

Small volumes of conjugate required (20 μl)

General notes:

This product is manufactured by Expedeon, an Abcam company. It was previously called Biotin Check&Go! Antibody Labeling Confirmation Kit. Expedeon product code 4001-0030 is the same as the 30-test size of this product.

What's included?

{ "values": { "30Test": { "sellingSize": "30 Test", "publicAssetCode":"ab270030-30Test", "assetComponentDetails": [ { "size":"2 x 1500 µL", "name":"Running Buffer (10X)", "number":"AB270030-CMP03", "productcode":"" }, { "size":"1 x 100 µg", "name":"40nm gold conjugated streptavidin (Lyophilized)", "number":"AB270030-CMP04", "productcode":"" }, { "size":"1 x 30 Test", "name":"Protein A/G Strips", "number":"AB270030-CMP02", "productcode":"" }, { "size":"1 x 100 µg", "name":"Biotinylated Rabbit IgG (Lyophilized)", "number":"AB270030-CMP01", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Ambient - Cannot Ship with Ice
Appropriate short-term storage conditions
Multi
Appropriate long-term storage conditions
Multi
Storage information
Please refer to protocols

Product protocols

Target data

websiteProtocolBooklet
en

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
