PE/Texas Red Conjugation Kit - Lightning-Link®

Product details

PE/Texas Red Conjugation Kit - Lightning-Link® (ab269899) uses a simple and quick process for PE/Texas Red labeling / conjugation of antibodies. It can also be used to conjugate other proteins or peptides.

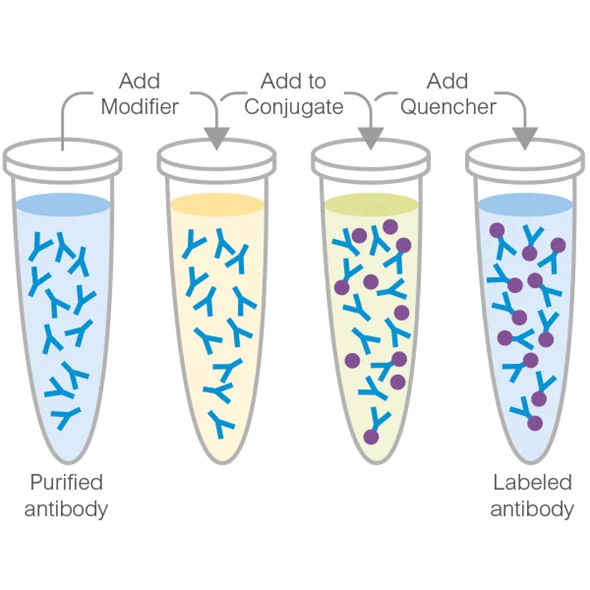

To conjugate an antibody to PE/Texas Red using this kit:
- add modifier to antibody and incubate for 3 hrs
- add quencher and incubate for 30 mins

The PE/Texas Red conjugated antibody can be used immediately in Flow cytometry and other applications. No further purification is required and 100% of the antibody is recovered for use.

Learn about our antibody labeling kits and their advantages here.

Learn about buffer compatibility below; for incompatible buffers and low antibody concentrations, use our antibody purification and concentration kits.
Custom size conjugation kits up to 100 mg are available on demand. Please contact us to discuss your requirements.

Amount and volume of antibody for conjugation to PE/Texas Red

¹ Using the maximum amount of antibody may result in less labeling per antibody.

² Ideal antibody concentration is 1mg/mL. 0.5 - 1 mg/mL can be used if the maximum antibody volume is not exceeded. Antibodies > 1 mg/mL or < 0.5 mg/mL should be diluted /concentrated.

Buffer Requirements for Conjugation

Buffer should be pH 6.5-8.5.

Compatible buffer constituents
If a concentration is shown, then the constituent should be no more than the concentration shown. If several constituents are close to the limit of acceptable concentration, then this can inhibit conjugation.

¹ Tris buffered saline is almost always ≤ 50 mM / 0.6%
² BSA can also interfere with the use of the conjugated antibody in tissue staining.

Incompatible buffer constituents

If a constituent of the buffer containing your antibody or protein is not listed above, please contact us.

Only purified antibodies are suitable for use, ie. where other proteins, peptides, or amino acids are not present: antibodies in ascites fluid, serum or hybridoma culture media are incompatible.

Storing and handling conjugation kits

Lyophilized Lightning-Link^® components are hygroscopic.

Kits are intentionally shipped at ambient temperature with silica gel to avoid exposure to moisture. Upon receipt, store the kit frozen and protect from moisture. Before opening the outer container, allow the lyophilized components to reach room temperature to minimize condensation.

This product is manufactured by Expedeon, an Abcam company, and was previously called Lightning-Link^® R-PE/Texas Red^® Labeling Kit. 767-0015 is the same as the 600 µg size. 767-0010 is the same as the 3 x 60 µg size. 767-0030 is the same as the 3 x 10 µg size. 767-0005 is the same as the 60 µg size.
