AB102907

PerCP Conjugation Kit - Lightning-Link®

Be the first to review this product! Submit a review

|

(7 Publications)

PerCP Conjugation Kit - Lightning-Link® (ab102907) offers several standout features:

- Rapid Conjugation: achieve PerCP labeling in under 4 hours with just 30 seconds of hands-on time.
- High Efficiency: ensures 100% antibody recovery, meaning no loss of valuable antibodies.
- Versatility: suitable for conjugating antibodies, proteins, and peptides. PerCP labeled antibodies can be used immediately in applications such as Western blot (WB), ELISA, and Immunohistochemistry (IHC) without further purification.
1 Images

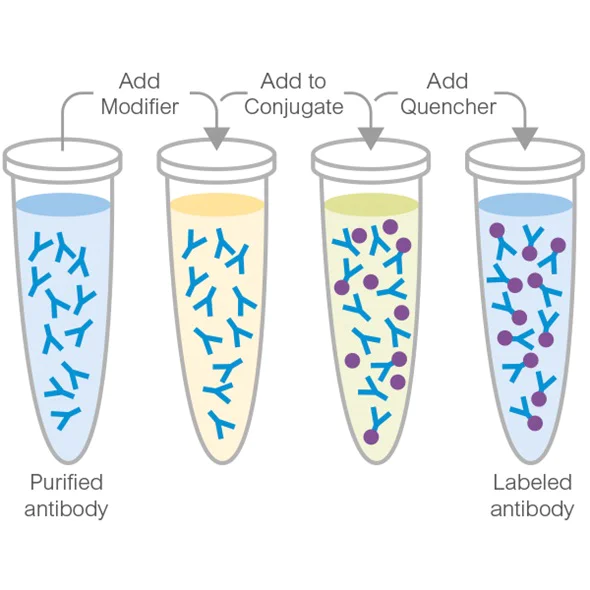

Schematic Diagram - PerCP Conjugation Kit - Lightning-Link® (AB102907)
  • Schematic Diagram

Supplier Data

This illustration demonstrates a general procedure of how Lightning-Link® labeling technology enables the direct labeling of antibodies or proteins.

Simply pipette your antibody or biomolecule of choice into the vial of a lyophilized mixture containing the label of interest and incubate for around 3 hours. Please see the ab102907 protocol booklet for more details.

Learn more about our Lightning-Link® conjugation kits here

Key facts

Product details

PerCP Conjugation Kit - Lightning-Link® (ab102907) uses a simple and quick process for labeling / conjugation of antibodies. It can also be used to conjugate other proteins or peptides.

To conjugate an antibody to PerCP using this kit:
- add modifier to antibody and incubate for 3 hrs
- add quencher and incubate for 30 min

The PerCP conjugated antibody can be used immediately in Flow cytometry, WB, ELISA, IHC etc. No further purification is required and 100% of the antibody is recovered for use.

Learn about our antibody labeling kits and their advantages here.

Learn about buffer compatibility below; for incompatible buffers and low antibody concentrations, use our antibody purification and concentration kits.
Custom size conjugation kits up to 100 mg are available on demand. Please contact us to discuss your requirements.

Amount and volume of antibody for conjugation to PerCP

Kit size Recommended maximum
amount of antibody
Maximum antibody
volume1
3 x 10 µg 3 x 10 µg 3 x 10 µL
100 µg 1 x 100 µg 1 x 100 µL
3 x 100 µg 3 x 100 µg 3 x 100 µL
1 mg 1 x 1 mg 1 x 1 mL

1 Ideal antibody concentration is 1mg/mL. 0.5 - 1 mg/mL can be used if the maximum antibody volume is not exceeded. Antibodies > 1 mg/mL or < 0.5 mg/mL should be diluted /concentrated.

Buffer Requirements for Conjugation

Buffer should be pH 6.5-8.5.

Compatible buffer constituents
If a concentration is shown, then the constituent should be no more than the concentration shown. If several constituents are close to the limit of acceptable concentration, then this can inhibit conjugation.

50mM / 0.6% Tris1 0.1% BSA 50% glycerol
0.1% sodium azide PBS Potassium phosphate
Sodium chloride HEPES Sucrose
Sodium citrate EDTA Trehalose

1 Tris buffered saline is almost always ≤ 50 mM / 0.6%

Incompatible buffer constituents

Thiomerosal Proclin Glycine
Arginine Glutathione DTT

If a constituent of the buffer containing your antibody or protein is not listed above, please contact us.

Only purified antibodies are suitable for use, ie. where other proteins, peptides, or amino acids are not present: antibodies in ascites fluid, serum or hybridoma culture

Storing and handling conjugation kits

Lyophilized Lightning-Link® components are hygroscopic.

Kits are intentionally shipped at ambient temperature with silica gel to avoid exposure to moisture. Upon receipt, store the kit frozen and protect from moisture. Before opening the outer container, allow the lyophilized components to reach room temperature to minimize condensation.

This product is manufactured by Expedeon, an Abcam company, and was previously called Lightning-Link® PerCP Labeling Kit. 718-0015 is the same as the 1 mg size. 718-0010 is the same as the 3 x 100 µg size. 718-0030 is the same as the 3 x 10 µg size. 718-0005 is the same as the 100 µg size.

What's included?

{ "values": { "3x10g": { "sellingSize": "3 x 10 µg", "publicAssetCode":"ab102907-3x10ug", "assetComponentDetails": [ { "size":"1 x 200 µL", "name":"Modifier reagent", "number":"AB102907-CMP04" }, { "size":"1 x 200 µL", "name":"Quencher reagent", "number":"AB102907-CMP03" }, { "size":"3 x 10 µg", "name":"PerCP mix", "number":"AB102907-CMP02" } ] }, "3x100g": { "sellingSize": "3 x 100 µg", "publicAssetCode":"ab102907-3x100ug", "assetComponentDetails": [ { "size":"3 x 100 µg", "name":"PerCP mix", "number":"AB102907-CMP02" }, { "size":"1 x 200 µL", "name":"Quencher reagent", "number":"AB102907-CMP03" }, { "size":"1 x 200 µL", "name":"Modifier reagent", "number":"AB102907-CMP04" } ] }, "1mg": { "sellingSize": "1 mg", "publicAssetCode":"ab102907-1mg", "assetComponentDetails": [ { "size":"1 x 1 mg", "name":"PerCP mix", "number":"AB102907-CMP02" }, { "size":"1 x 200 µL", "name":"Modifier reagent", "number":"AB102907-CMP04" }, { "size":"1 x 200 µL", "name":"Quencher reagent", "number":"AB102907-CMP03" } ] }, "100g": { "sellingSize": "100 µg", "publicAssetCode":"ab102907-100ug", "assetComponentDetails": [ { "size":"1 x 100 µg", "name":"PerCP mix", "number":"AB102907-CMP02", "productcode":"" }, { "size":"1 x 200 µL", "name":"Modifier reagent", "number":"AB102907-CMP04", "productcode":"" }, { "size":"1 x 200 µL", "name":"Quencher reagent", "number":"AB102907-CMP03", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Ambient - Cannot Ship with Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
-20°C
