AB272189

Streptavidin AZDye™ 594 Monovalent Antibody Labeling Kit

Be the first to review this product! Submit a review

|

(2 Publications)

Streptavidin AZDye™ 594 (Monovalent) (ab272189) provides a rapid, robust, and flexible method for attaching fluorochromes to biotinylated antibodies. It offers several standout features:

- Enables multiplexing with multiple biotinylated antibodies
- No spillover of Streptavidin AZDye™ 594 (Monovalent) reagent between antibodies
- Compatible with antibodies of the same animal host species
3 Images
Immunofluorescence - Streptavidin AZDye™ 594 Monovalent Antibody Labeling Kit (AB272189)
  • IF

Supplier Data

Immunofluorescence - Streptavidin AZDye™ 594 Monovalent Antibody Labeling Kit (AB272189)

Multiplex 4 color staining.

Multiplex immunostaining of a frozen tissue section of mouse spleen using four biotinylated antibodies labeled using Streptavidin (Monovalent) kits. T cells (rat anti-CD3, 7 μg/ml, green), B cells (rat anti-CD45R, 7 μg/ml, red), macrophages (rat anti-CD11b, 7 μg/ml, white), and dendritic cells (hamster anti-CD11c, 7 μg/ml, blue) were detected using Streptavidin (Monovalent) kits with four different fluorochromes. Picture was taken with a standard fluorescence microscope equipped with appropriate filters for optimal multicolor separation.

Flow Cytometry - Streptavidin AZDye™ 594 Monovalent Antibody Labeling Kit (AB272189)
  • Flow Cyt

Supplier Data

Flow Cytometry - Streptavidin AZDye™ 594 Monovalent Antibody Labeling Kit (AB272189)

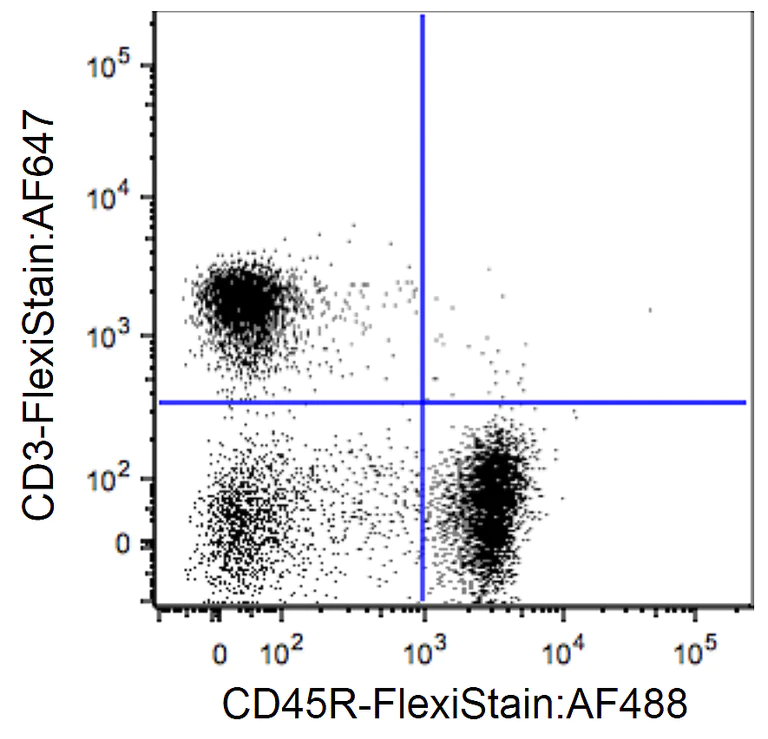

No spillover of signals from different labels.

No spillover of signals between Streptavidin (Monovalent)-labeled antibodies. Flow cytometry analysis of T and B cells immunolabeled (7 μg/ml) with Streptavidin Alexa Fluor® 647 (Monovalent)(ab272190) and Streptavidin Alexa Fluor® 488 (Monovalent)(ab272187).

Flow Cytometry - Streptavidin AZDye™ 594 Monovalent Antibody Labeling Kit (AB272189)
  • Flow Cyt

Supplier Data

Flow Cytometry - Streptavidin AZDye™ 594 Monovalent Antibody Labeling Kit (AB272189)

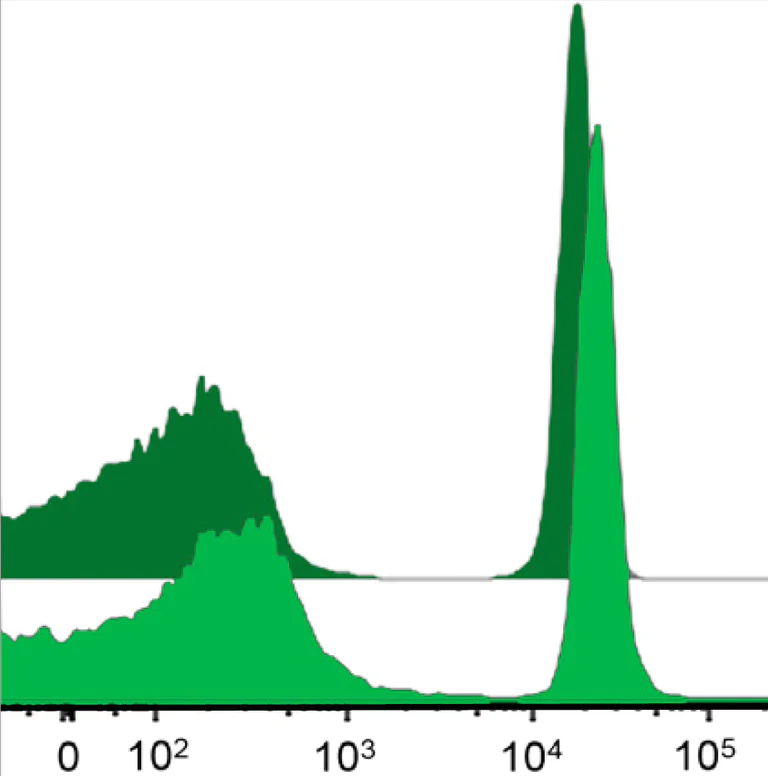

Brightness compared to directly conjugated antibodies.

Antibodies labeled with Streptavidin (Monovalent) kits are as bright as directly conjugated antibodies. Flow cytometry analysis of splenic B lymphocytes immunolabeled with antibodies against CD45R (B220, clone RA3-6B2, 7 μg/ml). Dark green = directly conjugated antibody, light green = Streptavidin (Monovalent)-labeled antibody.

Key facts

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "Flow Cyt": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" }, "IHC": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

Product details

Streptavidin AZDye™ 594 Monovalent Antibody Labeling Kit ab272189 is used to label biotinylated antibodies with AZDye™ 594.

The Antibody - Streptavidin AZDye™ 594 complex produced with this kit is stable and can be used in the same way as antibodies conjugated directly with fluorochromes.

Several antibodies can be labeled with this kit, and its associated kits, and used together in the same experiment.

Use this kit to:

- label biotinylated antibodies with fluorescent dyes, and use them in immunostaining just like a directly dye conjugated antibody

- label two or more biotinylated antibodies with different fluorescent dyes* and then use them together in the same experiment
*multiple kits required, see list below

- label as little as 0.1 μg of biotinylated antibody in less than 5 mins without washes

Technical notes

The 50 μg size of this kit is typically sufficient to label 50 μg of antibody, the 25 μg size is sufficient to label 25 μg of antibody.

When the antibody - streptavidin complex is produced with this kit, due to the monovalent nature of the streptavidin and the blocking solution, there is no risk of forming aggregates of multiple antibodies.

The antibody - streptavidin complex is also very stable, if 2 or more biotinylated antibodies are labeled with different dyes, and then mixed, no dye will transfer between the antibodies.

List of available monovalent streptavidin antibody labeling kits

Streptavidin Alexa Fluor® 488 Equivalent (ab272187)
Streptavidin Atto 542 (ab272188)
Streptavidin AZDye™ 594 (ab272189) – this kit
Streptavidin AZDye™ 647 Equivalent (ab272190)

Note: the streptavidin in this kit contains very small amounts of non-monovalent streptavidin, when used with the blocking buffer included in the kit, this does not affect the conjugated antibodies.

This product was previously called Streptavidin Alexa Fluor® 594 Antibody Labeling Kit.

What's included?

{ "values": { "50g": { "sellingSize": "50 µg", "publicAssetCode":"ab272189-50ug", "assetComponentDetails": [ { "size":"1 x 500 µL", "name":"Biotin block buffer", "number":"AB272189-CMP01" }, { "size":"1 x 500 µL", "name":"Streptavidin AZDye™ 594 (Monovalent) reagent", "number":"AB272189-CMP03" } ] }, "50g": { "sellingSize": "50 µg", "publicAssetCode":"ab272189-50ug", "assetComponentDetails": [ { "size":"1 x 500 µL", "name":"Biotin block buffer", "number":"AB272189-CMP01" }, { "size":"1 x 500 µL", "name":"Streptavidin Alexa Fluor® 594 (Monovalent) reagent", "number":"AB272189-CMP02" } ] }, "25g": { "sellingSize": "25 µg", "publicAssetCode":"ab272189-25ug", "assetComponentDetails": [ { "size":"1 x 250 µL", "name":"Streptavidin Alexa Fluor® 594 (Monovalent) reagent", "number":"AB272189-CMP02", "productcode":"" }, { "size":"1 x 250 µL", "name":"Biotin block buffer", "number":"AB272189-CMP01", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C
