AB272190

Streptavidin AZDye™ 647 Monovalent Antibody Labeling Kit

Be the first to review this product! Submit a review

|

(4 Publications)

Streptavidin AZDye™ 647 (Monovalent) (ab272190) provides a rapid, robust, and flexible method for attaching fluorochromes to biotinylated antibodies. Suitable for multiplex immunostaining (mIHC) and flow cytometry. This conjugation kit offers several standout features:

- Enables multiplexing with multiple biotinylated antibodies
- No spillover of Streptavidin AZDye™ 647 (Monovalent) reagent between antibodies
- Compatible with antibodies of the same animal host species
- Ex: 649 nm, Em: 671 nm
3 Images
Immunofluorescence - Streptavidin AZDye™ 647 Monovalent Antibody Labeling Kit (AB272190)
  • IF

Supplier Data

Immunofluorescence - Streptavidin AZDye™ 647 Monovalent Antibody Labeling Kit (AB272190)

Multiplex 4 color staining.

Multiplex immunostaining of a frozen tissue section of mouse spleen using four biotinylated antibodies labeled using Streptavidin (Monovalent) kits. T cells (rat anti-CD3, 7 μg/ml, green), B cells (rat anti-CD45R, 7 μg/ml, red), macrophages (rat anti-CD11b, 7 μg/ml, white), and dendritic cells (hamster anti-CD11c, 7 μg/ml, blue) were detected using Streptavidin (Monovalent) kits with four different fluorochromes. Picture was taken with a standard fluorescence microscope equipped with appropriate filters for optimal multicolor separation.

Flow Cytometry - Streptavidin AZDye™ 647 Monovalent Antibody Labeling Kit (AB272190)
  • Flow Cyt

Supplier Data

Flow Cytometry - Streptavidin AZDye™ 647 Monovalent Antibody Labeling Kit (AB272190)

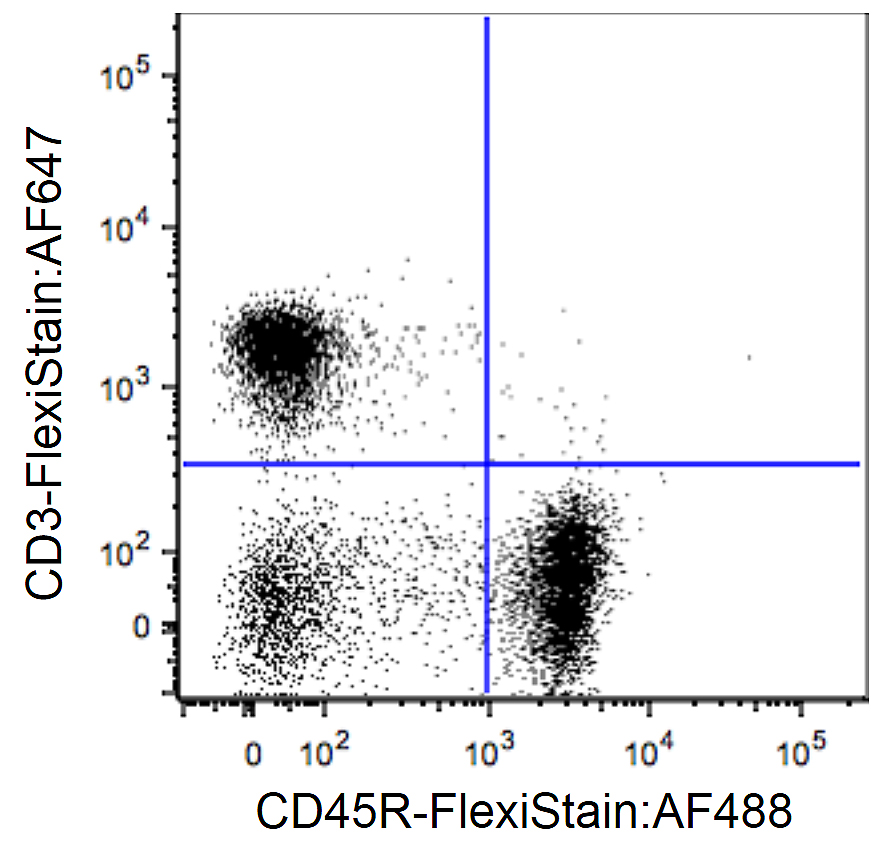

No spillover of signals from different labels.

No spillover of signals between Streptavidin (Monovalent)-labeled antibodies. Flow cytometry analysis of T and B cells immunolabeled (7 μg/ml) with Streptavidin AZDye™ 647 (Monovalent) (ab272190) and Streptavidin AZDye™ 488 (Monovalent) (ab272187).

Flow Cytometry - Streptavidin AZDye™ 647 Monovalent Antibody Labeling Kit (AB272190)
  • Flow Cyt

Supplier Data

Flow Cytometry - Streptavidin AZDye™ 647 Monovalent Antibody Labeling Kit (AB272190)

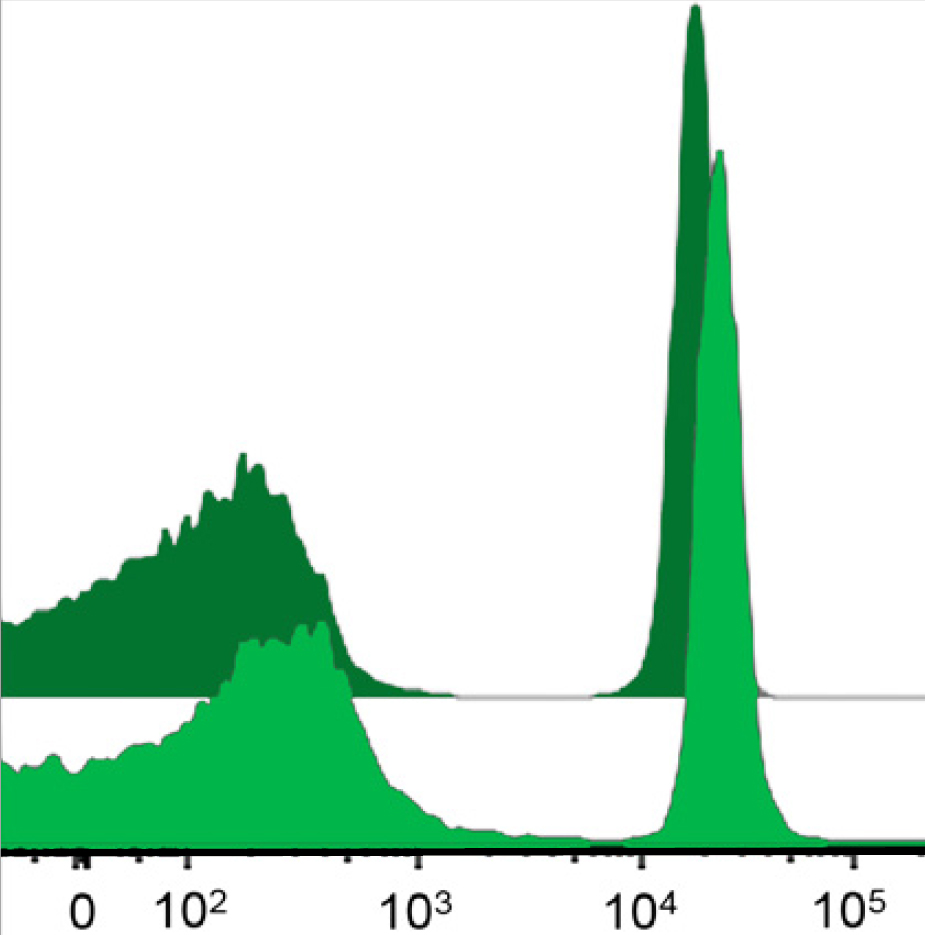

Brightness compared to directly conjugated antibodies.

Antibodies labeled with Streptavidin (Monovalent) kits are as bright as directly conjugated antibodies. Flow cytometry analysis of splenic B lymphocytes immunolabeled with antibodies against CD45R (B220, clone RA3-6B2, 7 μg/ml). Dark green = directly conjugated antibody, light green = Streptavidin (Monovalent)-labeled antibody.

Key facts

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "Flow Cyt": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" }, "IHC": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

Product details

Streptavidin AZDye™ 647 Antibody Labeling Kit ab272190 is used to label biotinylated antibodies with AZDye™ 647.

The Antibody - Streptavidin AZDye™ 647 (Monovalent) complex produced with this kit is stable and can be used in the same way as antibodies conjugated directly with fluorochromes.

Several antibodies can be labeled with this kit, and its associated kits, and used together in the same experiment.

Use this kit to:

- Label biotinylated antibodies with fluorescent dyes, and use them in immunostaining just like a directly dye conjugated antibody

- Label two or more biotinylated antibodies with different fluorescent dyes* and then use them together in the same experiment
*multiple kits required, see list below

- Label as little as 0.1 µg of biotinylated antibody in less than 5 mins without washes

Technical notes

The 50 µg size of this kit is typically sufficient to label 50 µg of antibody.

When the antibody - streptavidin complex is produced with this kit, due to the monovalent nature of the streptavidin and the blocking solution, there is no risk of forming aggregates of multiple antibodies.

The antibody - streptavidin complex is also very stable, if 2 or more biotinylated antibodies are labeled with different dyes, and then mixed, no dye will transfer between the antibodies.

List of available monovalent streptavidin antibody labeling kits

Streptavidin AZDye™ 488 Antibody Labeling Kit (ab272187)
Streptavidin Atto 542 (ab272188)
Streptavidin AZDye™ 594 (ab272189)
Streptavidin AZDye™ 647 Antibody Labeling Kit (This kit)

Note: the streptavidin in this kit contains very small amounts of non-monovalent streptavidin, when used with the blocking buffer included in the kit, this does not affect the conjugated antibodies.

This product was previously called Streptavidin Alexa Fluor® 647 Antibody Labeling Kit.

What's included?

{ "values": { "50g": { "sellingSize": "50 µg", "publicAssetCode":"ab272190-50ug", "assetComponentDetails": [ { "size":"1 x 500 µL", "name":"Biotin block buffer", "number":"AB272190-CMP01", "productcode":"" }, { "size":"1 x 500 µL", "name":"Streptavidin AZDye™ 647 (Monovalent) labeling reagent", "number":"AB272190-CMP03", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C

Product protocols

Target data

Publications (4)

Recent publications for all applications. Explore the full list and refine your search

Cancer medicine 14:e70959 PubMed40387385

2025

FUT8 Is a Critical Driver of Prostate Tumour Growth and Can Be Targeted Using Fucosylation Inhibitors.

Applications

Unspecified application

Species

Unspecified reactive species

Kayla Bastian,Margarita Orozco-Moreno,Huw Thomas,Kirsty Hodgson,Eline A Visser,Emiel Rossing,Johan F A Pijnenborg,Nienke Eerden,Laura Wilson,Hasvini Saravannan,Oliver Hanley,Grace Grimsley,Fiona Frame,Ziqian Peng,Bridget Knight,Paul McCullagh,John McGrath,Malcolm Crundwell,Lorna Harries,Norman J Maitland,Rakesh Heer,Ning Wang,Ethan D Goddard-Borger,Ramon Hurtado Guerrero,Thomas J Boltje,Richard R Drake,Emma Scott,David J Elliott,Jennifer Munkley

EBioMedicine 104:105163 PubMed38772281

2024

Sialic acid blockade inhibits the metastatic spread of prostate cancer to bone.

Applications

Unspecified application

Species

Unspecified reactive species

Kirsty Hodgson,Margarita Orozco-Moreno,Emily Archer Goode,Matthew Fisher,Rebecca Garnham,Richard Beatson,Helen Turner,Karen Livermore,Yuhan Zhou,Laura Wilson,Eline A Visser,Johan Fa Pijnenborg,Nienke Eerden,Sam J Moons,Emiel Rossing,Gerald Hysenaj,Rashi Krishna,Ziqian Peng,Kyla Putri Nangkana,Edward N Schmidt,Adam Duxfield,Ella P Dennis,Rakesh Heer,Michelle A Lawson,Matthew Macauley,David J Elliott,Christian Büll,Emma Scott,Thomas J Boltje,Richard R Drake,Ning Wang,Jennifer Munkley

Cell reports. Medicine 4:101326 PubMed38118413

2023

PRMT blockade induces defective DNA replication stress response and synergizes with PARP inhibition.

Applications

Unspecified application

Species

Unspecified reactive species

Yang Li,Lacey E Dobrolecki,Christina Sallas,Xudong Zhang,Travis D Kerr,Deepa Bisht,Yalong Wang,Sharad Awasthi,Babita Kaundal,Siqi Wu,Weiyi Peng,Marc L Mendillo,Yiling Lu,Collene R Jeter,Guang Peng,Jinsong Liu,Shannon N Westin,Anil K Sood,Michael T Lewis,Jishnu Das,S Stephen Yi,Mark T Bedford,Daniel J McGrail,Nidhi Sahni

ACS omega 7:7550-7555 PubMed35284707

2022

Development of a Radiotracer for PET Imaging of the SNAP Tag.

Applications

Unspecified application

Species

Unspecified reactive species

Xinling Li,Xiaochun Yang,Zhijian Li,Xiaobin Zheng,Yong-Jian Peng,Wenjie Lin,Ling Zhou,Dehai Cao,Minyi Situ,Qingqiang Tu,Huiqiang Huang,Wei Fan,Guokai Feng,Xiaofei Zhang
