AB186864

Streptavidin Gold Conjugate (40nm, 10 OD)

Be the first to review this product! Submit a review

|

(2 Publications)

Streptavidin Gold Conjugate (40nm, 10 OD) (ab186864) are ready-to use nanoparticles that are suitable as a detector in Lateral Flow Assays (LFAs).

- Possible to exchange the Streptavidin-Gold (40 nm) nanoparticles into a specific buffer for your assay.
- Available in different sizes to fit your experimental needs.
1 Images
Schematic Diagram - Streptavidin Gold Conjugate (40nm, 10 OD) (AB186864)
  • Schematic Diagram

Unknown

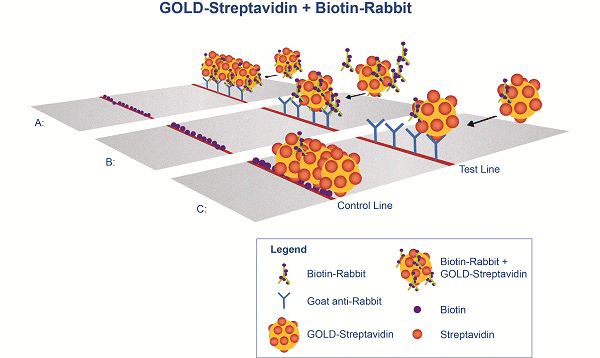

Schematic Diagram - Streptavidin Gold Conjugate (40nm, 10 OD) (AB186864)

The 3 possibilities of binding are shown in the image :

A Ideal concentration of Biotin conjugated Rabbit IgG (50-100 μg/ml) binds to the Streptavidin GOLD producing a strong signal on the test line (Goat anti-rabbit IgG).

B Excess Biotin conjugated Rabbit IgG (>400 μg/ml) results in competition between the unbound Biotin conjugated Rabbit IgG and Streptavidin GOLD for the test line.

C A lack of Biotin conjugated Rabbit IgG (<10 μg/ml) leads to a weak test line.

Key facts

style
left-column

Product details

Streptavidin Gold Conjugate (40 nm, 10OD) (ab186864) is a unique coated 40 nm nanoparticle that has an avidly bound protective surface coat which can withstand the most extreme conditions (e.g. 2.5M NaOH at 70°C for > 1 hour).

Our Gold streptavidin conjugates share the stability attributes of the core nanoparticle. Furthermore, since the streptavidin is covalently bound to the surface coating of the gold nanoparticle it is unable to desorb, which is a major problem faced by competing products whereby the streptavidin is directly attached to the metal. Our Gold Streptavidin binds with high affinity to biotinylated molecules.

A common application for Streptavidin Gold is to be used as a detector in Lateral Flow Assays (LFAs).


This product is manufactured by Expedeon, an Abcam company. It was previously called 40nm InnovaCoat® GOLD (10OD) Streptavidin Conjugate. Expedeon product code 250-0200 is the same as the 200 µL size of this product and code 250-1000 is the same as the 1 mL size.
style
left-column

What's included?

{ "values": { "200L": { "sellingSize": "200 µL", "publicAssetCode":"ab186864-200uL", "assetComponentDetails": [ { "size":"1 x 200 µL", "name":"Gold-Streptavidin", "number":"AB186864-CMP01" } ] }, "1mL": { "sellingSize": "1 mL", "publicAssetCode":"ab186864-1mL", "assetComponentDetails": [ { "size":"1 x 1 mL", "name":"Gold-Streptavidin", "number":"AB186864-CMP01", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C
style
left-column
style
left-column

Product protocols

style
left-column

Target data

style
left-column

Publications (2)

Recent publications for all applications. Explore the full list and refine your search

eLife 8: PubMed31486771

2019

Release of cholesterol-rich particles from the macrophage plasma membrane during movement of filopodia and lamellipodia.

Applications

Unspecified application

Species

Unspecified reactive species

Xuchen Hu,Thomas A Weston,Cuiwen He,Rachel S Jung,Patrick J Heizer,Brian D Young,Yiping Tu,Peter Tontonoz,James A Wohlschlegel,Haibo Jiang,Stephen G Young,Loren G Fong

PloS one 10:e0125701 PubMed25915630

2015

Enhanced Sensitivity for Detection of HIV-1 p24 Antigen by a Novel Nuclease-Linked Fluorescence Oligonucleotide Assay.

Applications

Unspecified application

Species

Unspecified reactive species

Peihu Fan,Xiaojun Li,Weiheng Su,Wei Kong,Xianggui Kong,Zhenxin Wang,Youchun Wang,Chunlai Jiang,Feng Gao
View all publications
