AB176635

AKT1 + AKT2 + AKT3 (pS473) ELISA Kit

Be the first to review this product! Submit a review

|

(3 Publications)

AKT1 + AKT2 + AKT3 (pS473) ELISA Kit is a single-wash 90-min Simplestep used to quantify AKT1 + AKT2 + AKT3 (pS473) with a sensitivity of 30 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader

View Alternative Names

PKB, RAC, AKT1, RAC-alpha serine/threonine-protein kinase, Protein kinase B, Protein kinase B alpha, Proto-oncogene c-Akt, RAC-PK-alpha, PKB alpha, RAC-beta serine/threonine-protein kinase, Protein kinase Akt-2, Protein kinase B beta, RAC protein kinase beta, PKB beta, RAC-PK-beta, AKT2

6 Images
ELISA - AKT1 + AKT2 + AKT3 (pS473) ELISA Kit (AB176635)
  • ELISA

Supplier Data

ELISA - AKT1 + AKT2 + AKT3 (pS473) ELISA Kit (AB176635)
Sandwich ELISA - AKT1 + AKT2 + AKT3 (pS473) ELISA Kit (AB176635)
  • sELISA

Supplier Data

Sandwich ELISA - AKT1 + AKT2 + AKT3 (pS473) ELISA Kit (AB176635)

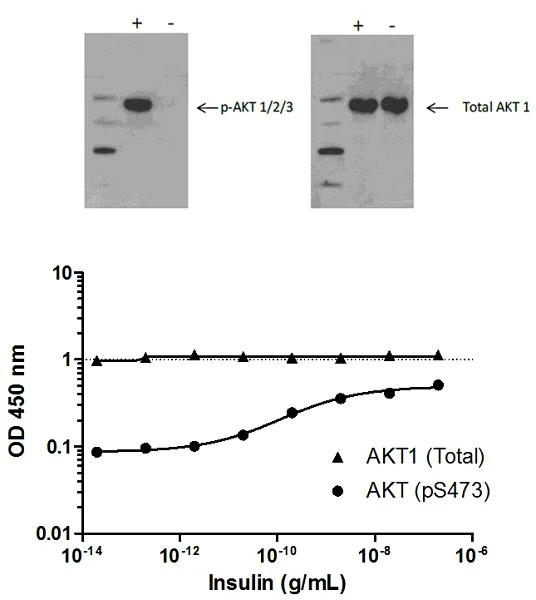

AKT (pS473) phosphorylation in response to insulin treatment.

Induction of AKT (pS473) phosphorylation in MCF-7 cells in response to insulin treatment. MCF-7 cells were cultured in 96-well tissue culture plates, serum-starved and treated (5 min) with a dose-range of insulin before cell lysis. Data from quadruplicate measurements of AKT (pS473) are plotted and compared against total AKT1 protein levels. Comparative AKT (pS473) and AKT1 (Total) data also shown by Western Blot.

ELISA - AKT1 + AKT2 + AKT3 (pS473) ELISA Kit (AB176635)
  • ELISA

Unknown

ELISA - AKT1 + AKT2 + AKT3 (pS473) ELISA Kit (AB176635)

Typical Recombinant Protein Standard Curve

Sandwich ELISA - AKT1 + AKT2 + AKT3 (pS473) ELISA Kit (AB176635)
  • sELISA

Supplier Data

Sandwich ELISA - AKT1 + AKT2 + AKT3 (pS473) ELISA Kit (AB176635)

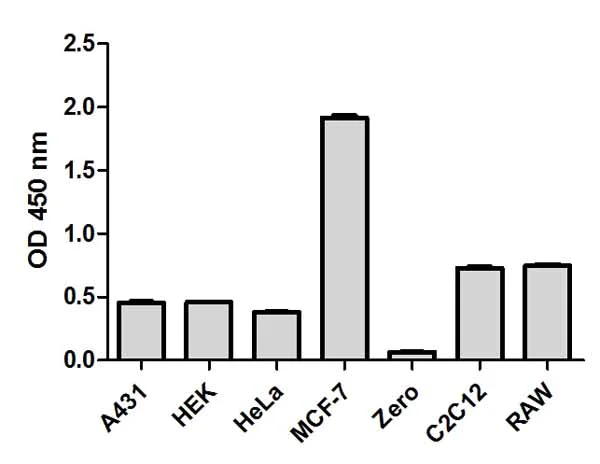

Comparison of total AKT1 expression in different cell lines.

Cell line analysis for total AKT1 from 20 μg/mL preparations of cell extracts. Data from triplicate measurements (mean +/- SD) are plotted and compared to 1X Cell Extraction Buffer PTR (zero).

Sandwich ELISA - AKT1 + AKT2 + AKT3 (pS473) ELISA Kit (AB176635)
  • sELISA

Unknown

Sandwich ELISA - AKT1 + AKT2 + AKT3 (pS473) ELISA Kit (AB176635)

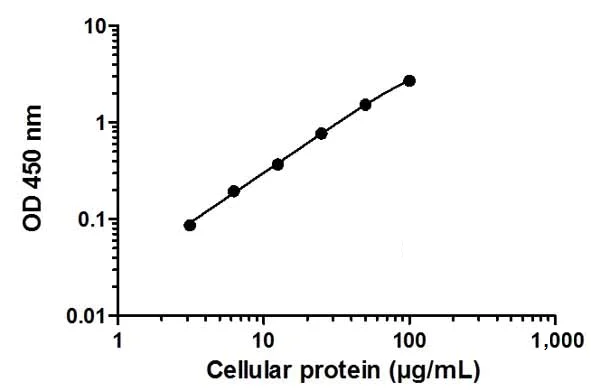

Typical cell lysate dilution series.

Example of a typical AKT (pS473) cell lysate dilution series. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - AKT1 + AKT2 + AKT3 (pS473) ELISA Kit (AB176635)
  • sELISA

Supplier Data

Sandwich ELISA - AKT1 + AKT2 + AKT3 (pS473) ELISA Kit (AB176635)

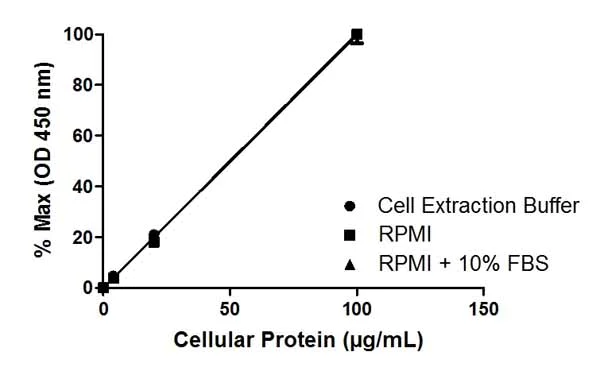

Linearity of dilution in representative sample matrices. Cellular lysates were prepared at 3 concentrations in common media containing 1X Cell Extraction Buffer PTR. Data from duplicate measurements of AKT1 (pS473) are normalized and plotted.

Key facts

Detection method

Colorimetric

Sample types

Tissue Homogenate, Cell Lysate

Reacts with

Mouse, Human

Results type

Semi-Quantitative

Sensitivity

= 30 pg/mL

Range

1 - 100 ng/mL

Assay time

1h 30m

Assay Platform

Microplate

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "ELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

Product details

AKT1 + AKT2 + AKT3 (pS473) ELISA Kit ab176635 is a rapid single-wash 90-min Other Immunoassay to measure AKT1 + AKT2 + AKT3 (pS473) in cell lysate, tissue homogenate. This SimpleStep sensitivity is 30 pg/mL.

How the assay works

AKT1 + AKT2 + AKT3 (pS473) SimpleStep ELISA®employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details.

Assay Specificity

Our SimpleStep ELISA® kits use recombinant monoclonal antibodies rigorously validated to ensure the highest level of consistency and reproducibility, improved sensitivity and specificity and ease of scalability and security of supply.
Please refer to our protocol booklet for more details.

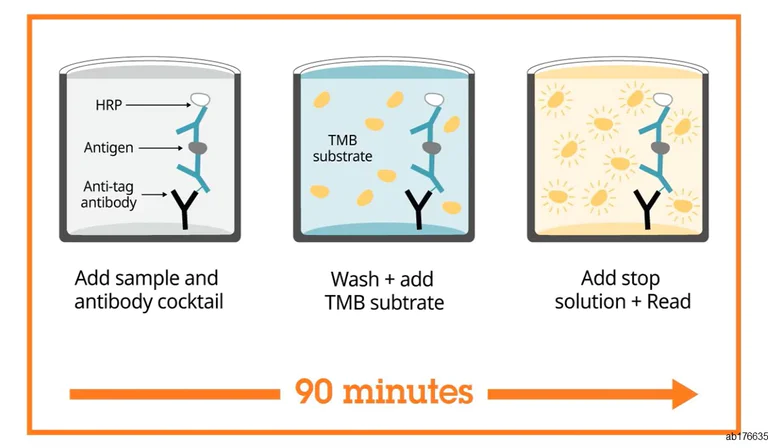

AKT1 + AKT2 + AKT3 (pS473) ELISA Kit ab176635 protocol summary

1. Mix: add samples/standards to the wells together with the capture and detector antibody cocktail. Incubate 1 hr at room temperature
2. Wash
3. Add TMB development solution - incubate for 10 min
4. Add Stop solution
5. Read the results on a plate reader at 450 nm

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

Precision

[ { "reproducibilityType": "Inter", "sample": "HEK-293 Extract", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 2.7" }, { "reproducibilityType": "Intra", "sample": "HEK-293 Extract", "replicates": 6, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 5.4" } ]

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab176635-1x96Tests", "assetComponentDetails": [ { "size":"1 x 3 mL", "name":"AKT 1/2/3 (pS473) Capture Antibody", "number":"AB176635-CMP02", "productcode":"" }, { "size":"1 x 15 mL", "name":"10X Wash Buffer PT", "number":"AB176635-CMP01", "productcode":"" }, { "size":"1 x 1 Vial", "name":"Lyophilized AKT Control Lysate", "number":"AB176635-CMP05", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB176635-CMP07", "productcode":"" }, { "size":"1 x 1 mL", "name":"50X Cell Extraction Enhancer Solution", "number":"AB176635-CMP04", "productcode":"" }, { "size":"1 x 12 mL", "name":"5X Cell Extraction Buffer PTR", "number":"AB176635-CMP10", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Substrate", "number":"AB176635-CMP09", "productcode":"" }, { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB176635-CMP08", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB176635-CMP06", "productcode":"" }, { "size":"1 x 3 mL", "name":"AKT 1/2/3 (pS473) Detector Antibody", "number":"AB176635-CMP03", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

AKT1 AKT2 and AKT3 also known as Protein Kinase B (PKB) isoforms are serine/threonine-specific protein kinases with critical roles in cellular processes. AKT1 has a molecular weight of about 55.8 kDa AKT2 weighs approximately 56.1 kDa and AKT3 typically has a similar mass. These proteins are expressed in many tissues including brain and heart with AKT1 ubiquitously present AKT2 focused in insulin-responsive tissues and AKT3 mainly in the brain. The molecular weight of AKT plays an important role in their functionality and specificity in tissues.
Biological function summary

AKT proteins regulate cell cycle growing cell survival proliferation and metabolism. They participate as core components of the PI3K/AKT/mTOR signaling pathway forming complexes with other proteins to transmit signals. They bind to phosphoinositide lipids on the cell membrane facilitating their activation and downstream signaling. Through these activities the AKT transporter proteins maintain cellular homeostasis and play a part in stress response.

Pathways

AKT proteins engage in important signaling networks including the PI3K/AKT pathway and mTOR pathway. They work closely with PI3K and mTOR proteins coordinating cellular growth and energy metabolism. In particular the AKT pathway responds to growth factors and insulin influencing glucose uptake and glycolysis regulation through interaction with proteins such as glycogen synthase kinase 3 (GSK3).

Dysregulation of AKT signaling can lead to cancer and diabetes. High AKT activation correlates with various cancers by promoting cell survival and growth. In diabetes impaired AKT2 regulation disrupts glucose uptake affecting insulin response. AKT's relationship with mTOR is significant as it often influences tumor growth and progression in cancerous tissues.

Product protocols

Target data

AKT1 is one of 3 closely related serine/threonine-protein kinases (AKT1, AKT2 and AKT3) called the AKT kinase, and which regulate many processes including metabolism, proliferation, cell survival, growth and angiogenesis (PubMed : 11882383, PubMed : 15526160, PubMed : 15861136, PubMed : 21432781, PubMed : 21620960, PubMed : 31204173). This is mediated through serine and/or threonine phosphorylation of a range of downstream substrates (PubMed : 11882383, PubMed : 15526160, PubMed : 21432781, PubMed : 21620960, PubMed : 29343641, PubMed : 31204173). Over 100 substrate candidates have been reported so far, but for most of them, no isoform specificity has been reported (PubMed : 11882383, PubMed : 15526160, PubMed : 21432781, PubMed : 21620960). AKT is responsible of the regulation of glucose uptake by mediating insulin-induced translocation of the SLC2A4/GLUT4 glucose transporter to the cell surface (By similarity). Phosphorylation of PTPN1 at 'Ser-50' negatively modulates its phosphatase activity preventing dephosphorylation of the insulin receptor and the attenuation of insulin signaling (By similarity). Phosphorylation of TBC1D4 triggers the binding of this effector to inhibitory 14-3-3 proteins, which is required for insulin-stimulated glucose transport (PubMed : 11994271). AKT also regulates the storage of glucose in the form of glycogen by phosphorylating GSK3A at 'Ser-21' and GSK3B at 'Ser-9', resulting in inhibition of its kinase activity (By similarity). Phosphorylation of GSK3 isoforms by AKT is also thought to be one mechanism by which cell proliferation is driven (By similarity). AKT also regulates cell survival via the phosphorylation of MAP3K5 (apoptosis signal-related kinase) (PubMed : 11154276). Phosphorylation of 'Ser-83' decreases MAP3K5 kinase activity stimulated by oxidative stress and thereby prevents apoptosis (PubMed : 11154276). AKT mediates insulin-stimulated protein synthesis by phosphorylating TSC2 at 'Ser-939' and 'Thr-1462', thereby activating the mTORC1 signaling pathway, and leading to both phosphorylation of 4E-BP1 and in activation of RPS6KB1 (PubMed : 12150915, PubMed : 12172553). Also regulates the mTORC1 signaling pathway by catalyzing phosphorylation of CASTOR1 and DEPDC5 (PubMed : 31548394, PubMed : 33594058). AKT plays a role as key modulator of the AKT-mTOR signaling pathway controlling the tempo of the process of newborn neurons integration during adult neurogenesis, including correct neuron positioning, dendritic development and synapse formation (By similarity). Part of a positive feedback loop of mTORC2 signaling by mediating phosphorylation of MAPKAP1/SIN1, promoting mTORC2 activation (By similarity). AKT is involved in the phosphorylation of members of the FOXO factors (Forkhead family of transcription factors), leading to binding of 14-3-3 proteins and cytoplasmic localization (PubMed : 10358075). In particular, FOXO1 is phosphorylated at 'Thr-24', 'Ser-256' and 'Ser-319' (PubMed : 10358075). FOXO3 and FOXO4 are phosphorylated on equivalent sites (PubMed : 10358075). AKT has an important role in the regulation of NF-kappa-B-dependent gene transcription and positively regulates the activity of CREB1 (cyclic AMP (cAMP)-response element binding protein) (PubMed : 9829964). The phosphorylation of CREB1 induces the binding of accessory proteins that are necessary for the transcription of pro-survival genes such as BCL2 and MCL1 (PubMed : 9829964). AKT phosphorylates 'Ser-454' on ATP citrate lyase (ACLY), thereby potentially regulating ACLY activity and fatty acid synthesis (By similarity). Activates the 3B isoform of cyclic nucleotide phosphodiesterase (PDE3B) via phosphorylation of 'Ser-273', resulting in reduced cyclic AMP levels and inhibition of lipolysis (By similarity). Phosphorylates PIKFYVE on 'Ser-318', which results in increased PI(3)P-5 activity (By similarity). The Rho GTPase-activating protein DLC1 is another substrate and its phosphorylation is implicated in the regulation cell proliferation and cell growth (By similarity). Signals downstream of phosphatidylinositol 3-kinase (PI(3)K) to mediate the effects of various growth factors such as platelet-derived growth factor (PDGF), epidermal growth factor (EGF), insulin and insulin-like growth factor 1 (IGF1) (PubMed : 12176338, PubMed : 12964941). AKT mediates the antiapoptotic effects of IGF1 (By similarity). Essential for the SPATA13-mediated regulation of cell migration and adhesion assembly and disassembly (PubMed : 19934221). May be involved in the regulation of the placental development (By similarity). Phosphorylates STK4/MST1 at 'Thr-120' and 'Thr-387' leading to inhibition of its : kinase activity, nuclear translocation, autophosphorylation and ability to phosphorylate FOXO3 (PubMed : 17726016). Phosphorylates STK3/MST2 at 'Thr-117' and 'Thr-384' leading to inhibition of its : cleavage, kinase activity, autophosphorylation at Thr-180, binding to RASSF1 and nuclear translocation (PubMed : 20086174). Phosphorylates SRPK2 and enhances its kinase activity towards SRSF2 and ACIN1 and promotes its nuclear translocation (PubMed : 19592491). Phosphorylates RAF1 at 'Ser-259' and negatively regulates its activity (PubMed : 10576742). Phosphorylation of BAD stimulates its pro-apoptotic activity (PubMed : 10926925). Phosphorylates KAT6A at 'Thr-369' and this phosphorylation inhibits the interaction of KAT6A with PML and negatively regulates its acetylation activity towards p53/TP53 (PubMed : 23431171). Phosphorylates palladin (PALLD), modulating cytoskeletal organization and cell motility (PubMed : 20471940). Phosphorylates prohibitin (PHB), playing an important role in cell metabolism and proliferation (PubMed : 18507042). Phosphorylates CDKN1A, for which phosphorylation at 'Thr-145' induces its release from CDK2 and cytoplasmic relocalization (PubMed : 16982699). These recent findings indicate that the AKT1 isoform has a more specific role in cell motility and proliferation (PubMed : 16139227). Phosphorylates CLK2 thereby controlling cell survival to ionizing radiation (PubMed : 20682768). Phosphorylates PCK1 at 'Ser-90', reducing the binding affinity of PCK1 to oxaloacetate and changing PCK1 into an atypical protein kinase activity using GTP as donor (PubMed : 32322062). Also acts as an activator of TMEM175 potassium channel activity in response to growth factors : forms the lysoK(GF) complex together with TMEM175 and acts by promoting TMEM175 channel activation, independently of its protein kinase activity (PubMed : 32228865). Acts as a regulator of mitochondrial calcium uptake by mediating phosphorylation of MICU1 in the mitochondrial intermembrane space, impairing MICU1 maturation (PubMed : 30504268). Acts as an inhibitor of tRNA methylation by mediating phosphorylation of the N-terminus of METTL1, thereby inhibiting METTL1 methyltransferase activity (PubMed : 15861136). In response to LPAR1 receptor pathway activation, phosphorylates Rabin8/RAB3IP which alters its activity and phosphorylates WDR44 which induces WDR44 binding to Rab11, thereby switching Rab11 vesicular function from preciliary trafficking to endocytic recycling (PubMed : 31204173).
See full target information AKT1 phospho S473

Additional targets

AKT2 phospho S474

Publications (3)

Recent publications for all applications. Explore the full list and refine your search

Canadian journal of physiology and pharmacology 100:68-77 PubMed34570983

2021

Acute and chronic metabolic effects of carvedilol in high-fructose, high-fat diet-fed mice: implication of β-arrestin2 pathway.

Applications

Unspecified application

Species

Unspecified reactive species

Hoda M S Ahmed,Samar G Mohamed,Wael S Ibrahim,Asmaa M Rezk,Amr A A Mahmoud,Mona F Mahmoud,Islam A A E-H Ibrahim

Pharmacology 106:409-417 PubMed34082428

2021

Pioglitazone Enhances β-Arrestin2 Signaling and Ameliorates Insulin Resistance in Classical Insulin Target Tissues.

Applications

Unspecified application

Species

Unspecified reactive species

Shaimaa El-Fayoumi,Rehab Mansour,Amr Mahmoud,Ahmed Fahmy,Islam Ibrahim

Frontiers in cellular neuroscience 14:189 PubMed32774242

2020

Potential Involvement of Adiponectin Signaling in Regulating Physical Exercise-Elicited Hippocampal Neurogenesis and Dendritic Morphology in Stressed Mice.

Applications

Unspecified application

Species

Unspecified reactive species

Pingjie Wang,Yiyao Liang,Kai Chen,Suk-Yu Yau,Xin Sun,Kenneth King-Yip Cheng,Aimin Xu,Kwok-Fai So,Ang Li
