AMPK alpha 1 ELISA Kit is a single-wash 90-min Simplestep used to quantify AMPK alpha 1 with a sensitivity of 52 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Different formats for different needs: 10x96 plates for bulk orders
- Design your own immunoassay: we also offer the conjugation-ready antibody pair

Be the first to review this product! Submit a review

Images

Sandwich ELISA - AMPK alpha 1 ELISA Kit (AB320050), expandable thumbnail
  • Sandwich ELISA - AMPK alpha 1 ELISA Kit (AB320050), expandable thumbnail
  • Sandwich ELISA - AMPK alpha 1 ELISA Kit (AB320050), expandable thumbnail

Key facts

Detection method
Colorimetric
Sample types
Cell Lysate, Tissue Extracts
Assay type
Sandwich (quantitative)
Reactive species
Human, Mouse, Rat
Range
156.25 - 10000 pg/mL
Assay time
1h 30m
Sensitivity
= 52 pg/mL

Reactivity data

Application
sELISA
Reactivity
Reacts
Dilution info
-
Notes

-

Target data

Function

Catalytic subunit of AMP-activated protein kinase (AMPK), an energy sensor protein kinase that plays a key role in regulating cellular energy metabolism (PubMed:17307971, PubMed:17712357, PubMed:24563466, PubMed:37821951). In response to reduction of intracellular ATP levels, AMPK activates energy-producing pathways and inhibits energy-consuming processes: inhibits protein, carbohydrate and lipid biosynthesis, as well as cell growth and proliferation (PubMed:17307971, PubMed:17712357). AMPK acts via direct phosphorylation of metabolic enzymes, and by longer-term effects via phosphorylation of transcription regulators (PubMed:17307971, PubMed:17712357). Regulates lipid synthesis by phosphorylating and inactivating lipid metabolic enzymes such as ACACA, ACACB, GYS1, HMGCR and LIPE; regulates fatty acid and cholesterol synthesis by phosphorylating acetyl-CoA carboxylase (ACACA and ACACB) and hormone-sensitive lipase (LIPE) enzymes, respectively (By similarity). Promotes lipolysis of lipid droplets by mediating phosphorylation of isoform 1 of CHKA (CHKalpha2) (PubMed:34077757). Regulates insulin-signaling and glycolysis by phosphorylating IRS1, PFKFB2 and PFKFB3 (By similarity). AMPK stimulates glucose uptake in muscle by increasing the translocation of the glucose transporter SLC2A4/GLUT4 to the plasma membrane, possibly by mediating phosphorylation of TBC1D4/AS160 (By similarity). Regulates transcription and chromatin structure by phosphorylating transcription regulators involved in energy metabolism such as CRTC2/TORC2, FOXO3, histone H2B, HDAC5, MEF2C, MLXIPL/ChREBP, EP300, HNF4A, p53/TP53, SREBF1, SREBF2 and PPARGC1A (PubMed:11518699, PubMed:11554766, PubMed:15866171, PubMed:17711846, PubMed:18184930). Acts as a key regulator of glucose homeostasis in liver by phosphorylating CRTC2/TORC2, leading to CRTC2/TORC2 sequestration in the cytoplasm (By similarity). In response to stress, phosphorylates 'Ser-36' of histone H2B (H2BS36ph), leading to promote transcription (By similarity). Acts as a key regulator of cell growth and proliferation by phosphorylating FNIP1, TSC2, RPTOR, WDR24 and ATG1/ULK1: in response to nutrient limitation, negatively regulates the mTORC1 complex by phosphorylating RPTOR component of the mTORC1 complex and by phosphorylating and activating TSC2 (PubMed:14651849, PubMed:18439900, PubMed:20160076, PubMed:21205641). Also phosphorylates and inhibits GATOR2 subunit WDR24 in response to nutrient limitation, leading to suppress glucose-mediated mTORC1 activation (PubMed:36732624). In response to energetic stress, phosphorylates FNIP1, inactivating the non-canonical mTORC1 signaling, thereby promoting nuclear translocation of TFEB and TFE3, and inducing transcription of lysosomal or autophagy genes (PubMed:37079666). In response to nutrient limitation, promotes autophagy by phosphorylating and activating ATG1/ULK1 (PubMed:21205641). In that process also activates WDR45/WIPI4 (PubMed:28561066). Phosphorylates CASP6, thereby preventing its autoprocessing and subsequent activation (PubMed:32029622). In response to nutrient limitation, phosphorylates transcription factor FOXO3 promoting FOXO3 mitochondrial import (By similarity). Also acts as a regulator of cellular polarity by remodeling the actin cytoskeleton; probably by indirectly activating myosin (PubMed:17486097). AMPK also acts as a regulator of circadian rhythm by mediating phosphorylation of CRY1, leading to destabilize it (By similarity). May regulate the Wnt signaling pathway by phosphorylating CTNNB1, leading to stabilize it (By similarity). Also has tau-protein kinase activity: in response to amyloid beta A4 protein (APP) exposure, activated by CAMKK2, leading to phosphorylation of MAPT/TAU; however the relevance of such data remains unclear in vivo (By similarity). Also phosphorylates CFTR, EEF2K, KLC1, NOS3 and SLC12A1 (PubMed:12519745, PubMed:20074060). Regulates hepatic lipogenesis. Activated via SIRT3, represses sterol regulatory element-binding protein (SREBP) transcriptional activities and ATP-consuming lipogenesis to restore cellular energy balance. Upon stress, regulates mitochondrial fragmentation through phosphorylation of MTFR1L (PubMed:36367943).

Alternative names

What's included?

10 x 96 Tests
Components
10X AMPK alpha 1 Capture Antibody
10 x 600 µL
10X AMPK alpha 1 Detector Antibody
10 x 600 µL
10X Wash Buffer PT (ab206977)
1 x 200 mL
5X Cell Extraction Buffer PTR (ab193970)
2 x 50 mL
AMPK alpha 1 Lyophilized Recombinant Protein
20 x 1 Vial
Antibody Diluent 4BR
10 x 6 mL
Plate Seal
10 x 1 Unit
SimpleStep Pre-Coated 96-Well Microplate (ab206978)
10 x 96 Unit
Stop Solution
1 x 120 mL
TMB Development Solution
1 x 120 mL

Recommended products

AMPK alpha 1 ELISA Kit is a single-wash 90-min Simplestep used to quantify AMPK alpha 1 with a sensitivity of 52 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Different formats for different needs: 10x96 plates for bulk orders
- Design your own immunoassay: we also offer the conjugation-ready antibody pair

Key facts

Detection method
Colorimetric
Sample types
Cell Lysate, Tissue Extracts
Assay type
Sandwich (quantitative)
Reactive species
Human, Mouse, Rat
Range
156.25 - 10000 pg/mL
Assay time
1h 30m
Assay Platform
Pre-coated microplate (12 x 8 well strips)
Sensitivity
= 52 pg/mL
General recovery
110%

Precision

Intra assay

Sample
Extract
n
8
C.V.
5.9

Inter assay

Sample
Extract
n
3
C.V.
4.3

Recovery

Sample specific recovery

Sample type
Tissue Extracts
Average %
= 110
Range
106 - 114 %
Sample type
Cell Lysate
Average %
= 110
Range
99 - 118 %

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C

Notes

AMPK alpha 1 SimpleStep ELISA® kit is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of AMPK alpha 1 protein in Cell Lysate and Tissue Extracts. Quantitate AMPK alpha 1 with 52 pg/ml sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:

-Single-wash protocol reduces assay time to 90 minutes or less
-High sensitivity, specificity and reproducibility from superior antibodies
-Fully validated in biological samples
-96-wells plate breakable into 12 x 8 wells strips, available in 10-pack (10 x 96-well plates)
-Also available in a fully validated 384-well format.

Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

3 product images

  • Sandwich ELISA - AMPK alpha 1 ELISA Kit (ab320050), expandable thumbnail

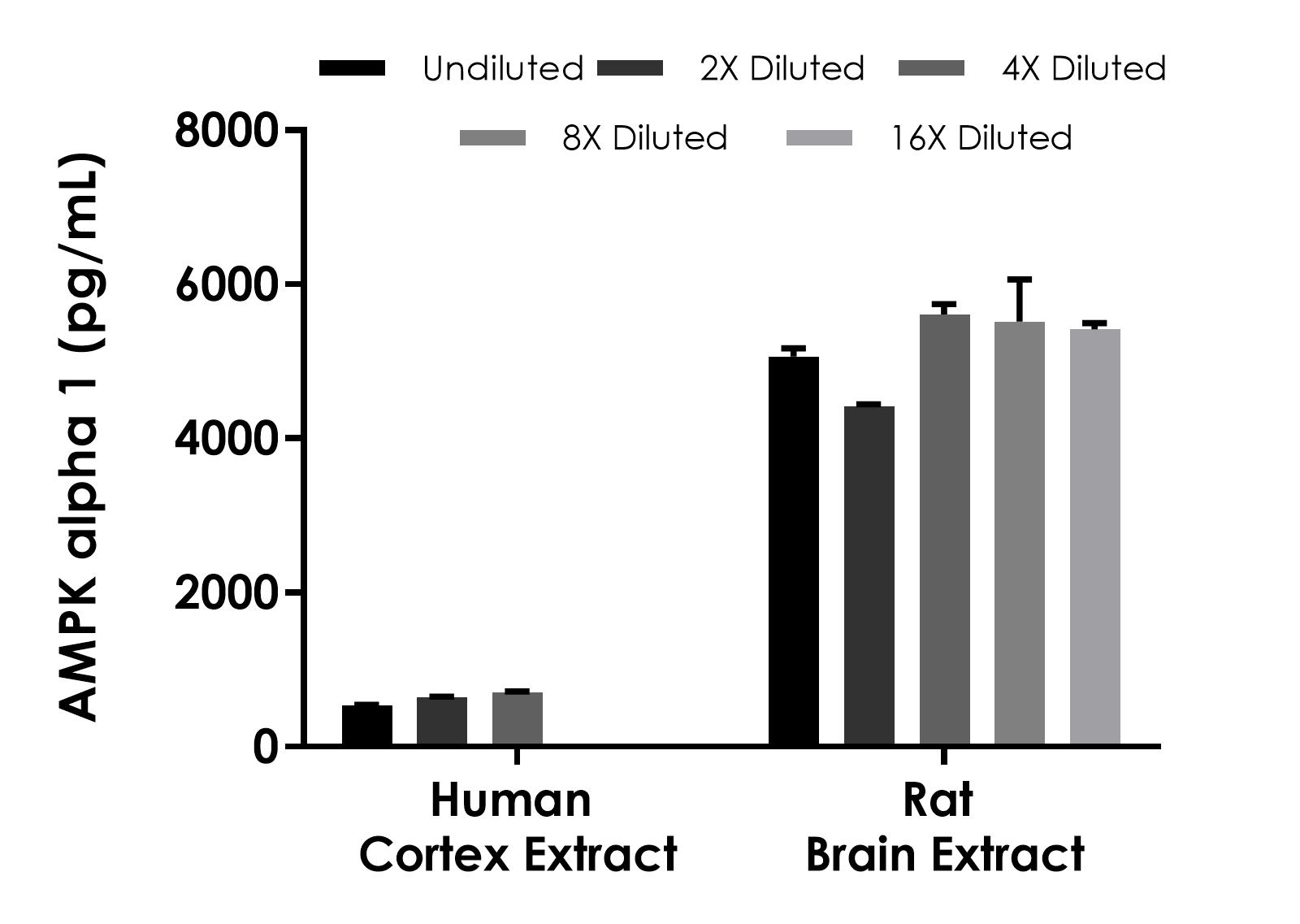

    Sandwich ELISA - AMPK alpha 1 ELISA Kit (ab320050)

    Interpolated concentration of native AMPK alpha 1 was measured in duplicate at different sample concentrations. Undiluted samples are as follows: human cortex tissue extract 250 µg/mL and rat brain tissue extract 250 µg/mL.  The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in 1X Cell Extraction Buffer PTR.

  • Sandwich ELISA - AMPK alpha 1 ELISA Kit (ab320050), expandable thumbnail

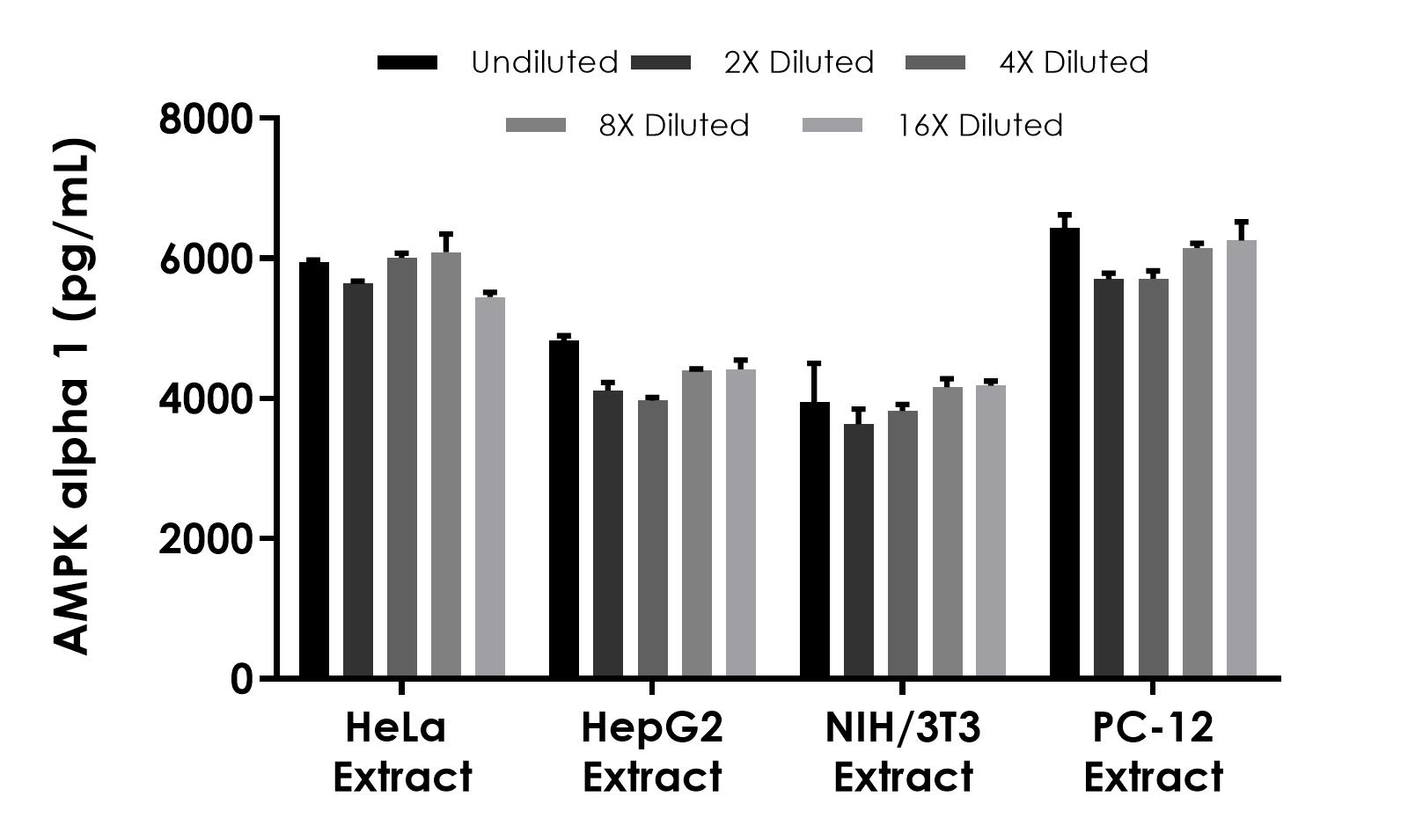

    Sandwich ELISA - AMPK alpha 1 ELISA Kit (ab320050)

    Interpolated concentration of native AMPK alpha 1 was measured in duplicate at different sample concentrations. Undiluted samples are as follows: HeLa cell extract 50 µg/mL, HepG2 cell extract 40 µg/mL, NIH/3T3 cell extract 20 µg/mL, and PC-12 cell extract 50 µg/mL.  The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in 1X Cell Extraction Buffer PTR.

  • Sandwich ELISA - AMPK alpha 1 ELISA Kit (ab320050), expandable thumbnail

    Sandwich ELISA - AMPK alpha 1 ELISA Kit (ab320050)

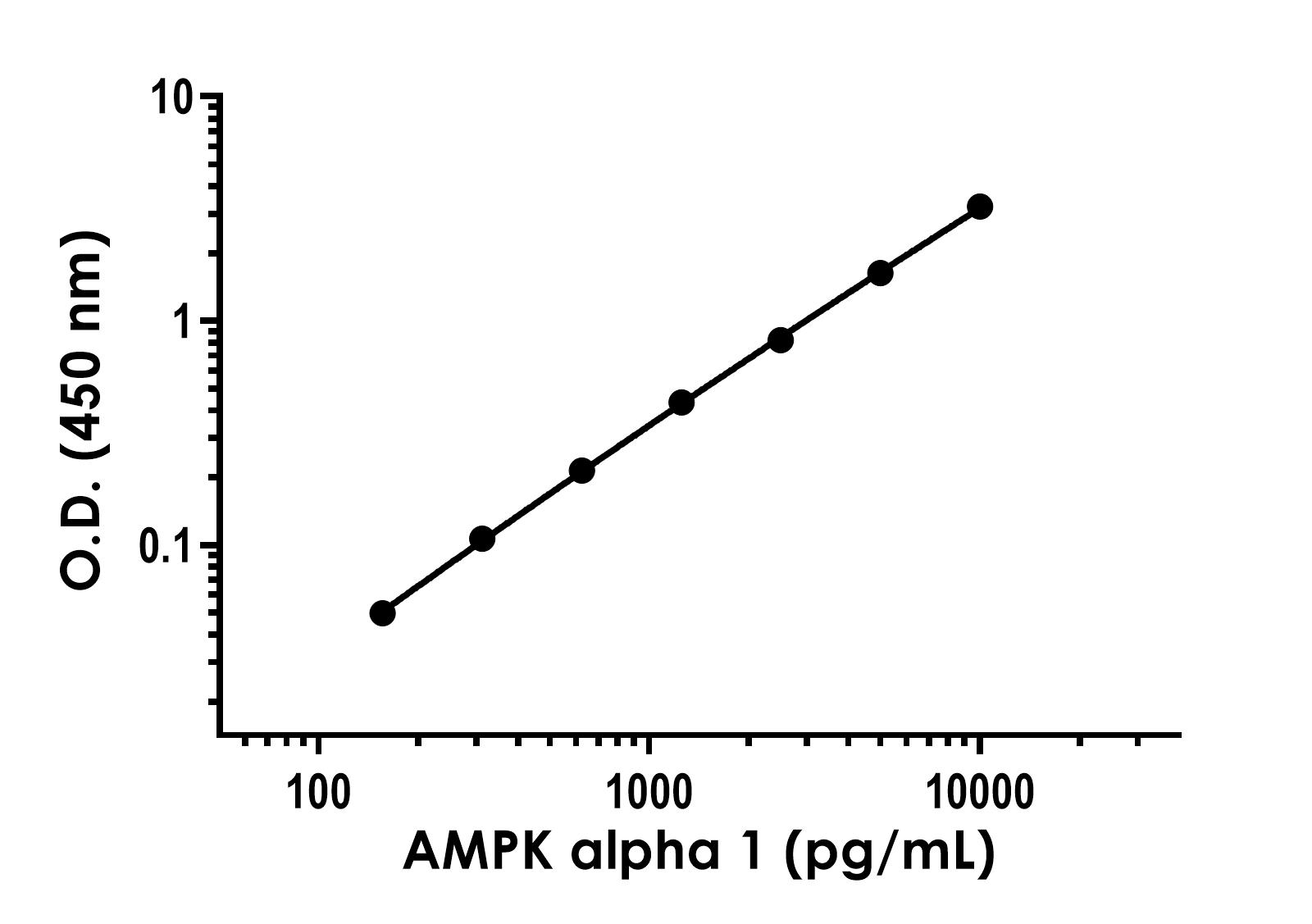

    Example of AMPK alpha 1 standard curve. Background-subtracted data values (mean +/- SD) are graphed.
