AB197749

Canine CKM ELISA Kit

Be the first to review this product! Submit a review

|

(1 Publication)

Canine CKM ELISA Kit is a single-wash 90-min Simplestep used to quantify Canine CKM with a sensitivity of 20 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Design your own immunoassay: we also offer the conjugation-ready antibody pair

View Alternative Names

Creatine kinase M-type, Creatine kinase M chain, Creatine phosphokinase M-type, M-CK, CPK-M, CKM

3 Images
Sandwich ELISA - Canine CKM ELISA Kit (AB197749)
  • sELISA

Supplier Data

Sandwich ELISA - Canine CKM ELISA Kit (AB197749)

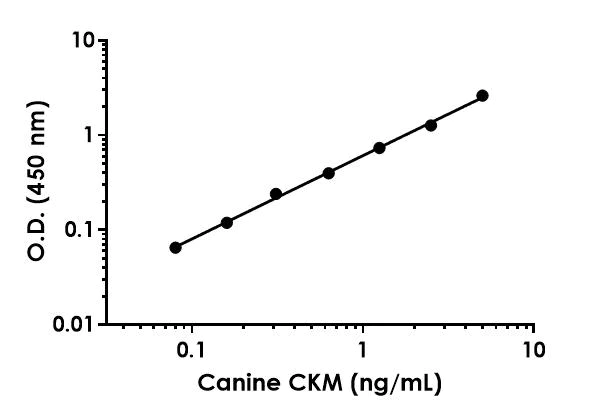

Example of CKM standard curve in 1X Cell Extraction Buffer PTR.

Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Canine CKM ELISA Kit (AB197749)
  • sELISA

Supplier Data

Sandwich ELISA - Canine CKM ELISA Kit (AB197749)

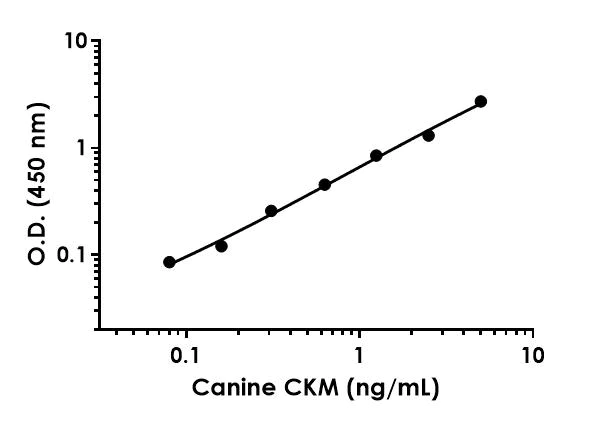

Example of CKM standard curve in Sample Diluent NS.

Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Canine CKM ELISA Kit (AB197749)
  • sELISA

Unknown

Sandwich ELISA - Canine CKM ELISA Kit (AB197749)

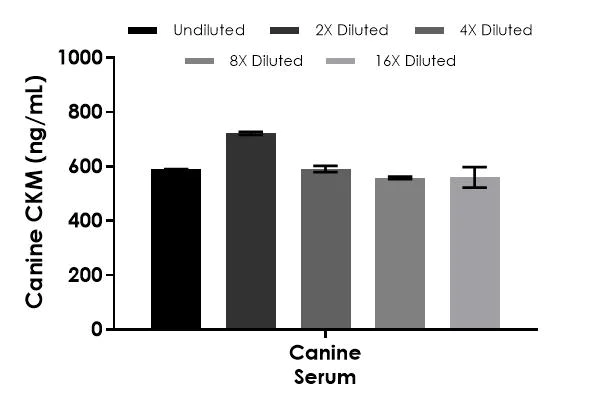

Interpolated concentrations of native CKM in canine serum samples.

The concentrations of CKM were measured in duplicates, interpolated from the CKM standard curves and corrected for sample dilution. Undiluted samples are as follows : serum 1%. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean CKM concentration was determined to be 603.95 ng/mL in serum.

Key facts

Detection method

Colorimetric

Sample types

Tissue Extracts, Serum

Reacts with

Dog

Assay type

Sandwich (quantitative)

Sensitivity

= 20 pg/mL

Range

0.08 - 5 ng/mL

Assay time

1h 30m

Assay Platform

Microplate (12 x 8 well strips)

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

Product details

Canine CKM ELISA Kit (ab197749) is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of CKM protein in serum and tissue extracts. It uses our proprietary SimpleStep ELISA® technology. Quantitate Canine CKM with 20 pg/ml sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:

- Single-wash protocol reduces assay time to 90 minutes or less
- High sensitivity, specificity and reproducibility from superior antibodies
- Fully validated in biological samples
- 96-wells plate breakable into 12 x 8 wells strips

A 384-well SimpleStep ELISA® microplate (ab203359) is available to use as an alternative to the 96-well microplate provided with SimpleStep ELISA® kits.

Creatine kinase (CK) catalyzes creatine to phosphocreatine (PCr) by consuming adenosine triphosphate (ATP) and producing adenosine diphosphate (ADP). This process is reversible, thus PCr and ADP can be used to generate ATP and creatine. There are three known cytoplasmic isoenzymes (CKMM- skeletal muscle, CKMB-myocardium, and CKBB- nervous tissue). Phosphocreatine serves as an energy storage for rapid regeneration of ATP. Creatine is used in tissues with high energy demands, such as skeletal muscle, heart, and brain. Expression of CKM in serum are based on muscle mass, age, gender, race, and physical activity. Skeletal muscle expresses approximately 98% CKMM and 1% CKMB, myocardium expresses 70% CKMM and 25-30% CKMB, and neural tissue expresses a majority of CKBB.

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

Precision

[ { "reproducibilityType": "Inter", "sample": "Serum", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "7.18" }, { "reproducibilityType": "Intra", "sample": "Serum", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "7.88" } ]

Recovery

[ { "sample": "Serum", "range": "102.54 - 102.67 %", "average": "= 102.61" }, { "sample": "1X Cell Extraction Buffer PTR", "range": "96.12 - 111.33 %", "average": "= 101.35" } ]

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab197749-1x96Tests", "assetComponentDetails": [ { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB197749-CMP05", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent CPI2", "number":"AB197749-CMP13", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB197749-CMP12", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X CKM Capture Antibody", "number":"AB197749-CMP09", "productcode":"" }, { "size":"1 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB197749-CMP03", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Canine CKM Lyophilized Purified Protein", "number":"AB197749-CMP02", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB197749-CMP04", "productcode":"" }, { "size":"1 x 1 mL", "name":"50X Cell Extraction Enhancer Solution (ab193971)", "number":"AB197749-CMP07", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB197749-CMP11", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X CKM Detector Antibody", "number":"AB197749-CMP10", "productcode":"" }, { "size":"1 x 10 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB197749-CMP08", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB197749-CMP06", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Dry Ice
Appropriate short-term storage conditions
Multi
Appropriate long-term storage conditions
Multi
Storage information
Please refer to protocols

Product protocols

Target data

Reversibly catalyzes the transfer of phosphate between ATP and various phosphogens (e.g. creatine phosphate). Creatine kinase isoenzymes play a central role in energy transduction in tissues with large, fluctuating energy demands, such as skeletal muscle, heart, brain and spermatozoa.
See full target information Creatine kinase M-type

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

Translational animal science 5:txab084 PubMed34124592

2021

Undenatured type II collagen mitigates inflammation and cartilage degeneration in healthy Labrador Retrievers during an exercise regimen.

Applications

Unspecified application

Species

Unspecified reactive species

J L Varney,J W Fowler,C N Coon
