AB323638

cGMP ELISA Kit - Extracellular

SimpleStep
What is this?

Be the first to review this product! Submit a review

(0 Publication)

cGMP ELISA Kit - Extracellular is a single-wash 90-min Simplestep used to quantify cGMP with a sensitivity of 62.8 pg/mL. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Competitive ELISA - 450 nm readout : works on any standard plate reader
- Different formats for different needs: 10x96 plates for bulk orders
- Validated on a number of sample types including cerebrospinal fluid (CSF)

View Alternative Names

Cyclic GMP, Cyclic guanosine monophosphate, Guanosine 3 5 Cyclic Monophosphate, cGMP

6 Images

Competitive ELISA - cGMP ELISA Kit - Extracellular (AB323638)

cELISA

Supplier Data

Competitive ELISA - cGMP ELISA Kit - Extracellular (AB323638)

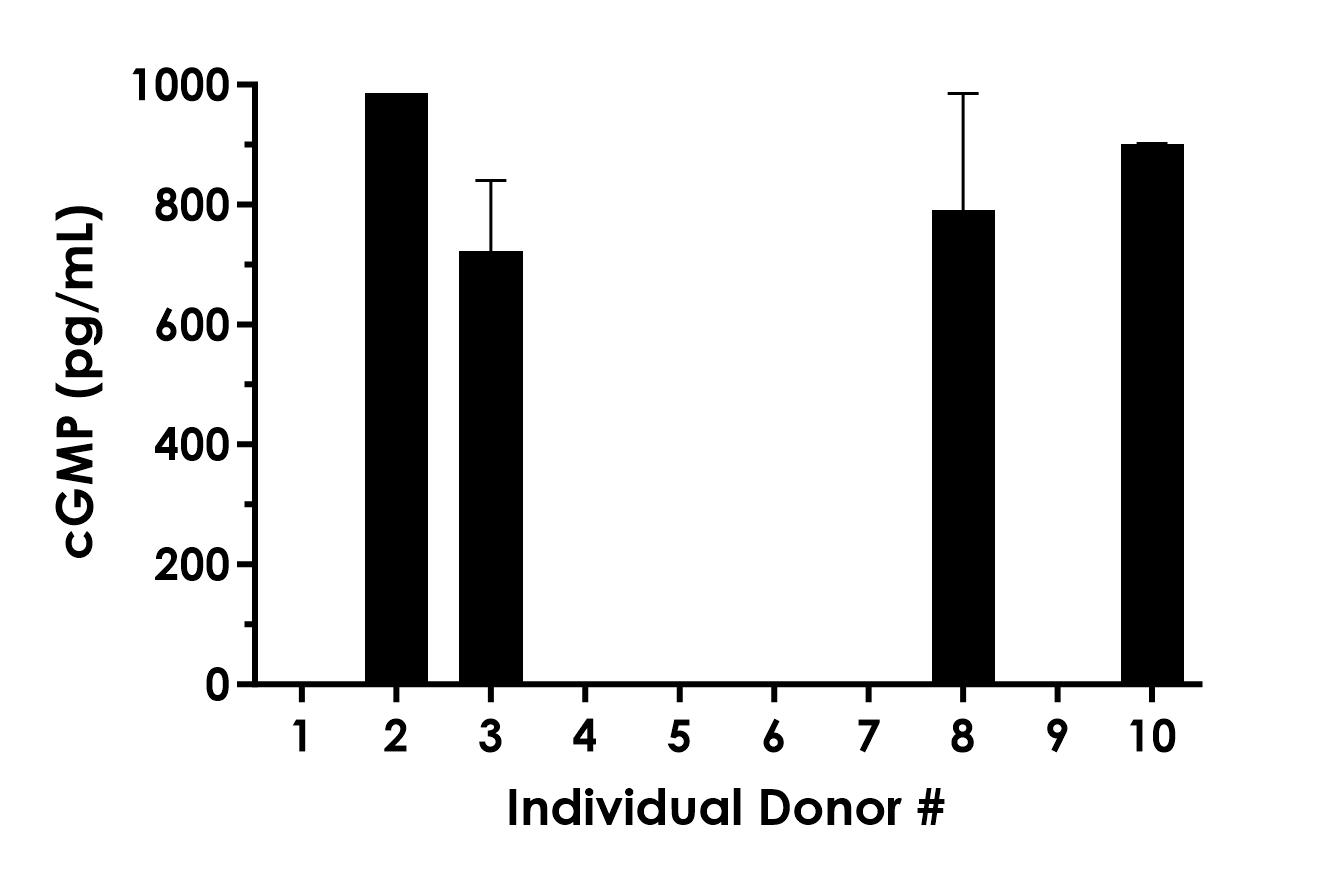

Serum from ten individual healthy Human female donors was measured in duplicate.

Interpolated dilution factor corrected values are plotted (mean +/- SD, n=2).

The mean cGMP concentration in detectable samples was determined to be 851 pg/mL, with a range of 723 – 986 pg/mL.

cELISA

Supplier Data

Competitive ELISA - cGMP ELISA Kit - Extracellular (AB323638)

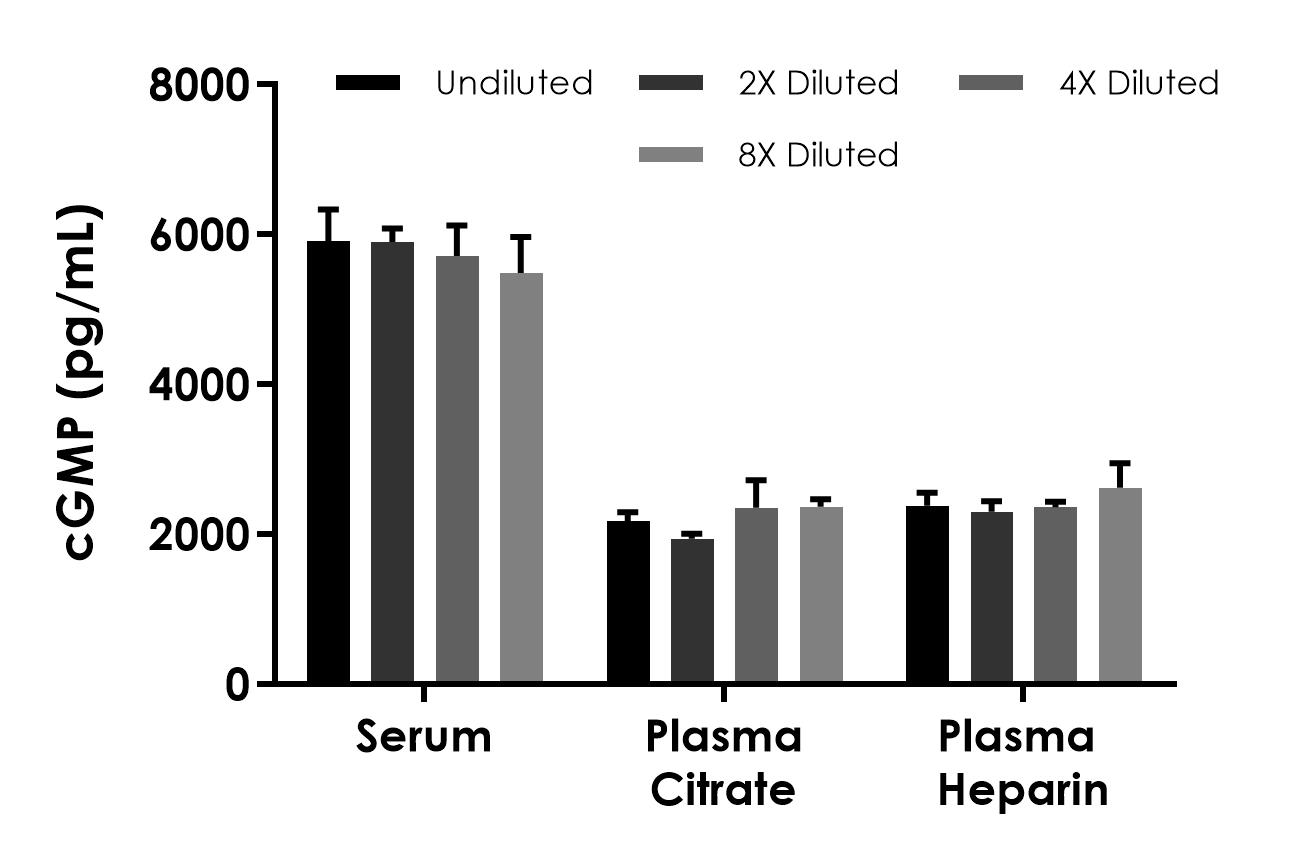

Free cGMP was spiked into the following samples and diluted in a 2-fold dilution series in Sample Diluent NS.

Undiluted samples are 25% Human serum, plasma (citrate), plasma (EDTA), and plasma (heparin.)

The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2).

cELISA

Supplier Data

Competitive ELISA - cGMP ELISA Kit - Extracellular (AB323638)

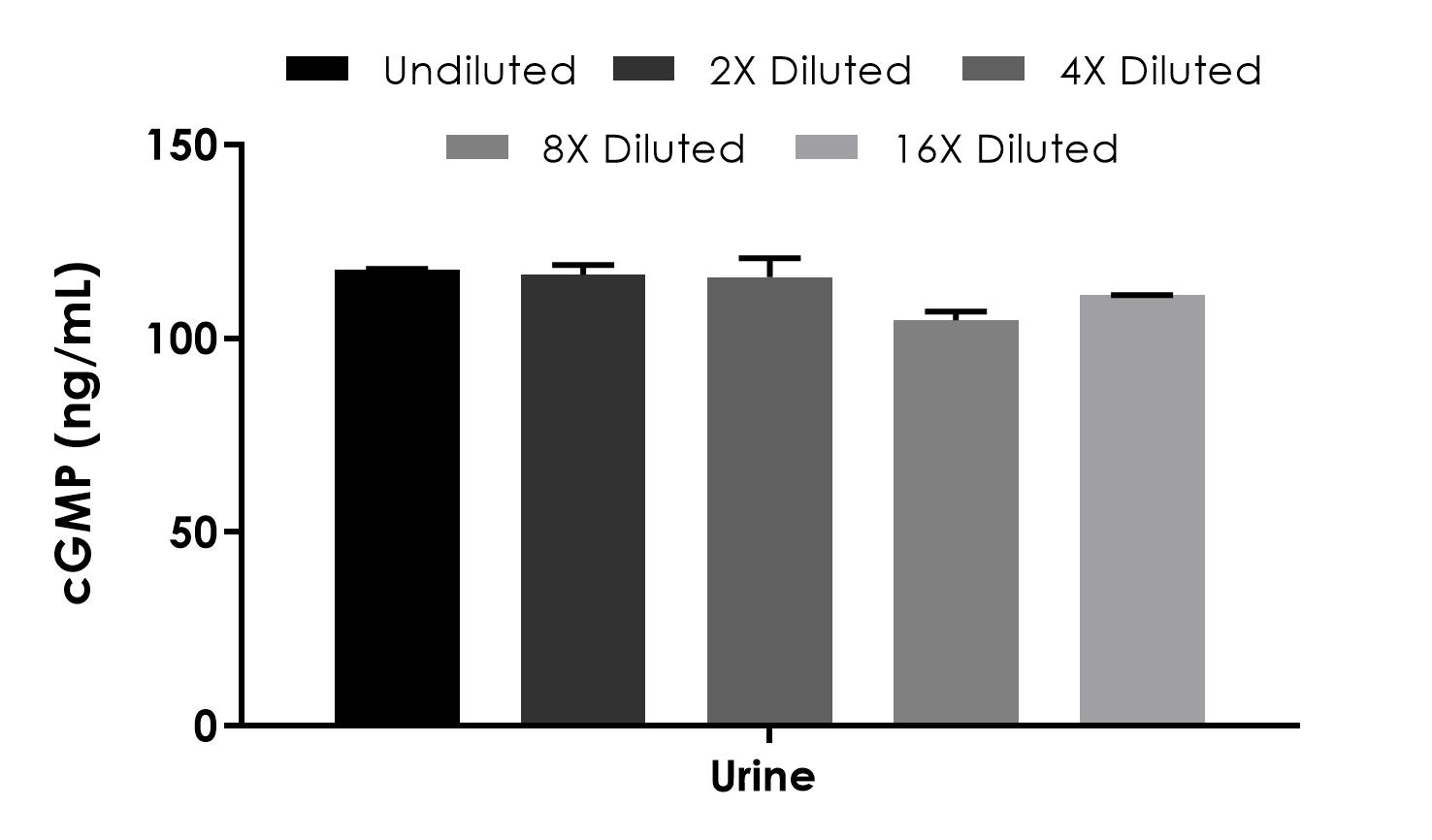

Interpolated concentration of native cGMP was measured in duplicate at different sample concentrations.

Undiluted samples are 8% Human urine. The interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2).

Sample dilutions are made in Sample Diluent NS.

cELISA

Supplier Data

Competitive ELISA - cGMP ELISA Kit - Extracellular (AB323638)

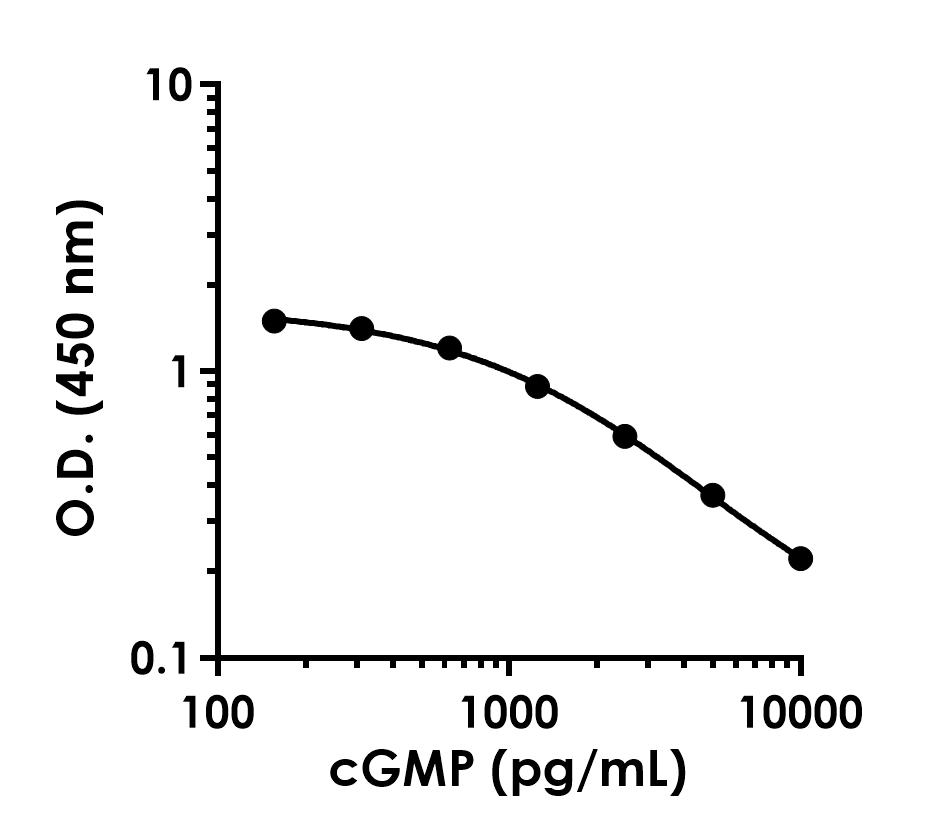

Example of cGMP standard curve in Sample Diluent NS.

OD (450 nm) values (mean +/- SD) are graphed.

cELISA

Supplier Data

Competitive ELISA - cGMP ELISA Kit - Extracellular (AB323638)

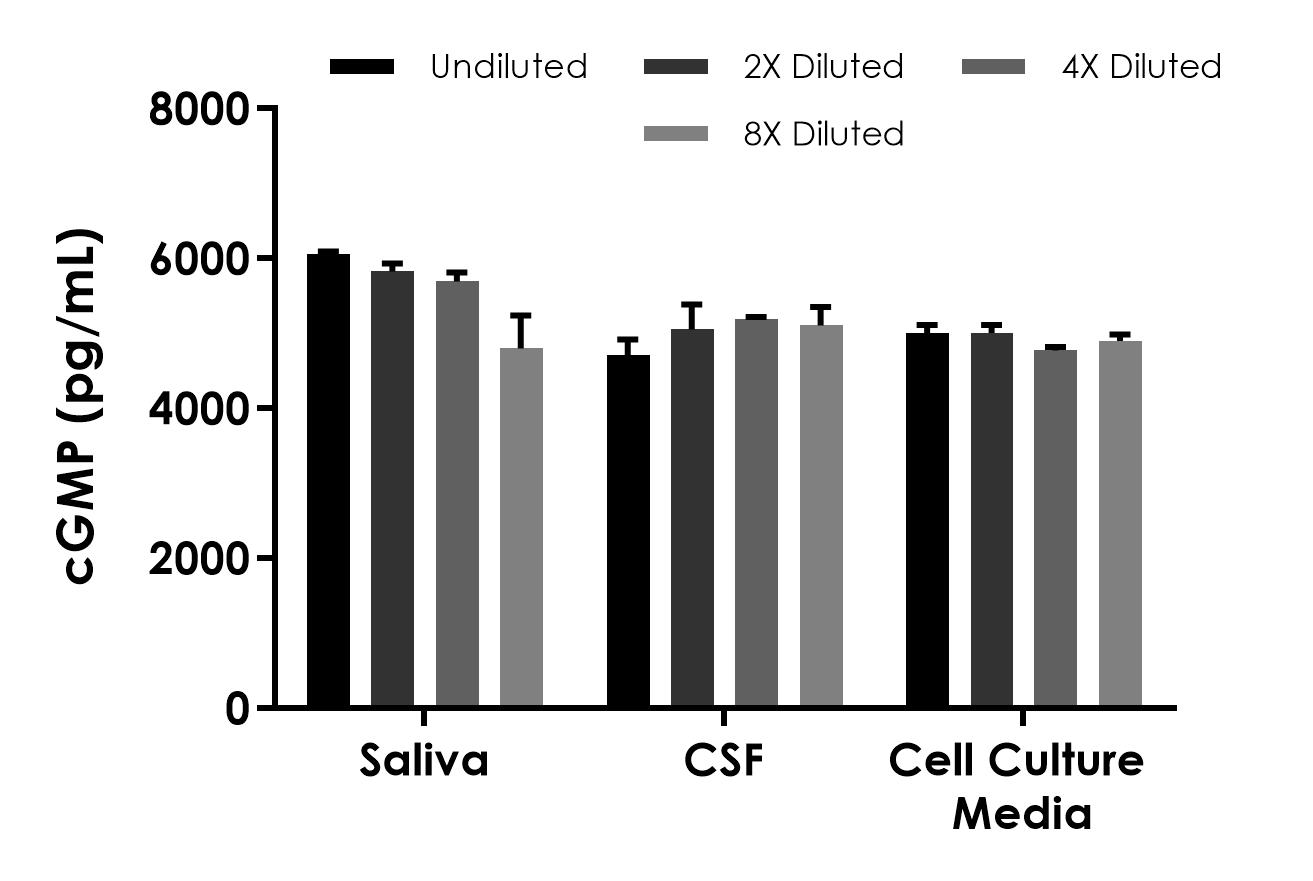

Free cGMP was spiked into the following samples and diluted in a 2-fold dilution series in Sample Diluent NS.

Undiluted samples are 25% Human saliva, 25% Bovine CSF, and 50% cell culture media.

The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2).

cELISA

Supplier Data

Competitive ELISA - cGMP ELISA Kit - Extracellular (AB323638)

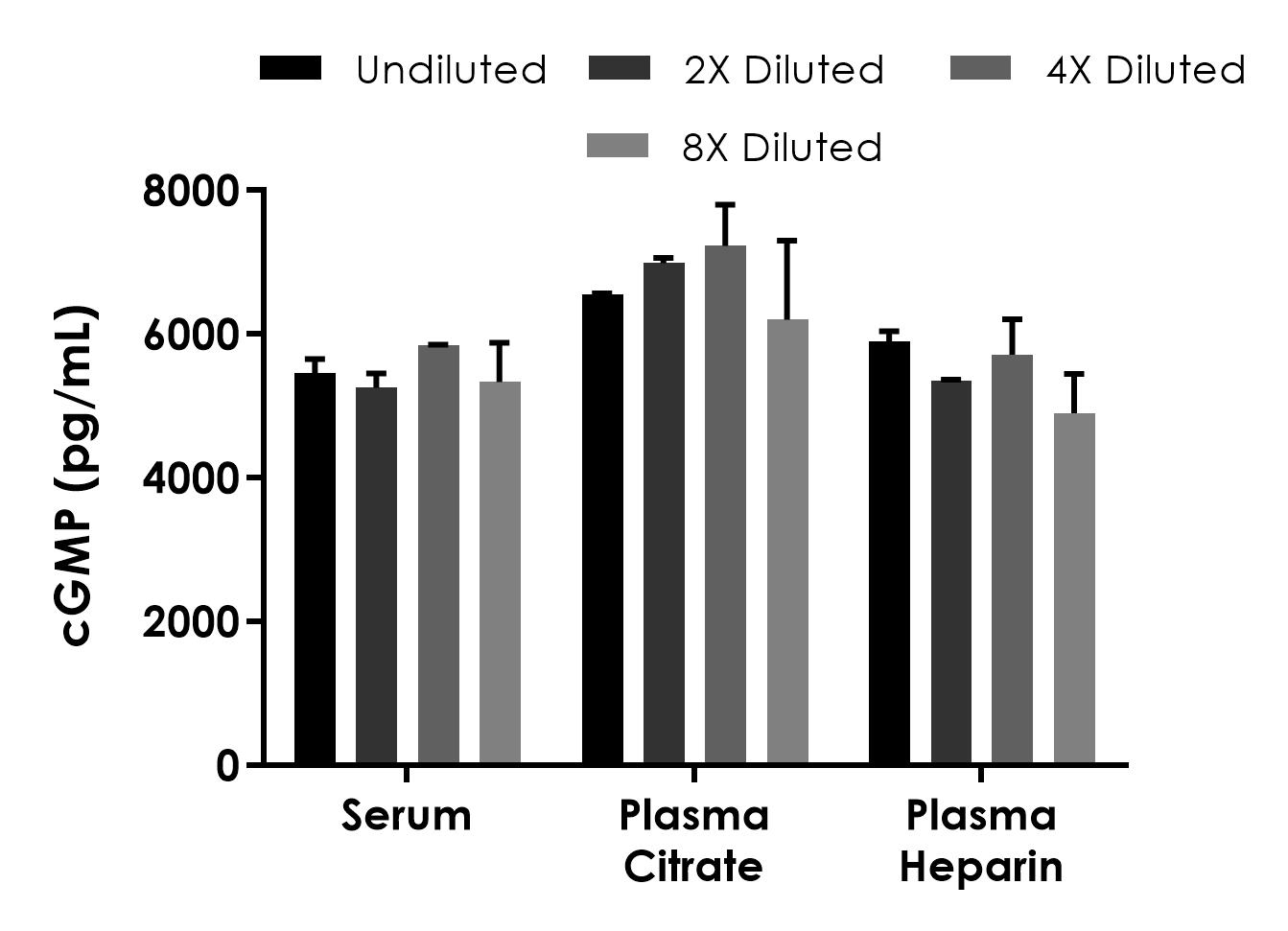

Free cGMP was spiked into the following samples and diluted in a 2-fold dilution series in Sample Diluent NS.

Undiluted samples are 25% Mouse serum, plasma (citrate), and plasma (heparin).

The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2).

Key facts

Detection method

Colorimetric

Sample types

Serum, Citrate plasma, Heparin Plasma, Urine, Cell culture media, Cerebral Spinal Fluid, Saliva

Assay type

Competitive

Sensitivity

= 62.8 pg/mL

Range

156.25 - 10000 pg/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "cELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

style

left-column

Product details

cGMP SimpleStep ELISA® kit is a single-wash 90 min competitive ELISA designed for the quantitative measurement of cGMP in Serum, Cit Plasma, Hep Plasma, Urine, Cell culture media, Cerebrospinal Fluid, and Saliva. Quantitate cGMP with 62.8 pg/ml sensitivity.

SimpleStep ELISA® technology employs capture conjugates conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to competitive ELISA allows the formation of the antibody-analyte complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:

Single-wash protocol reduces assay time to 90 minutes or less
High sensitivity, specificity and reproducibility from superior antibodies
Fully validated in biological samples
96-wells plate breakable into 12 x 8 wells strips

A 384-well SimpleStep ELISA® microplate (ab203359) is available to use as an alternative to the 96-well microplate provided with SimpleStep ELISA® kits.

style

left-column

Precision

[ { "reproducibilityType": "Intra", "sample": "Urine", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 4.8" }, { "reproducibilityType": "Inter", "sample": "Urine", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 10.5" } ]

style

left-column

Recovery

[ { "sample": "Serum", "range": "94 - 96 %", "average": "= 95" }, { "sample": "Citrate plasma", "range": "96 - 107 %", "average": "= 100" }, { "sample": "Heparin Plasma", "range": "98 - 105 %", "average": "= 102" }, { "sample": "Urine", "range": "91 - 114 %", "average": "= 105" }, { "sample": "Cell culture media", "range": "88 - 101 %", "average": "= 93" }, { "sample": "Cerebral Spinal Fluid", "range": "91 - 102 %", "average": "= 95" }, { "sample": "Saliva", "range": "98 - 115 %", "average": "= 106" } ]

style

left-column

What's included?

{ "values": { "10x96Tests": { "sellingSize": "10 x 96 Tests", "publicAssetCode":"ab323638-10x96Tests", "assetComponentDetails": [ { "size":"1 x 120 mL", "name":"Stop Solution", "number":"AB323638-CMP08" }, { "size":"1 x 200 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB323638-CMP05" }, { "size":"20 x 1 Vial", "name":"cGMP Lyophilized Standard", "number":"AB323638-CMP03" }, { "size":"10 x 80 µL", "name":"50X cGMP HRP Conjugate", "number":"AB323638-CMP02" }, { "size":"10 x 80 µL", "name":"50X cGMP CaptSure Conjugate", "number":"AB323638-CMP01" }, { "size":"1 x 120 mL", "name":"TMB Development Solution", "number":"AB323638-CMP07" }, { "size":"2 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB323638-CMP06" }, { "size":"10 x 1 Unit", "name":"Plate Seal", "number":"AB323638-CMP10" }, { "size":"10 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB323638-CMP09" }, { "size":"10 x 8 mL", "name":"Antibody Diluent 4BI", "number":"AB323638-CMP04" } ] }, "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab323638-1x96Tests", "assetComponentDetails": [ { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB323638-CMP08", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB323638-CMP05", "productcode":"" }, { "size":"2 x 1 Vial", "name":"cGMP Lyophilized Standard", "number":"AB323638-CMP03", "productcode":"" }, { "size":"1 x 80 µL", "name":"50X cGMP HRP Conjugate", "number":"AB323638-CMP02", "productcode":"" }, { "size":"1 x 80 µL", "name":"50X cGMP CaptSure Conjugate", "number":"AB323638-CMP01", "productcode":"" }, { "size":"1 x 12 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB323638-CMP06", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB323638-CMP07", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB323638-CMP10", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB323638-CMP09", "productcode":"" }, { "size":"1 x 8 mL", "name":"Antibody Diluent 4BI", "number":"AB323638-CMP04", "productcode":"" } ] } } }

style

left-column

Properties and storage information

Shipped at conditions

Blue Ice

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

+4°C

Storage information

+4°C

style

left-column

style

left-column

Product protocols

style

left-column

Target data

See full target information Guanosine, cyclic 3',5'-(hydrogen phosphate), monosodium salt

style

left-column

style

left-column

websiteProtocolBooklet

style

right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.

For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
