ERK1 (phospho T202 + Y204) + ERK2 (phospho T185 + Y187) + Total ELISA Kit is a single-wash 90-min Simplestep used to detect ERK1 (phospho T202 + Y204) + ERK2 (phospho T185 + Y187) + Total ERK. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.
- Colorimetric Semi-quantitative Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Cited in over 40 citations
Images
Publications
Filter by
- Cell communication and signaling : CCS 21:2842023AXL receptor tyrosine kinase modulates gonadotropin-releasing hormone receptor signaling.Applications:Unspecified applicationReactive species:Unspecified reactive speciesPardis Mohammadzadeh,Mina Roueinfar,Gregory C AmbergPubMed 37828510
- Biomedicines 11:2023Regulation of Soluble E-Cadherin Signaling in Non-Small-Cell Lung Cancer Cells by Nicotine, BDNF, and β-Adrenergic Receptor Ligands.Applications:Unspecified applicationReactive species:Unspecified reactive speciesRavel Ray,Stuti Goel,Hind Al Khashali,Ban Darweesh,Ben Haddad,Caroline Wozniak,Robert Ranzenberger,Jeneen Khalil,Jeffrey Guthrie,Deborah Heyl,Hedeel Guy EvansPubMed 37760996
- International archives of allergy and immunology 184:1010-10212023The ERBB2 Exonic Variant Pro1170Ala Modulates Mitogen-Activated Protein Kinase Signaling Cascades and Associates with Allergic Asthma.Applications:Unspecified applicationReactive species:Unspecified reactive speciesYang Yie Sio,Wei Liang Gan,Wing Shan Ng,Sri Anusha Matta,Yee-How Say,Keng Foo Teh,Yi Ru Wong,Smyrna Moti Rawanan Shah,Kavita Reginald,Fook Tim ChewPubMed 37336194
- Cells 12:2023Erk1/2-Dependent HNSCC Cell Susceptibility to Erastin-Induced Ferroptosis.Applications:Unspecified applicationReactive species:Unspecified reactive speciesDragana Savic,Teresa Bernadette Steinbichler,Julia Ingruber,Giulia Negro,Bertram Aschenbrenner,Herbert Riechelmann,Ute Ganswindt,Sergej Skvortsov,József Dudás,Ira-Ida SkvortsovaPubMed 36672272
- Mediators of inflammation 2022:11085692022Prevents Ulcerative Colitis by Promoting M2 Macrophage Polarization through Blocking the TLR4/MAPK/NF-B Pathway.Applications:Unspecified applicationReactive species:Unspecified reactive speciesJun Sun,Ping Zhao,Xufeng Ding,Fang Li,Jie Jiang,Hua Huang,Lijiang JiPubMed 36619207
- Clinical proteomics 19:332022Proteomics-based evaluation of the mechanism underlying vascular injury via DNA interstrand crosslinks, glutathione perturbation, mitogen-activated protein kinase, and Wnt and ErbB signaling pathways induced by crotonaldehyde.Applications:Unspecified applicationReactive species:Unspecified reactive speciesMing-Zhang Xie,Jun-Li Liu,Qing-Zu Gao,De-Ying Bo,Lei Wang,Xiao-Chun Zhou,Meng-Meng Zhao,Yu-Chao Zhang,Yu-Jing Zhang,Guo-An Zhao,Lu-Yang JiaoPubMed 36002804
- Balkan medical journal 39:267-2742022FLOT2 Promotes the Proliferation and Epithelial-mesenchymal Transition of Cervical Cancer by Activating the MEK/ERK1/2 Pathway.Applications:Unspecified applicationReactive species:Unspecified reactive speciesYang Li,Shulan DouPubMed 35872627
- Cell cycle (Georgetown, Tex.) 21:1697-17092022Suppression of CX3CL1 by miR-497-5p inhibits cell growth and invasion through inactivating the ERK/AKT pathway in NSCLC cells.Applications:Unspecified applicationReactive species:Unspecified reactive speciesWen Tang,Ping Jia,Lin Zuo,Jia ZhaoPubMed 35485293
- Cell cycle (Georgetown, Tex.) 21:741-7532022Hsa-miR-186-3p suppresses colon cancer progression by inhibiting KRT18/MAPK signaling pathway.Applications:Unspecified applicationReactive species:Unspecified reactive speciesTian Xia,Zhiyong Zhang,Xin Zhang,Quanfu LiPubMed 35258413
- Molecules (Basel, Switzerland) 27:2022Vincamine Modulates the Effect of Pantoprazole in Renal Ischemia/Reperfusion Injury by Attenuating MAPK and Apoptosis Signaling Pathways.Applications:Unspecified applicationReactive species:Unspecified reactive speciesMichael A Fawzy,Sherif A Maher,Mahmoud A El-Rehany,Nermeen N Welson,Nisreen K A Albezrah,Gaber El-Saber Batiha,Moustafa FathyPubMed 35209172
Key facts
- Detection method
- Colorimetric
- Sample types
- Tissue Homogenate, Cell Lysate
- Assay type
- Semi-quantitative
- Reactive species
- Mouse, Human
- Assay time
- 1h 30m
Reactivity data
| Application | Reactivity | Dilution info | Notes |
|---|---|---|---|
Application ELISA | Reactivity Reacts | Dilution info - | Notes - |
Associated Products
Select an associated product type
1 product for Alternative Product
Target data
Function
Serine/threonine kinase which acts as an essential component of the MAP kinase signal transduction pathway (PubMed:34497368). MAPK1/ERK2 and MAPK3/ERK1 are the 2 MAPKs which play an important role in the MAPK/ERK cascade. They participate also in a signaling cascade initiated by activated KIT and KITLG/SCF. Depending on the cellular context, the MAPK/ERK cascade mediates diverse biological functions such as cell growth, adhesion, survival and differentiation through the regulation of transcription, translation, cytoskeletal rearrangements. The MAPK/ERK cascade also plays a role in initiation and regulation of meiosis, mitosis, and postmitotic functions in differentiated cells by phosphorylating a number of transcription factors. About 160 substrates have already been discovered for ERKs. Many of these substrates are localized in the nucleus, and seem to participate in the regulation of transcription upon stimulation. However, other substrates are found in the cytosol as well as in other cellular organelles, and those are responsible for processes such as translation, mitosis and apoptosis. Moreover, the MAPK/ERK cascade is also involved in the regulation of the endosomal dynamics, including lysosome processing and endosome cycling through the perinuclear recycling compartment (PNRC); as well as in the fragmentation of the Golgi apparatus during mitosis. The substrates include transcription factors (such as ATF2, BCL6, ELK1, ERF, FOS, HSF4 or SPZ1), cytoskeletal elements (such as CANX, CTTN, GJA1, MAP2, MAPT, PXN, SORBS3 or STMN1), regulators of apoptosis (such as BAD, BTG2, CASP9, DAPK1, IER3, MCL1 or PPARG), regulators of translation (such as EIF4EBP1) and a variety of other signaling-related molecules (like ARHGEF2, DEPTOR, FRS2 or GRB10) (PubMed:35216969). Protein kinases (such as RAF1, RPS6KA1/RSK1, RPS6KA3/RSK2, RPS6KA2/RSK3, RPS6KA6/RSK4, SYK, MKNK1/MNK1, MKNK2/MNK2, RPS6KA5/MSK1, RPS6KA4/MSK2, MAPKAPK3 or MAPKAPK5) and phosphatases (such as DUSP1, DUSP4, DUSP6 or DUSP16) are other substrates which enable the propagation the MAPK/ERK signal to additional cytosolic and nuclear targets, thereby extending the specificity of the cascade.
Additional Targets
MAPK1 phospho T185 + Y187
Alternative names
ERK1, PRKM3, MAPK3, Mitogen-activated protein kinase 3, MAP kinase 3, MAPK 3, ERT2, Extracellular signal-regulated kinase 1, Insulin-stimulated MAP2 kinase, MAP kinase isoform p44, Microtubule-associated protein 2 kinase, p44-ERK1, ERK-1, p44-MAPK
What's included?
Recommended products
ERK1 (phospho T202 + Y204) + ERK2 (phospho T185 + Y187) + Total ELISA Kit is a single-wash 90-min Simplestep used to detect ERK1 (phospho T202 + Y204) + ERK2 (phospho T185 + Y187) + Total ERK. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.
- Colorimetric Semi-quantitative Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Cited in over 40 citations
Key facts
- Detection method
- Colorimetric
- Sample types
- Tissue Homogenate, Cell Lysate
- Assay type
- Semi-quantitative
- Reactive species
- Mouse, Human
- Assay time
- 1h 30m
- Assay Platform
- Microplate
Precision
Intra assay
| Sample | n | C.V. |
|---|---|---|
Sample (pT202/Y204) | n 6 | C.V. 3 |
Sample Overall | n 6 | C.V. 5 |
Inter assay
| Sample | n | C.V. |
|---|---|---|
Sample (pT202/Y204) | n 3 | C.V. 3.7 |
Sample Overall | n 3 | C.V. 3.7 |
Storage
- Shipped at conditions
- Blue Ice
- Appropriate short-term storage conditions
- +4°C
- Appropriate long-term storage conditions
- +4°C
- Storage information
- +4°C
Notes
Abcam's ERK1 (phospho T202 + Y204) + ERK2 (phospho T185 + Y187) + Total ELISA kit is designed for the semi-quantitative measurement of ERK1/2 (pT202/Y204) and Total ERK1/2 protein in Human and mouse cells.
The SimpleStep ELISA™ employs an affinity tag labeled capture antibody and a reporter conjugated detector antibody which immunocapture the sample analyte in solution. This entire complex (capture antibody/analyte/detector antibody) is in turn immobilized via immunoaffinity of an anti-tag antibody coating the well. To perform the assay, samples or standards are added to the wells, followed by the antibody mix. After incubation, the wells are washed to remove unbound material. TMB substrate is added and during incubation is catalyzed by HRP, generating blue coloration. This reaction is then stopped by addition of Stop Solution completing any color change from blue to yellow. Signal is generated proportionally to the amount of bound analyte and the intensity is measured at 450 nm. Optionally, instead of the endpoint reading, development of TMB can be recorded kinetically at 600 nm.
ASSAY SPECIFICITY
The ERK1/2 (pT202/Y204) assay detects endogenous levels of ERK1/2 (GenBank Accessions NP 002737.2 [ERK1], NP 620407 [ERK2]) in cellular lysates, only when phosphorylated at Thr202/Tyr204.
The ERK1/2 Total assay detects endogenous levels of ERK1/2 (GenBank Accessions NP 002737.2 [ERK1], NP 620407 [ERK2]) in cellular lysates, irrespective of phosphorylation status.
SPECIES REACTIVITY
This kit detects ERK1/2 (pT202/Y204) and ERK1/2 Total in Human and mouse cell culture extracts. Detection in rat samples is also expected. Other species should be tested on a case-by-case basis.
Serum and plasma samples have not been tested with this kit.
As of October 2019, this kit was reformulated with new antibodies to maintain continued long term supply.
Estimated sensitivity: Phospho-ERK (Thr202/Tyr204): 0.1 ng/mL (tested with recombinant protein), Total ERK1/2: 0.6 ng/mL (tested with recombinant protein)
Range: Phospho-ERK (Thr202/Tyr204): 0.2-20ng/mL, Total ERK1/2: 0.6-60 ng/mL
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.
Supplementary info
- This supplementary information is collated from multiple sources and compiled automatically.
- Activity summary
ERK1 and ERK2 also known as p44 and p42 MAPK respectively are important proteins in the MAP kinase signaling pathway. They are expressed in various tissues with significant presence in the brain lungs and skin. ERK1 has a molecular weight of approximately 44 kDa while ERK2 has a molecular weight of around 42 kDa. Both proteins become activated through phosphorylation which is essential for their function in cellular processes.
- Biological function summary
ERK1 and ERK2 serve as key players in cellular growth differentiation and survival. They form part of a complex cascade where they transduce signals from the cell membrane to the nucleus after activation by phosphorylation. This phosphorylation enables them to modify various downstream targets involved in regulating gene expression and cellular response to external stimuli.
- Pathways
ERK1 and ERK2 are critical components of the MAPK/ERK pathway and the Ras-Raf-MEK-ERK signaling cascade. These pathways regulate a multitude of cellular activities including proliferation and differentiation. In the MAPK/ERK pathway proteins like Ras and Raf serve as upstream activators of ERK1 and ERK2. Both ERK1 and ERK2 also interact with other signaling proteins such as MEK1/2 which directly phosphorylates and activates them.
- Associated diseases and disorders
Dysregulation of ERK1 and ERK2 is associated with various pathologies including cancer and neurodegenerative diseases. Abnormal activation of these proteins often leads to uncontrolled cell proliferation contributing to oncogenesis. For instance mutations in proteins like Ras which regulate ERK1 and ERK2 can result in continuous activation and lead to tumor formation. Furthermore altered ERK1 and ERK2 signaling is linked to neurodegeneration impacting neuronal survival and function.
Product promise
We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.
In the unlikely event of one of our products not working as expected, you are covered by our product promise.
Full details and terms and conditions can be found here:
Terms & Conditions.
7 product images
Sandwich ELISA - ERK1 (phospho T202 + Y204) + ERK2 (phospho T185 + Y187) + Total ELISA Kit (ab176660)
Example of a typical ERK1/2 (pT202/Y204) and ERK1/2 Total control lysate dilution series in 1X Cell Extraction Buffer PTR.
The ERK1/2 lysate dilution series was prepared as described. Raw data values are shown in the table.
Kit Control lysates are provided at a concentration that give consistent signal between different lots. Lysates are produced and formulated by signal intensity to be consistent to within 30% of the previous lot. As such, Control lysates are not provided with a protein concentration.
Sandwich ELISA - ERK1 (phospho T202 + Y204) + ERK2 (phospho T185 + Y187) + Total ELISA Kit (ab176660)
Example of a typical ERK1/2 (pT202/Y204) and ERK1/2 Total control lysate dilution series in 1X Cell Extraction Buffer PTR.
The ERK1/2 lysate dilution series was prepared as described. Raw data values are shown in the table.
Kit Control lysates are provided at a concentration that give consistent signal between different lots. Lysates are produced and formulated by signal intensity to be consistent to within 30% of the previous lot. As such, Control lysates are not provided with a protein concentration.
Sandwich ELISA - ERK1 (phospho T202 + Y204) + ERK2 (phospho T185 + Y187) + Total ELISA Kit (ab176660)

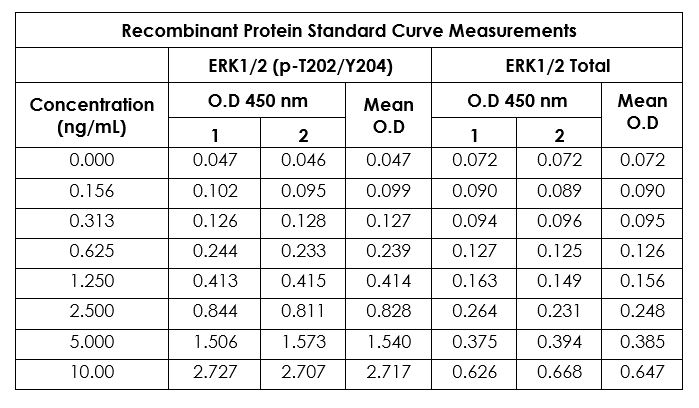

Typical recombinant protein standard curve.
Example of a typical ERK1/2 (pT202/Y204) and ERK1/2 (Total) recombinant protein standard curve. The proportion of total protein that is phosphorylated is unknown - data is indicative only. Background-subtracted data values (mean +/- SD) are graphed.
Sandwich ELISA - ERK1 (phospho T202 + Y204) + ERK2 (phospho T185 + Y187) + Total ELISA Kit (ab176660)
Example of a typical ERK1/2 (pT202/Y204) and ERK1/2 Total recombinant protein standard curve.
Raw data values are shown in the table. Background-subtracted data values (mean +/- SD) are graphed.
Sandwich ELISA - ERK1 (phospho T202 + Y204) + ERK2 (phospho T185 + Y187) + Total ELISA Kit (ab176660)
Linearity of dilution in representative sample matrices. Cellular lysates were prepared at 3 concentrations in common media containing 1X Cell Extraction Buffer PTR. Data from duplicate measurements of ERK1/2 (pT202/Y204) are normalized and plotted.
Sandwich ELISA - ERK1 (phospho T202 + Y204) + ERK2 (phospho T185 + Y187) + Total ELISA Kit (ab176660)

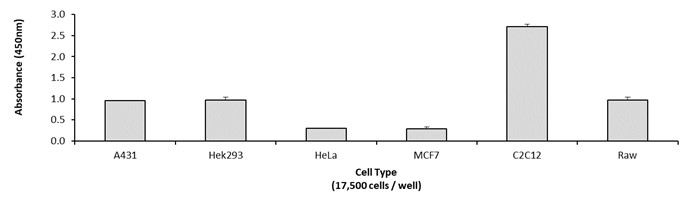

Cell line analysis for ERK1/2 Total from preparations of 17,500 cells/well cell extracts. Data from triplicate measurements (mean +/- SD) are plotted.
Sandwich ELISA - ERK1 (phospho T202 + Y204) + ERK2 (phospho T185 + Y187) + Total ELISA Kit (ab176660)

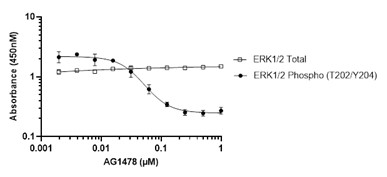

HeLa cells were seeded at 40K cells/well in a 96-well tissue culture plate and incubated overnight. Cells were treated with AG1478 at the indicated concentrations for 2.5 hours and then treated with 1 ng/mL of EGF for 10 minutes prior to cell lysis. Data from triplicate measurements of ERK1/2 (pT202/Y204) are plotted and compared against ERK1/2 Total protein levels.
