AB316916

GFP ELISA Kit- Intracellular

SimpleStep
What is this?

Be the first to review this product! Submit a review

(0 Publication)

GFP ELISA Kit- Intracellular is a single-wash 90-min Simplestep used to quantify GFP with a sensitivity of 2.523 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Design your own immunoassay: we also offer the conjugation-ready antibody pair

See more GFP assay kits and antibodies

View Alternative Names

Green fluorescent protein, GFP

4 Images

Sandwich ELISA - GFP ELISA Kit- Intracellular (AB316916)

sELISA

Supplier Data

Sandwich ELISA - GFP ELISA Kit- Intracellular (AB316916)

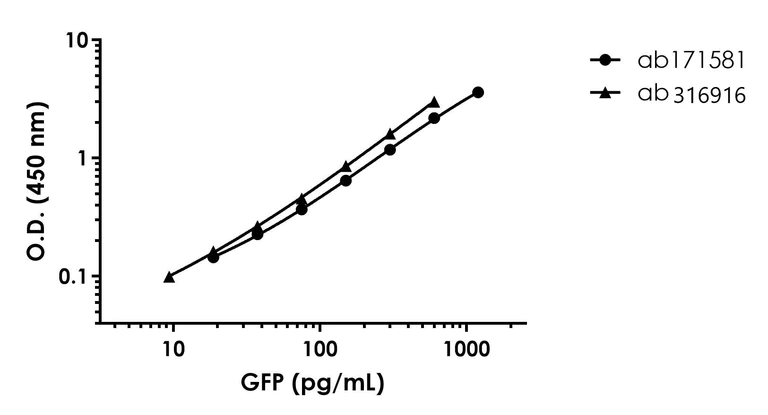

Standard curve comparison between the original GFP SimpleStep ELISA (ab171581) and current GFP SimpleStep ELISA (ab316916).

sELISA

Supplier Data

Sandwich ELISA - GFP ELISA Kit- Intracellular (AB316916)

Example of GFP standard curve. Background-subtracted data values (mean +/- SD) are graphed.

sELISA

Supplier Data

Sandwich ELISA - GFP ELISA Kit- Intracellular (AB316916)

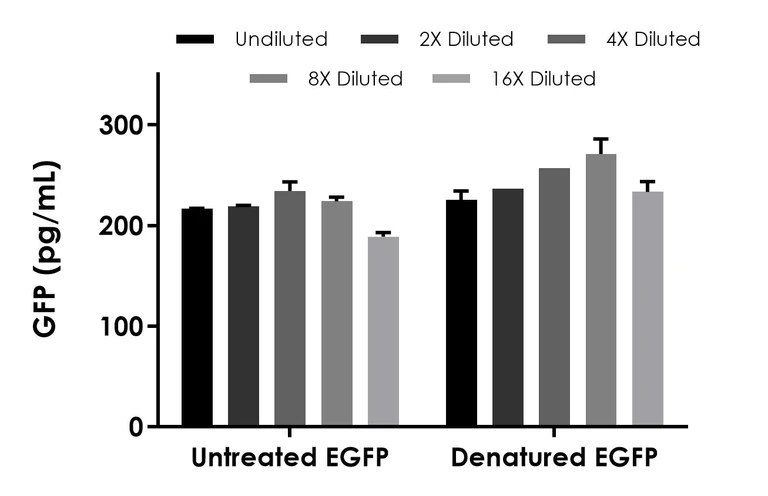

Recombinant untreated eGFP and 2% SDS denatured-eGFP were diluted 1 : 20 in 500 µg/mL Jurkat extract (prepared in 1X Cell extraction Buffer PTR Without Enhancer) and then diluted in a 2-fold dilution series in 1X Cell Extraction Buffer PTR. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2).

sELISA

Supplier Data

Sandwich ELISA - GFP ELISA Kit- Intracellular (AB316916)

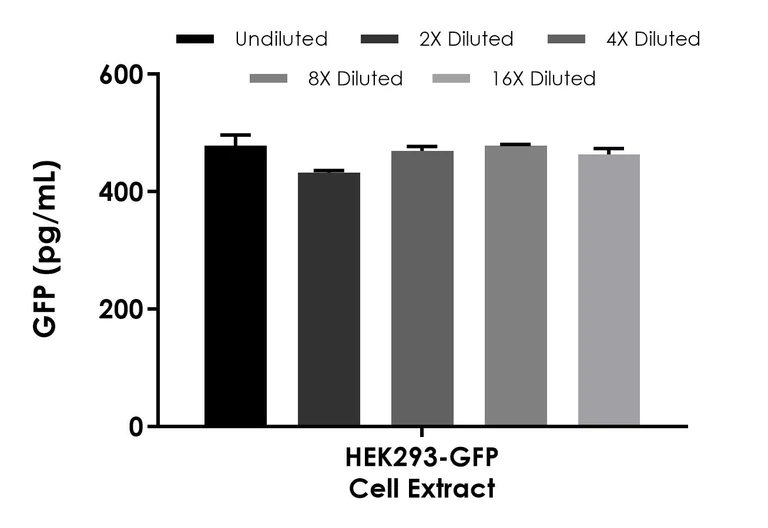

Interpolated concentration of native GFP was measured in duplicate at different sample concentrations. Undiluted samples are 50 ng/mL HEK293 overexpressing GFP cell extract. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in 1X Cell Extraction Buffer PTR.

Key facts

Detection method

Colorimetric

Sample types

Tissue Extracts, Cell Lysate

Reacts with

Aequorea victoria

Assay type

Sandwich (quantitative)

Sensitivity

= 2.523 pg/mL

Range

9.375 - 600 pg/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

style

left-column

Product details

GFP SimpleStep ELISA^® kit is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of GFP protein in Tissue extracts, Cell Lysate. Quantitate GFP with 2.523 pg/ml sensitivity.

SimpleStep ELISA^® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA^® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA^® protocol summary in the image section for further details. Our SimpleStep ELISA^® technology provides several benefits:

-Single-wash protocol reduces assay time to 90 minutes or less
-High sensitivity, specificity and reproducibility from superior antibodies
-Fully validated in biological samples
-96-wells plate breakable into 12 x 8 wells strips

A 384-well SimpleStep ELISA^® microplate (ab203359) is available to use as an alternative to the 96-well microplate provided with SimpleStep ELISA^® kits.

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

style

left-column

Precision

[ { "reproducibilityType": "Intra", "sample": "Extract", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "6.1" }, { "reproducibilityType": "Inter", "sample": "Extract", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "6.9" } ]

style

left-column

Recovery

[ { "sample": "Tissue Extracts", "range": "82 - 107 %", "average": "= 93" }, { "sample": "Cell Lysate", "range": "82 - 92 %", "average": "= 86" } ]

style

left-column

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab316916-1x96Tests", "assetComponentDetails": [ { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB316916-CMP11", "productcode":"" }, { "size":"1 x 1 mL", "name":"50X Cell Extraction Enhancer Solution (ab193971)", "number":"AB316916-CMP07", "productcode":"" }, { "size":"1 x 12 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB316916-CMP09", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB316916-CMP10", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB316916-CMP08", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent CPR2", "number":"AB316916-CMP05", "productcode":"" }, { "size":"2 x 1 Vial", "name":"GFP Lyophilized Recombinant Protein", "number":"AB316916-CMP04", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X GFP Capture Antibody", "number":"AB316916-CMP02", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X GFP Detector Antibody", "number":"AB316916-CMP03", "productcode":"" }, { "size":"1 x 10 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB316916-CMP06", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB316916-CMP12", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB316916-CMP13", "productcode":"" } ] } } }

style

left-column

Properties and storage information

Shipped at conditions

Blue Ice

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

+4°C

Storage information

+4°C

style

left-column

style

left-column

Product protocols

style

left-column

Target data

Energy-transfer acceptor. Its role is to transduce the blue chemiluminescence of the protein aequorin into green fluorescent light by energy transfer. Fluoresces in vivo upon receiving energy from the Ca(2+)-activated photoprotein aequorin.

See full target information GFP

style

left-column

style

left-column

websiteProtocolBooklet

style

right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.

For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.

For licensing inquiries, please contact partnerships@abcam.com
