AB246536

Human 4-1BBL ELISA Kit

Recombinant
SimpleStep
What is this?

Be the first to review this product! Submit a review

(0 Publication)

Human 4-1BBL ELISA Kit is a single-wash 90-min SimpleStep Sandwich ELISA used to quantify Human 4-1BBL with a sensitivity of 2.2 pg/mL. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric assay - 450 nm readout - works on any plate reader
- Different formats for different needs: 10x 96-well plates for bulk orders and 384-well for higher throughput
- Need to design your own assay: we also offer the conjugation-ready antibody pair

View Alternative Names

Tumor necrosis factor ligand superfamily member 9, 4-1BB ligand, 4-1BBL, TNFSF9

4 Images

ELISA - Human 4-1BBL ELISA Kit (AB246536)

ELISA

Supplier Data

ELISA - Human 4-1BBL ELISA Kit (AB246536)

sELISA

Lab

Sandwich ELISA - Human 4-1BBL ELISA Kit (AB246536)

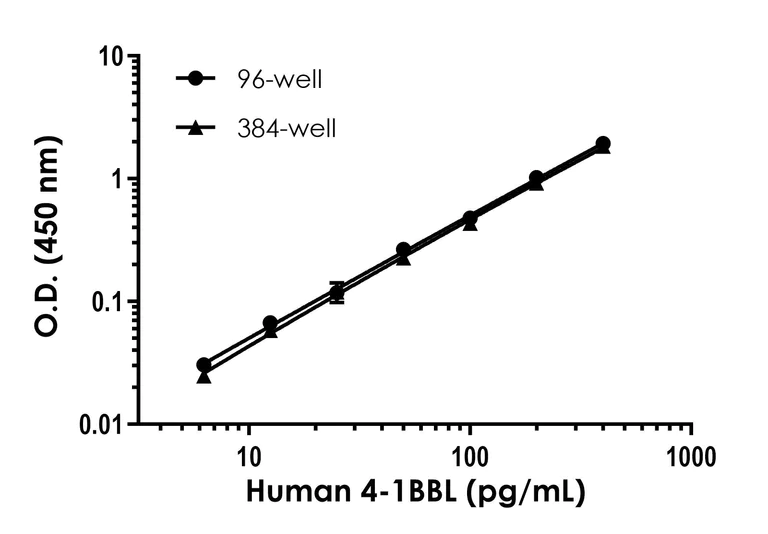

Example of Human 4-1BBL standard curve in 96-well vs. 384-well plate. Background-subtracted data values (mean +/- SD) are graphed.

sELISA

Supplier Data

Sandwich ELISA - Human 4-1BBL ELISA Kit (AB246536)

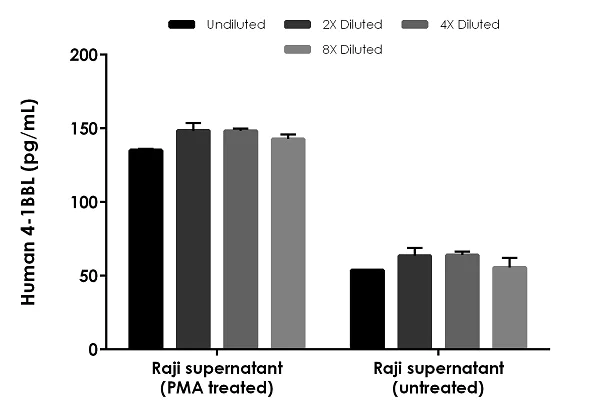

Interpolated concentrations of native 4-1BBL in human cell culture supernatant samples.

The concentrations of 4-1BBL were measured in duplicates, interpolated from the 4-1BBL standard curves and corrected for sample dilution. Undiluted samples are as follows : Raji (PMA treated) cell culture supernatant 50% and Raji (untreated) cell culture supernatant 100%. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean 4-1BBL concentration was determined to be 143.7 pg/mL in Raji (PMA treated) cell culture supernatant, and 59.2 pg/mL in Raji (untreated) cell culture supernatant.

sELISA

Supplier Data

Sandwich ELISA - Human 4-1BBL ELISA Kit (AB246536)

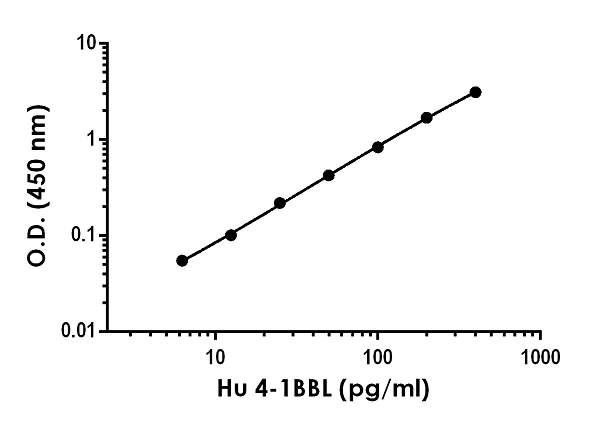

Example of human 4-1BBL standard curve in Sample Diluent NS.

The 4-1BBL standard curve was prepared as described in Section 10. Raw data values are shown in the table. Background-subtracted data values (mean +/- SD) are graphed.

Key facts

Detection method

Colorimetric

Sample types

Citrate plasma, Cell culture supernatant, Serum

Reacts with

Human

Assay type

Sandwich (quantitative)

Sensitivity

= 2.2 pg/mL

Range

6.25 - 400 pg/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

style

left-column

Product details

Human 4-1BBL ELISA Kit ab246536 is a rapid single-wash 90-min ELISA kit to measure Human 4-1 BBL in Citrate plasma, Cell culture supernatant, Serum. This SimpleStep ELISA® sensitivity is 5.64 pg/mL.

How the assay works

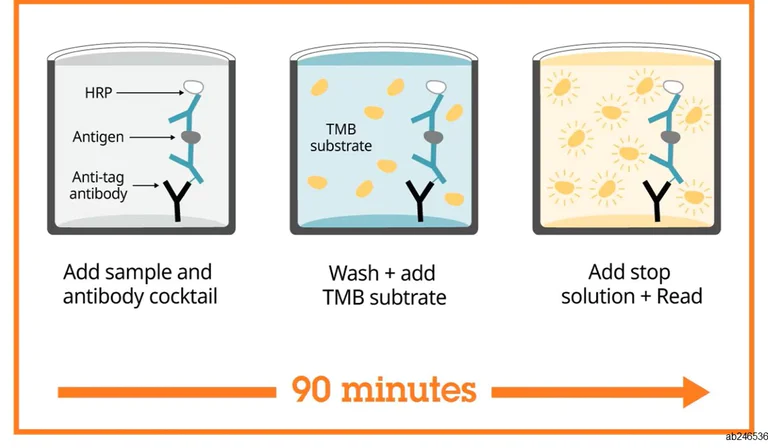

Human 4-1 BBL SimpleStep ELISA® employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details.

Assay Specificity

This kit is designed for the quantification of Human 4-1BBL. The standard protein in this kit is the extracellular domain of Human 4-1BBL. Native signal was detected in cell culture supernatant. Spiked protein experiments were used to validate serum and plasma (citrate) sample types. Neat pooled serum and plasma (citrate) samples from healthy donors was measured in duplicate. All values were below the detectable range of the assay. Saliva, urine, milk, CSF, cell extract, and tissue extract samples have not been tested with this kit. This kit is incompatible with plasma (EDTA) and plasma (heparin) samples.

Human 4-1BBL ELISA Kit ab246536 protocol summary:

1. Mix: add samples/standards to the wells together with the capture and detector antibody cocktail. Incubate for 1 hr at room temperature
2. Wash
3. Add TMB development solution - incubate for 10 min
4. Add stop solution
5. Read the results on a plate reader at 450nm

Save your precious samples

Our 384-well Human 4-1BBL ELISA Kit only requires a maxmum of 12.5µL

Design your own immunoassay

We offer the antibody pair used in this kit in a BSA and Azide-free format, ready for conjugation

- Human 4-1BBL Antibody Pair - BSA and Azide free ab256681
- Anti-4-1BBL antibody [EPR21995-69] - BSA and Azide free (Capture) ab259609
- Anti-4-1BBL antibody [EPR21995-47] - BSA and Azide free (Detector) ab259610

Related and recommended products

Human 4-1BBL ELISA Kit ab246536 is commonly used to study immune cell activation and regulation:

Other kits for measuring immune response include:

- Human CD40L ELISA kit ab99991
- Human TNFSF4 ELISA kit (OX40L) ab213842
- Human TNF alpha ELISA Kit ab181421

style

left-column

Precision

[ { "reproducibilityType": "Inter", "sample": "Supernatant", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "3.8" }, { "reproducibilityType": "Intra", "sample": "Supernatant", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "7" } ]

style

left-column

Recovery

[ { "sample": "Cell culture supernatant", "range": "99 - 104 %", "average": "= 101" }, { "sample": "Serum", "range": "86 - 89 %", "average": "= 88" }, { "sample": "Citrate plasma", "range": "90 - 94 %", "average": "= 92" } ]

style

left-column

What's included?

{ "values": { "1x384Tests": { "sellingSize": "1 x 384 Tests", "publicAssetCode":"ab246536-1x384Tests", "assetComponentDetails": [ { "size":"2 x 12 mL", "name":"Stop Solution", "number":"AB246536-CMP04" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB246536-CMP10" }, { "size":"2 x 1 Vial", "name":"Human 4-1BBL Lyophilized Recombinant Protein", "number":"AB246536-CMP08" }, { "size":"1 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB246536-CMP02" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 5BI", "number":"AB246536-CMP01" }, { "size":"1 x 600 µL", "name":"10X Human 4-1BBL Capture Antibody", "number":"AB246536-CMP05" }, { "size":"1 x 1 Unit", "name":"384 well CaptSure™ microplates", "number":"AB246536-CMP11" }, { "size":"2 x 12 mL", "name":"TMB Development Solution", "number":"AB246536-CMP07" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB246536-CMP09" }, { "size":"1 x 600 µL", "name":"10X Human 4-1BBL Detector Antibody", "number":"AB246536-CMP06" } ] }, "10x96Tests": { "sellingSize": "10 x 96 Tests", "publicAssetCode":"ab246536-10x96Tests", "assetComponentDetails": [ { "size":"1 x 120 mL", "name":"Stop Solution", "number":"AB246536-CMP04" }, { "size":"1 x 200 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB246536-CMP10" }, { "size":"1 x 120 mL", "name":"TMB Development Solution", "number":"AB246536-CMP07" }, { "size":"2 x 10 Vial", "name":"Human 4-1BBL Lyophilized Recombinant Protein", "number":"AB246536-CMP08" }, { "size":"10 x 6 mL", "name":"Antibody Diluent 5BI", "number":"AB246536-CMP01" }, { "size":"2 x 250 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB246536-CMP02" }, { "size":"1 x 6000 µL", "name":"10X Human 4-1BBL Capture Antibody", "number":"AB246536-CMP05" }, { "size":"10 x 1 Unit", "name":"Plate Seals", "number":"AB246536-CMP09" }, { "size":"10 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB246536-CMP03" }, { "size":"1 x 6000 µL", "name":"10X Human 4-1BBL Detector Antibody", "number":"AB246536-CMP06" } ] }, "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab246536-1x96Tests", "assetComponentDetails": [ { "size":"2 x 1 Vial", "name":"Human 4-1BBL Lyophilized Recombinant Protein", "number":"AB246536-CMP08", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human 4-1BBL Capture Antibody", "number":"AB246536-CMP05", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 5BI", "number":"AB246536-CMP01", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB246536-CMP10", "productcode":"" }, { "size":"1 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB246536-CMP02", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB246536-CMP09", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB246536-CMP07", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human 4-1BBL Detector Antibody", "number":"AB246536-CMP06", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB246536-CMP03", "productcode":"" }, { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB246536-CMP04", "productcode":"" } ] } } }

style

left-column

Properties and storage information

Shipped at conditions

Blue Ice

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

+4°C

Storage information

+4°C

style

left-column

style

left-column

Product protocols

style

left-column

Target data

Cytokine that binds to TNFRSF9. Induces the proliferation of activated peripheral blood T-cells. May have a role in activation-induced cell death (AICD). May play a role in cognate interactions between T-cells and B-cells/macrophages.

See full target information TNFSF9

style

left-column

style

left-column

websiteProtocolBooklet

style

right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.

For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
