AB288583

Human APG5L/ATG5 ELISA Kit

Be the first to review this product! Submit a review

|

(0 Publication)

Human APG5L/ATG5 ELISA Kit is a Sandwich (quantitative) ELISA for the measurement of Human APG5L/ATG5 in Human in Cell/Tissue Extracts samples.

View Alternative Names

APG5L, ASP, ATG5, Autophagy protein 5, APG5-like, Apoptosis-specific protein

2 Images
Sandwich ELISA - Human APG5L/ATG5 ELISA Kit (AB288583)
  • sELISA

Supplier Data

Sandwich ELISA - Human APG5L/ATG5 ELISA Kit (AB288583)

Interpolated concentration of native APG5L/ATG5 was measured in duplicate at different sample concentrations. Undiluted samples are as follows : HeLa extract 1000 μg/mL, THP1 extract 500 μg/mL and Raji extract 500 μg/mL. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in 1X Cell Extraction Buffer PTR.

Sandwich ELISA - Human APG5L/ATG5 ELISA Kit (AB288583)
  • sELISA

Supplier Data

Sandwich ELISA - Human APG5L/ATG5 ELISA Kit (AB288583)

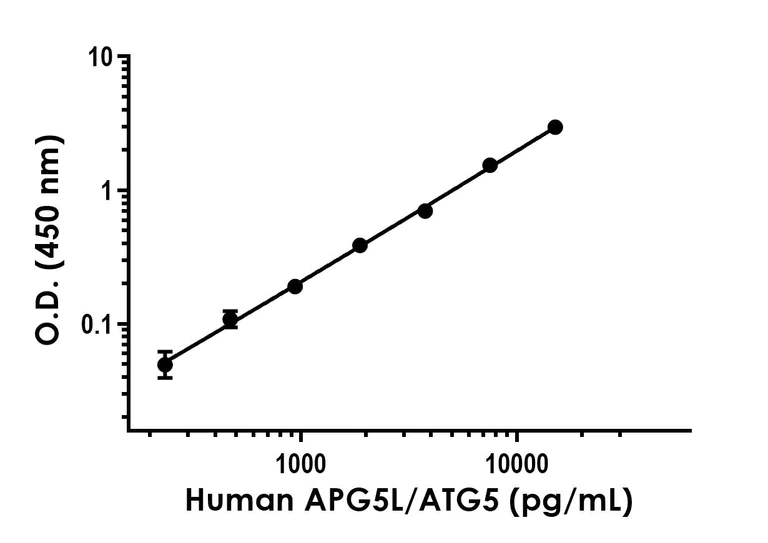

Example of human APG5L/ATG5 standard curve. Background-subtracted data values (mean +/- SD) are graphed.

Key facts

Detection method

Colorimetric

Sample types

Cell Lysate

Reacts with

Human

Assay type

Sandwich (quantitative)

Sensitivity

= 76.891 pg/mL

Range

234 - 15000 pg/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

Product details

Human APG5L/ATG5 ELISA Kit (ab288583) is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of APG5L/ATG5 protein in cell culture supernatant. It uses our proprietary SimpleStep ELISA® technology. Quantitate Human APG5L/ATG5 with 76.891 pg/ml sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:

- Single-wash protocol reduces assay time to 90 minutes or less
- High sensitivity, specificity and reproducibility from superior antibodies
- Fully validated in biological samples
- 96-wells plate breakable into 12 x 8 wells strips

A 384-well SimpleStep ELISA® microplate (ab203359) is available to use as an alternative to the 96-well microplate provided with SimpleStep ELISA® kits.

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

Precision

[ { "reproducibilityType": "Inter", "sample": "Extract", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "10.7" }, { "reproducibilityType": "Intra", "sample": "Extract", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "9.8" } ]

Recovery

[ { "sample": "Cell Lysate", "range": "109 - 119 %", "average": "= 113" } ]

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab288583-1x96Tests", "assetComponentDetails": [ { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB288583-CMP06", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human APG5L/ATG5 Capture Antibody", "number":"AB288583-CMP01", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human APG5L/ATG5 Detector Antibody", "number":"AB288583-CMP02", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human APG5L/ATG5 Lyophilized Recombinant Protein", "number":"AB288583-CMP10", "productcode":"" }, { "size":"1 x 1 mL", "name":"50X Cell Extraction Enhancer Solution (ab193971)", "number":"AB288583-CMP13", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent CPI - HAMA Blocker (ab193969)", "number":"AB288583-CMP03", "productcode":"" }, { "size":"1 x 12 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB288583-CMP04", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB288583-CMP11", "productcode":"" }, { "size":"1 x 10 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB288583-CMP09", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB288583-CMP12", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB288583-CMP07", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB288583-CMP05", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent CPI2", "number":"AB288583-CMP14", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

APG5L commonly known as ATG5 or ATG5 protein plays a significant role in autophagy. This molecular component has a molecular weight of approximately 32 kDa. ATG5 is expressed in multiple tissue types with a higher expression profile in immune-related cells. The protein is essential for the formation of the autophagosome as it conjugates with ATG12 to form a complex that is critical for autophagosome membrane elongation.
Biological function summary

ATG5 plays an important part in the cellular process of autophagy affecting the degradation and recycling of cellular components. It is a part of a complex with ATG12 and ATG16L1 which facilitates the membrane building of the autophagosome. This protein is important for maintaining cellular homeostasis allowing the removal of damaged proteins and organelles and is involved in responses to stress and starvation.

Pathways

ATG5 is an important component in the autophagy pathway and is involved in cellular maintenance processes. This pathway is vital for the regulation of cell growth and metabolism. ATG5 works closely with other autophagy-related proteins such as LC3. The ATG5-ATG12 complex helps in the lipidation of LC3 which is critical for autophagosome maturation connecting its function to the mTOR signaling pathway that regulates many cellular processes.

Disruption in ATG5 function is linked to neurodegenerative diseases and cancer. For instance dysregulation of autophagy due to ATG5 dysfunction may result in the progression of neurodegenerative disorders like Alzheimer's disease. Additionally in certain cancers altered autophagy can influence the survival of cancer cells. The interplay between ATG5 and other proteins like p53 and Bcl-2 is under investigation to understand its role in these diseases.

Product protocols

Target data

Involved in autophagic vesicle formation. Conjugation with ATG12, through a ubiquitin-like conjugating system involving ATG7 as an E1-like activating enzyme and ATG10 as an E2-like conjugating enzyme, is essential for its function. The ATG12-ATG5 conjugate acts as an E3-like enzyme which is required for lipidation of ATG8 family proteins and their association to the vesicle membranes. Involved in mitochondrial quality control after oxidative damage, and in subsequent cellular longevity. Plays a critical role in multiple aspects of lymphocyte development and is essential for both B and T lymphocyte survival and proliferation. Required for optimal processing and presentation of antigens for MHC II. Involved in the maintenance of axon morphology and membrane structures, as well as in normal adipocyte differentiation. Promotes primary ciliogenesis through removal of OFD1 from centriolar satellites and degradation of IFT20 via the autophagic pathway. As part of the ATG8 conjugation system with ATG12 and ATG16L1, required for recruitment of LRRK2 to stressed lysosomes and induction of LRRK2 kinase activity in response to lysosomal stress (By similarity).. May play an important role in the apoptotic process, possibly within the modified cytoskeleton. Its expression is a relatively late event in the apoptotic process, occurring downstream of caspase activity. Plays a crucial role in IFN-gamma-induced autophagic cell death by interacting with FADD.. (Microbial infection) May act as a proviral factor. In association with ATG12, negatively regulates the innate antiviral immune response by impairing the type I IFN production pathway upon vesicular stomatitis virus (VSV) infection (PubMed : 17709747). Required for the translation of incoming hepatitis C virus (HCV) RNA and, thereby, for initiation of HCV replication, but not required once infection is established (PubMed : 19666601).
See full target information ATG5
websiteProtocolBooklet
en

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.

For licensing inquiries, please contact partnerships@abcam.com
