AB325726

Human BAG3 ELISA Kit, Chemiluminescent

Be the first to review this product! Submit a review

|

(0 Publication)

Human BAG3 ELISA Kit, Chemiluminescent is a 55-min single-wash SimpleStep Ignite™ ELISA for the rapid quantification of Human BAG3 with higher sensitivity and broader measuring range.

- Single 30 min incubation and single-wash step for results in less than an hour.
- Chemiluminescent detection allows a broad dynamic range: 41.15 - 10000 pg/ml with a sensitivity of 13.57 pg/mL.
- Design your own immunoassay: we also offer the conjugation-ready antibody pair.
- Patent pending

View Alternative Names

BIS, BAG3, BAG family molecular chaperone regulator 3, BAG-3, Bcl-2-associated athanogene 3, Bcl-2-binding protein Bis, Docking protein CAIR-1

5 Images
Sandwich ELISA - Human BAG3 ELISA Kit, Chemiluminescent (AB325726)
  • sELISA

Lab

Sandwich ELISA - Human BAG3 ELISA Kit, Chemiluminescent (AB325726)

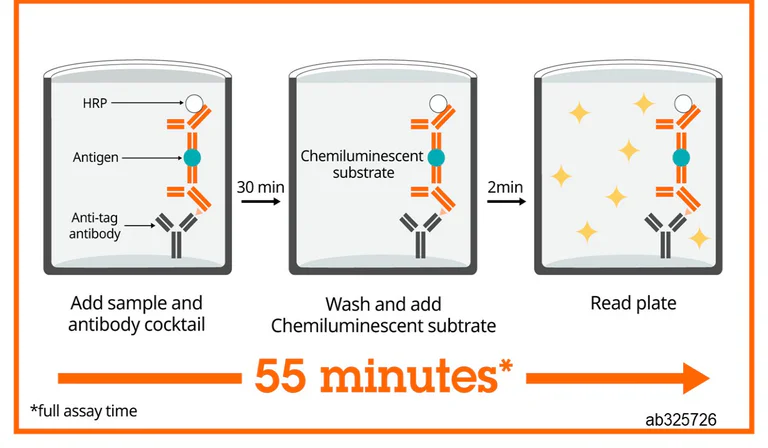

SimpleStep ELISA® Ignite technology allows the formation of the antibody-antigen complex in one single step, reducing assay time to 55 minutes. Add samples or standards and antibody mix to wells all at once, incubate, wash, and add your final substrate. See protocol for a detailed step-by-step guide.

Sandwich ELISA - Human BAG3 ELISA Kit, Chemiluminescent (AB325726)
  • sELISA

Supplier Data

Sandwich ELISA - Human BAG3 ELISA Kit, Chemiluminescent (AB325726)

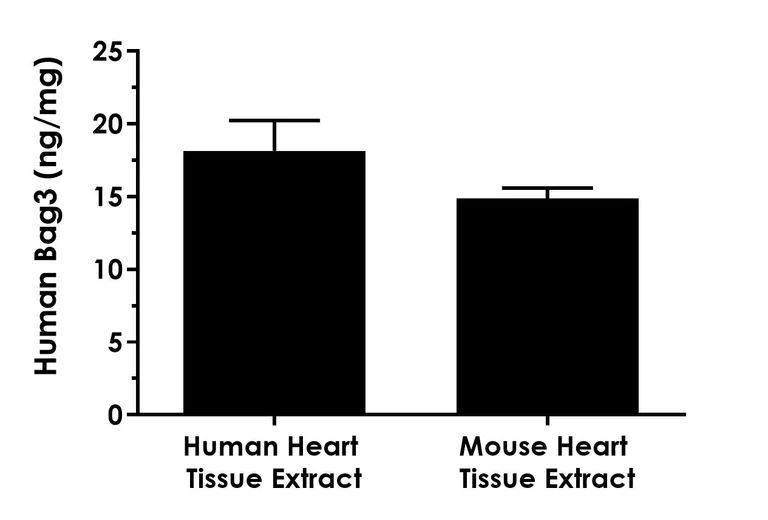

Other species reactivity was determined by measuring 150 ug/mL extract load of human and mouse heart tissue extracts and interpolating the protein concentrations from the BAG3 standard curve. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Concentrations are expressed in ng of protein per mg of extract. The mean Bag3 concentration was determined to be 18.15 ng/mg in human heart tissue extract and 14.86 ng/mg in mouse heart tissue extract.

Sandwich ELISA - Human BAG3 ELISA Kit, Chemiluminescent (AB325726)
  • sELISA

Lab

Sandwich ELISA - Human BAG3 ELISA Kit, Chemiluminescent (AB325726)

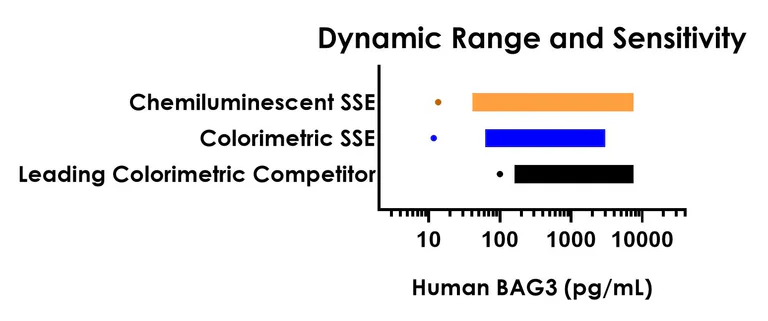

Dynamic range comparison between the Chemiluminescent Human BAG3 SimpleStep ELISA, colorimetric Human BAG3 SimpleStep ELISA (ab227900), and leading colorimetric competitor. The Chemiluminescent SimpleStep ELISA kit shows increased dynamic range and comparable sensitivity.

Sandwich ELISA - Human BAG3 ELISA Kit, Chemiluminescent (AB325726)
  • sELISA

Lab

Sandwich ELISA - Human BAG3 ELISA Kit, Chemiluminescent (AB325726)

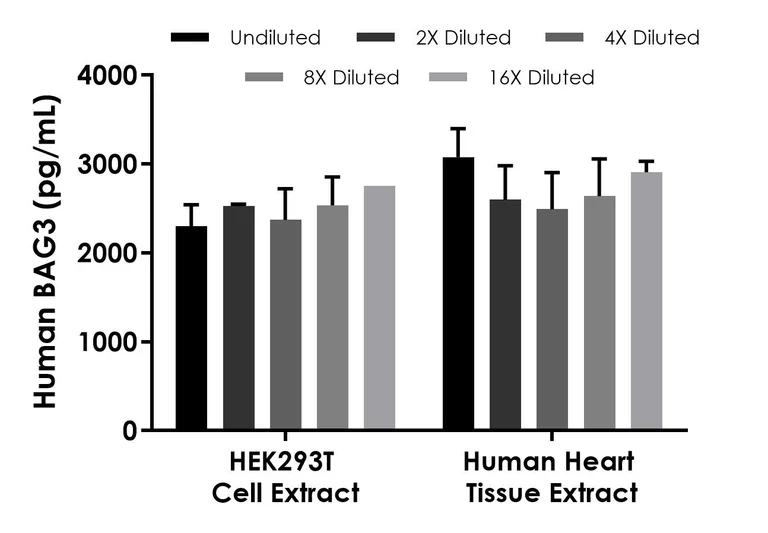

Interpolated concentrations of native BAG3 in HEK293T cell extract based on a 100 µg/mL extract load and human heart tissue extract based on a 150 µg/mL extract load. The concentrations of BAG3 were measured in duplicate and interpolated from the BAG3 standard curve and corrected for sample dilution. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean BAG3 concentration was determined to be 2,497 pg/mL in HEK293T cell extract and 2,743 pg/mL in human heart tissue extract.

Sandwich ELISA - Human BAG3 ELISA Kit, Chemiluminescent (AB325726)
  • sELISA

Lab

Sandwich ELISA - Human BAG3 ELISA Kit, Chemiluminescent (AB325726)

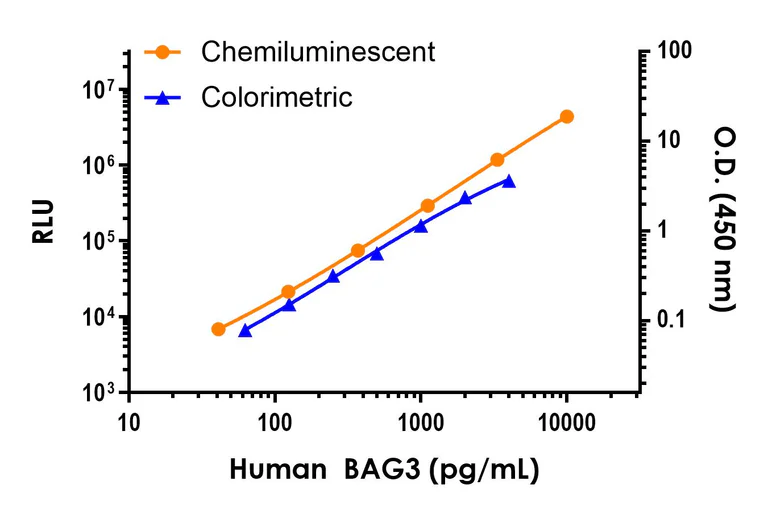

Standard curve comparison between the Chemiluminescent Human BAG3 SimpleStep ELISA and colorimetric Human BAG3 SimpleStep ELISA (ab227900) in 1X Cell Extraction Buffer PTR. Background-subtracted data values (mean +/- SD) are graphed.

Key facts

Detection method

Luminescent

Sample types

Cell Extract, Tissue Extracts

Reacts with

Human

Assay type

Sandwich

Results type

Quantitative

Sensitivity

= 13.57 pg/mL

Range

41.15 - 10000 pg/mL

Assay time

55m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column

Product details

Human BAG3 ELISA Kit, Chemiluminescent (ab325726) is a rapid single-wash sandwich 55-min ELISA to measure Human BAG3 in Cell Extract, Tissue Extract with a sensitivity of 13.57 pg/mL.

How the assay works

Human BAG3 ELISA Kit, Chemiluminescent (ab325726) SimpleStep Ignite™ ELISA employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step during a 30 min only incubation, significantly reducing assay time. By utilizing a chemiluminscent detection method this improves the sensitivity and dynamic range when compared to traditional colorimetric ELISAs.

Assay Specificity

Our SimpleStep Ignite™ ELISA kits use recombinant monoclonal antibodies rigorously validated to ensure the highest level of consistency and reproducibility, improved sensitivity and specificity and ease of scalability and security of supply.
Please refer to our protocol booklet for more details.

Human BAG3 (ab325726) protocol summary

1. Mix : add samples / standards to the wells together with the capture and detector antibody cocktail. Incubate 30 min at room temperature
2. Wash
3. Add ChemiHRP development solution - incubate for 2 min
4. Read the results on a plate reader capable of luminescence detection

Design your own immunoassay

We offer the antibody pair used in this kit in a BSA and Azide-free format, ready for conjugation:

- Anti-BAG3 antibody [EPR20207-4] - BSA and Aside free (Capture) ab244692
- Anti-BAG3 antibody [EPR20207-109] - BSA and Aside free (Detector) ab244958

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

style
left-column

Precision

[ { "reproducibilityType": "Intra", "sample": "Extract", "replicates": 5, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 5.2" }, { "reproducibilityType": "Inter", "sample": "Extract", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 2.5" } ]
style
left-column

Recovery

[ { "sample": "Cell Lysate", "range": "93 - 99 %", "average": "= 97" }, { "sample": "Tissue Extracts", "range": "103 - 105 %", "average": "= 104" } ]
style
left-column

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab325726-1x96Tests", "assetComponentDetails": [ { "size":"1 x 600 µL", "name":"10X Human BAG3 Capture Antibody", "number":"AB325726-CMP01", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB325726-CMP07", "productcode":"" }, { "size":"1 x 1 mL", "name":"50X Cell Extraction Enhancer Solution (ab193971)", "number":"AB325726-CMP06", "productcode":"" }, { "size":"1 x 10 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB325726-CMP05", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB325726-CMP11", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated Black 96-Well Microplate", "number":"AB325726-CMP10", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human BAG3 Lyophilized Recombinant Protein", "number":"AB325726-CMP03", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human BAG3 Detector Antibody", "number":"AB325726-CMP02", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent CPI2", "number":"AB325726-CMP04", "productcode":"" }, { "size":"1 x 3 mL", "name":"ChemiHRP Reagent B", "number":"AB325726-CMP09", "productcode":"" }, { "size":"1 x 3 mL", "name":"ChemiHRP Reagent A", "number":"AB325726-CMP08", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C
style
left-column
style
left-column

Product protocols

style
left-column

Target data

Co-chaperone and adapter protein that connects different classes of molecular chaperones including heat shock proteins 70 (HSP70s), e.g. HSPA1A/HSP70 or HSPA8/HSC70, and small heat shock proteins (sHSPs), e.g. HSPB8 (PubMed : 27884606, PubMed : 30559338). Acts as a nucleotide-exchange factor (NEF) promoting the release of ADP from HSP70s, thereby triggering client protein release (PubMed : 27884606, PubMed : 30559338). Nucleotide release is mediated via BAG3 binding to the nucleotide-binding domain (NBD) of HSP70s, whereas client release is mediated via binding to the substrate-binding domain (SBD) (PubMed : 27474739, PubMed : 9873016). Has anti-apoptotic activity (PubMed : 10597216). Plays a role in the HSF1 nucleocytoplasmic transport (PubMed : 26159920).
See full target information BAG3
style
left-column
style
left-column
websiteProtocolBooklet
en
style
right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.

For licensing inquiries, please contact partnerships@abcam.com
