AB320054

Human Beta Arrestin 1 ELISA Kit

Be the first to review this product! Submit a review

|

(0 Publication)

Human Beta Arrestin 1 ELISA Kit is a single-wash 90-min Simplestep used to quantify Human Beta Arrestin 1 with a sensitivity of 46.5 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Different formats for different needs: 10x96 plates for bulk orders

View Alternative Names

ARR1, ARRB1, Beta-arrestin-1, Arrestin beta-1, Non-visual arrestin-2

5 Images
Sandwich ELISA - Human Beta Arrestin 1 ELISA Kit (AB320054)
  • sELISA

Supplier Data

Sandwich ELISA - Human Beta Arrestin 1 ELISA Kit (AB320054)

Interpolated concentrations of human Beta Arrestin 1 in PHA-M stimulated and unstimulated human PBMC supernatant

Interpolated concentration of native Beta Arrestin 1 was measured in duplicate at different sample concentrations. Undiluted samples are as follows : stimulated human PBMC supernatant (treated with 1.5% PHA-M for 46 hrs) 100% and mock unstimulated human PBMC supernatant 50%.  The interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2). Sample dilutions are made in Sample Diluent NS + 1X Enhancer.

Sandwich ELISA - Human Beta Arrestin 1 ELISA Kit (AB320054)
  • sELISA

Supplier Data

Sandwich ELISA - Human Beta Arrestin 1 ELISA Kit (AB320054)

Interpolated concentrations of Beta Arrestin 1 in normal human serum donors

Serum of eight individual healthy human male donors was measured in duplicate. Interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean Beta Arrestin 1 concentration of detected samples was determined to be 443.9 pg/mL with a range of undetected – 902.8 pg/mL.

Sandwich ELISA - Human Beta Arrestin 1 ELISA Kit (AB320054)
  • sELISA

Supplier Data

Sandwich ELISA - Human Beta Arrestin 1 ELISA Kit (AB320054)

Interpolated concentrations of Beta Arrestin 1 in normal human serum donors

Serum of eight individual healthy human female donors was measured in duplicate. Interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean Beta Arrestin 1 concentration of detected samples was determined to be 676.6 pg/mL with a range of undetected – 1,691.4 pg/mL.

Sandwich ELISA - Human Beta Arrestin 1 ELISA Kit (AB320054)
  • sELISA

Supplier Data

Sandwich ELISA - Human Beta Arrestin 1 ELISA Kit (AB320054)

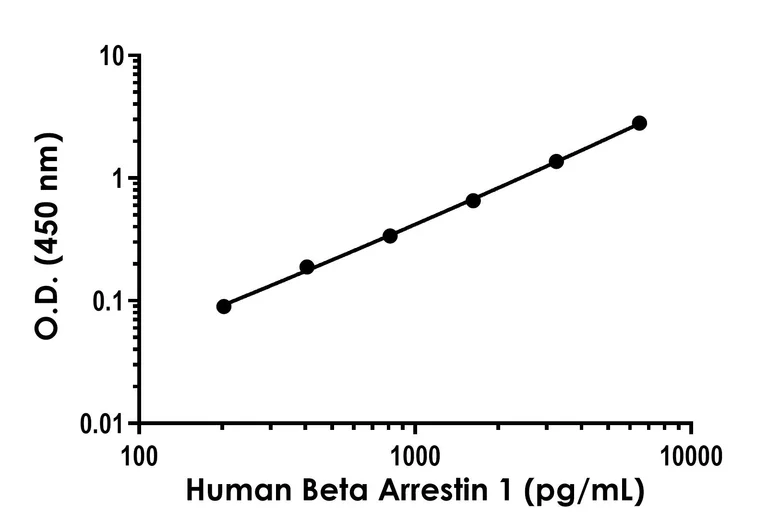

Example of human Beta Arrestin 1 standard curve in Sample Diluent NS + 1X Enhancer. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Human Beta Arrestin 1 ELISA Kit (AB320054)
  • sELISA

Supplier Data

Sandwich ELISA - Human Beta Arrestin 1 ELISA Kit (AB320054)

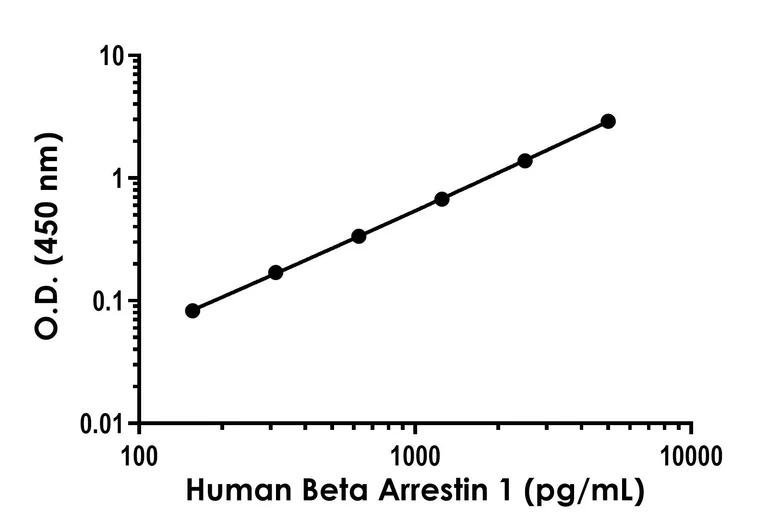

Example of human Beta Arrestin 1 standard curve in Sample Diluent NS. Background-subtracted data values (mean +/- SD) are graphed.

Key facts

Detection method

Colorimetric

Sample types

Serum, Citrate plasma, EDTA Plasma, Heparin Plasma, Cell culture supernatant

Reacts with

Human

Assay type

Sandwich

Results type

Quantitative

Sensitivity

= 46.5 pg/mL

Range

156.3 - 5000 pg/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

Product details

Human Beta Arrestin 1 SimpleStep ELISA® kit is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of Beta Arrestin 1 protein in Serum, Cit plasma, EDTA Plasma, Hep Plasma, and Cell culture supernatant. Quantitate Human Beta Arrestin 1 with 46.5 pg/ml sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:

-Single-wash protocol reduces assay time to 90 minutes or less
-High sensitivity, specificity and reproducibility from superior antibodies
-Fully validated in biological samples
-96-wells plate breakable into 12 x 8 wells strips, available in 10-pack (10 x 96-well plates)
-Also available in a fully validated 384-well format.

Precision

[ { "reproducibilityType": "Intra", "sample": "Supernatant", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "3.4" }, { "reproducibilityType": "Inter", "sample": "Supernatant", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "8.6" } ]

Recovery

[ { "sample": "Serum", "range": "94 - 99 %", "average": "= 97" }, { "sample": "Citrate plasma", "range": "83 - 87 %", "average": "= 85" }, { "sample": "EDTA Plasma", "range": "80 - 90 %", "average": "= 85" }, { "sample": "Heparin Plasma", "range": "102 - 117 %", "average": "= 108" }, { "sample": "Cell culture supernatant", "range": "102 - 122 %", "average": "= 115" } ]

What's included?

{ "values": { "10x96Tests": { "sellingSize": "10 x 96 Tests", "publicAssetCode":"ab320054-10x96Tests", "assetComponentDetails": [ { "size":"10 x 1 Unit", "name":"Plate Seals", "number":"AB320054-CMP11" }, { "size":"1 x 120 mL", "name":"Stop Solution", "number":"AB320054-CMP09" }, { "size":"10 x 1 mL", "name":"50X Cell Extraction Enhancer Solution (ab193971)", "number":"AB320054-CMP05" }, { "size":"2 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB320054-CMP07" }, { "size":"1 x 120 mL", "name":"TMB Development Solution", "number":"AB320054-CMP08" }, { "size":"10 x 96 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB320054-CMP10" }, { "size":"1 x 200 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB320054-CMP06" }, { "size":"10 x 6 mL", "name":"Antibody Diluent CPI2", "number":"AB320054-CMP04" }, { "size":"10 x 600 µL", "name":"10X Human Beta Arrestin 1 Capture Antibody", "number":"AB320054-CMP01" }, { "size":"20 x 1 Vial", "name":"Human Beta Arrestin 1 Lyophilized Recombinant Protein", "number":"AB320054-CMP03" }, { "size":"10 x 600 µL", "name":"10X Human Beta Arrestin 1 Detector Antibody", "number":"AB320054-CMP02" } ] }, "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab320054-1x96Tests", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB320054-CMP11", "productcode":"" }, { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB320054-CMP09", "productcode":"" }, { "size":"1 x 1 mL", "name":"50X Cell Extraction Enhancer Solution (ab193971)", "number":"AB320054-CMP05", "productcode":"" }, { "size":"1 x 12 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB320054-CMP07", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB320054-CMP08", "productcode":"" }, { "size":"1 x 96 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB320054-CMP10", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human Beta Arrestin 1 Lyophilized Recombinant Protein", "number":"AB320054-CMP03", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB320054-CMP06", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent CPI2", "number":"AB320054-CMP04", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human Beta Arrestin 1 Detector Antibody", "number":"AB320054-CMP02", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human Beta Arrestin 1 Capture Antibody", "number":"AB320054-CMP01", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

Beta Arrestin 1 also known as β-arrestin b-arrestin or ARRB1 is a protein that plays an important role in cell signaling mechanisms. It has a molecular mass of approximately 47 kDa and is expressed in various tissues with high expression levels in the brain and testes. Beta Arrestin 1 binds to G protein-coupled receptors (GPCRs) leading to the termination of coupling between the GPCRs and G proteins. This function is essential in regulating the receptor's signal and mediating receptor desensitization.
Biological function summary

Beta Arrestin 1 functions beyond GPCR desensitization by participating in receptor internalization and the initiation of alternative signaling pathways known as arrestin-mediated signaling. It acts as part of a greater complex with clathrin and adaptin which facilitates the endocytosis of GPCRs. In doing so beta Arrestin 1 can modulate different signaling pathways independently of G proteins influencing various cellular responses.

Pathways

Beta Arrestin 1 integrates into the MAPK/ERK pathway and the PI3K/AKT pathway. These pathways are important for regulating diverse cellular processes including proliferation differentiation and survival. Through the MAPK/ERK pathway beta Arrestin 1 is connected to proteins such as extracellular signal-regulated kinases (ERK1/2). In the context of the PI3K/AKT pathway it associates with phosphoinositide 3-kinase helping to control cell growth and survival mechanisms.

Disruptions involving beta Arrestin 1 have implications in cancer and cardiovascular diseases. In cancer abnormal beta Arrestin 1 activity can influence tumor growth by altering cell proliferation and survival signaling pathways. It links to proteins like ERK1/2 and PI3K which can drive oncogenic processes. In cardiovascular disorders beta Arrestin 1 is implicated in heart failure where its altered activity affects cardiovascular signaling pathways influencing heart function and response to stress.

Product protocols

Target data

Functions in regulating agonist-mediated G-protein coupled receptor (GPCR) signaling by mediating both receptor desensitization and resensitization processes. During homologous desensitization, beta-arrestins bind to the GPRK-phosphorylated receptor and sterically preclude its coupling to the cognate G-protein; the binding appears to require additional receptor determinants exposed only in the active receptor conformation. The beta-arrestins target many receptors for internalization by acting as endocytic adapters (CLASPs, clathrin-associated sorting proteins) and recruiting the GPRCs to the adapter protein 2 complex 2 (AP-2) in clathrin-coated pits (CCPs). However, the extent of beta-arrestin involvement appears to vary significantly depending on the receptor, agonist and cell type. Internalized arrestin-receptor complexes traffic to intracellular endosomes, where they remain uncoupled from G-proteins. Two different modes of arrestin-mediated internalization occur. Class A receptors, like ADRB2, OPRM1, ENDRA, D1AR and ADRA1B dissociate from beta-arrestin at or near the plasma membrane and undergo rapid recycling. Class B receptors, like AVPR2, AGTR1, NTSR1, TRHR and TACR1 internalize as a complex with arrestin and traffic with it to endosomal vesicles, presumably as desensitized receptors, for extended periods of time. Receptor resensitization then requires that receptor-bound arrestin is removed so that the receptor can be dephosphorylated and returned to the plasma membrane. Involved in internalization of P2RY4 and UTP-stimulated internalization of P2RY2. Involved in phosphorylation-dependent internalization of OPRD1 ands subsequent recycling. Involved in the degradation of cAMP by recruiting cAMP phosphodiesterases to ligand-activated receptors. Beta-arrestins function as multivalent adapter proteins that can switch the GPCR from a G-protein signaling mode that transmits short-lived signals from the plasma membrane via small molecule second messengers and ion channels to a beta-arrestin signaling mode that transmits a distinct set of signals that are initiated as the receptor internalizes and transits the intracellular compartment. Acts as a signaling scaffold for MAPK pathways such as MAPK1/3 (ERK1/2). ERK1/2 activated by the beta-arrestin scaffold is largely excluded from the nucleus and confined to cytoplasmic locations such as endocytic vesicles, also called beta-arrestin signalosomes. Recruits c-Src/SRC to ADRB2 resulting in ERK activation. GPCRs for which the beta-arrestin-mediated signaling relies on both ARRB1 and ARRB2 (codependent regulation) include ADRB2, F2RL1 and PTH1R. For some GPCRs the beta-arrestin-mediated signaling relies on either ARRB1 or ARRB2 and is inhibited by the other respective beta-arrestin form (reciprocal regulation). Inhibits ERK1/2 signaling in AGTR1- and AVPR2-mediated activation (reciprocal regulation). Is required for SP-stimulated endocytosis of NK1R and recruits c-Src/SRC to internalized NK1R resulting in ERK1/2 activation, which is required for the antiapoptotic effects of SP. Is involved in proteinase-activated F2RL1-mediated ERK activity. Acts as a signaling scaffold for the AKT1 pathway. Is involved in alpha-thrombin-stimulated AKT1 signaling. Is involved in IGF1-stimulated AKT1 signaling leading to increased protection from apoptosis. Involved in activation of the p38 MAPK signaling pathway and in actin bundle formation. Involved in F2RL1-mediated cytoskeletal rearrangement and chemotaxis. Involved in AGTR1-mediated stress fiber formation by acting together with GNAQ to activate RHOA. Appears to function as signaling scaffold involved in regulation of MIP-1-beta-stimulated CCR5-dependent chemotaxis. Involved in attenuation of NF-kappa-B-dependent transcription in response to GPCR or cytokine stimulation by interacting with and stabilizing CHUK. May serve as nuclear messenger for GPCRs. Involved in OPRD1-stimulated transcriptional regulation by translocating to CDKN1B and FOS promoter regions and recruiting EP300 resulting in acetylation of histone H4. Involved in regulation of LEF1 transcriptional activity via interaction with DVL1 and/or DVL2 Also involved in regulation of receptors other than GPCRs. Involved in Toll-like receptor and IL-1 receptor signaling through the interaction with TRAF6 which prevents TRAF6 autoubiquitination and oligomerization required for activation of NF-kappa-B and JUN. Binds phosphoinositides. Binds inositolhexakisphosphate (InsP6) (By similarity). Involved in IL8-mediated granule release in neutrophils. Required for atypical chemokine receptor ACKR2-induced RAC1-LIMK1-PAK1-dependent phosphorylation of cofilin (CFL1) and for the up-regulation of ACKR2 from endosomal compartment to cell membrane, increasing its efficiency in chemokine uptake and degradation. Involved in the internalization of the atypical chemokine receptor ACKR3. Negatively regulates the NOTCH signaling pathway by mediating the ubiquitination and degradation of NOTCH1 by ITCH. Participates in the recruitment of the ubiquitin-protein ligase to the receptor (PubMed : 23886940).
See full target information ARRB1
websiteProtocolBooklet
en

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
