AB326891

Human Cardiac Troponin T ELISA Kit, Chemiluminescent

Be the first to review this product! Submit a review

|

(0 Publication)

Human Cardiac Troponin T ELISA Kit, Chemiluminescent is a 55-min single-wash SimpleStep Ignite™ ELISA for the rapid quantification of Human Cardiac Troponin T with higher sensitivity and broader measuring range.

- Single 30 min incubation and single-wash step for results in less than an hour.
- Chemiluminescent detection allows a broad dynamic range: 6.86 - 15000 pg/ml with a sensitivity of 3.88 pg/mL.
- Design your own immunoassay: we also offer the conjugation-ready antibody pair.
- Patent pending

View Alternative Names

TnTc, Cardiac muscle troponin T, cTnT, TNNT2

3 Images
Sandwich ELISA - Human Cardiac Troponin T ELISA Kit, Chemiluminescent (AB326891)
  • sELISA

Lab

Sandwich ELISA - Human Cardiac Troponin T ELISA Kit, Chemiluminescent (AB326891)

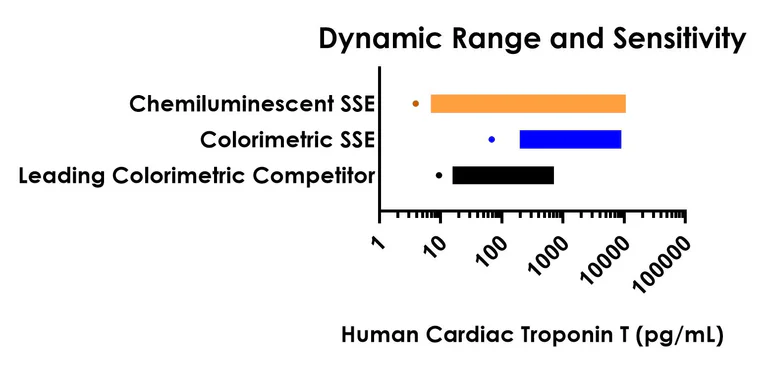

Dynamic range comparison between the Chemiluminescent Human Cardiac Troponin T SimpleStep ELISA, colorimetric Human Cardiac Troponin T SimpleStep ELISA (ab223860), and leading colorimetric competitor. The Chemiluminescent SimpleStep ELISA kit shows increased sensitivity and dynamic range.

Sandwich ELISA - Human Cardiac Troponin T ELISA Kit, Chemiluminescent (AB326891)
  • sELISA

Lab

Sandwich ELISA - Human Cardiac Troponin T ELISA Kit, Chemiluminescent (AB326891)

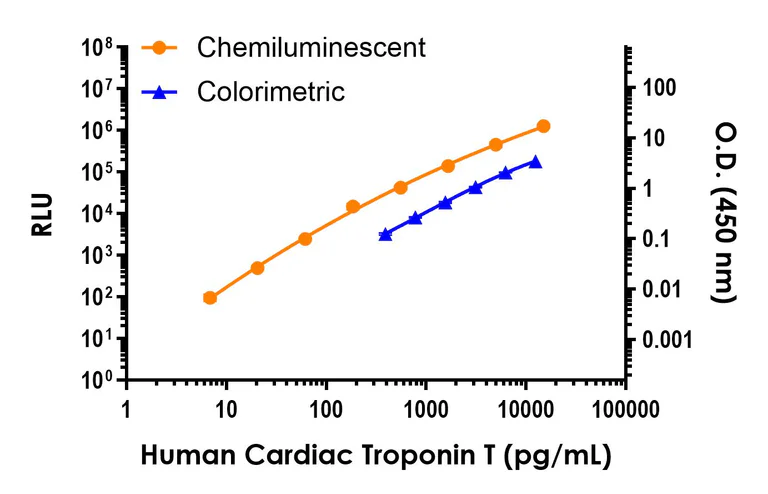

Standard curve comparison between the Chemiluminescent Human Cardiac Troponin T SimpleStep ELISA and colorimetric Human Cardiac Troponin T SimpleStep ELISA (ab223860) in Sample Diluent NS. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Human Cardiac Troponin T ELISA Kit, Chemiluminescent (AB326891)
  • sELISA

Supplier Data

Sandwich ELISA - Human Cardiac Troponin T ELISA Kit, Chemiluminescent (AB326891)

Interpolated concentrations of native Cardiac Troponin T in human heart tissue extract based on a 100 μg/mL extract load.

The concentrations of Cardiac Troponin T were measured in duplicate and interpolated from the Cardiac Troponin T standard curve and corrected for sample dilution. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean Cardiac Troponin T concentration was determined to be 378.8 pg/mL in heart tissue extract

Key facts

Detection method

Luminescent

Sample types

Serum, Cell culture media, Citrate plasma, Tissue Extracts

Reacts with

Human, Mouse, Rat, Cow

Assay type

Sandwich

Results type

Quantitative

Sensitivity

= 3.88 pg/mL

Range

6.86 - 15000 pg/mL

Assay time

55m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column

Product details

Human Cardiac Troponin T ELISA Kit, Chemiluminescent (ab326891) is a rapid single-wash sandwich 55-min ELISA to measure Human Cardiac Troponin T in Serum, Cell culture media, Citrate plasma, Tissue Extracts with a sensitivity of 3.88 pg/mL.

How the assay works

Human Cardiac Troponin T ELISA Kit, Chemiluminescent (ab326891) SimpleStep Ignite™ ELISA employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step during a 30 min only incubation, significantly reducing assay time. By utilizing a chemiluminscent detection method this improves the sensitivity and dynamic range when compared to traditional colorimetric ELISAs.

Assay Specificity

Our SimpleStep Ignite™ ELISA kits use recombinant monoclonal antibodies rigorously validated to ensure the highest level of consistency and reproducibility, improved sensitivity and specificity and ease of scalability and security of supply.
Please refer to our protocol booklet for more details.

Human Cardiac Troponin T (ab326891) protocol summary

1. Mix : add samples / standards to the wells together with the capture and detector antibody cocktail. Incubate 30 min at room temperature
2. Wash
3. Add ChemiHRP development solution - incubate for 2 min
4. Read the results on a plate reader capable of luminescence detection

Design your own immunoassay

We offer the antibody pair used in this kit in a BSA and Azide-free format, ready for conjugation:

- Anti-TNNT2 antibody [EPR20266-143] - BSA and Aside free (Capture) ab252596
- Anti-TNNT2 antibody [EPR20266-143] - BSA and Aside free (Detector) ab252655
style
left-column

Precision

[ { "reproducibilityType": "Intra", "sample": "Serum", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 4.82" }, { "reproducibilityType": "Inter", "sample": "Serum", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 1.96" } ]
style
left-column

Recovery

[ { "sample": "Serum", "range": "83 - 93 %", "average": "= 93" }, { "sample": "Cell culture media", "range": "94 - 98 %", "average": "= 98" }, { "sample": "Citrate plasma", "range": "80 - 89 %", "average": "= 89" }, { "sample": "Tissue Extracts", "range": "76 - 88 %", "average": "= 88" } ]
style
left-column

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab326891-1x96Tests", "assetComponentDetails": [ { "size":"1 x 600 µL", "name":"10X Human Cardiac Troponin T Detector Antibody", "number":"AB326891-CMP02", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB326891-CMP11", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human Cardiac Troponin T Lyophilized Recombinant Protein", "number":"AB326891-CMP03", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 4BI", "number":"AB326891-CMP04", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB326891-CMP07", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human Cardiac Troponin T Capture Antibody", "number":"AB326891-CMP01", "productcode":"" }, { "size":"1 x 3 mL", "name":"ChemiHRP Reagent B", "number":"AB326891-CMP09", "productcode":"" }, { "size":"1 x 3 mL", "name":"ChemiHRP Reagent A", "number":"AB326891-CMP08", "productcode":"" }, { "size":"1 x 10 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB326891-CMP05", "productcode":"" }, { "size":"1 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB326891-CMP06", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated Black 96-Well Microplate", "number":"AB326891-CMP10", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C
style
left-column
style
left-column

Product protocols

style
left-column

Target data

Troponin T is the tropomyosin-binding subunit of troponin, the thin filament regulatory complex which confers calcium-sensitivity to striated muscle actomyosin ATPase activity.
See full target information TNNT2
style
left-column
style
left-column
websiteProtocolBooklet
en
style
right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.

For licensing inquiries, please contact partnerships@abcam.com
