AB323516

Human Cathepsin D (mature, single chain) ELISA Kit- Extracellular

SimpleStep
What is this?

Be the first to review this product! Submit a review

(0 Publication)

Human Cathepsin D (mature, single chain) ELISA Kit- Extracellular is a single-wash 90-min Simplestep used to quantify Human Cathepsin D (mature, single chain) with a sensitivity of 12.58 pg/mL. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Different formats for different needs: 10x96 plates for bulk orders and 384-well plate for higher throughput
- Design your own immunoassay: we also offer the conjugation-ready antibody pair

View Alternative Names

CPSD, CTSD, Cathepsin D

8 Images

Sandwich ELISA - Human Cathepsin D (mature, single chain) ELISA Kit- Extracellular (AB323516)

sELISA

Supplier Data

Sandwich ELISA - Human Cathepsin D (mature, single chain) ELISA Kit- Extracellular (AB323516)

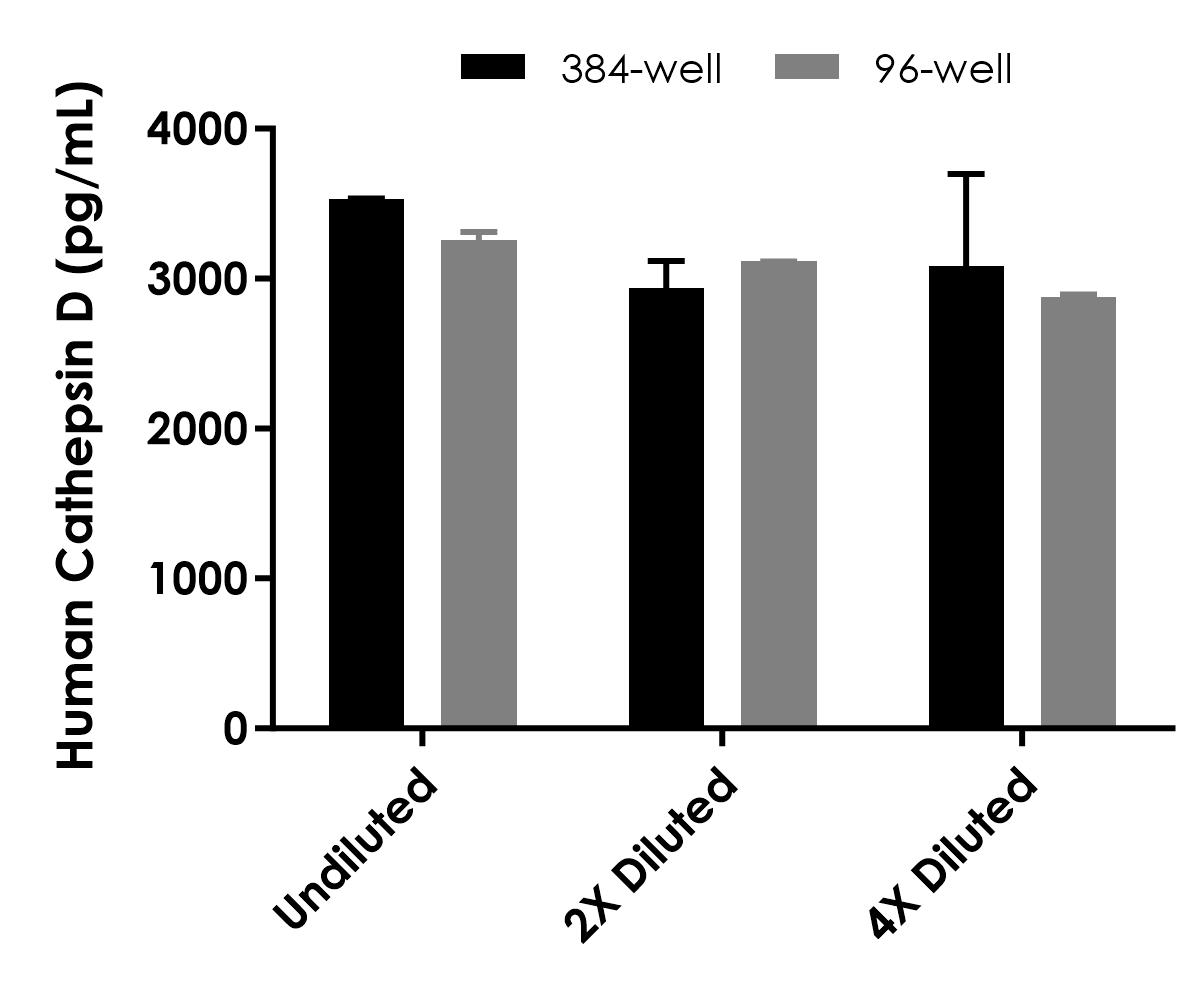

Interpolated concentrations of human Cathepsin D in HepG2 supernatant in 96-well vs. 384-well plates.

Interpolated concentration of native Cathepsin D was measured in duplicate at different sample concentrations in 96-well vs. 384-well plates. Undiluted samples are 25% HepG2 supernatant. The interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2). Sample dilutions are made in Sample Diluent NS + 1X Enhancer.

sELISA

Supplier Data

Sandwich ELISA - Human Cathepsin D (mature, single chain) ELISA Kit- Extracellular (AB323516)

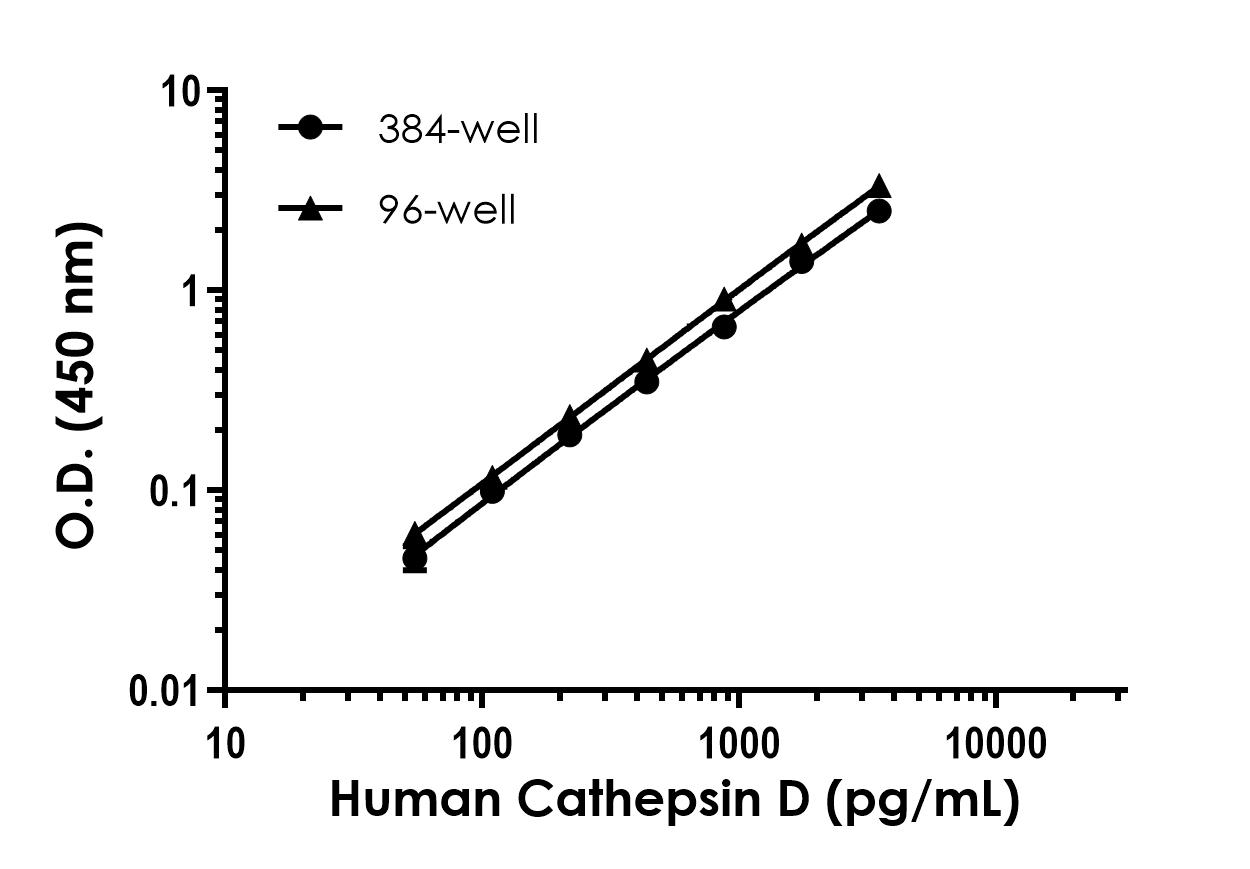

Example of human Cathepsin D standard curve in Sample Diluent NS + 1X Enhancer in 96-well vs. 384-well plate.

Example of human Cathepsin D standard curve in 96-well vs. 384-well plate. Background-subtracted data values (mean +/- SD) are graphed.

sELISA

Supplier Data

Sandwich ELISA - Human Cathepsin D (mature, single chain) ELISA Kit- Extracellular (AB323516)

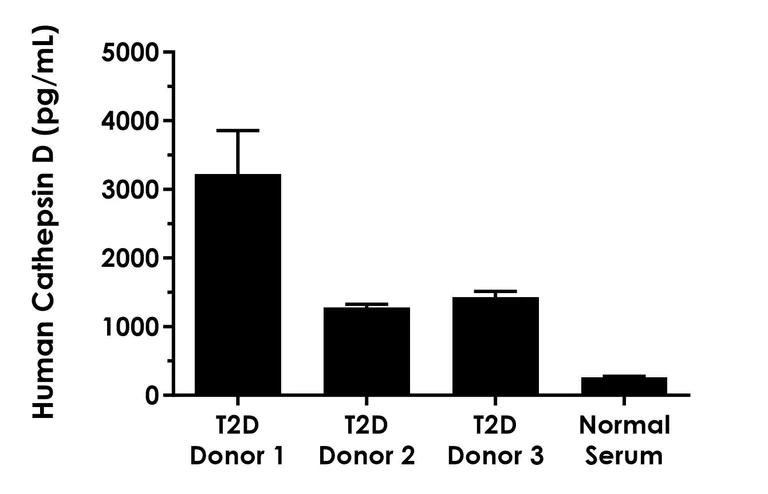

Interpolated concentrations of Cathepsin D in serum from donors with type 2 diabetes (T2D), compared to pooled normal human serum.

Serum of 3 individual human donors diagnosed with type 2 diabetes (T2D) was measured in duplicate. Interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2). The mean Cathepsin D concentration of T2D samples was determined to be 1,975.95 pg/mL with a range of 1,314.15 – 2,776.70 pg/mL.

sELISA

Supplier Data

Sandwich ELISA - Human Cathepsin D (mature, single chain) ELISA Kit- Extracellular (AB323516)

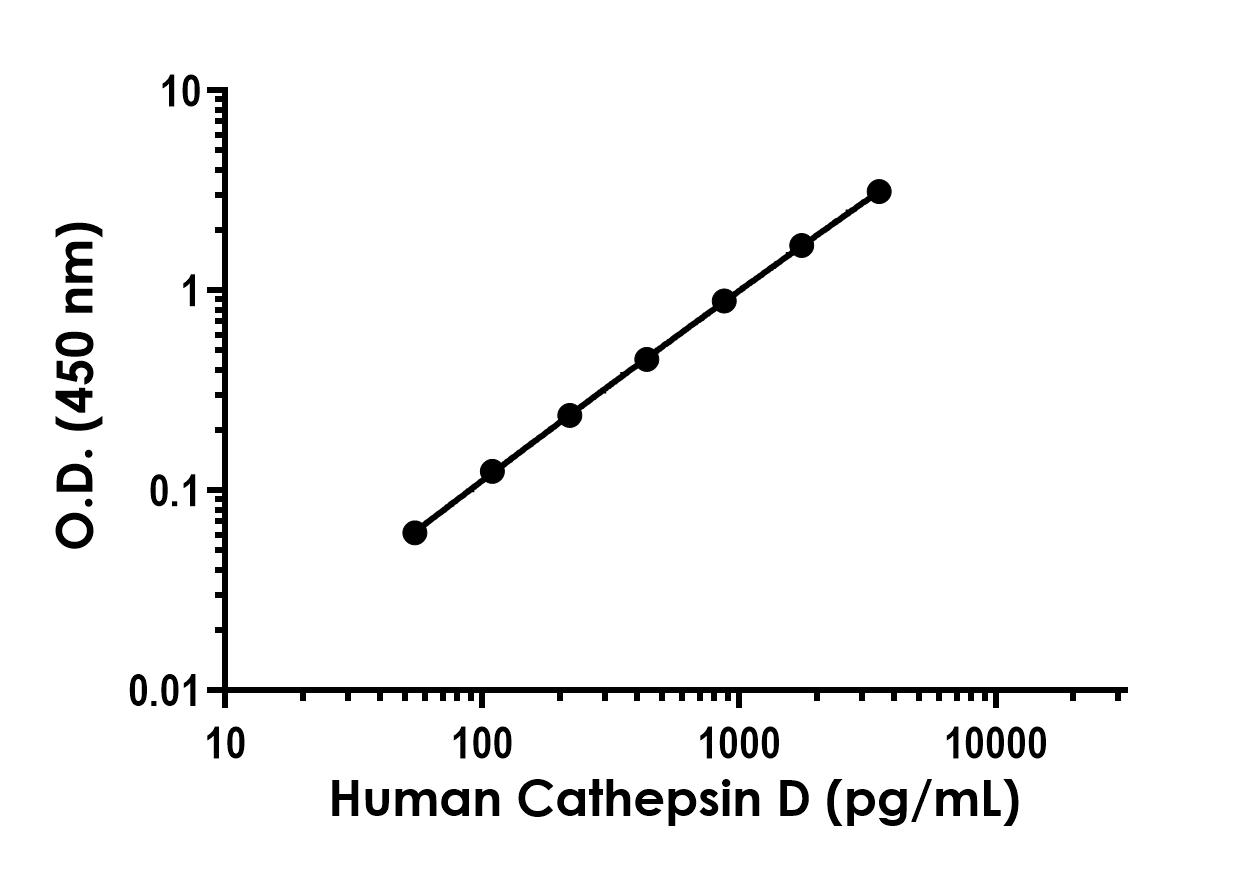

Example of human Cathepsin D standard curve in Sample Diluent SSW.

Example of human Cathepsin D standard curve. Background-subtracted data values (mean +/- SD) are graphed.

sELISA

Supplier Data

Sandwich ELISA - Human Cathepsin D (mature, single chain) ELISA Kit- Extracellular (AB323516)

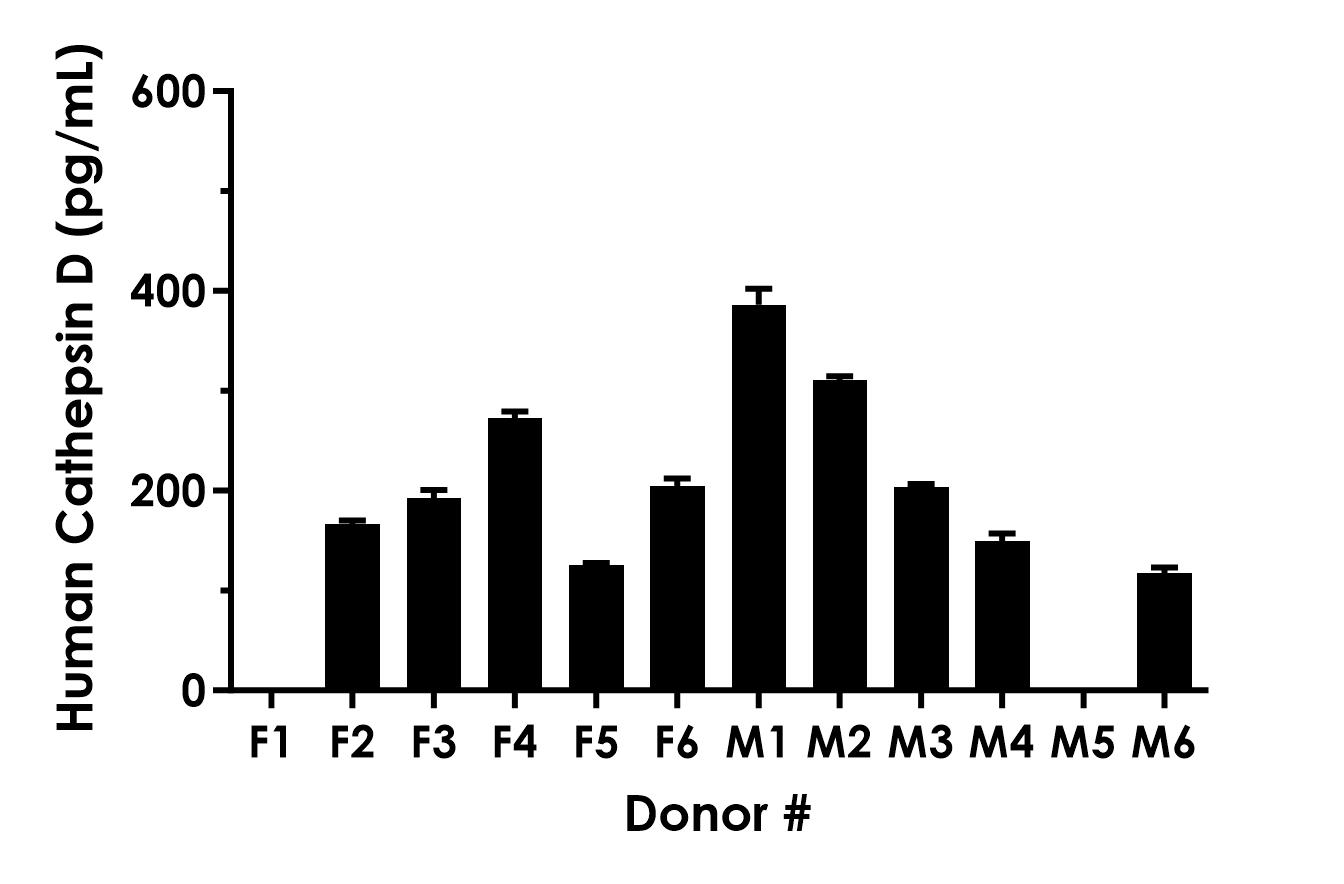

Interpolated concentrations of Cathepsin D in normal human serum donors.

Serum of 12 individual healthy human donors (6 female and 6 male) was measured in duplicate. Interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2). The mean Cathepsin D concentration of detected samples was determined to be 213.08 pg/mL with a range of undetected – 386.16 pg/mL.

sELISA

Supplier Data

Sandwich ELISA - Human Cathepsin D (mature, single chain) ELISA Kit- Extracellular (AB323516)

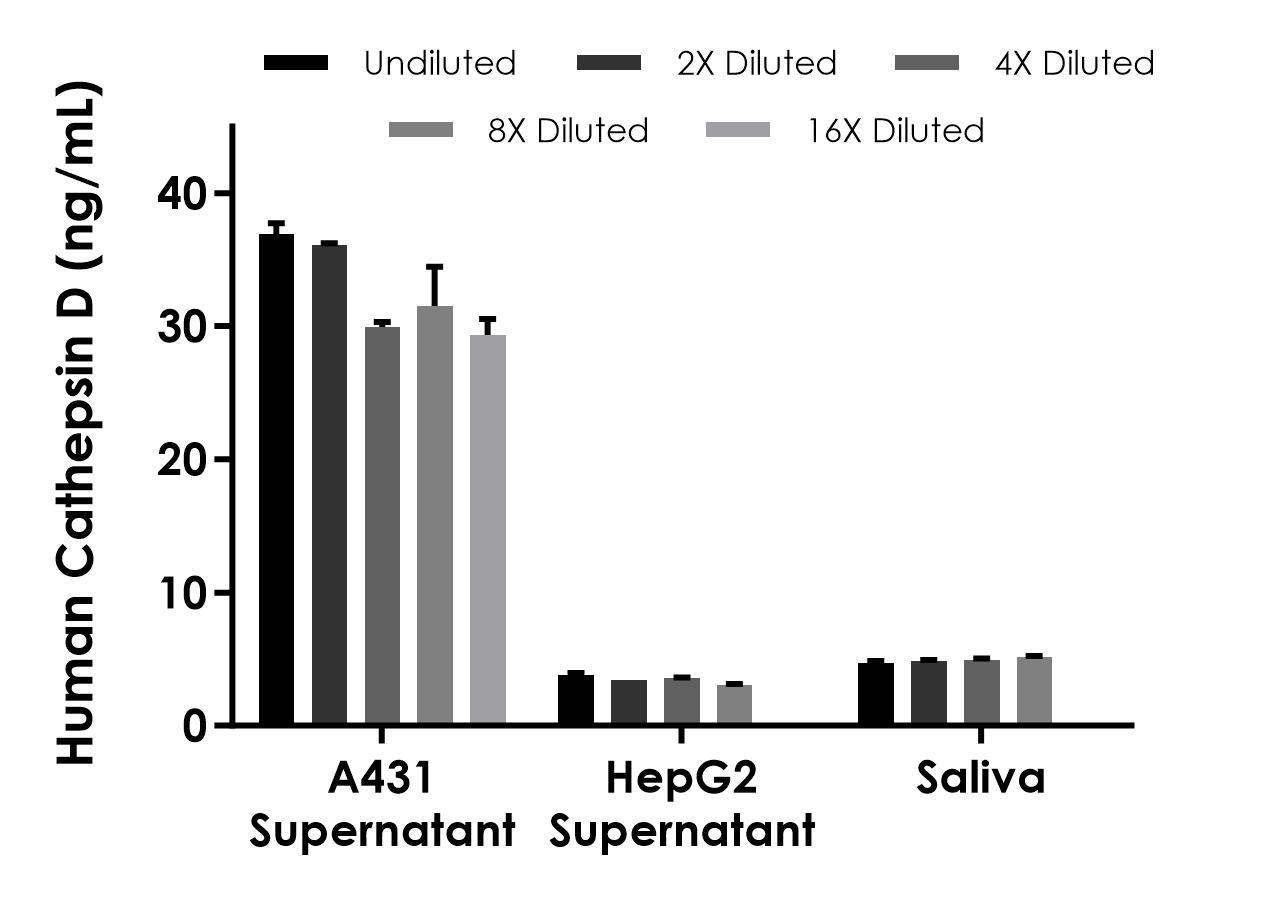

Interpolated concentrations of human Cathepsin D in cell culture supernatant and saliva.

Interpolated concentration of native Cathepsin D was measured in duplicate at different sample concentrations. Undiluted samples are as follows : A431 supernatant 6.25%, HepG2 supernatant 25%, and male saliva 25%. The interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2). Sample dilutions are made in Sample Diluent NS + 1X Enhancer.

sELISA

Supplier Data

Sandwich ELISA - Human Cathepsin D (mature, single chain) ELISA Kit- Extracellular (AB323516)

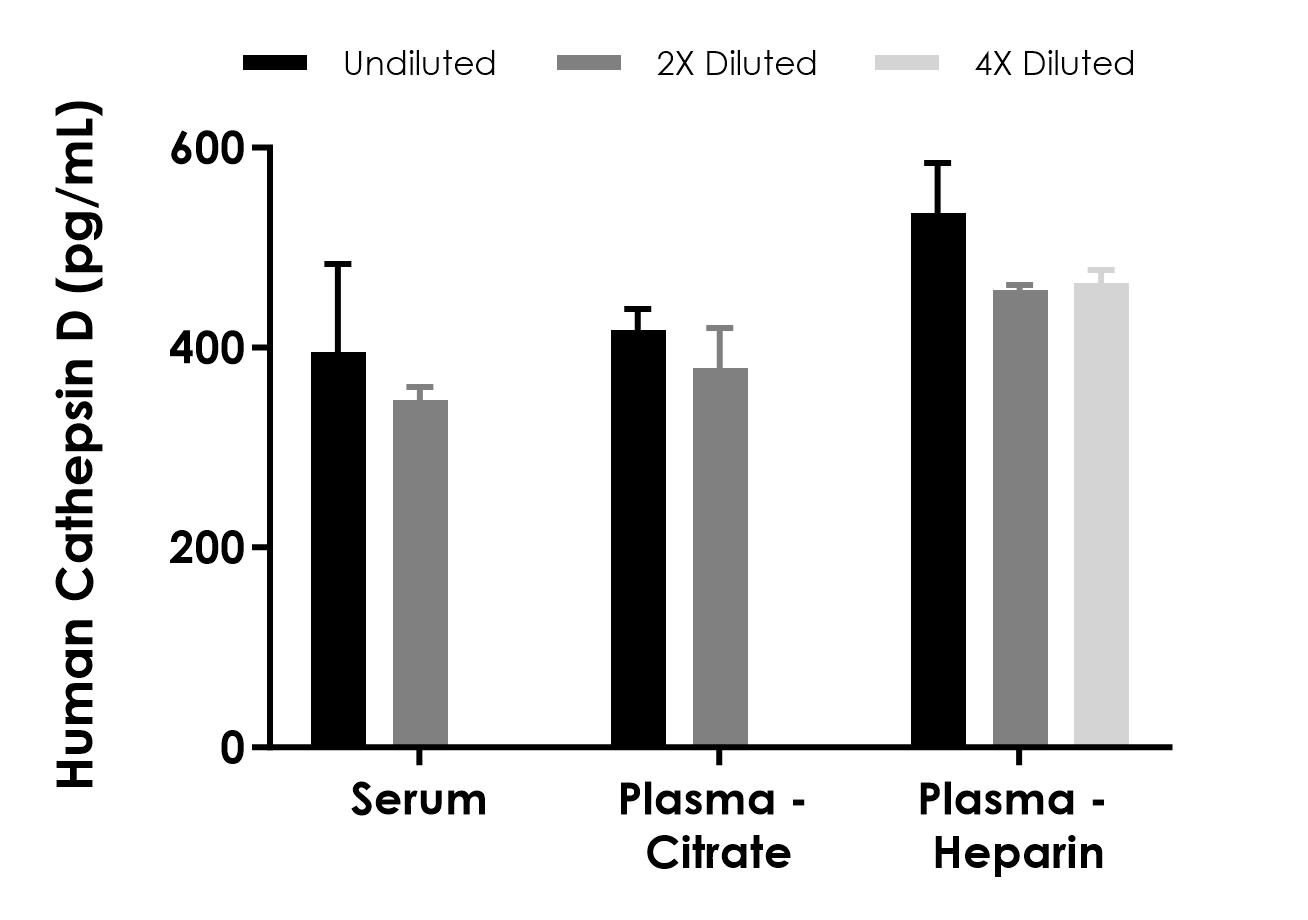

Interpolated concentrations of human Cathepsin D in serum and plasma.

Interpolated concentration of native Cathepsin D was measured in duplicate at different sample concentrations. Undiluted samples are 50% serum, plasma (citrate), and plasma (heparin). The interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2). Sample dilutions are made in Sample Diluent NS + 1X Enhancer.

sELISA

Supplier Data

Sandwich ELISA - Human Cathepsin D (mature, single chain) ELISA Kit- Extracellular (AB323516)

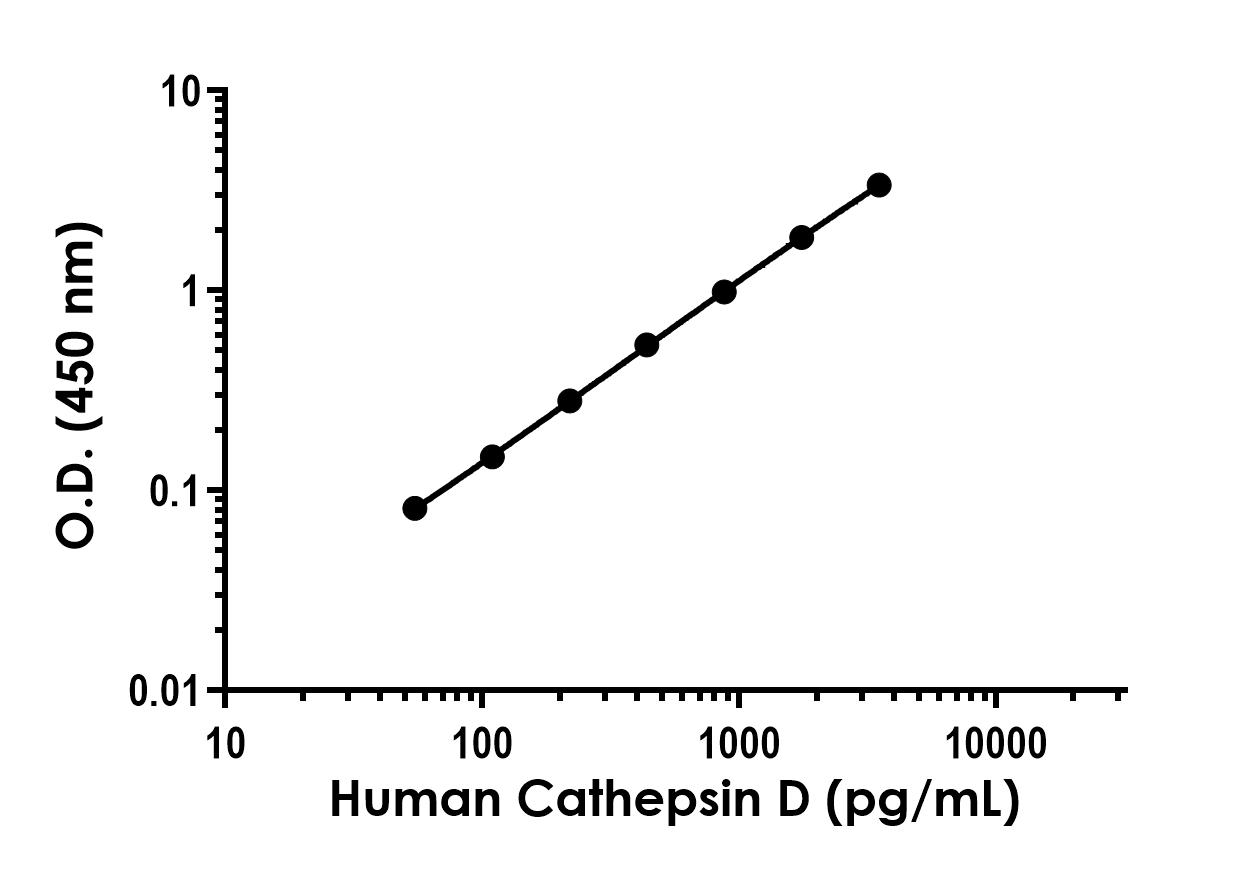

Example of human Cathepsin D standard curve in Sample Diluent NS + 1X Enhancer.

Example of human Cathepsin D standard curve. Background-subtracted data values (mean +/- SD) are graphed.

Key facts

Detection method

Colorimetric

Sample types

Serum, Citrate plasma, Heparin Plasma, Cell culture supernatant, Urine, Saliva, Milk

Reacts with

Human

Assay type

Sandwich (quantitative)

Sensitivity

= 12.58 pg/mL

Range

54.688 - 3500 pg/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

style

left-column

Product details

Human Cathepsin D (mature, single chain) SimpleStep ELISA® kit is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of Cathepsin D (mature, single chain) protein in Serum, Cit Plasma, Hep Plasma, Cell culture supernatant, Cell culture supernatant, Urine, Saliva, Milk. Quantitate Human Cathepsin D (mature, single chain) with 12.58 pg/ml sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:

Single-wash protocol reduces assay time to 90 minutes or less
High sensitivity, specificity and reproducibility from superior antibodies
Fully validated in biological samples
96-wells plate breakable into 12 x 8 wells strips, available in 10-pack (10 x 96-well plates)
Also available in a fully validated 384-well format.

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

style

left-column

Precision

[ { "reproducibilityType": "Intra", "sample": "Serum", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 8.3" }, { "reproducibilityType": "Inter", "sample": "Serum", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 6.9" } ]

style

left-column

Recovery

[ { "sample": "Serum", "range": "80 - 91 %", "average": "= 87" }, { "sample": "Citrate plasma", "range": "81 - 87 %", "average": "= 85" }, { "sample": "Heparin Plasma", "range": "83 - 88 %", "average": "= 85" }, { "sample": "Cell culture supernatant", "range": "104 - 117 %", "average": "= 113" }, { "sample": "Urine", "range": "101 - 102 %", "average": "= 102" }, { "sample": "Saliva", "range": "81 - 108 %", "average": "= 92" }, { "sample": "Milk", "range": "95 - 96 %", "average": "= 96" } ]

style

left-column

What's included?

{ "values": { "10x96Tests": { "sellingSize": "10 x 96 Tests", "publicAssetCode":"ab323516-10x96Tests", "assetComponentDetails": [ { "size":"1 x 120 mL", "name":"Stop Solution", "number":"AB323516-CMP04" }, { "size":"20 x 1 Vial", "name":"Human Cathepsin D (mature, single chain) Lyophilized Recombinant Protein", "number":"AB323516-CMP09" }, { "size":"2 x 50 mL", "name":"Cell Extraction Buffer SSW", "number":"AB323516-CMP11" }, { "size":"10 x 600 µL", "name":"10X Human Cathepsin D (mature, single chain) Detector Antibody", "number":"AB323516-CMP08" }, { "size":"10 x 600 µL", "name":"10X Human Cathepsin D (mature, single chain) Capture Antibody", "number":"AB323516-CMP01" }, { "size":"1 x 200 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB323516-CMP13" }, { "size":"10 x 1 mL", "name":"50X Cell Extraction Enhancer Solution (ab193971)", "number":"AB323516-CMP12" }, { "size":"2 x 250 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB323516-CMP02" }, { "size":"1 x 120 mL", "name":"TMB Development Solution", "number":"AB323516-CMP03" }, { "size":"10 x 1 Unit", "name":"Plate Seal", "number":"AB323516-CMP06" }, { "size":"10 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB323516-CMP05" }, { "size":"10 x 6 mL", "name":"Antibody Diluent CPI2", "number":"AB323516-CMP10" } ] }, "1x384Tests": { "sellingSize": "1 x 384 Tests", "publicAssetCode":"ab323516-1x384Tests", "assetComponentDetails": [ { "size":"1 x 50 mL", "name":"Cell Extraction Buffer SSW", "number":"AB323516-CMP11" }, { "size":"2 x 12 mL", "name":"Stop Solution", "number":"AB323516-CMP04" }, { "size":"2 x 1 Vial", "name":"Human Cathepsin D (mature, single chain) Lyophilized Recombinant Protein", "number":"AB323516-CMP09" }, { "size":"1 x 600 µL", "name":"10X Human Cathepsin D (mature, single chain) Detector Antibody", "number":"AB323516-CMP08" }, { "size":"1 x 600 µL", "name":"10X Human Cathepsin D (mature, single chain) Capture Antibody", "number":"AB323516-CMP01" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB323516-CMP13" }, { "size":"1 x 5 mL", "name":"50X Cell Extraction Enhancer Solution (ab193971)", "number":"AB323516-CMP12" }, { "size":"1 x 250 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB323516-CMP02" }, { "size":"2 x 12 mL", "name":"TMB Development Solution", "number":"AB323516-CMP03" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB323516-CMP06" }, { "size":"1 x 1 Unit", "name":"384 well CaptSure™ microplates", "number":"AB323516-CMP07" }, { "size":"1 x 6 mL", "name":"Antibody Diluent CPI2", "number":"AB323516-CMP10" } ] }, "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab323516-1x96Tests", "assetComponentDetails": [ { "size":"1 x 10 mL", "name":"Cell Extraction Buffer SSW", "number":"AB323516-CMP11", "productcode":"" }, { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB323516-CMP04", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human Cathepsin D (mature, single chain) Lyophilized Recombinant Protein", "number":"AB323516-CMP09", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human Cathepsin D (mature, single chain) Detector Antibody", "number":"AB323516-CMP08", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human Cathepsin D (mature, single chain) Capture Antibody", "number":"AB323516-CMP01", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB323516-CMP13", "productcode":"" }, { "size":"1 x 1 mL", "name":"50X Cell Extraction Enhancer Solution (ab193971)", "number":"AB323516-CMP12", "productcode":"" }, { "size":"1 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB323516-CMP02", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB323516-CMP03", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB323516-CMP05", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB323516-CMP06", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent CPI2", "number":"AB323516-CMP10", "productcode":"" } ] } } }

style

left-column

Properties and storage information

Shipped at conditions

Blue Ice

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

+4°C

Storage information

+4°C

style

left-column

style

left-column

Product protocols

style

left-column

Target data

Acid protease active in intracellular protein breakdown. Plays a role in APP processing following cleavage and activation by ADAM30 which leads to APP degradation (PubMed : 27333034). Involved in the pathogenesis of several diseases such as breast cancer and possibly Alzheimer disease.

See full target information CTSD

style

left-column

style

left-column

websiteProtocolBooklet

style

right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.

For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.

For licensing inquiries, please contact partnerships@abcam.com
