AB318937

Human Caveolin-1 ELISA Kit

Recombinant
SimpleStep
What is this?

Be the first to review this product! Submit a review

(1 Publication)

Human Caveolin-1 ELISA Kit is a single-wash 90-min Simplestep used to quantify Human Caveolin-1 with a sensitivity of 0.15 ng/mL. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Different formats for different needs: 10x96 plates for bulk orders and 384-well plate for higher throughput
- Design your own immunoassay: we also offer the conjugation-ready antibody pair

View Alternative Names

CAV, CAV1, Caveolin-1

4 Images

Sandwich ELISA - Human Caveolin-1 ELISA Kit (AB318937)

sELISA

Supplier Data

Sandwich ELISA - Human Caveolin-1 ELISA Kit (AB318937)

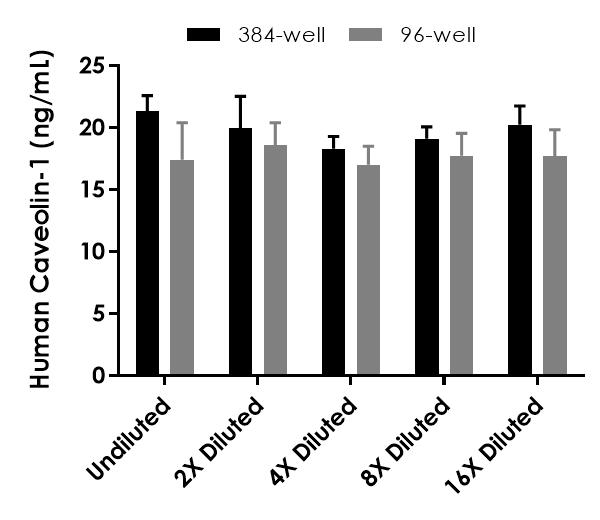

Interpolated concentrations of human Caveolin-1 in A549 extract in 96-well vs. 384-well plates. Interpolated concentration of native Caveolin-1 was measured in duplicate at different sample concentrations in 96-well vs. 384-well plates. Undiluted samples are 25 µg/mL A549 extract. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in 1X Cell Extraction Buffer PTR.

sELISA

Supplier Data

Sandwich ELISA - Human Caveolin-1 ELISA Kit (AB318937)

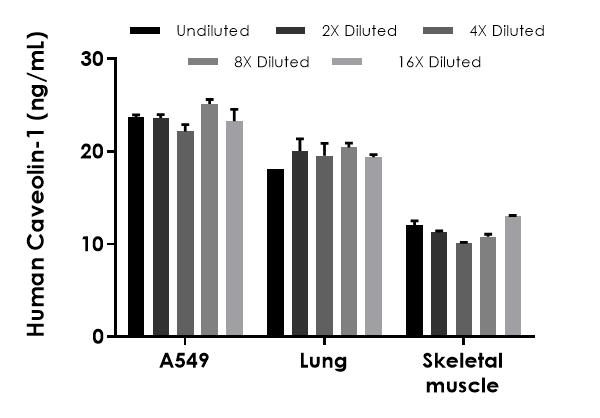

Interpolated concentrations of human Caveolin-1 in A549 cell extract, lung tissue extract, and skeletal muscle tissue extract. Interpolated concentration of native Caveolin-1 was measured in duplicate at different sample concentrations. Undiluted samples are 25 µg/mL A549 cell extract, lung tissue extract, and skeletal muscle tissue extract. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in 1X Cell Extraction Buffer PTR.

sELISA

Supplier Data

Sandwich ELISA - Human Caveolin-1 ELISA Kit (AB318937)

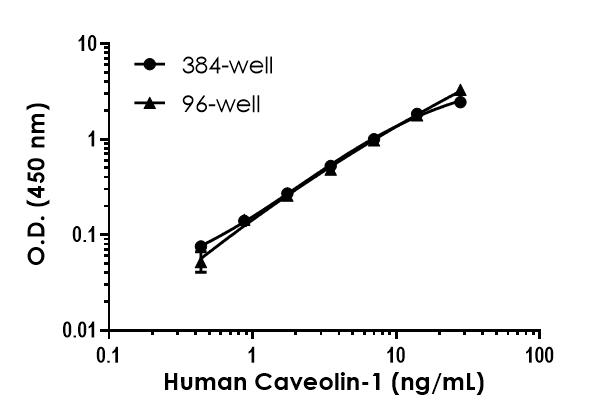

Example of human Caveolin-1 standard curve in 1X Cell Extraction Buffer PTR in 96-well vs. 384-well plate. Example of human Caveolin-1 standard curve in 96-well vs. 384-well plate. Background-subtracted data values (mean +/- SD) are graphed.

sELISA

Supplier Data

Sandwich ELISA - Human Caveolin-1 ELISA Kit (AB318937)

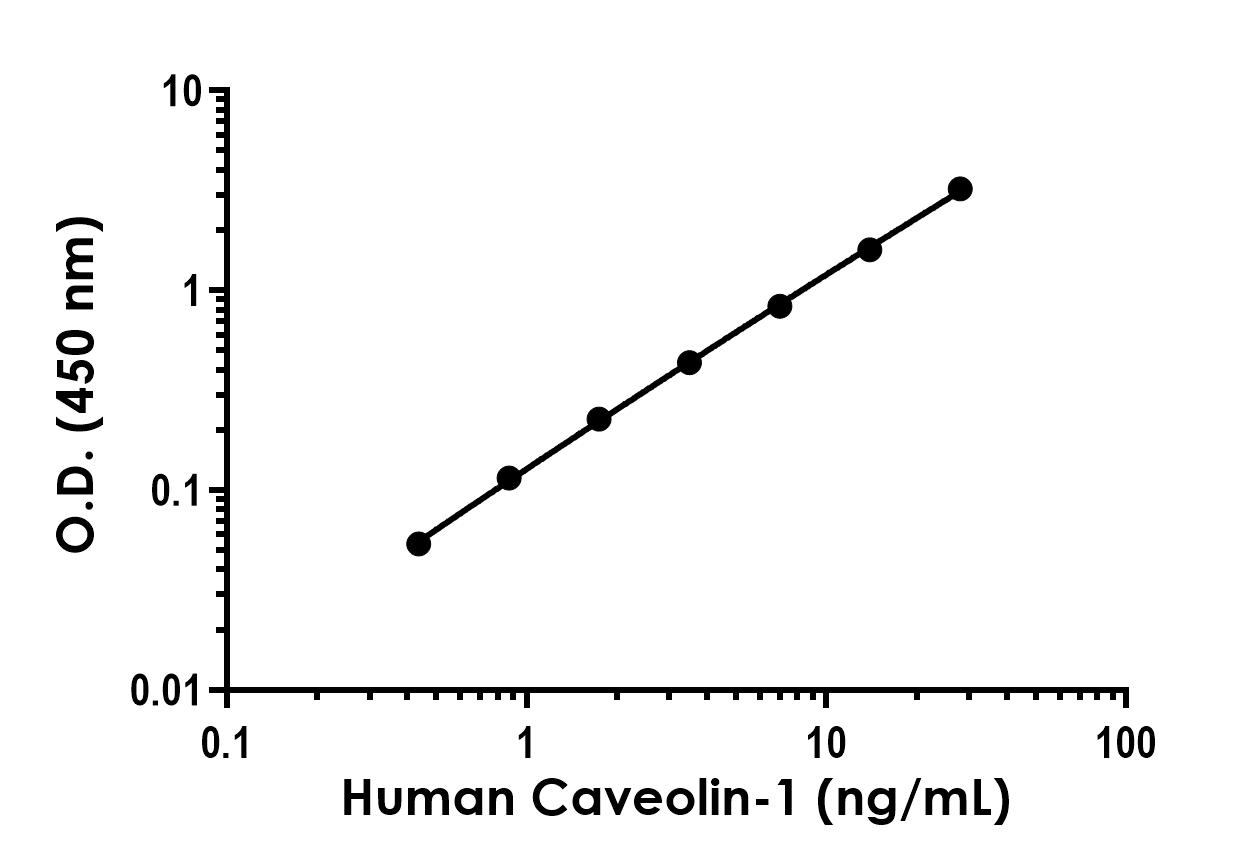

Example of human Caveolin-1 standard curve in 1X Cell Extraction Buffer PTR. Example of human Caveolin-1 standard curve. Background-subtracted data values (mean +/- SD) are graphed.

Key facts

Detection method

Colorimetric

Sample types

Cell Lysate, Tissue Extracts

Reacts with

Human

Assay type

Sandwich

Results type

Quantitative

Sensitivity

= 0.15 ng/mL

Range

0.438 - 28 ng/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style

left-column

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

style

left-column

Product details

Human Caveolin-1 SimpleStep ELISA® kit is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of Caveolin-1 protein in Cell Lysate, Tissue extracts. Quantitate Human Caveolin-1 with 0.15 ng/ml sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:

-Single-wash protocol reduces assay time to 90 minutes or less
-High sensitivity, specificity and reproducibility from superior antibodies
-Fully validated in biological samples
-96-wells plate breakable into 12 x 8 wells strips, available in 10-pack (10 x 96-well plates)
-Also available in a fully validated 384-well format.

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

style

left-column

Precision

[ { "reproducibilityType": "Intra", "sample": "Extract", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "2.8" }, { "reproducibilityType": "Inter", "sample": "Extract", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "3" } ]

style

left-column

Recovery

[ { "sample": "Tissue Extracts", "range": "91 - 98 %", "average": "= 95" }, { "sample": "Cell culture extracts", "range": "90 - 105 %", "average": "= 96" } ]

style

left-column

What's included?

{ "values": { "10x96Tests": { "sellingSize": "10 x 96 Tests", "publicAssetCode":"ab318937-10x96Tests", "assetComponentDetails": [ { "size":"1 x 120 mL", "name":"Stop Solution", "number":"AB318937-CMP10" }, { "size":"10 x 1 mL", "name":"50X Cell Extraction Enhancer Solution (ab193971)", "number":"AB318937-CMP06" }, { "size":"1 x 120 mL", "name":"TMB Development Solution", "number":"AB318937-CMP09" }, { "size":"10 x 6 mL", "name":"Antibody Diluent CPI2", "number":"AB318937-CMP04" }, { "size":"1 x 200 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB318937-CMP07" }, { "size":"10 x 2 Vial", "name":"Human Caveolin-1 Lyophilized Recombinant Protein", "number":"AB318937-CMP03" }, { "size":"10 x 600 µL", "name":"10X Human Caveolin-1 Capture Antibody", "number":"AB318937-CMP01" }, { "size":"10 x 600 µL", "name":"10X Human Caveolin-1 Detector Antibody", "number":"AB318937-CMP02" }, { "size":"10 x 96 Wells", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB318937-CMP11" }, { "size":"2 x 50 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB318937-CMP05" }, { "size":"10 x 1 Unit", "name":"Plate Seal", "number":"AB318937-CMP12" } ] }, "1x384Tests": { "sellingSize": "1 x 384 Tests", "publicAssetCode":"ab318937-1x384Tests", "assetComponentDetails": [ { "size":"2 x 12 mL", "name":"Stop Solution", "number":"AB318937-CMP10" }, { "size":"1 x 5 mL", "name":"50X Cell Extraction Enhancer Solution (ab193971)", "number":"AB318937-CMP06" }, { "size":"2 x 12 mL", "name":"TMB Development Solution", "number":"AB318937-CMP09" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB318937-CMP07" }, { "size":"2 x 1 Vial", "name":"Human Caveolin-1 Lyophilized Recombinant Protein", "number":"AB318937-CMP03" }, { "size":"1 x 6 mL", "name":"Antibody Diluent CPI2", "number":"AB318937-CMP04" }, { "size":"1 x 600 µL", "name":"10X Human Caveolin-1 Capture Antibody", "number":"AB318937-CMP01" }, { "size":"1 x 600 µL", "name":"10X Human Caveolin-1 Detector Antibody", "number":"AB318937-CMP02" }, { "size":"1 x 50 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB318937-CMP05" }, { "size":"1 x 384 Wells", "name":"384 well CaptSure™ microplates", "number":"AB318937-CMP13" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB318937-CMP12" } ] }, "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab318937-1x96Tests", "assetComponentDetails": [ { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB318937-CMP10", "productcode":"" }, { "size":"1 x 1 mL", "name":"50X Cell Extraction Enhancer Solution (ab193971)", "number":"AB318937-CMP06", "productcode":"" }, { "size":"1 x 12 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB318937-CMP08", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB318937-CMP09", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB318937-CMP07", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human Caveolin-1 Capture Antibody", "number":"AB318937-CMP01", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent CPI2", "number":"AB318937-CMP04", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human Caveolin-1 Lyophilized Recombinant Protein", "number":"AB318937-CMP03", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human Caveolin-1 Detector Antibody", "number":"AB318937-CMP02", "productcode":"" }, { "size":"1 x 96 Wells", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB318937-CMP11", "productcode":"" }, { "size":"1 x 10 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB318937-CMP05", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB318937-CMP12", "productcode":"" } ] } } }

style

left-column

Properties and storage information

Shipped at conditions

Blue Ice

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

+4°C

Storage information

+4°C

style

left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

Caveolin-1 also known as Cav-1 is an integral membrane protein with a molecular weight of approximately 22 kDa. It functions mechanically as a scaffolding protein in caveolae which are tiny invaginations in the plasma membrane of many cell types. These structures are particularly abundant in adipocytes endothelial cells and muscle cells. Caveolin-1 anchors itself to the cell membrane and plays a role in organizing and concentrating certain signaling molecules.

Biological function summary

Caveolae provide a platform for various signaling pathways and involve caveolin-1 as a major component. Caveolin-1 interacts with multiple signaling molecules such as G-protein coupled receptors and Src family kinases to modulate signal transduction. This protein forms part of a larger caveolar complex contributing to cellular processes including endocytosis and lipid regulation. Its presence as a marker in caveolae highlights its significance in cellular functions.

Pathways

Caveolin-1 influences the insulin signaling and nitric oxide (NO) signaling pathways. In the insulin signaling pathway caveolin-1 interacts with insulin receptors to modulate glucose uptake. It also associates with eNOS (endothelial nitric oxide synthase) in the NO signaling pathway impacting vascular function. These relationships highlight its role in cellular communication and regulatory mechanisms within the human body.

Caveolin-1 is involved in cancer and cardiovascular diseases. In cancer altered expression of caveolin-1 contributes to tumor progression while in cardiovascular diseases it affects endothelial function through its interaction with eNOS. The connection of caveolin-1 to proteins like insulin receptors and eNOS reveals its critical influence in these conditions providing potential targets for therapeutic intervention.

style

left-column

Product protocols

style

left-column

Target data

May act as a scaffolding protein within caveolar membranes (PubMed : 11751885). Forms a stable heterooligomeric complex with CAV2 that targets to lipid rafts and drives caveolae formation. Mediates the recruitment of CAVIN proteins (CAVIN1/2/3/4) to the caveolae (PubMed : 19262564). Interacts directly with G-protein alpha subunits and can functionally regulate their activity (By similarity). Involved in the costimulatory signal essential for T-cell receptor (TCR)-mediated T-cell activation. Its binding to DPP4 induces T-cell proliferation and NF-kappa-B activation in a T-cell receptor/CD3-dependent manner (PubMed : 17287217). Recruits CTNNB1 to caveolar membranes and may regulate CTNNB1-mediated signaling through the Wnt pathway (By similarity). Negatively regulates TGFB1-mediated activation of SMAD2/3 by mediating the internalization of TGFBR1 from membrane rafts leading to its subsequent degradation (PubMed : 25893292). Binds 20(S)-hydroxycholesterol (20(S)-OHC) (By similarity).

See full target information CAV1

style

left-column

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

Fluids and barriers of the CNS 22:4 PubMed39789614

2025

Plasma S100β is a predictor for pathology and cognitive decline in Alzheimer's disease.

Applications

Unspecified application

Species

Unspecified reactive species

Geetika Nehra,Bryan J Maloney,Rebecca R Smith,Wijitra Chumboatong,Erin L Abner,Peter T Nelson,Björn Bauer,Anika M S Hartz

View all publications

style

left-column

style

left-column

websiteProtocolBooklet

style

right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.

For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.

For licensing inquiries, please contact partnerships@abcam.com
