AB216169

Human CCL23 ELISA Kit

Be the first to review this product! Submit a review

|

(0 Publication)

Human CCL23 ELISA Kit is a single-wash 90-min Simplestep used to quantify Human CCL23 with a sensitivity of 1.54 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Design your own immunoassay: we also offer the conjugation-ready antibody pair

View Alternative Names

MIP3, MPIF1, SCYA23, CCL23, C-C motif chemokine 23, CK-beta-8, Macrophage inflammatory protein 3, Myeloid progenitor inhibitory factor 1, Small-inducible cytokine A23, CKB-8, MIP-3, MPIF-1

5 Images
Sandwich ELISA - Human CCL23 ELISA Kit (AB216169)
  • sELISA

Supplier Data

Sandwich ELISA - Human CCL23 ELISA Kit (AB216169)

Serum from ten individual healthy human male donors was measured in duplicate.

Interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean MIP3 concentration was determined to be 797 pg/mL with a range of 229 – 1,754 pg/mL.

Sandwich ELISA - Human CCL23 ELISA Kit (AB216169)
  • sELISA

Supplier Data

Sandwich ELISA - Human CCL23 ELISA Kit (AB216169)

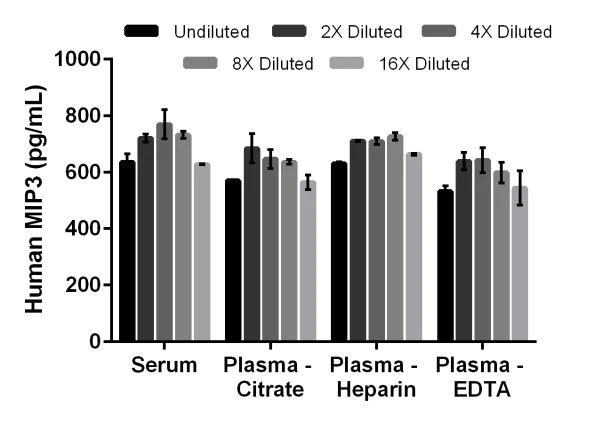

Interpolated concentrations of native MIP3 in human serum and plasma samples.

The concentrations of MIP3 were measured in duplicates, interpolated from the MIP3 standard curves and corrected for sample dilution. Undiluted samples are as follows : serum 50%, plasma (citrate) 50%, plasma (heparin) 50% and plasma (EDTA) 50%. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean MIP3 concentration was determined to be 698 pg/mL in serum, 621 pg/mL in plasma (citrate), 689 pg/mL in plasma (heparin) and 592 pg/mL in plasma (EDTA).

Sandwich ELISA - Human CCL23 ELISA Kit (AB216169)
  • sELISA

Supplier Data

Sandwich ELISA - Human CCL23 ELISA Kit (AB216169)

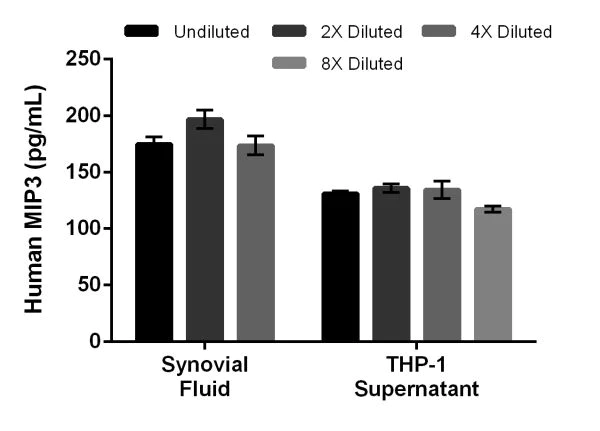

Interpolated concentrations of native MIP3 in human synovial fluid and THP-1 cell culture supernatant samples.

The concentrations of MIP3 were measured in duplicates, interpolated from the MIP3 standard curves and corrected for sample dilution. Undiluted samples are as follows : synovial fluid 25% and THP-1 supernatant 50%. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean MIP3 concentration was determined to be 182 pg/mL in synovial fluid and 130 pg/mL in THP-1 supernatant.

Sandwich ELISA - Human CCL23 ELISA Kit (AB216169)
  • sELISA

Supplier Data

Sandwich ELISA - Human CCL23 ELISA Kit (AB216169)

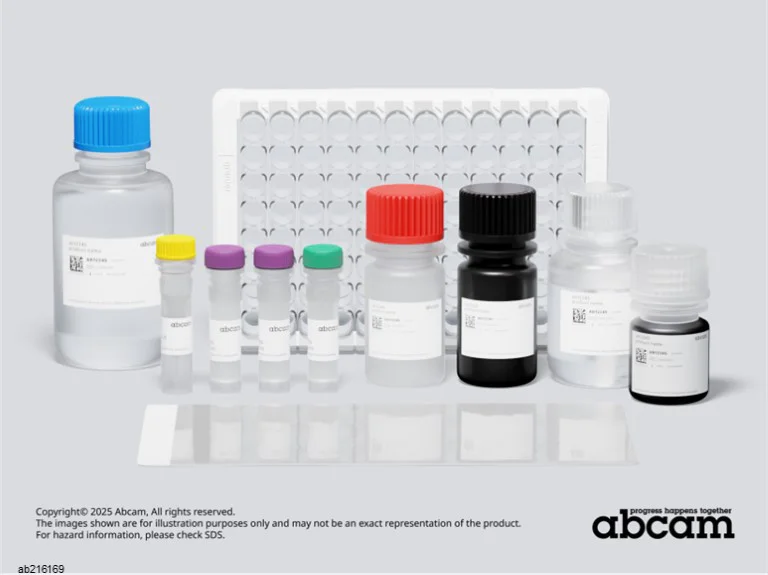

Representative image of Human CCL23 ELISA Kit (ab216169)

Components shown from left to right :

- Sample diluent NS

- 10X Human CCL23 Detector Antibody

- Human CCL23 Lyophilised Purified Protein (2 vials)

- Human CCL23 Capture Antibody (Lyophilised)

- Stop Solution

- TMB solution

- 10X Wash Buffer PT (ab206977)

- Antibody Diluent 5BI

SimpleStep Pre-Coated 96-Well Microplate (ab206978) - shown behind bottles / vials.

Plate Seals - shown underneath bottles / vials.

Note : The vial labels shown in this image use generic names for illustrative purposes only and may not exactly match the specific component names included in the ELISA kit.

Note : Colors of solutions in image may not precisely match the shade of colors in the actual kit

Sandwich ELISA - Human CCL23 ELISA Kit (AB216169)
  • sELISA

Supplier Data

Sandwich ELISA - Human CCL23 ELISA Kit (AB216169)

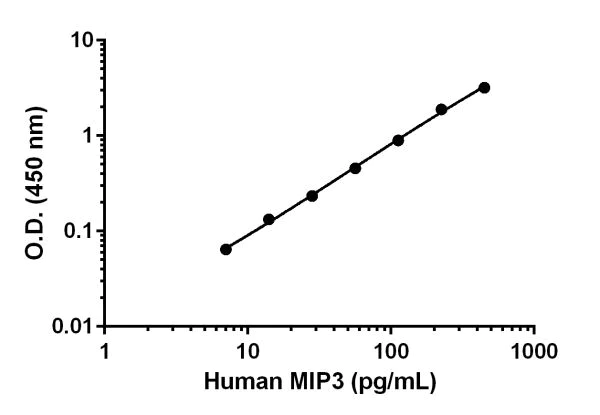

Example of human MIP3 standard curve in Sample Diluent NS.

Background-subtracted data values (mean +/- SD) are graphed.

Key facts

Detection method

Colorimetric

Sample types

Heparin Plasma, Citrate plasma, Cell culture supernatant, Serum, EDTA Plasma

Reacts with

Human

Assay type

Sandwich

Results type

Quantitative

Sensitivity

= 1.54 pg/mL

Range

7.03 - 450 pg/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style
left-column

Complementary Products

Assay Kits

AB314373

Human CD62L ELISA Kit

SimpleStep

Sandwich ELISA - Human CD62L ELISA Kit (AB314373)

  • 0
  • 0
Secondary Antibodies

AB150077

Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488)

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (AB150077)

  • 5
  • 20
Assay Kits

AB189569

Human IL-11 ELISA Kit

SimpleStep

ELISA - Human IL-11 ELISA Kit (AB189569)

  • 0
  • 0
Assay Kits

AB314600

Human CCL1 ELISA Kit

SimpleStep

Sandwich ELISA - Human CCL1 ELISA Kit (AB314600)

  • 0
  • 0
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column

Product details

Human CCL23 ELISA Kit (ab216169) is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of CCL23 protein in cell culture supernatant, cit plasma, edta plasma, hep plasma, and serum. It uses our proprietary SimpleStep ELISA® technology. Quantitate Human CCL23 with 1.54 pg/ml sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:

- Single-wash protocol reduces assay time to 90 minutes or less
- High sensitivity, specificity and reproducibility from superior antibodies
- Fully validated in biological samples
- 96-wells plate breakable into 12 x 8 wells strips

A 384-well SimpleStep ELISA® microplate (ab203359) is available to use as an alternative to the 96-well microplate provided with SimpleStep ELISA® kits.

CCL23 (Macrophage inflammatory protein 3) is a chemokine involved in the recruitment of monocytes, neutrophils and resting T cells. CCL23 functions by inhibition myeloid progenitor cell proliferation. CCL23 is found at high levels in the synovial fluid of patients with rheumatoid arthritis.

style
left-column

Precision

[ { "reproducibilityType": "Inter", "sample": "Serum", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "5.5" }, { "reproducibilityType": "Intra", "sample": "Serum", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "8.4" } ]
style
left-column

Recovery

[ { "sample": "Cell culture supernatant", "range": "89 - 92 %", "average": "= 91" }, { "sample": "Serum", "range": "98 - 117 %", "average": "= 106" }, { "sample": "EDTA Plasma", "range": "98 - 106 %", "average": "= 101" }, { "sample": "Heparin Plasma", "range": "88 - 106 %", "average": "= 98" }, { "sample": "Citrate plasma", "range": "93 - 111 %", "average": "= 105" }, { "sample": "Other biological fluids", "range": "88 - 96 %", "average": "= 93" } ]
style
left-column

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab216169-1x96Tests", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB216169-CMP05", "productcode":"" }, { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB216169-CMP06", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB216169-CMP10", "productcode":"" }, { "size":"1 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB216169-CMP04", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB216169-CMP07", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB216169-CMP09", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human CCL23 Lyophilized Recombinant Protein", "number":"AB216169-CMP03", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 5BI", "number":"AB216169-CMP01", "productcode":"" }, { "size":"1 x 1 Vial", "name":"Human CCL23 Capture Antibody (Lyophilized)", "number":"AB216169-CMP02", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human CCL23 Detector Antibody", "number":"AB216169-CMP08", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

CCL23 also known as macrophage inflammatory protein 3 is a chemokine involved in immune response regulation. It has a molecular weight of approximately 15-16 kDa and is secreted by various cells such as macrophages dendritic cells and endothelial cells. CCL23 is expressed mostly in the bone marrow and lymph nodes but it also localizes in tissues like the liver and lungs under certain conditions. It plays an important role in mediating chemotaxis directing the migration of cells toward infection sites.
Biological function summary

CCL23 functions in the recruitment of immune cells especially eosinophils and monocytes to areas where immune responses are necessary. This chemokine is not known to be part of a larger protein complex but its ability to interact with specific receptors on cell surfaces makes it integral to immune signaling. During immune activation CCL23 contributes to the inflammatory cascade influencing both acute and chronic inflammatory responses.

Pathways

The signaling functions of CCL23 integrate within the chemokine signaling pathway and the broader immune response pathway. CCL23 interacts closely with proteins such as CCR1 which acts as its receptor and influences cellular responses via this receptor-mediated signaling. Additionally CCL23 shares mechanistic parallels with other chemokines like CCL22 though they may attract different subsets of cells they participate in coordinated immune activities.

CCL23 has relevance to conditions such as rheumatoid arthritis and allergic reactions. In these diseases elevated levels of CCL23 and its interaction with other proteins such as CCR1 contribute to the recruitment and activation of inflammatory cells. This chemokine's role in immune cell trafficking and inflammation makes it a target for therapeutic interventions aimed at modulating immune responses in such disorders.
style
left-column

Product protocols

style
left-column

Target data

Shows chemotactic activity for monocytes, resting T-lymphocytes, and neutrophils, but not for activated lymphocytes. Inhibits proliferation of myeloid progenitor cells in colony formation assays. This protein can bind heparin. Binds CCR1. CCL23(19-99), CCL23(22-99), CCL23(27-99), CCL23(30-99) are more potent chemoattractants than CCL23.
See full target information CCL23
style
left-column
style
left-column
websiteProtocolBooklet
en
style
right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
