AB324410

Human CD47 ELISA Kit - Intracellular

SimpleStep
What is this?

Be the first to review this product! Submit a review

(0 Publication)

Human CD47 ELISA Kit - Intracellular is a Sandwich (quantitative) ELISA for the measurement of Human CD47 - Intracellular in Human in Cell/Tissue Extracts samples.

View Alternative Names

CD47, MER6, Leukocyte surface antigen CD47, Antigenic surface determinant protein OA3, Integrin-associated protein, Protein MER6, IAP

4 Images

Sandwich ELISA - Human CD47 ELISA Kit - Intracellular (AB324410)

sELISA

Lab

Sandwich ELISA - Human CD47 ELISA Kit - Intracellular (AB324410)

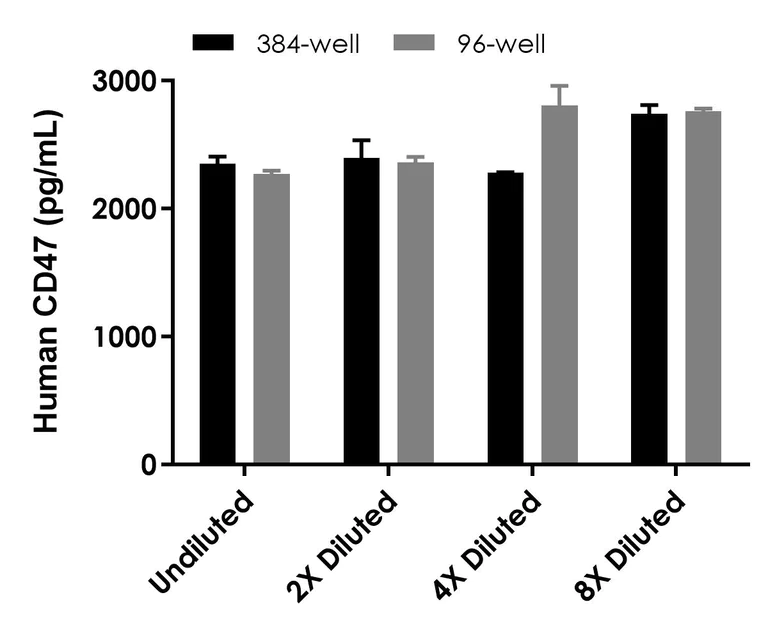

Interpolated concentration of native CD47 was measured in duplicate at different sample concentrations in 96-well vs. 384-well plates. Undiluted samples are 20 µg/mL Jurkat cell extract. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in 1X Cell Extraction Buffer SSW.

sELISA

Lab

Sandwich ELISA - Human CD47 ELISA Kit - Intracellular (AB324410)

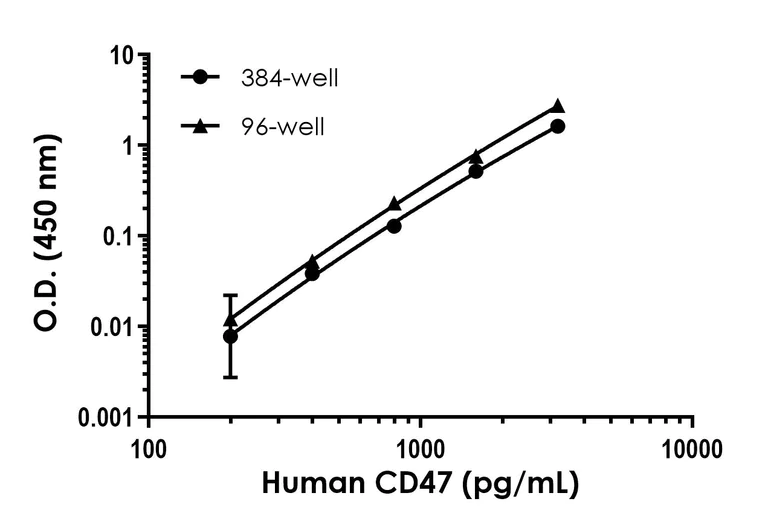

Example of human CD47 standard curve in 1X Cell Extraction Buffer SSW in 96-well vs. 384-well plate. Background-subtracted data values (mean +/- SD) are graphed.

sELISA

Lab

Sandwich ELISA - Human CD47 ELISA Kit - Intracellular (AB324410)

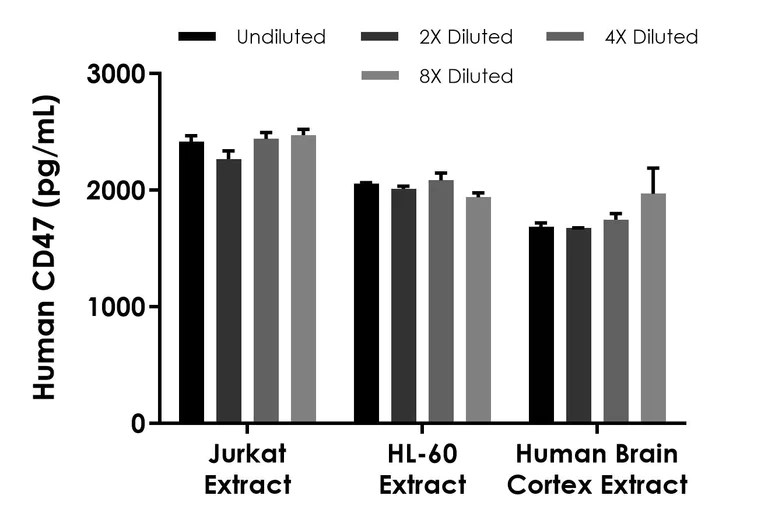

Interpolated concentration of native CD47 was measured in duplicate at different sample concentrations. Undiluted samples are as follows : 20 µg/mL Jurkat cell extract, 40 µg/mL HL-60 cell extract, and 5 µg/mL human brain cortex tissue extract. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in 1X Cell Extraction Buffer SSW.

sELISA

Lab

Sandwich ELISA - Human CD47 ELISA Kit - Intracellular (AB324410)

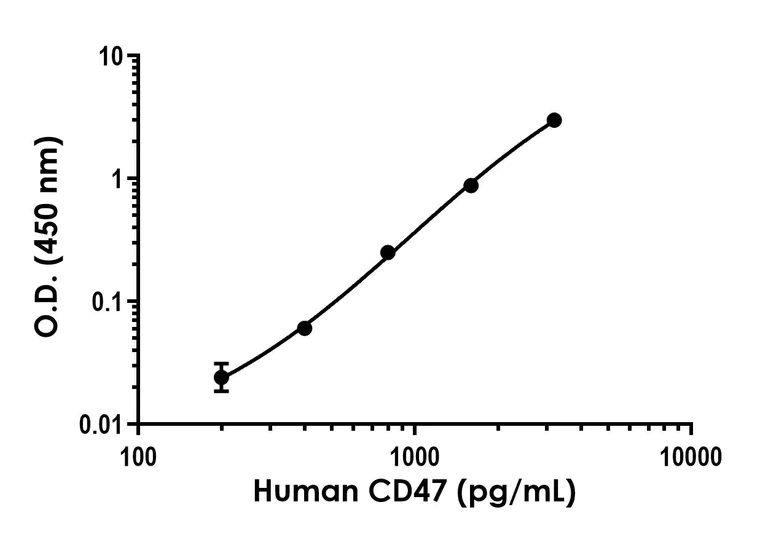

Example of human CD47 standard curve in 1X Cell Extraction Buffer SSW. Background-subtracted data values (mean +/- SD) are graphed.

Key facts

Detection method

Colorimetric

Sample types

Cell Lysate, Tissue Extracts

Reacts with

Human

Assay type

Sandwich (quantitative)

Sensitivity

= 103.8 pg/mL

Range

200 - 3200 pg/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

style

left-column

Product details

Human CD47 ELISA Kit- Intracellular is a single-wash 90-min Simplestep used to quantify Human CD47 with a sensitivity of 103.8pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colormetric sandwich ELISA - 450 nm readout- works on any standard plate reader.

- Different format for different needs: 10 x 96 plates for bulk orders and 384-well for higher throughput.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:
- Single-wash protocol reduces assay time to 90 minutes or less
- High sensitivity, specificity and reproducibility from superior antibodies
- Fully validated in biological samples
- 96-wells plate breakable into 12 x 8 wells strips, available in 10-pack (10 x 96-well plates)
- Also available in a fully validated 384-well format.

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

style

left-column

Precision

[ { "reproducibilityType": "Intra", "sample": "Extract", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 1.7" }, { "reproducibilityType": "Inter", "sample": "Extract", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 1.6" } ]

style

left-column

Recovery

[ { "sample": "Cell Lysate", "range": "88 - 97 %", "average": "= 91" }, { "sample": "Tissue Extracts", "range": "87 - 99 %", "average": "= 93" } ]

style

left-column

What's included?

{ "values": { "10x96Tests": { "sellingSize": "10 x 96 Tests", "publicAssetCode":"ab324410-10x96Tests", "assetComponentDetails": [ { "size":"10 x 600 µL", "name":"10X Human CD47 Detector Antibody", "number":"AB324410-CMP02" }, { "size":"2 x 50 mL", "name":"Cell Extraction Buffer SSW", "number":"AB324410-CMP05" }, { "size":"1 x 120 mL", "name":"TMB Development Solution", "number":"AB324410-CMP08" }, { "size":"10 x 600 µL", "name":"10X Human CD47 Capture Antibody", "number":"AB324410-CMP01" }, { "size":"10 x 6 mL", "name":"Antibody Diluent CPR2", "number":"AB324410-CMP04" }, { "size":"20 x 1 Vial", "name":"Human CD47 Lyophilized Recombinant Protein", "number":"AB324410-CMP03" }, { "size":"10 x 1 Unit", "name":"Plate Seal", "number":"AB324410-CMP11" }, { "size":"1 x 120 mL", "name":"Stop Solution", "number":"AB324410-CMP09" }, { "size":"1 x 200 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB324410-CMP06" }, { "size":"10 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB324410-CMP10" } ] }, "1x384Tests": { "sellingSize": "1 x 384 Tests", "publicAssetCode":"ab324410-1x384Tests", "assetComponentDetails": [ { "size":"1 x 6 mL", "name":"Antibody Diluent CPR2", "number":"AB324410-CMP04" }, { "size":"1 x 600 µL", "name":"10X Human CD47 Capture Antibody", "number":"AB324410-CMP01" }, { "size":"2 x 12 mL", "name":"TMB Development Solution", "number":"AB324410-CMP08" }, { "size":"1 x 50 mL", "name":"Cell Extraction Buffer SSW", "number":"AB324410-CMP05" }, { "size":"2 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB324410-CMP06" }, { "size":"1 x 600 µL", "name":"10X Human CD47 Detector Antibody", "number":"AB324410-CMP02" }, { "size":"2 x 12 mL", "name":"Stop Solution", "number":"AB324410-CMP09" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB324410-CMP11" }, { "size":"1 x 1 Unit", "name":"384 well CaptSure™ microplates", "number":"AB324410-CMP12" }, { "size":"2 x 1 Vial", "name":"Human CD47 Lyophilized Recombinant Protein", "number":"AB324410-CMP03" } ] }, "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab324410-1x96Tests", "assetComponentDetails": [ { "size":"1 x 12 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB324410-CMP07", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human CD47 Lyophilized Recombinant Protein", "number":"AB324410-CMP03", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human CD47 Detector Antibody", "number":"AB324410-CMP02", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human CD47 Capture Antibody", "number":"AB324410-CMP01", "productcode":"" }, { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB324410-CMP09", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent CPR2", "number":"AB324410-CMP04", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB324410-CMP11", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB324410-CMP08", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB324410-CMP10", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB324410-CMP06", "productcode":"" }, { "size":"1 x 10 mL", "name":"Cell Extraction Buffer SSW", "number":"AB324410-CMP05", "productcode":"" } ] } } }

style

left-column

Properties and storage information

Shipped at conditions

Blue Ice

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

+4°C

Storage information

+4°C

style

left-column

style

left-column

Product protocols

style

left-column

Target data

Adhesive protein that mediates cell-to-cell interactions (PubMed : 11509594, PubMed : 15383453). Acts as a receptor for thrombospondin THBS1 and as modulator of integrin signaling through the activation of heterotrimeric G proteins (PubMed : 19004835, PubMed : 7691831, PubMed : 8550562). Involved in signal transduction, cardiovascular homeostasis, inflammation, apoptosis, angiogenesis, cellular self-renewal, and immunoregulation (PubMed : 11509594, PubMed : 15383453, PubMed : 19004835, PubMed : 27742621, PubMed : 32679764, PubMed : 7691831, PubMed : 8550562). Plays a role in modulating pulmonary endothelin EDN1 signaling (PubMed : 27742621). Modulates nitrous oxide (NO) signaling, in response to THBS1, hence playing a role as a pressor agent, supporting blood pressure (By similarity). Plays an important role in memory formation and synaptic plasticity in the hippocampus (By similarity). Receptor for SIRPA, binding to which prevents maturation of immature dendritic cells and inhibits cytokine production by mature dendritic cells (PubMed : 11509594). Interaction with SIRPG mediates cell-cell adhesion, enhances superantigen-dependent T-cell-mediated proliferation and costimulates T-cell activation (PubMed : 15383453). Positively modulates FAS-dependent apoptosis in T-cells, perhaps by enhancing FAS clustering (By similarity). Plays a role in suppressing angiogenesis and may be involved in metabolic dysregulation during normal aging (PubMed : 32679764). In response to THBS1, negatively modulates wound healing (By similarity). Inhibits stem cell self-renewal, in response to THBS1, probably by regulation of the stem cell transcription factors POU5F1/OCT4, SOX2, MYC/c-Myc and KLF4 (By similarity). May play a role in membrane transport and/or integrin dependent signal transduction (PubMed : 7691831). May prevent premature elimination of red blood cells (By similarity).

See full target information CD47
