AB254513

Human CD73 ELISA Kit

Be the first to review this product! Submit a review

|

(0 Publication)

Human CD73 ELISA Kit is a single-wash 90-min Simplestep used to quantify Human CD73 with a sensitivity of 261.93 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Design your own immunoassay: we also offer the conjugation-ready antibody pair

View Alternative Names

CD73, NT5, NTE, NT5E, 5'-nucleotidase, 5'-NT, 5'-deoxynucleotidase, Ecto-5'-nucleotidase, IMP-specific 5'-nucleotidase, Thymidylate 5'-phosphatase

3 Images
Sandwich ELISA - Human CD73 ELISA Kit (AB254513)
  • sELISA

Supplier Data

Sandwich ELISA - Human CD73 ELISA Kit (AB254513)

Representative image of Human CD73 ELISA Kit (ab254513)

Components shown from left to right :

- 10X Wash Buffer PT (ab206977)

- 10X Human CD73 ELISA Kit Capture Antibody

- 10X Human CD73 Detector Antibody

- 10X Human CD73 ELISA Kit Lyophilised Purified Protein (2 vials)

- Human CD73 ELISA Kit 50X Cell Extraction Enhancer Solution (ab193971)

- Sample diluent NS

- TMB solution

- Stop Solution

- 5X Cell Extraction Buffer PTR (ab193970)

- Antibody Diluent 4BR

SimpleStep Pre-Coated 96-Well Microplate (ab206978) - shown behind bottles / vials.

Plate Seals - shown underneath bottles / vials.

Note : The vial labels shown in this image use generic names for illustrative purposes only and may not exactly match the specific component names included in the ELISA kit.

Note : Colors of solutions in image may not precisely match the shade of colors in the actual kit

Sandwich ELISA - Human CD73 ELISA Kit (AB254513)
  • sELISA

Supplier Data

Sandwich ELISA - Human CD73 ELISA Kit (AB254513)

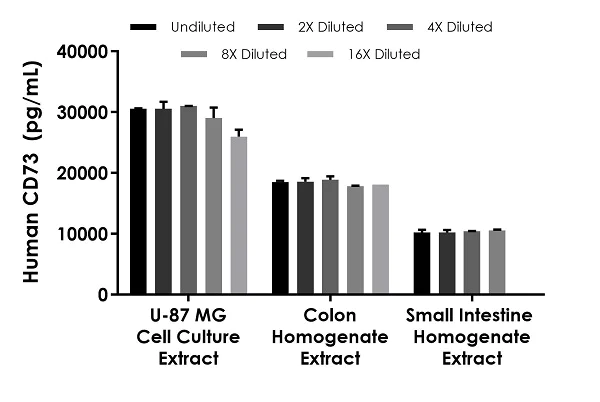

Interpolated concentrations of native CD73 in human U-87 MG extract, colon homogenate extract, and fetal small intestine homogenate extract samples.

The concentrations of CD73 were measured in duplicate and interpolated from the CD73 standard curve and corrected for sample dilution. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean CD73 concentration was determined to be 29.43 ng/mL in U-87 MG extract, 18.41 ng/ml in colon homogenate extract, and 10.32 ng/ml in fetal small intestine homogenate extract.

Sandwich ELISA - Human CD73 ELISA Kit (AB254513)
  • sELISA

Supplier Data

Sandwich ELISA - Human CD73 ELISA Kit (AB254513)

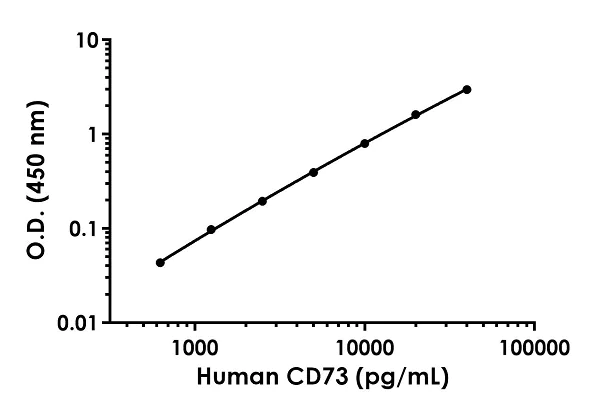

Example of human CD73 standard curve in 1X Cell Extraction Buffer PTR.

The CD73 standard curve was prepared as described in Section 10. Raw data values are shown in the table. Background-subtracted data values (mean +/- SD) are graphed.

Key facts

Detection method

Colorimetric

Sample types

Cell culture extracts, Tissue Extracts

Reacts with

Human

Assay type

Sandwich

Results type

Quantitative

Sensitivity

= 261.93 pg/mL

Range

625 - 40000 pg/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style
left-column

Complementary Products

Assay Kits

AB277712

Human PD-L1 ELISA Kit [28-8]

Recombinant|SimpleStep

ELISA - Human PD-L1 ELISA Kit [28-8] (AB277712)

  • 0
  • 0
Assay Kits

AB252360

Human PD-1 ELISA Kit

Recombinant|SimpleStep

ELISA - Human PD-1 ELISA Kit (AB252360)

  • 0
  • 0
Primary Antibodies

AB133582

Anti-CD73 antibody [EPR6114]

RabMAb|Recombinant|KO Validated

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD73 antibody [EPR6114] (AB133582)

  • 3
  • 2
Proteins & Peptides

AB280943

Recombinant human PD-L1 protein (Active)

Premium Bioactive

Sandwich ELISA - Recombinant human PD-L1 protein (Active) (AB280943)

  • 0
  • 0
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column

Product details

Human CD73 ELISA Kit (ab254513) is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of CD73 protein in cell culture extracts and tissue extracts. It uses our proprietary SimpleStep ELISA® technology. Quantitate Human CD73 with 261.93 pg/ml sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:

- Single-wash protocol reduces assay time to 90 minutes or less
- High sensitivity, specificity and reproducibility from superior antibodies
- Fully validated in biological samples
- 96-wells plate breakable into 12 x 8 wells strips

A 384-well SimpleStep ELISA® microplate (ab203359) is available to use as an alternative to the 96-well microplate provided with SimpleStep ELISA® kits.

CD73 is an enzyme involved in the hydrolysis of extracellular nucleotides. It is a marker of lymphocyte differentiation. Mutations in CD73 can result in immunodeficiency, and CD73 variants in humans is associated with adult-onset calcification of joints and arteries.

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

style
left-column

Precision

[ { "reproducibilityType": "Inter", "sample": "Cell Extract", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "7.2" }, { "reproducibilityType": "Intra", "sample": "Cell Extract", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "7" } ]
style
left-column

Recovery

[ { "sample": "Cell culture extracts", "range": "90 - 106 %", "average": "= 96" }, { "sample": "Tissue Extracts", "range": "101 - 124 %", "average": "= 111" } ]
style
left-column

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab254513-1x96Tests", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB254513-CMP05", "productcode":"" }, { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB254513-CMP06", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB254513-CMP12", "productcode":"" }, { "size":"1 x 1 mL", "name":"50X Cell Extraction Enhancer Solution (ab193971)", "number":"AB254513-CMP08", "productcode":"" }, { "size":"1 x 12 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB254513-CMP13", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB254513-CMP07", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB254513-CMP11", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 4BR", "number":"AB254513-CMP03", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human CD73 Lyophilized Recombinant Protein", "number":"AB254513-CMP10", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human CD73 Capture Antibody", "number":"AB254513-CMP01", "productcode":"" }, { "size":"1 x 10 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB254513-CMP09", "productcode":"" }, { "size":"2 x 1 Vial", "name":"10X Human CD73 Detector Antibody", "number":"AB254513-CMP02", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

CD73 also known as ecto-5'-nucleotidase is an enzyme that functions at the cellular level. The CD73 protein hydrolyzes extracellular nucleotides into nucleosides by removing phosphate groups. It is a 70 kDa glycosylphosphatidylinositol-anchored molecule found on the surface of various cell types including endothelial cells lymphocytes and epithelial cells. Its presence is noted in a wide range of tissues across the human body highlighting its versatile role in cellular communication and metabolism.
Biological function summary

CD73 participates in the regulation of purinergic signaling through adenosine production. It acts in cooperation with other cell surface enzymes such as CD39 forming a functional complex that handles ATP breakdown to adenosine. This enzymatic activity modulates immune responses tissue protection and inflammation control. In addition to immune-related functions CD73 supports the maintenance of vascular integrity and proper cellular adhesion which is important in different physiological and pathological contexts.

Pathways

CD73 plays an important part in the adenosinergic pathway governing the conversion of AMP into adenosine. This activity impacts the signaling and function of the adenosine receptors on immune and non-immune cells. Another important pathway is the angiogenesis process where CD73 contributes by affecting endothelial cell migration and blood vessel development. Relationships with key proteins such as adenosine A2 receptors help facilitate these critical pathway activities.

CD73's involvement with immunosuppression and tumor progression becomes significant. Elevated levels of CD73 are frequently observed in some cancers where it aids in creating a favorable tumor microenvironment through increased adenosine production. This situation assists tumor cells in evading immune detection. Additionally CD73 is linked to autoimmune diseases like multiple sclerosis where it contributes to modulated lymphocyte activity. Connections with proteins such as TGF-beta further illustrate its role in disease-related pathways creating potential targets for therapeutic interventions through the use of anti-CD73 antibodies.
style
left-column

Product protocols

style
left-column

Target data

Catalyzes the hydrolysis of nucleotide monophosphates, releasing inorganic phosphate and the corresponding nucleoside, with AMP being the preferred substrate (PubMed : 21933152, PubMed : 22997138, PubMed : 23142347, PubMed : 24887587, PubMed : 34403084). Shows a preference for ribonucleotide monophosphates over their equivalent deoxyribose forms (PubMed : 34403084). Other substrates include IMP, UMP, GMP, CMP, dAMP, dCMP, dTMP, NAD and NMN (PubMed : 21933152, PubMed : 22997138, PubMed : 23142347, PubMed : 24887587, PubMed : 34403084).
