AB326436

Human CEA ELISA Kit, Chemiluminescent

Be the first to review this product! Submit a review

|

(0 Publication)

Human CEA ELISA Kit, Chemiluminescent is a 55-min single-wash SimpleStep Ignite™ ELISA for the rapid quantification of Human CEA with higher sensitivity and broader measuring range.

- Single 30 min incubation and single-wash step for results in less than an hour.
- Chemiluminescent detection allows a broad dynamic range: 18.29 - 40000 pg/ml with a sensitivity of 3.91pg/mL.
- Design your own immunoassay: we also offer the conjugation-ready antibody pair.
-Patent pending

View Alternative Names

CD66e, CEA, CEACAM5, Cell adhesion molecule CEACAM5, Carcinoembryonic antigen, Carcinoembryonic antigen-related cell adhesion molecule 5, Meconium antigen 100, CEA cell adhesion molecule 5

5 Images
Sandwich ELISA - Human CEA ELISA Kit, Chemiluminescent (AB326436)
  • sELISA

Lab

Sandwich ELISA - Human CEA ELISA Kit, Chemiluminescent (AB326436)

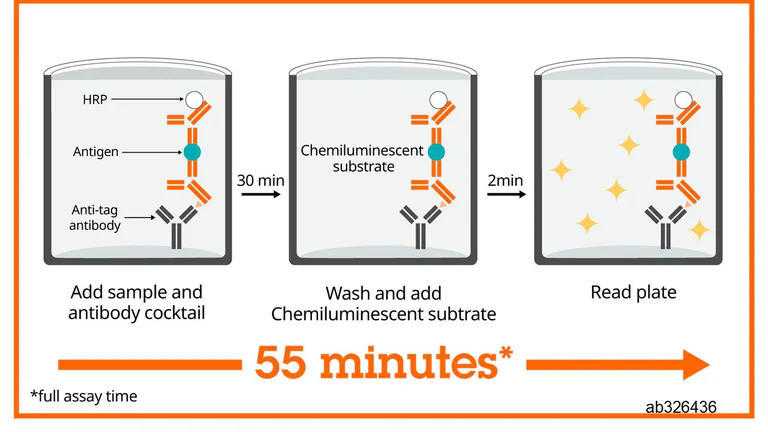

SimpleStep ELISA® Ignite technology allows the formation of the antibody-antigen complex in one single step, reducing assay time to 55 minutes. Add samples or standards and antibody mix to wells all at once, incubate, wash, and add your final substrate. See protocol for a detailed step-by-step guide.

Sandwich ELISA - Human CEA ELISA Kit, Chemiluminescent (AB326436)
  • sELISA

Lab

Sandwich ELISA - Human CEA ELISA Kit, Chemiluminescent (AB326436)

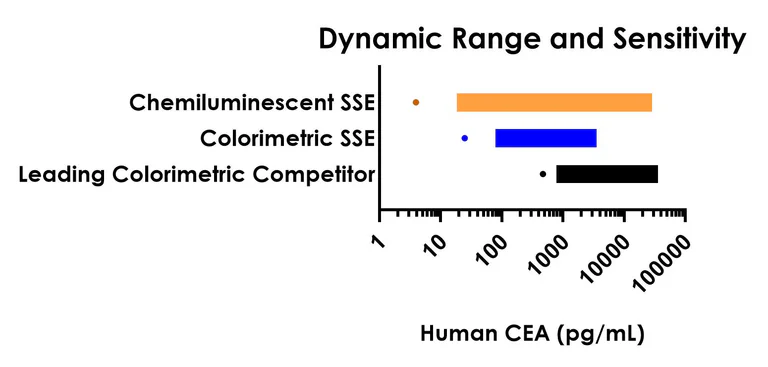

Dynamic range comparison between the Chemiluminescent Human CEA SimpleStep ELISA, colorimetric Human CEA SimpleStep ELISA (ab264604), and leading colorimetric competitor. The Chemiluminescent SimpleStep ELISA kit shows increased sensitivity and dynamic range.

Sandwich ELISA - Human CEA ELISA Kit, Chemiluminescent (AB326436)
  • sELISA

Lab

Sandwich ELISA - Human CEA ELISA Kit, Chemiluminescent (AB326436)

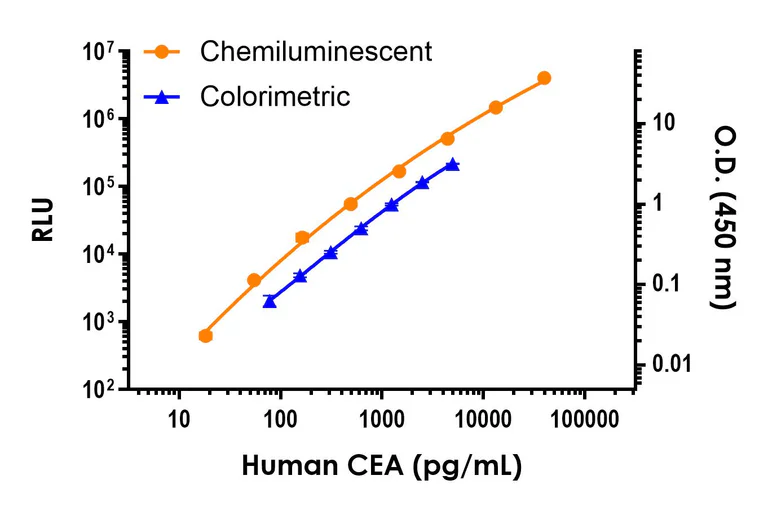

Standard curve comparison between the Chemiluminescent Human CEA SimpleStep ELISA and colorimetric Human CEA SimpleStep ELISA (ab264604) in Sample Diluent NS. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Human CEA ELISA Kit, Chemiluminescent (AB326436)
  • sELISA

Supplier Data

Sandwich ELISA - Human CEA ELISA Kit, Chemiluminescent (AB326436)

Serum from ten individual healthy human female donors was measured in duplicate one donor of which was non-detectible (ND) by this assay.

Interpolated dilution factor corrected values are plotted (mean +/- SD n=2). The mean CEA concentration was determined to be 1027.57 pg/mL with a range of ND – 4257.59 pg/mL.

Sandwich ELISA - Human CEA ELISA Kit, Chemiluminescent (AB326436)
  • sELISA

Supplier Data

Sandwich ELISA - Human CEA ELISA Kit, Chemiluminescent (AB326436)

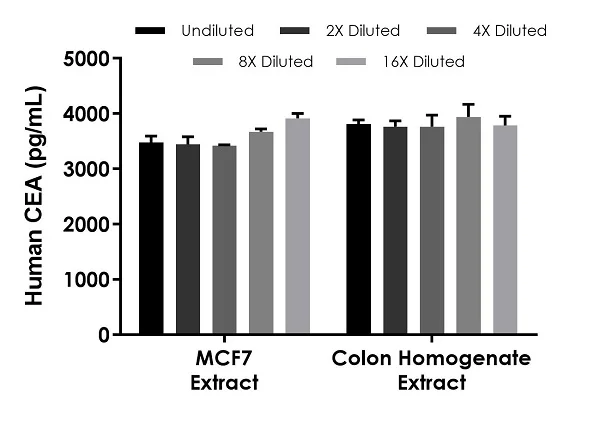

Interpolated concentrations of native CEA in human MCF7 and colon homogenate extract samples based on 250 and 125 µg/mL extract loads respectively.

The concentrations of CEA were measured in duplicate and interpolated from the CEA standard curve and corrected for sample dilution. The interpolated dilution factor corrected values are plotted (mean +/- SD n=2). The mean CEA concentration was determined to be 3584.91 pg/ml in MCF7 and 3812.56 pg/mL in colon homogenate extract.

Key facts

Detection method

Luminescent

Sample types

Serum, EDTA Plasma, Cell culture extracts, Cell culture media, Tissue Extracts, Heparin Plasma, Citrate plasma

Reacts with

Human

Assay type

Sandwich

Results type

Quantitative

Sensitivity

= 3.91 pg/mL

Range

18.29 - 40000 pg/mL

Assay time

55m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column

Product details

Human CEA ELISA Kit, Chemiluminescent (ab326436) is a rapid single-wash sandwich 55-min ELISA to measure Human CEA in Serum, EDTA Plasma, Cell culture extracts, Cell culture media, Tissue Extracts, Heparin Plasma, Citrate plasma with a sensitivity of 3.91 pg/mL.

How the assay works

Human CEA ELISA Kit, Chemiluminescent (ab326436) SimpleStep Ignite™ ELISA employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step during a 30 min only incubation, significantly reducing assay time. By utilizing a chemiluminscent detection method this improves the sensitivity and dynamic range when compared to traditional colorimetric ELISAs.

Assay Specificity

Our SimpleStep Ignite™ ELISA kits use recombinant monoclonal antibodies rigorously validated to ensure the highest level of consistency and reproducibility, improved sensitivity and specificity and ease of scalability and security of supply.
Please refer to our protocol booklet for more details.

Human CEA (ab326436) protocol summary

1. Mix : add samples / standards to the wells together with the capture and detector antibody cocktail. Incubate 30 min at room temperature
2. Wash
3. Add ChemiHRP development solution - incubate for 2 min
4. Read the results on a plate reader capable of luminescence detection

Design your own immunoassay

We offer the antibody pair used in this kit in a BSA and Azide-free format, ready for conjugation:

- Anti-CEACAM5 antibody [EPR22676-37] - BSA and Azide free (Capture) ab270311
- Anti-CEACAM5 antibody [EPR22676-256] - BSA and Aside free (Detector) ab270312
style
left-column

Precision

[ { "reproducibilityType": "Intra", "sample": "Extract", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 5" }, { "reproducibilityType": "Inter", "sample": "Extract", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 5.4" } ]
style
left-column

Recovery

[ { "sample": "Serum", "range": "92 - 116 %", "average": "= 100" }, { "sample": "EDTA Plasma", "range": "91 - 110 %", "average": "= 98" }, { "sample": "Cell culture extracts", "range": "95 - 122 %", "average": "= 108" }, { "sample": "Cell culture media", "range": "84 - 99 %", "average": "= 93" }, { "sample": "Tissue Extracts", "range": "104 - 117 %", "average": "= 109" }, { "sample": "Heparin Plasma", "range": "90 - 110 %", "average": "= 101" }, { "sample": "Citrate plasma", "range": "91 - 111 %", "average": "= 105" } ]
style
left-column

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab326436-1x96Tests", "assetComponentDetails": [ { "size":"1 x 3 mL", "name":"ChemiHRP Reagent A", "number":"AB326436-CMP09", "productcode":"" }, { "size":"1 x 12 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB326436-CMP07", "productcode":"" }, { "size":"1 x 1 mL", "name":"50X Cell Extraction Enhancer Solution (ab193971)", "number":"AB326436-CMP06", "productcode":"" }, { "size":"1 x 3 mL", "name":"ChemiHRP Reagent B", "number":"AB326436-CMP10", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent CPI2", "number":"AB326436-CMP04", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated Black 96-Well Microplate", "number":"AB326436-CMP11", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human CEA Detector Antibody", "number":"AB326436-CMP02", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human CEA Capture Antibody", "number":"AB326436-CMP01", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB326436-CMP12", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB326436-CMP08", "productcode":"" }, { "size":"1 x 10 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB326436-CMP05", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human CEA Lyophilized Recombinant Protein", "number":"AB326436-CMP03", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C
style
left-column
style
left-column

Product protocols

style
left-column

Target data

Cell surface glycoprotein that plays a role in cell adhesion, intracellular signaling and tumor progression (PubMed : 10864933, PubMed : 10910050, PubMed : 2803308). Mediates homophilic and heterophilic cell adhesion with other carcinoembryonic antigen-related cell adhesion molecules, such as CEACAM6 (PubMed : 2803308). Plays a role as an oncogene by promoting tumor progression; induces resistance to anoikis of colorectal carcinoma cells (PubMed : 10910050).. (Microbial infection) Receptor for E.coli Dr adhesins. Binding of E.coli Dr adhesins leads to dissociation of the homodimer.
See full target information CEACAM5
style
left-column
style
left-column
websiteProtocolBooklet
en
style
right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
