Human cleaved C-terminal GSDMD ELISA Kit is a single-wash 90-min SimpleStep ELISA® for the quantitative measurement of Human cleaved C-terminal GSDMD in Serum, Citrate plasma, EDTA Plasma, Heparin Plasma, Cell culture supernatant samples.

Be the first to review this product! Submit a review

Images

Sandwich ELISA - Human cleaved C-terminal GSDMD ELISA Kit (AB323526), expandable thumbnail
  • Sandwich ELISA - Human cleaved C-terminal GSDMD ELISA Kit (AB323526), expandable thumbnail

Key facts

Detection method
Colorimetric
Sample types
Serum, Citrate plasma, EDTA Plasma, Heparin Plasma, Cell culture supernatant
Assay type
Sandwich (quantitative)
Reactive species
Human
Range
31.25 - 2000 pg/mL
Assay time
1h 30m
Sensitivity
= 9.5 pg/mL

Reactivity data

Application
sELISA
Reactivity
Reacts
Dilution info
-
Notes

-

Target data

Function

Gasdermin-D. Precursor of a pore-forming protein that plays a key role in host defense against pathogen infection and danger signals (PubMed:26375003, PubMed:26375259, PubMed:27281216). This form constitutes the precursor of the pore-forming protein: upon cleavage, the released N-terminal moiety (Gasdermin-D, N-terminal) binds to membranes and forms pores, triggering pyroptosis (PubMed:26375003, PubMed:26375259, PubMed:27281216). Gasdermin-D, N-terminal. Promotes pyroptosis in response to microbial infection and danger signals (PubMed:26375003, PubMed:26375259, PubMed:27418190, PubMed:28392147, PubMed:32820063, PubMed:34289345, PubMed:38040708, PubMed:38530158, PubMed:38599239). Produced by the cleavage of gasdermin-D by inflammatory caspases CASP1, CASP4 or CASP5 in response to canonical, as well as non-canonical (such as cytosolic LPS) inflammasome activators (PubMed:26375003, PubMed:26375259, PubMed:27418190). After cleavage, moves to the plasma membrane where it strongly binds to inner leaflet lipids, including monophosphorylated phosphatidylinositols, such as phosphatidylinositol 4-phosphate, bisphosphorylated phosphatidylinositols, such as phosphatidylinositol (4,5)-bisphosphate, as well as phosphatidylinositol (3,4,5)-bisphosphate, and more weakly to phosphatidic acid and phosphatidylserine (PubMed:27281216, PubMed:29898893, PubMed:36227980). Homooligomerizes within the membrane and forms pores of 10-15 nanometers (nm) of inner diameter, allowing the release of mature interleukin-1 (IL1B and IL18) and triggering pyroptosis (PubMed:27281216, PubMed:27418190, PubMed:29898893, PubMed:33883744, PubMed:38040708, PubMed:38530158, PubMed:38599239). Gasdermin pores also allow the release of mature caspase-7 (CASP7) (By similarity). In some, but not all, cells types, pyroptosis is followed by pyroptotic cell death, which is caused by downstream activation of ninjurin-1 (NINJ1), which mediates membrane rupture (cytolysis) (PubMed:33472215, PubMed:37198476). Also forms pores in the mitochondrial membrane, resulting in release of mitochondrial DNA (mtDNA) into the cytosol (By similarity). Gasdermin-D, N-terminal released from pyroptotic cells into the extracellular milieu rapidly binds to and kills both Gram-negative and Gram-positive bacteria, without harming neighboring mammalian cells, as it does not disrupt the plasma membrane from the outside due to lipid-binding specificity (PubMed:27281216). Under cell culture conditions, also active against intracellular bacteria, such as Listeria monocytogenes (By similarity). Also active in response to MAP3K7/TAK1 inactivation by Yersinia toxin YopJ, which triggers cleavage by CASP8 and subsequent activation (By similarity). Required for mucosal tissue defense against enteric pathogens (By similarity). Activation of the non-canonical inflammasome in brain endothelial cells can lead to excessive pyroptosis, leading to blood-brain barrier breakdown (By similarity). Strongly binds to bacterial and mitochondrial lipids, including cardiolipin (PubMed:27281216). Does not bind to unphosphorylated phosphatidylinositol, phosphatidylethanolamine nor phosphatidylcholine (PubMed:27281216). Gasdermin-D, p13. Transcription coactivator produced by the cleavage by CASP3 or CASP7 in the upper small intestine in response to dietary antigens (By similarity). Required to maintain food tolerance in small intestine: translocates to the nucleus and acts as a coactivator for STAT1 to induce the transcription of CIITA and MHC class II molecules, which in turn induce type 1 regulatory T (Tr1) cells in upper small intestine (By similarity). Gasdermin-D, p40. Produced by the cleavage by papain allergen (PubMed:35794369). After cleavage, moves to the plasma membrane and homooligomerizes within the membrane and forms pores of 10-15 nanometers (nm) of inner diameter, allowing the specific release of mature interleukin-33 (IL33), promoting type 2 inflammatory immune response (PubMed:35794369).

Alternative names

What's included?

10 x 96 Tests
Components
10X Human cleaved C-terminal GSDMD Capture Antibody
10 x 600 µL
10X Human cleaved C-terminal GSDMD Detector Antibody
10 x 600 µL
10X Wash Buffer PT (ab206977)
1 x 200 mL
5X Cell Extraction Buffer PTR (ab193970)
2 x 50 mL
Antibody Diluent BAI
10 x 6 mL
Human cleaved C-terminal GSDMD Lyophilized Recombinant Protein
20 x 1 Vial
Plate Seal
10 x 1 Unit
Sample Diluent NS (ab193972)
2 x 50 mL
SimpleStep Pre-Coated 96-Well Microplate (ab206978)
10 x 1 Unit
Stop Solution
1 x 120 mL
TMB Development Solution
1 x 120 mL

Human cleaved C-terminal GSDMD ELISA Kit is a single-wash 90-min SimpleStep ELISA® for the quantitative measurement of Human cleaved C-terminal GSDMD in Serum, Citrate plasma, EDTA Plasma, Heparin Plasma, Cell culture supernatant samples.

Key facts

Detection method
Colorimetric
Sample types
Serum, Citrate plasma, EDTA Plasma, Heparin Plasma, Cell culture supernatant
Assay type
Sandwich (quantitative)
Reactive species
Human
Range
31.25 - 2000 pg/mL
Assay time
1h 30m
Assay Platform
Pre-coated microplate (12 x 8 well strips)
Sensitivity
= 9.5 pg/mL
General recovery
94%

Precision

Intra assay

Sample
Serum
n
8
C.V.
3.1

Inter assay

Sample
Serum
n
3
C.V.
0.6

Recovery

Sample specific recovery

Sample type
Serum
Average %
= 94
Range
90 - 98 %
Sample type
Citrate plasma
Average %
= 92
Range
78 - 84 %
Sample type
EDTA Plasma
Average %
= 91
Range
88 - 95 %
Sample type
Heparin Plasma
Average %
= 90
Range
86 - 97 %
Sample type
Cell culture supernatant
Average %
= 110
Range
105 - 115 %

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C

Notes

Human cleaved C-terminal GSDMD SimpleStep ELISA® kit is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of cleaved C-terminal GSDMD protein in Serum, Cit Plasma, EDTA Plasma, Hep Plasma, Cell culture supernatant. Quantitate Human cleaved C-terminal GSDMD with 9.5 pg/ml sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:

  • Single-wash protocol reduces assay time to 90 minutes or less
  • High sensitivity, specificity and reproducibility from superior antibodies
  • Fully validated in biological samples
  • 96-wells plate breakable into 12 x 8 wells strips, available in 10-pack (10 x 96-well plates)
  • Also available in a fully validated 384-well format.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

2 product images

  • Sandwich ELISA - Human cleaved C-terminal GSDMD ELISA Kit (ab323526), expandable thumbnail

    Sandwich ELISA - Human cleaved C-terminal GSDMD ELISA Kit (ab323526)

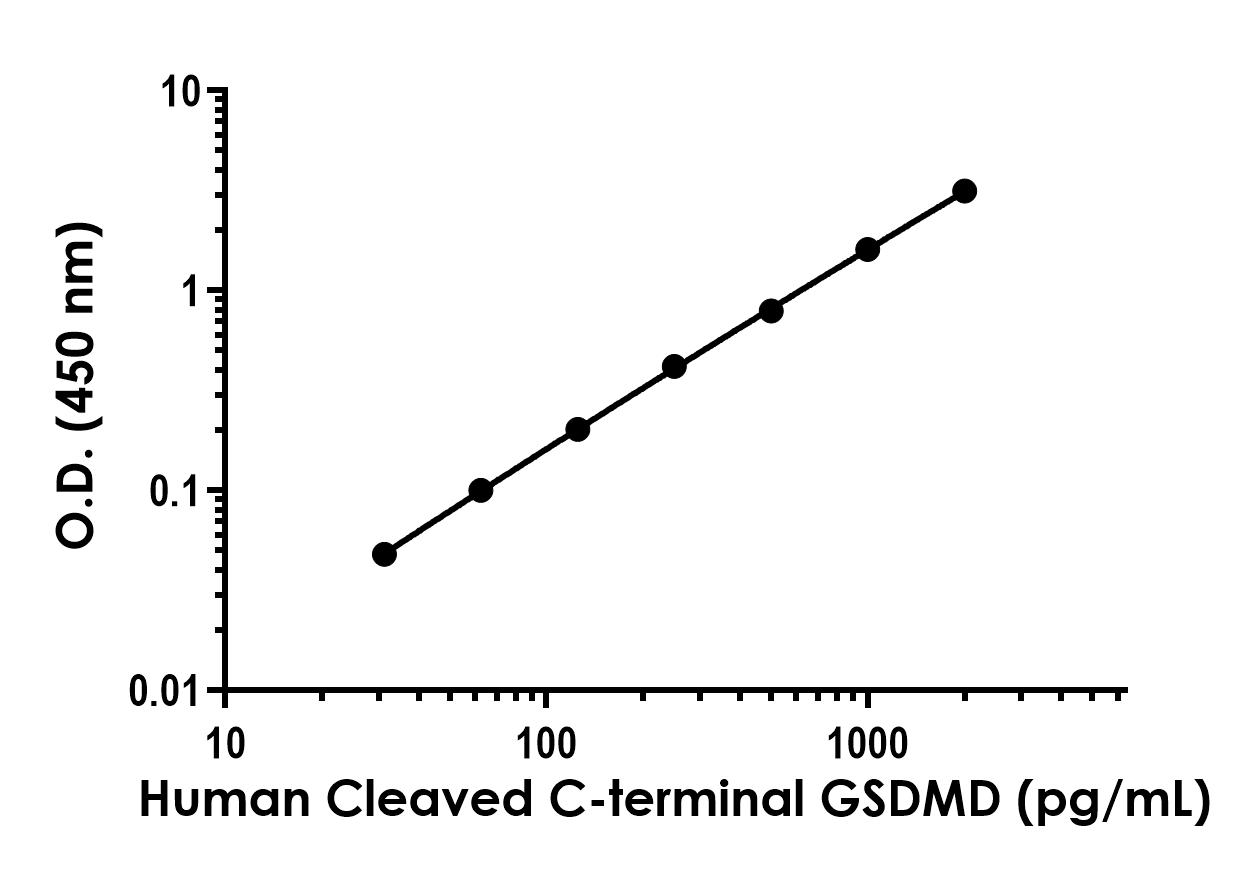

    Example of human cleaved C-terminal GSDMD standard curve in 1X Sample Buffer PTR.

    Example of human cleaved C-terminal GSDMD standard curve. Background-subtracted data values (mean +/- SD) are graphed.

  • Sandwich ELISA - Human cleaved C-terminal GSDMD ELISA Kit (ab323526), expandable thumbnail

    Sandwich ELISA - Human cleaved C-terminal GSDMD ELISA Kit (ab323526)

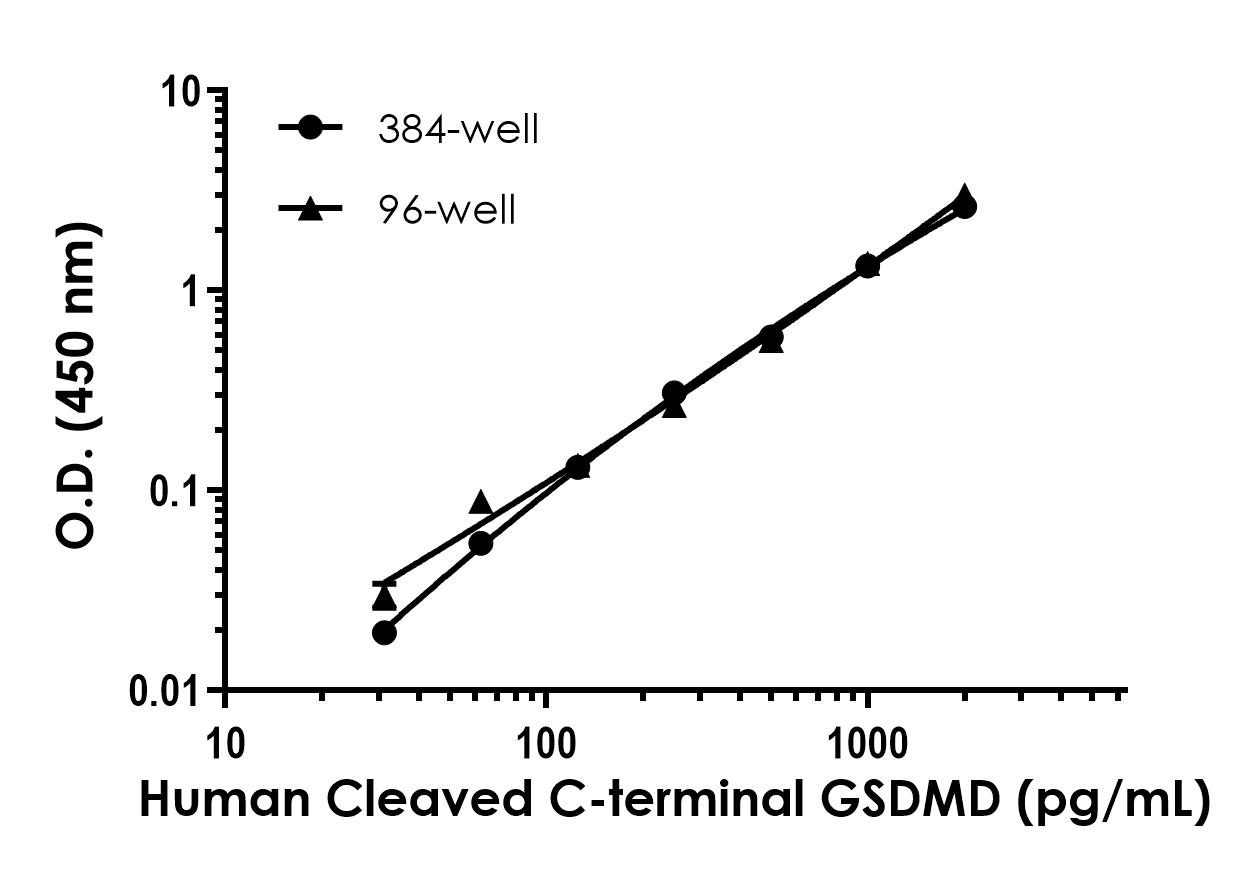

    Example of human cleaved C-terminal GSDMD standard curve in 1X Sample Buffer PTR in 96-well vs. 384-well plate.

    Example of human cleaved C-terminal GSDMD standard curve in 96-well vs. 384-well plate. Background-subtracted data values (mean +/- SD) are graphed.

Downloads

Product protocols

For this product, it's our understanding that no specific protocols are required. You can:

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
