AB325620

Human CTGF ELISA Kit, Chemiluminescent

Be the first to review this product! Submit a review

|

(0 Publication)

Human CTGF ELISA Kit, Chemiluminescent is a 55 min single-wash SimpleStep Ignite™ ELISA for the rapid quantification of Human CTGF with higher sensitivity and broader measuring range.

- Single 30 min incubation and single -wash step for results in less than an hour
- Chemiluminescent detection allows a broad dynamic range : 21.95 - 16000 pg/ml with a sensitivity of 6.56 pg/mL
- Design your own immunoassay: we also offer the conjugation-ready antibody pair
- Patent pending

View Alternative Names

CTGF, HCS24, IGFBP8, CCN2, CCN family member 2, Cellular communication network factor 2, Connective tissue growth factor, Hypertrophic chondrocyte-specific protein 24, Insulin-like growth factor-binding protein 8, IBP-8, IGF-binding protein 8, IGFBP-8

5 Images
Sandwich ELISA - Human CTGF ELISA Kit, Chemiluminescent (AB325620)
  • sELISA

Lab

Sandwich ELISA - Human CTGF ELISA Kit, Chemiluminescent (AB325620)

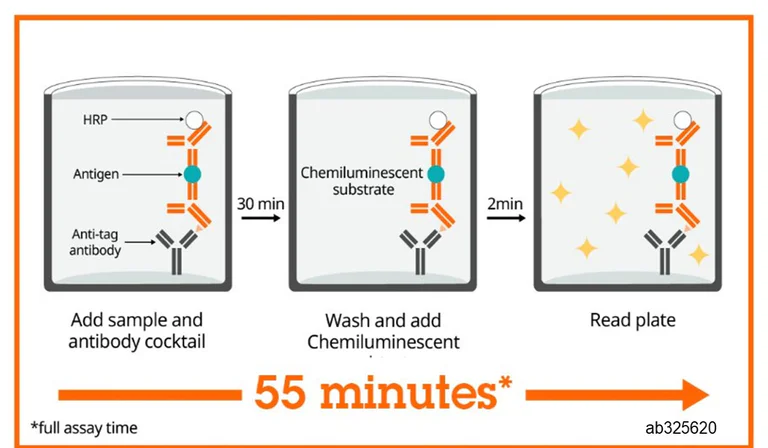

SimpleStep ELISA® Ignite technology allows the formation of the antibody-antigen complex in one single step, reducing assay time to 55 minutes. Add samples or standards and antibody mix to wells all at once, incubate, wash, and add your final substrate. See protocol for a detailed step-by-step guide.

Sandwich ELISA - Human CTGF ELISA Kit, Chemiluminescent (AB325620)
  • sELISA

Lab

Sandwich ELISA - Human CTGF ELISA Kit, Chemiluminescent (AB325620)

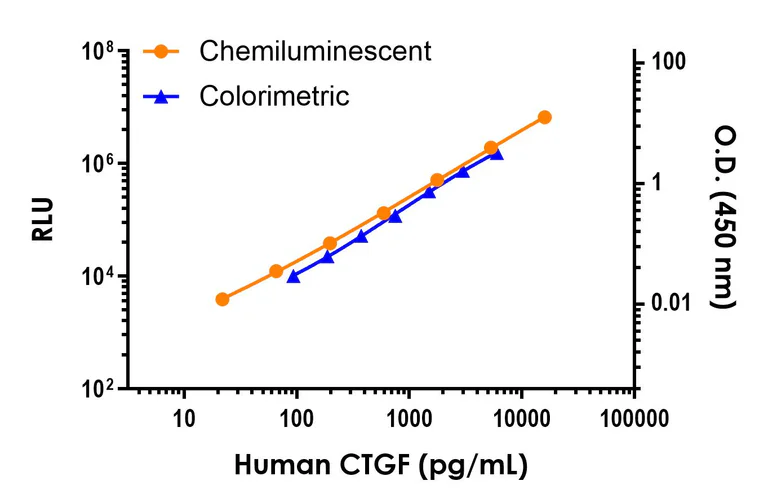

Standard curve comparison between the Chemiluminescent Human CTGF SimpleStep ELISA and colorimetric Human CTGF SimpleStep ELISA (ab261851) in Sample Diluent 25BP. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Human CTGF ELISA Kit, Chemiluminescent (AB325620)
  • sELISA

Lab

Sandwich ELISA - Human CTGF ELISA Kit, Chemiluminescent (AB325620)

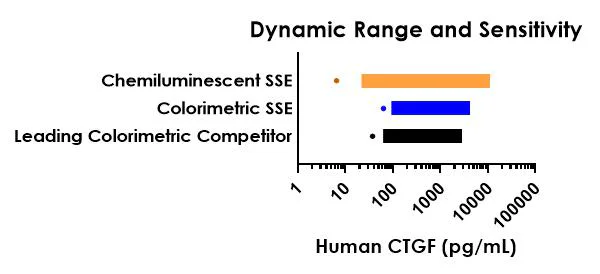

Dynamic range comparison between the Chemiluminescent Human CTGF SimpleStep ELISA, colorimetric Human CTGF SimpleStep ELISA (ab261851), and leading colorimetric competitor. The Chemiluminescent SimpleStep ELISA kit shows increased sensitivity and increased dynamic range.

Sandwich ELISA - Human CTGF ELISA Kit, Chemiluminescent (AB325620)
  • sELISA

Lab

Sandwich ELISA - Human CTGF ELISA Kit, Chemiluminescent (AB325620)

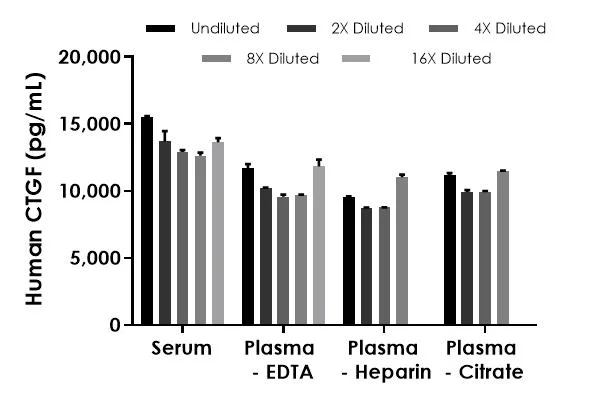

Interpolated concentration of native CTGF was measured in duplicate at different sample concentrations. Undiluted samples are as follows : serum 10%, plasma (citrate) 5%, plasma (heparin) 5%, and plasma (EDTA) 10%. The interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2). Sample dilutions are made in Sample Diluent 25BP.

Sandwich ELISA - Human CTGF ELISA Kit, Chemiluminescent (AB325620)
  • sELISA

Lab

Sandwich ELISA - Human CTGF ELISA Kit, Chemiluminescent (AB325620)

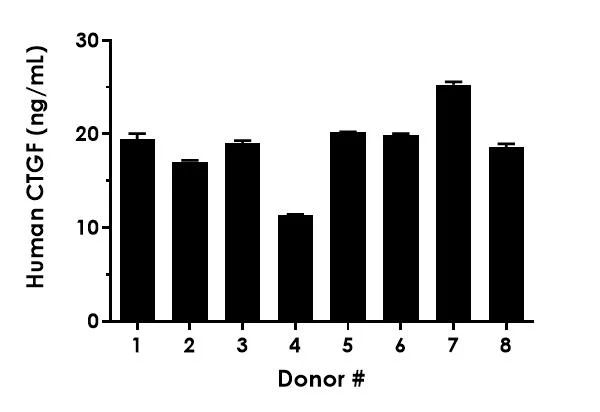

Serum of eight individual healthy human donors was measured in duplicate. Interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2). The mean CTGF concentration was determined to be 18.8 ng/mL with a range of 11.32 – 25.5 ng/mL.

Key facts

Detection method

Luminescent

Sample types

Serum, Citrate plasma, EDTA Plasma, Heparin Plasma, Cell culture media

Reacts with

Human

Assay type

Sandwich

Results type

Quantitative

Sensitivity

= 6.56 pg/mL

Range

21.95 - 16000 pg/mL

Assay time

55m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column

Product details

Human CTGF ELISA Kit, Chemiluminescent (ab325620) is a rapid single-wash sandwich 55 min ELISA to measure Human CTGF in Serum, Citrate Plasma, EDTA Plasma, Heparin Plasma, Cell Culture Media with a sensitivity of 6.56 pg/mL.

How the assay works

Human CTGF ELISA Kit, Chemiluminescent (ab325620) SimpleStep Ignite™ ELISA employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step during a 30 min only incubation, significantly reducing assay time. By utilizing a chemiluminscent detection method this improves the sensitivity and dynamic range when compared to traditional colormetric ELISAs.

Assay Specificity

Our SimpleStep Ignite™ ELISA kits use recombinant monoclonal antibodies rigorously validated to ensure the highest level of consistency and reproducibility, improved sensitivity and specificity and ease of scalability and security of supply.
Please refer to our protocol booklet for more details.

Human CTGF (ab325620) protocol summary

1. Mix : add samples / standards to the wells together with the capture and detector antibody cocktail. Incubate 30 min at room temperature
2. Wash
3. Add ChemiHRP development solution - incubate for 2 min
4. Read the results on a plate reader capable of luminescence detection

Design your own immunoassay

We offer the antibody pair used in this kit in a BSA and Azide-free format, ready for conjugation:

- Anti-CTGF antibody [EPR20728-240] - BSA and Azide free (Capture) ab269379
- Anti-CTGF antibody [EPR20728-214] - BSA and Azide free (Detector) ab259562
style
left-column

Precision

[ { "reproducibilityType": "Intra", "sample": "Serum", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 5.8" }, { "reproducibilityType": "Inter", "sample": "Serum", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 7.4" } ]
style
left-column

Recovery

[ { "sample": "Serum", "range": "97 - 101 %", "average": "= 99" }, { "sample": "Citrate plasma", "range": "94 - 105 %", "average": "= 100" }, { "sample": "EDTA Plasma", "range": "117 - 124 %", "average": "= 121" }, { "sample": "Heparin Plasma", "range": "127 - 130 %", "average": "= 129" }, { "sample": "Cell culture media", "range": "108 - 111 %", "average": "= 110" } ]
style
left-column

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab325620-1x96Tests", "assetComponentDetails": [ { "size":"1 x 3 mL", "name":"ChemiHRP Reagent B", "number":"AB325620-CMP08", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB325620-CMP10", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 5BI", "number":"AB325620-CMP04", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human CTGF Lyophilized Recombinant Protein", "number":"AB325620-CMP03", "productcode":"" }, { "size":"1 x 20 mL", "name":"Sample Diluent 25BP", "number":"AB325620-CMP05", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB325620-CMP06", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human CTGF Detector Antibody", "number":"AB325620-CMP02", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human CTGF Capture Antibody", "number":"AB325620-CMP01", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated Black 96-Well Microplate", "number":"AB325620-CMP09", "productcode":"" }, { "size":"1 x 3 mL", "name":"ChemiHRP Reagent A", "number":"AB325620-CMP07", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C
style
left-column
style
left-column

Product protocols

style
left-column

Target data

Major connective tissue mitoattractant secreted by vascular endothelial cells. Promotes proliferation and differentiation of chondrocytes. Is involved in the stimulation of osteoblast differentiation and has a critical role in osteogenesis (PubMed : 39414788). Mediates heparin- and divalent cation-dependent cell adhesion in many cell types including fibroblasts, myofibroblasts, endothelial and epithelial cells. Enhances fibroblast growth factor-induced DNA synthesis.
