AB323524

Human CXCR4 ELISA Kit- Intracellular

SimpleStep
What is this?

Be the first to review this product! Submit a review

(0 Publication)

Human CXCR4 ELISA Kit- Intracellular is a single-wash 90-min Simplestep used to quantify Human CXCR4 with a sensitivity of 24.7 pg/mL. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Different formats for different needs: 10x96 plates for bulk orders
- Design your own immunoassay: we also offer the conjugation-ready antibody pair

View Alternative Names

CD184, C-X-C chemokine receptor type 4, CXC-R4, CXCR-4, FB22, Fusin, HM89, LCR1, Leukocyte-derived seven transmembrane domain receptor, Lipopolysaccharide-associated protein 3, NPYRL, Stromal cell-derived factor 1 receptor, LESTR, LAP-3, LPS-associated protein 3, SDF-1 receptor, CXCR4

2 Images

Sandwich ELISA - Human CXCR4 ELISA Kit- Intracellular (AB323524)

sELISA

Supplier Data

Sandwich ELISA - Human CXCR4 ELISA Kit- Intracellular (AB323524)

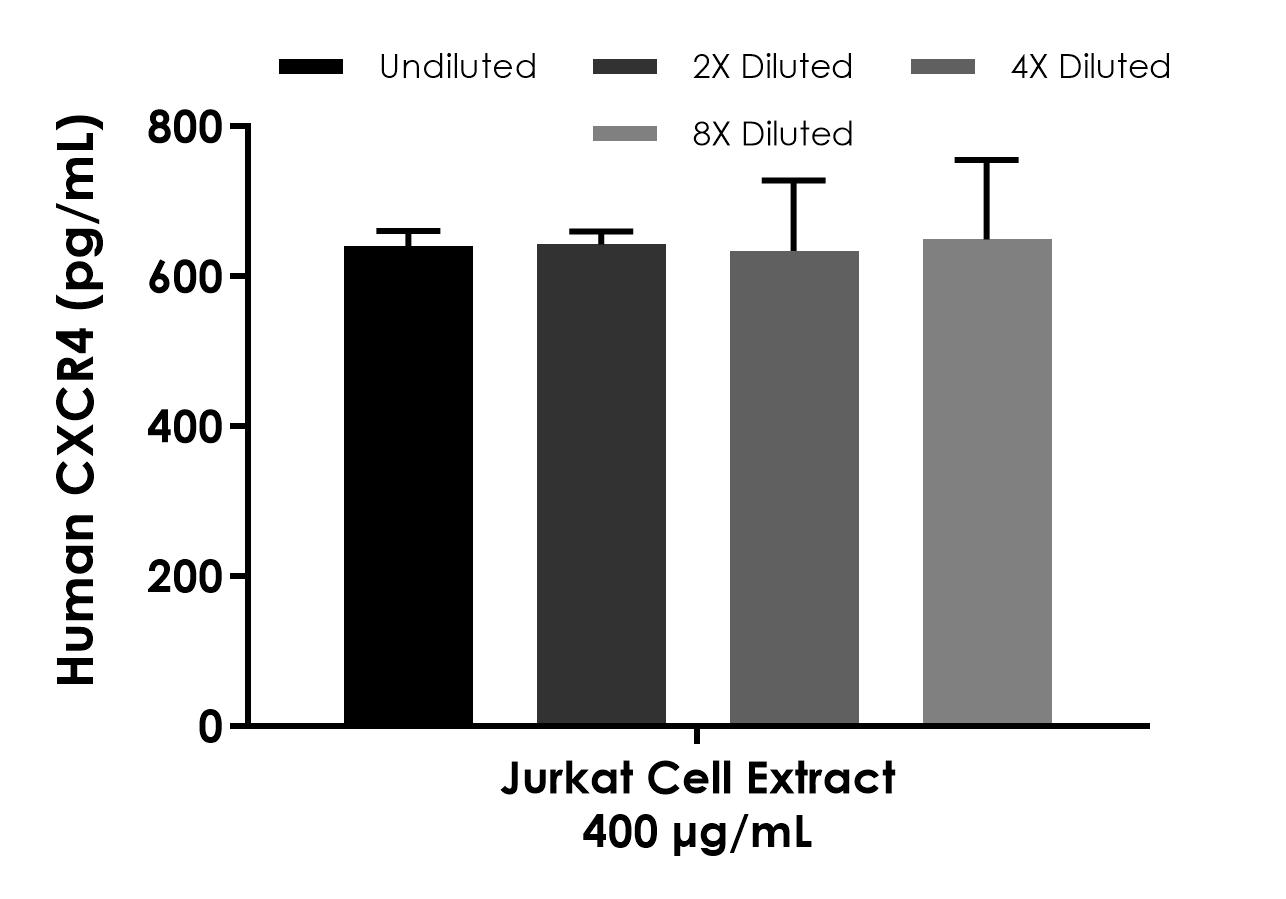

Interpolated concentrations of human CXCR4 in Jurkat cell extract.

Interpolated concentration of native CXCR4 was measured in duplicate at different sample concentrations. Undiluted samples are 400 µg/mL Jurkat cell extract. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in 1X Cell Extraction Buffer PTR + Enhancer.

sELISA

Supplier Data

Sandwich ELISA - Human CXCR4 ELISA Kit- Intracellular (AB323524)

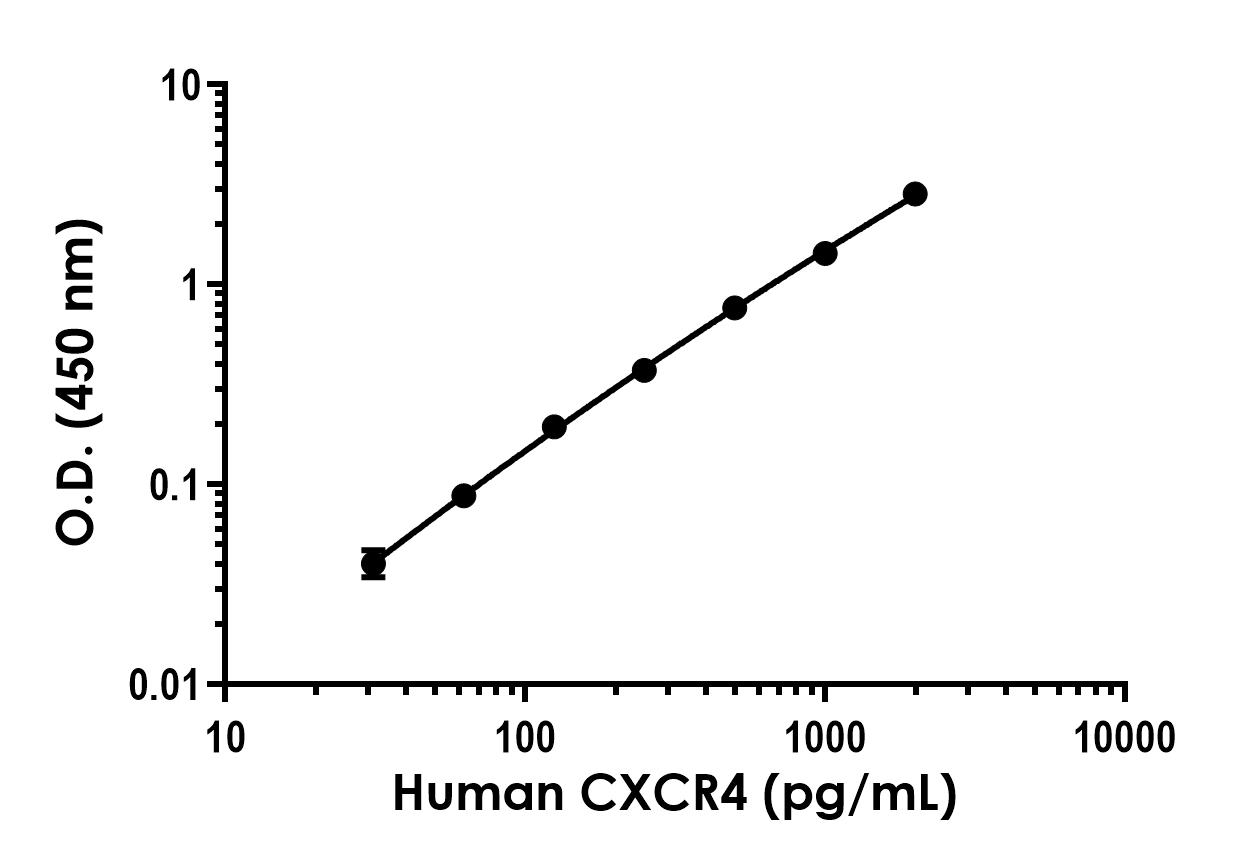

Example of human CXCR4 standard curve in 1X Cell Extraction Buffer PTR + Enhancer.

Example of human CXCR4 standard curve. Background-subtracted data values (mean +/- SD) are graphed.

Key facts

Detection method

Colorimetric

Sample types

Cell Lysate

Reacts with

Human

Assay type

Sandwich (quantitative)

Sensitivity

= 24.7 pg/mL

Range

31.25 - 2000 pg/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

style

left-column

Product details

Human CXCR4 SimpleStep ELISA® kit is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of CXCR4 protein in Cell Lysate. Quantitate Human CXCR4 with 24.7 pg/ml sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:

Single-wash protocol reduces assay time to 90 minutes or less
High sensitivity, specificity and reproducibility from superior antibodies
Fully validated in biological samples
96-wells plate breakable into 12 x 8 wells strips, available in 10-pack (10 x 96-well plates)

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

style

left-column

Precision

[ { "reproducibilityType": "Intra", "sample": "Extract", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "8" }, { "reproducibilityType": "Inter", "sample": "Extract", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "4.2" } ]

style

left-column

Recovery

[ { "sample": "Cell Lysate", "range": "102 - 105 %", "average": "= 104" } ]

style

left-column

What's included?

{ "values": { "10x96Tests": { "sellingSize": "10 x 96 Tests", "publicAssetCode":"ab323524-10x96Tests", "assetComponentDetails": [ { "size":"1 x 120 mL", "name":"Stop Solution", "number":"AB323524-CMP04" }, { "size":"20 x 1 Vial", "name":"Human CXCR4 Lyophilized Recombinant Protein", "number":"AB323524-CMP08" }, { "size":"10 x 600 µL", "name":"10X Human CXCR4 Detector Antibody", "number":"AB323524-CMP07" }, { "size":"10 x 600 µL", "name":"10X Human CXCR4 Capture Antibody", "number":"AB323524-CMP01" }, { "size":"1 x 200 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB323524-CMP13" }, { "size":"1 x 120 mL", "name":"TMB Development Solution", "number":"AB323524-CMP03" }, { "size":"10 x 1 Unit", "name":"Plate Seal", "number":"AB323524-CMP06" }, { "size":"10 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB323524-CMP05" }, { "size":"10 x 1 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB323524-CMP11" }, { "size":"10 x 500 µL", "name":"Denaturant", "number":"AB323524-CMP10" }, { "size":"10 x 6 mL", "name":"Antibody Diluent BAR", "number":"AB323524-CMP09" } ] }, "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab323524-1x96Tests", "assetComponentDetails": [ { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB323524-CMP04", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human CXCR4 Lyophilized Recombinant Protein", "number":"AB323524-CMP08", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human CXCR4 Detector Antibody", "number":"AB323524-CMP07", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human CXCR4 Capture Antibody", "number":"AB323524-CMP01", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB323524-CMP13", "productcode":"" }, { "size":"1 x 1 mL", "name":"50X Cell Extraction Enhancer Solution (ab193971)", "number":"AB323524-CMP12", "productcode":"" }, { "size":"1 x 12 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB323524-CMP02", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB323524-CMP03", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB323524-CMP06", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB323524-CMP05", "productcode":"" }, { "size":"1 x 10 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB323524-CMP11", "productcode":"" }, { "size":"1 x 500 µL", "name":"Denaturant", "number":"AB323524-CMP10", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent BAR", "number":"AB323524-CMP09", "productcode":"" } ] } } }

style

left-column

Properties and storage information

Shipped at conditions

Blue Ice

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

+4°C

Storage information

+4°C

style

left-column

style

left-column

Product protocols

style

left-column

Target data

Receptor for the C-X-C chemokine CXCL12/SDF-1 that transduces a signal by increasing intracellular calcium ion levels and enhancing MAPK1/MAPK3 activation (PubMed : 10452968, PubMed : 18799424, PubMed : 24912431, PubMed : 28978524). Involved in the AKT signaling cascade (PubMed : 24912431). Plays a role in regulation of cell migration, e.g. during wound healing (PubMed : 28978524). Acts as a receptor for extracellular ubiquitin; leading to enhanced intracellular calcium ions and reduced cellular cAMP levels (PubMed : 20228059). Binds bacterial lipopolysaccharide (LPS) et mediates LPS-induced inflammatory response, including TNF secretion by monocytes (PubMed : 11276205). Involved in hematopoiesis and in cardiac ventricular septum formation. Also plays an essential role in vascularization of the gastrointestinal tract, probably by regulating vascular branching and/or remodeling processes in endothelial cells. Involved in cerebellar development. In the CNS, could mediate hippocampal-neuron survival (By similarity).. (Microbial infection) Acts as a coreceptor (CD4 being the primary receptor) for human immunodeficiency virus-1/HIV-1 X4 isolates and as a primary receptor for some HIV-2 isolates. Promotes Env-mediated fusion of the virus (PubMed : 10074122, PubMed : 10756055, PubMed : 8849450, PubMed : 8929542, PubMed : 9427609).

See full target information CXCR4

style

left-column

style

left-column

websiteProtocolBooklet

style

right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.

For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
