AB320049

Human CXCR5 ELISA Kit

Be the first to review this product! Submit a review

|

(0 Publication)

Human CXCR5 ELISA Kit is a single-wash 90-min Simplestep used to quantify Human CXCR5 with a sensitivity of 9.9 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Different formats for different needs: 10x96 plates for bulk orders and 384-well plate for higher throughput
- Design your own immunoassay: we also offer the conjugation-ready antibody pair

View Alternative Names

CD185, BLR1, MDR15, CXCR5, C-X-C chemokine receptor type 5, CXC-R5, CXCR-5, Burkitt lymphoma receptor 1, Monocyte-derived receptor 15, MDR-15

4 Images
Sandwich ELISA - Human CXCR5 ELISA Kit (AB320049)
  • sELISA

Supplier Data

Sandwich ELISA - Human CXCR5 ELISA Kit (AB320049)

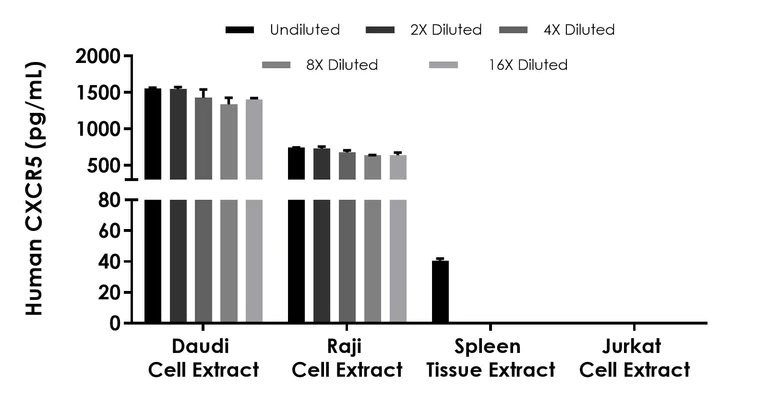

Interpolated concentration of native CXCR5 was measured in duplicate at different sample concentrations. Undiluted samples are Daudi cell extract 1,000 µg/mL, Raji cell extract 1,000 µg/mL, spleen tissue extract 500 µg/mL, and Jurkat cell extract 1,000 µg/mL. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in 1X Cell Extraction Buffer PTR.

Sandwich ELISA - Human CXCR5 ELISA Kit (AB320049)
  • sELISA

Supplier Data

Sandwich ELISA - Human CXCR5 ELISA Kit (AB320049)

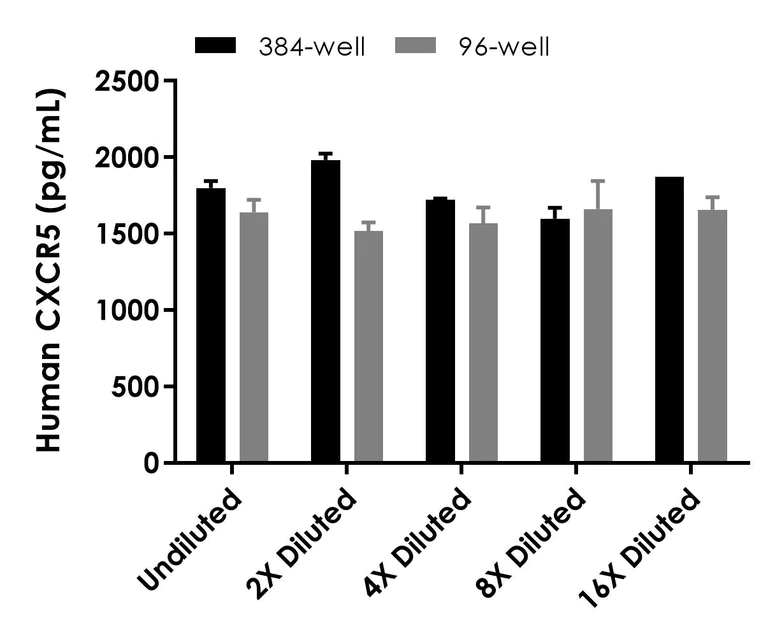

Interpolated concentration of native CXCR5 was measured in duplicate at different sample concentrations in 96-well vs. 384-well plates. Undiluted samples are 1,000 µg/mL Daudi cell extract. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in 1X Cell Extraction Buffer PTR.

Sandwich ELISA - Human CXCR5 ELISA Kit (AB320049)
  • sELISA

Supplier Data

Sandwich ELISA - Human CXCR5 ELISA Kit (AB320049)

Example of human CXCR5 standard curve in 96-well vs. 384-well plate. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Human CXCR5 ELISA Kit (AB320049)
  • sELISA

Supplier Data

Sandwich ELISA - Human CXCR5 ELISA Kit (AB320049)

Example of human CXCR5 standard curve. Background-subtracted data values (mean +/- SD) are graphed.

Key facts

Detection method

Colorimetric

Sample types

Cell Lysate, Tissue Extracts

Reacts with

Human

Assay type

Sandwich (quantitative)

Sensitivity

= 9.9 pg/mL

Range

31.25 - 2000 pg/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column

Product details

Human CXCR5 SimpleStep ELISA® kit is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of CXCR5 protein in Cell Lysate and Tissue Extracts. Quantitate Human CXCR5 with 9.9 pg/ml sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:

-Single-wash protocol reduces assay time to 90 minutes or less
-High sensitivity, specificity and reproducibility from superior antibodies
-Fully validated in biological samples
-96-wells plate breakable into 12 x 8 wells strips, available in 10-pack (10 x 96-well plates)
-Also available in a fully validated 384-well format.

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

style
left-column

Precision

[ { "reproducibilityType": "Intra", "sample": "Extract", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "6.9" }, { "reproducibilityType": "Inter", "sample": "Extract", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "11.3" } ]
style
left-column

Recovery

[ { "sample": "Cell Lysate", "range": "103 - 116 %", "average": "= 108" }, { "sample": "Tissue Extracts", "range": "83 - 88 %", "average": "= 86" } ]
style
left-column

What's included?

{ "values": { "10x96Tests": { "sellingSize": "10 x 96 Tests", "publicAssetCode":"ab320049-10x96Tests", "assetComponentDetails": [ { "size":"1 x 120 mL", "name":"Stop Solution", "number":"AB320049-CMP09" }, { "size":"1 x 120 mL", "name":"TMB Development Solution", "number":"AB320049-CMP08" }, { "size":"10 x 96 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB320049-CMP10" }, { "size":"10 x 600 µL", "name":"10X Human CXCR5 Detector Antibody", "number":"AB320049-CMP02" }, { "size":"2 x 50 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB320049-CMP05" }, { "size":"10 x 6 mL", "name":"Antibody Diluent CPR2", "number":"AB320049-CMP04" }, { "size":"20 x 1 Vial", "name":"Human CXCR5 Lyophilized Recombinant Protein", "number":"AB320049-CMP03" }, { "size":"10 x 1 Unit", "name":"Plate Seal", "number":"AB320049-CMP11" }, { "size":"1 x 200 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB320049-CMP06" }, { "size":"10 x 600 µL", "name":"10X Human CXCR5 Capture Antibody", "number":"AB320049-CMP01" } ] }, "1x384Tests": { "sellingSize": "1 x 384 Tests", "publicAssetCode":"ab320049-1x384Tests", "assetComponentDetails": [ { "size":"2 x 12 mL", "name":"Stop Solution", "number":"AB320049-CMP09" }, { "size":"2 x 12 mL", "name":"TMB Development Solution", "number":"AB320049-CMP08" }, { "size":"1 x 384 Unit", "name":"384 well CaptSure™ microplates", "number":"AB320049-CMP12" }, { "size":"1 x 6 mL", "name":"Antibody Diluent CPR2", "number":"AB320049-CMP04" }, { "size":"2 x 1 Vial", "name":"Human CXCR5 Lyophilized Recombinant Protein", "number":"AB320049-CMP03" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB320049-CMP06" }, { "size":"1 x 50 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB320049-CMP05" }, { "size":"1 x 600 µL", "name":"10X Human CXCR5 Detector Antibody", "number":"AB320049-CMP02" }, { "size":"1 x 600 µL", "name":"10X Human CXCR5 Capture Antibody", "number":"AB320049-CMP01" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB320049-CMP11" } ] }, "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab320049-1x96Tests", "assetComponentDetails": [ { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB320049-CMP09", "productcode":"" }, { "size":"1 x 12 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB320049-CMP07", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB320049-CMP08", "productcode":"" }, { "size":"1 x 96 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB320049-CMP10", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB320049-CMP11", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB320049-CMP06", "productcode":"" }, { "size":"1 x 10 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB320049-CMP05", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent CPR2", "number":"AB320049-CMP04", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human CXCR5 Detector Antibody", "number":"AB320049-CMP02", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human CXCR5 Lyophilized Recombinant Protein", "number":"AB320049-CMP03", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human CXCR5 Capture Antibody", "number":"AB320049-CMP01", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

CXCR5 also known as CD185 is a chemokine receptor with a mass of approximately 43 kDa. It is part of the G protein-coupled receptor family and is widely expressed on follicular B helper T (Tfh) cells B cells and a subset of circulating blood cells. CXCR5 is recognized as a marker for Tfh cells which are critical for the function and maturation of B cells within germinal centers. In tissues CXCR5 expression appears prominently in regions where immune cell interactions facilitate immune and inflammatory responses.
Biological function summary

CXCR5 serves a significant role in directing B cells and Tfh cells to lymphoid tissues by interacting with its ligand CXCL13. This interaction involves recruitment and organization of B cells into follicles within secondary lymphoid organs. The presence of CXCR5 allows B cells and Tfh cells to navigate the follicular zones efficiently enhance antigen-specific immune responses and contribute to long-lived humoral immunity. CXCR5 functions as part of a complex that includes signaling pathways influencing cellular movements and location.

Pathways

CXCR5 plays a significant part in the immune system's trafficking pathways particularly within the crosstalk between chemokines and their receptors. CXCR5 expression facilitates the CXC chemokine pathway which important for positioning immune cells within lymphoid organs. Additionally CXCR5 interacts with proteins such as CXCL13 working together to pattern the architecture of germinal centers where affinity maturation and class switching of antibodies occur critical processes in adaptive immunity.

CXCR5 has been implicated in autoimmune diseases and certain lymphomas. For example aberrant CXCR5 expression is linked to the pathogenesis of diseases like systemic lupus erythematosus (SLE) where it might contribute to immune dysregulation and chronic inflammation. In the context of certain lymphomas CXCR5's role in lymphoid organ architecture and cell migration becomes even more relevant. Its expression often parallels the presence of CXCL13 hinting at a network of interactions promoting tumor survival and growth within lymphoid landscapes. Understanding these relationships can offer insight into developing therapeutic strategies potentially involving CXCR5 inhibitors or anti-CXCR5 antibodies to address these diseases.
style
left-column

Product protocols

style
left-column

Target data

Cytokine receptor that binds to B-lymphocyte chemoattractant (BLC). Involved in B-cell migration into B-cell follicles of spleen and Peyer patches but not into those of mesenteric or peripheral lymph nodes. May have a regulatory function in Burkitt lymphoma (BL) lymphomagenesis and/or B-cell differentiation.
See full target information CXCR5
