AB326397

Human Dystrophin ELISA Kit, Chemiluminescent

Be the first to review this product! Submit a review

|

(0 Publication)

Human Dystrophin ELISA Kit, Chemiluminescent is a 55-min single-wash SimpleStep Ignite™ ELISA for the rapid quantification of Human Dystrophin with higher sensitivity and broader measuring range.

- Single 30 min incubation and single-wash step for results in less than an hour.
- Chemiluminescent detection allows a broad dynamic range: 13.72 - 30000 pg/ml with a sensitivity of 9.91pg/mL.
- Design your own immunoassay: we also offer the conjugation-ready antibody pair.
-Patent pending

View Alternative Names

Dystrophin, DMD

4 Images
Sandwich ELISA - Human Dystrophin ELISA Kit, Chemiluminescent (AB326397)
  • sELISA

Lab

Sandwich ELISA - Human Dystrophin ELISA Kit, Chemiluminescent (AB326397)

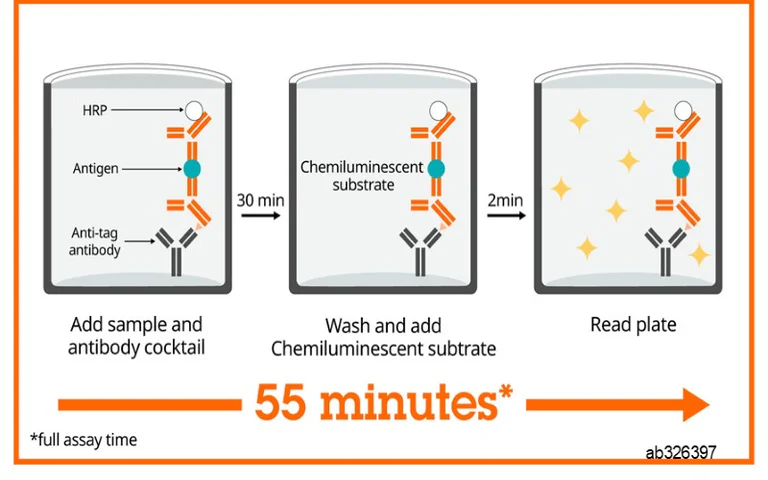

SimpleStep ELISA® Ignite technology allows the formation of the antibody-antigen complex in one single step, reducing assay time to 55 minutes. Add samples or standards and antibody mix to wells all at once, incubate, wash, and add your final substrate. See protocol for a detailed step-by-step guide.

Sandwich ELISA - Human Dystrophin ELISA Kit, Chemiluminescent (AB326397)
  • sELISA

Lab

Sandwich ELISA - Human Dystrophin ELISA Kit, Chemiluminescent (AB326397)

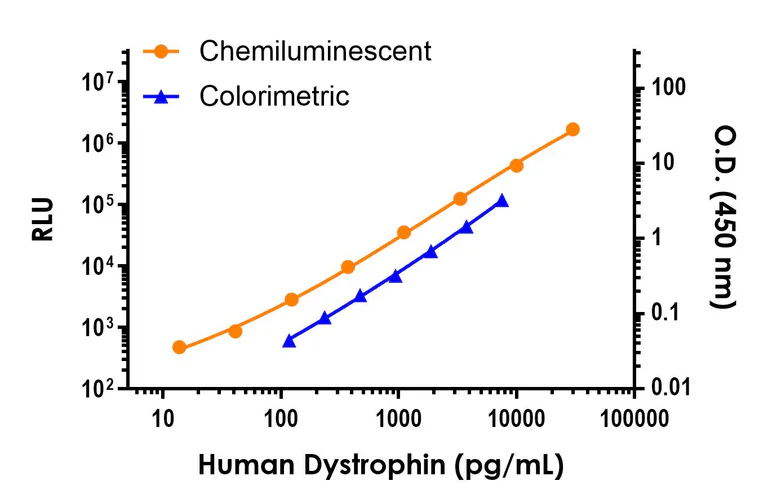

Standard curve comparison between the Chemiluminescent Human Dystrophin SimpleStep ELISA and colorimetric Human Dystrophin SimpleStep ELISA (ab283541) in 1X Cell Extraction Buffer PTR. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Human Dystrophin ELISA Kit, Chemiluminescent (AB326397)
  • sELISA

Lab

Sandwich ELISA - Human Dystrophin ELISA Kit, Chemiluminescent (AB326397)

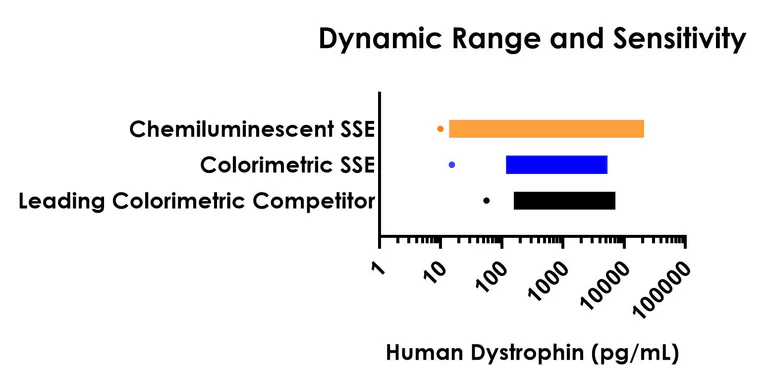

Dynamic range comparison between the Chemiluminescent Human Dystrophin SimpleStep ELISA, colorimetric Human Dystrophin SimpleStep ELISA (ab283541), and leading colorimetric competitor. The Chemiluminescent SimpleStep ELISA kit shows increased sensitivity and increased dynamic range.

Sandwich ELISA - Human Dystrophin ELISA Kit, Chemiluminescent (AB326397)
  • sELISA

Supplier Data

Sandwich ELISA - Human Dystrophin ELISA Kit, Chemiluminescent (AB326397)

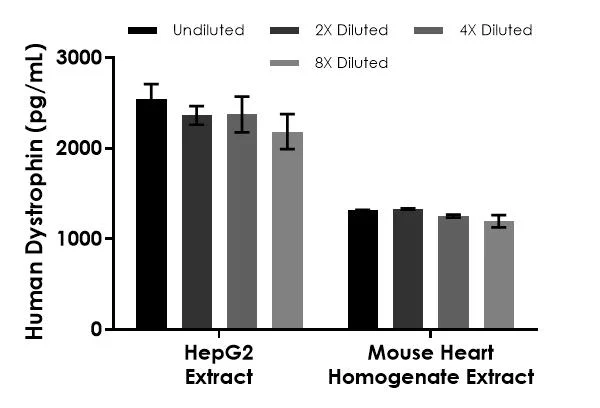

Interpolated concentrations of native Dystrophin in human HepG2 cell extract and mouse heart homogenate extract based on 250 µg/mL and 500 µg/mL extract loads respectively.

The concentrations of Dystrophin were measured in duplicate and interpolated from the Dystrophin standard curve and corrected for sample dilution. The interpolated dilution factor corrected values are plotted (mean +/- SD n=2). The mean Dystrophin concentration was determined to be 2365.64 pg/mL in HepG2 extract and 1273.63 pg/mL in mouse heart homogenate extract.

Key facts

Detection method

Luminescent

Sample types

Cell Lysate, Tissue Extracts

Reacts with

Human

Assay type

Sandwich

Results type

Quantitative

Sensitivity

= 9.91 pg/mL

Range

13.72 - 30000 pg/mL

Assay time

55m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column

Product details

Human Dystrophin ELISA Kit, Chemiluminescent (ab326397) is a rapid single-wash sandwich 55-min ELISA to measure Human Dystrophin in Cell Lysate, Tissue Extracts with a sensitivity of 9.91 pg/mL.

How the assay works

Human Dystrophin ELISA Kit, Chemiluminescent (ab326397) SimpleStep Ignite™ ELISA employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step during a 30 min only incubation, significantly reducing assay time. By utilizing a chemiluminscent detection method this improves the sensitivity and dynamic range when compared to traditional colorimetric ELISAs.

Assay Specificity

Our SimpleStep Ignite™ ELISA kits use recombinant monoclonal antibodies rigorously validated to ensure the highest level of consistency and reproducibility, improved sensitivity and specificity and ease of scalability and security of supply.
Please refer to our protocol booklet for more details.

Human Dystrophin (ab326397) protocol summary

1. Mix : add samples / standards to the wells together with the capture and detector antibody cocktail. Incubate 30 min at room temperature
2. Wash
3. Add ChemiHRP development solution - incubate for 2 min
4. Read the results on a plate reader capable of luminescence detection

Design your own immunoassay

We offer the antibody pair used in this kit in a BSA and Azide-free format, ready for conjugation:

- Anti-DMD antibody [EPR23336-271] - BSA and Aside free (Capture) ab273544
- Anti-DMD antibody [EPR23336-235] - BSA and Aside free (Detector) ab273543
style
left-column

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab326397-1x96Tests", "assetComponentDetails": [ { "size":"1 x 600 µL", "name":"10X Human Dystrophin Capture Antibody", "number":"AB326397-CMP01", "productcode":"" }, { "size":"1 x 3 mL", "name":"ChemiHRP Reagent A", "number":"AB326397-CMP08", "productcode":"" }, { "size":"1 x 1 mL", "name":"50X Cell Extraction Enhancer Solution (ab193971)", "number":"AB326397-CMP06", "productcode":"" }, { "size":"1 x 10 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB326397-CMP05", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human Dystrophin Detector Antibody", "number":"AB326397-CMP02", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB326397-CMP11", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB326397-CMP07", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated Black 96-Well Microplate", "number":"AB326397-CMP10", "productcode":"" }, { "size":"1 x 3 mL", "name":"ChemiHRP Reagent B", "number":"AB326397-CMP09", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent CPR2", "number":"AB326397-CMP04", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human Dystrophin Lyophilized Recombinant Protein", "number":"AB326397-CMP03", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C
style
left-column
style
left-column

Product protocols

style
left-column

Target data

Anchors the extracellular matrix to the cytoskeleton via F-actin. Ligand for dystroglycan. Component of the dystrophin-associated glycoprotein complex which accumulates at the neuromuscular junction (NMJ) and at a variety of synapses in the peripheral and central nervous systems and has a structural function in stabilizing the sarcolemma. Also implicated in signaling events and synaptic transmission.
See full target information DMD
