AB126440

Human EGFR ELISA Kit (pY1086)

Be the first to review this product! Submit a review

|

(0 Publication)

Human EGFR ELISA Kit (pY1086) is a Semi-quantitative ELISA for the measurement of Human EGFR (pY1086) in Human in Cell/Tissue Extracts samples.

View Alternative Names

ERBB, ERBB1, HER1, EGFR, Epidermal growth factor receptor, Proto-oncogene c-ErbB-1, Receptor tyrosine-protein kinase erbB-1

5 Images
Sandwich ELISA - Human EGFR ELISA Kit (pY1086) (AB126440)
  • sELISA

Supplier Data

Sandwich ELISA - Human EGFR ELISA Kit (pY1086) (AB126440)

The A431 cells were treated with 100 ng/ml recombinant human EGF for 20 minutes to induce phosphorylation of EGFR. Serial dilutions of lysates were analyzed in this ELISA.

Sandwich ELISA - Human EGFR ELISA Kit (pY1086) (AB126440)
  • sELISA

Supplier Data

Sandwich ELISA - Human EGFR ELISA Kit (pY1086) (AB126440)

A431 cells were treated with recombinant human EGF at 37°C for 20 min. Solubilize cells at 4 x 107 cells/ml in Cell Lysate Buffer. Serial dilutions of lysates were analyzed using ab126440.

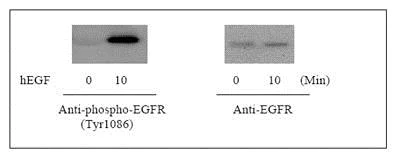

Western blot - Human EGFR ELISA Kit (pY1086) (AB126440)
  • WB

Supplier Data

Western blot - Human EGFR ELISA Kit (pY1086) (AB126440)

A431 cells were treated or untreated with 100 ng/ml recombinant human EGF for 10 min. Cell lysates were analyzed using Western Blot.

false

Western blot - Human EGFR ELISA Kit (pY1086) (AB126440)
  • WB

Supplier Data

Western blot - Human EGFR ELISA Kit (pY1086) (AB126440)

The A431 cells were treated with 100 ng/ml recombinant human EGF for 20 minutes to induce phosphorylation of EGFR. Serial dilutions of lysates were analyzed by Western blot. Immunoblots were incubated with anti-phospho-EGFR (Y1086).

false

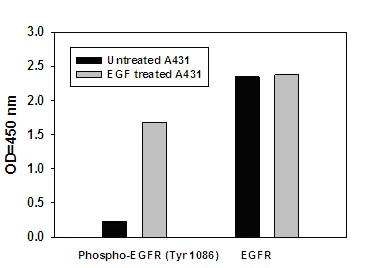

Sandwich ELISA - Human EGFR ELISA Kit (pY1086) (AB126440)
  • sELISA

Supplier Data

Sandwich ELISA - Human EGFR ELISA Kit (pY1086) (AB126440)

A431 cells were treated or untreated with 100 ng/ml recombinant human EGF for 10 min. Cell lysates were analyzed using this phosphoELISA.

Key facts

Detection method

Colorimetric

Sample types

Cell Lysate

Reacts with

Human

Assay type

Semi-quantitative

Assay time

5h

Assay Platform

Microplate

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "ELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column
style
left-column

Product details

Human EGFR ELISA Kit (pY1086) (ab126440) is a very rapid, convenient and sensitive assay kit that can monitor the activation or function of important biological pathways in cell lysates. By determining phosphorylated EGFR protein in your experimental model system, you can verify pathway activation in your cell lysates. You can simultaneously measure numerous different cell lysates without spending excess time and effort in performing a Western Blotting analysis.

This sandwich ELISA kit is an in vitro enzyme-linked immunosorbent assay for the measurement of human phospho-EGFR (Y1086). An anti-EGFR antibody has been coated onto a 96-well plate. Samples are pipetted into the wells and EGFR present in a sample is bound to the wells by the immobilized antibody. The wells are washed and anti-EGFR (Y1086) antibody is used to detect phosphorylated EGFR (Y1086). After washing away unbound antibody, HRP-conjugated anti-Rabbit IgG is pipetted to the wells. The wells are again washed, a TMB substrate solution is added to the wells and color develops in proportion to the amount of EGFR (Y1086) bound. The Stop Solution changes the color from blue to yellow, and the intensity of the color is measured at 450 nm.

style
left-column

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab126440-1x96Tests", "assetComponentDetails": [ { "size":"1 x 25 mL", "name":"20X Wash Buffer", "number":"AB126440-CMP03", "productcode":"" }, { "size":"1 x 5 mL", "name":"2X Cell Lysis Buffer", "number":"AB126440-CMP09", "productcode":"" }, { "size":"1 x 8 mL", "name":"Stop Solution", "number":"AB126440-CMP07", "productcode":"" }, { "size":"1 x 1 Unit", "name":"EGFR Microplate (12 strips x 8 wells) coated with monoclonal anti-EGFR antibody", "number":"AB126440-CMP01", "productcode":"" }, { "size":"1 x 1 Vial", "name":"Positive Control: lyophilized powder from A431 cell lysate", "number":"AB126440-CMP02", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Anti-phospho-EGFR (Y1086)", "number":"AB126440-CMP05", "productcode":"" }, { "size":"1 x 25 µL", "name":"500X HRP-conjugated anti-rabbit IgG", "number":"AB126440-CMP04", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB One-Step Substrate Reagent", "number":"AB126440-CMP08", "productcode":"" }, { "size":"1 x 15 mL", "name":"5X Assay Diluent", "number":"AB126440-CMP06", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
-20°C
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

EGFR or Epidermal Growth Factor Receptor is a transmembrane glycoprotein that acts as a receptor for members of the epidermal growth factor family. Known alternatively as ErbB1 or HER1 this receptor has an approximate molecular weight of 170 kDa. EGFR is expressed in various cell types notably on epithelial cells and can influence multiple cellular processes through its kinase activity. It participates in the regulation of cell growth multiplication and survival by activating its kinase domain upon ligand binding.
Biological function summary

The EGFR protein plays an important role in cellular communication and signaling processes. EGFR pairs with other receptor family members to form active dimers or even higher-order complexes which in turn initiate intracellular signaling cascades. Through these complexes EGFR influences many processes including cell differentiation and repair. This function of EGFR makes it an integral part of mammalian biology affecting how cells respond to their environment by mediating changes in gene expression.

Pathways

EGFR is a central player in the MAPK and PI3K/Akt signaling pathways. Alongside other protein partners like KRAS and PI3 kinase it contributes to transmitting signals from the cell surface to the nucleus affecting gene transcription and cell behavior. These pathways are important for normal cell growth and division and aberrations in these pathways can lead to excessive or insufficient cell proliferation.

EGFR is pertinent to cancer biology including non-small cell lung cancer and glioblastoma where mutations or overexpression of the receptor frequently occur. It connects to proteins such as PTEN and BRAF which influence tumor progression and response to targeted therapies. EGFR's involvement in these disorders highlights its significance as a therapeutic target since it can be manipulated to alter disease progression.
style
left-column

Product protocols

style
left-column

Target data

The protein expressed by the EGFR gene functions as a receptor tyrosine kinase, binding with ligands from the EGF family to activate several signaling cascades that translate extracellular signals into cellular responses. Known ligands include EGF, TGFA/TGF-alpha, AREG, epigen, BTC/betacellulin, epiregulin, and HBEGF. Ligand binding triggers receptor dimerization and autophosphorylation, recruiting adapter proteins like GRB2 and activating complex downstream signaling pathways such as RAS-RAF-MEK-ERK, PI3 kinase-AKT, PLCgamma-PKC, and STATs, and possibly the NF-kappa-B cascade. EGFR also directly phosphorylates proteins like RGS16 and MUC1, influencing various cellular processes including its coupling with G protein-coupled receptor signaling and cell migration through interaction with CCDC88A/GIV. Isoform 2 of EGFR may act as an antagonist to EGF actions. In microbial infection, EGFR also serves as a receptor facilitating hepatitis C virus (HCV) entry into hepatocytes by promoting CD81-CLDN1 receptor complexes and enhancing membrane fusion with HCV envelope glycoproteins. This supplementary information is collated from multiple sources and compiled automatically.
See full target information EGFR phospho Y1086
