AB326411

Human ErbB2 / HER2 ELISA Kit, Chemiluminescent

Be the first to review this product! Submit a review

|

(0 Publication)

Human ErbB2 / HER2 ELISA Kit, Chemiluminescent is a 55-min single-wash SimpleStep Ignite™ ELISA for the rapid quantification of Human ErbB2 / HER2 with higher sensitivity and broader measuring range.

- Single 30 min incubation and single-wash step for results in less than an hour.
- Chemiluminescent detection allows a broad dynamic range: 6.86 - 5000 pg/ml with a sensitivity of 3pg/mL.
- Design your own immunoassay: we also offer the conjugation-ready antibody pair.
-Patent pending

View Alternative Names

CD340, HER2, MLN19, NEU, NGL, ERBB2, Receptor tyrosine-protein kinase erbB-2, Metastatic lymph node gene 19 protein, Proto-oncogene Neu, Proto-oncogene c-ErbB-2, Tyrosine kinase-type cell surface receptor HER2, p185erbB2, MLN 19

6 Images
Sandwich ELISA - Human ErbB2 / HER2 ELISA Kit, Chemiluminescent (AB326411)
  • sELISA

Lab

Sandwich ELISA - Human ErbB2 / HER2 ELISA Kit, Chemiluminescent (AB326411)

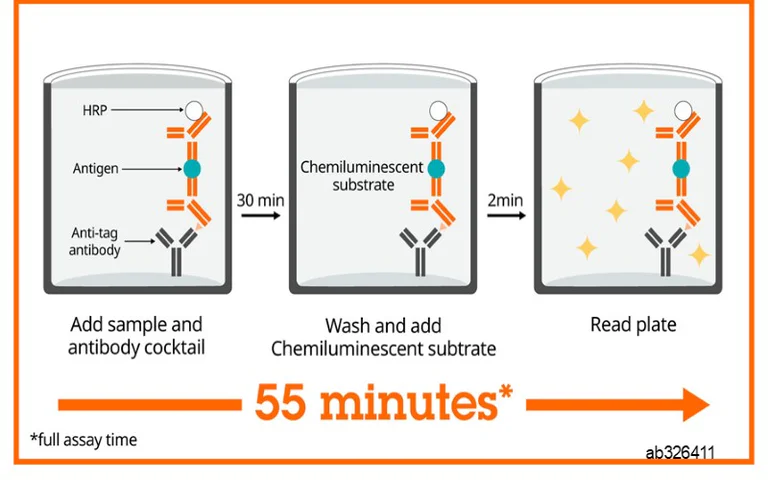

SimpleStep ELISA® Ignite technology allows the formation of the antibody-antigen complex in one single step, reducing assay time to 55 minutes. Add samples or standards and antibody mix to wells all at once, incubate, wash, and add your final substrate. See protocol for a detailed step-by-step guide.

Sandwich ELISA - Human ErbB2 / HER2 ELISA Kit, Chemiluminescent (AB326411)
  • sELISA

Supplier Data

Sandwich ELISA - Human ErbB2 / HER2 ELISA Kit, Chemiluminescent (AB326411)

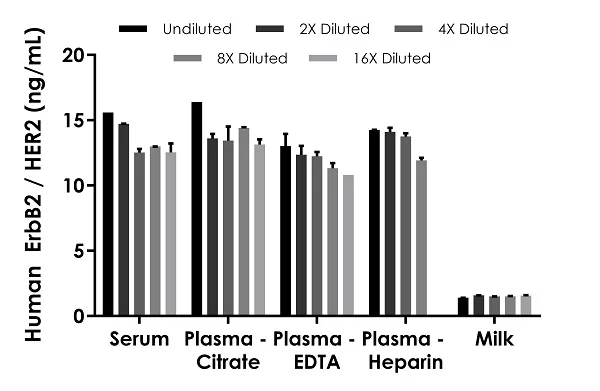

Interpolated concentrations of native ErbB2 / HER2 in human serum and plasma. The concentrations of ErbB2 / HER2 were measured in duplicate interpolated from the ErbB2 / HER2 standard curve and corrected for sample dilution. Undiluted samples are as follows : serum 10% plasma (citrate) 10% plasma (EDTA) 10% plasma (heparin) 5% and milk 50%. The interpolated dilution factor corrected values are plotted (mean +/- SD n=2). The mean ErbB2 / HER2 concentration were determined to be 13.67 ng/mL in serum 14.20 ng/mL in plasma (citrate) 11.95 ng/mL in plasma (EDTA) 13.51 ng/mL in plasma (heparin) and 1.51 ng/mL in milk.

Sandwich ELISA - Human ErbB2 / HER2 ELISA Kit, Chemiluminescent (AB326411)
  • sELISA

Supplier Data

Sandwich ELISA - Human ErbB2 / HER2 ELISA Kit, Chemiluminescent (AB326411)

Serum from ten individual healthy human female donors was measured in duplicate

Sandwich ELISA - Human ErbB2 / HER2 ELISA Kit, Chemiluminescent (AB326411)
  • sELISA

Lab

Sandwich ELISA - Human ErbB2 / HER2 ELISA Kit, Chemiluminescent (AB326411)

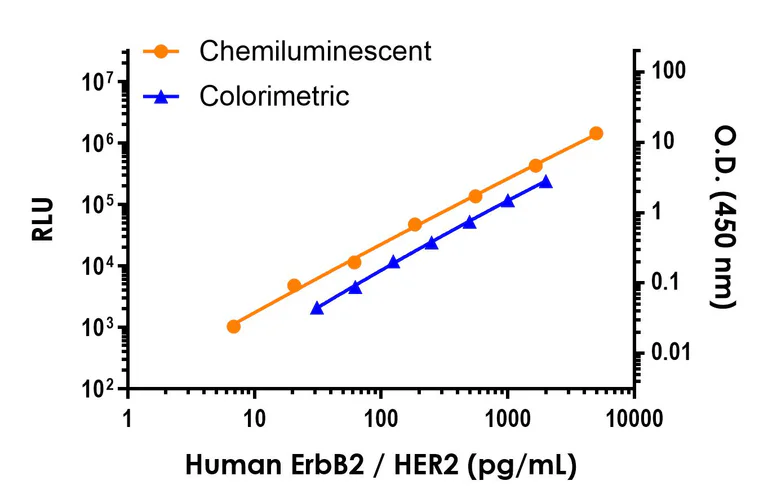

Standard curve comparison between the Chemiluminescent Human ErbB2 / HER2 SimpleStep ELISA and colorimetric Human ErbB2 / HER2 SimpleStep ELISA (ab283881) in Sample Diluent NS. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Human ErbB2 / HER2 ELISA Kit, Chemiluminescent (AB326411)
  • sELISA

Lab

Sandwich ELISA - Human ErbB2 / HER2 ELISA Kit, Chemiluminescent (AB326411)

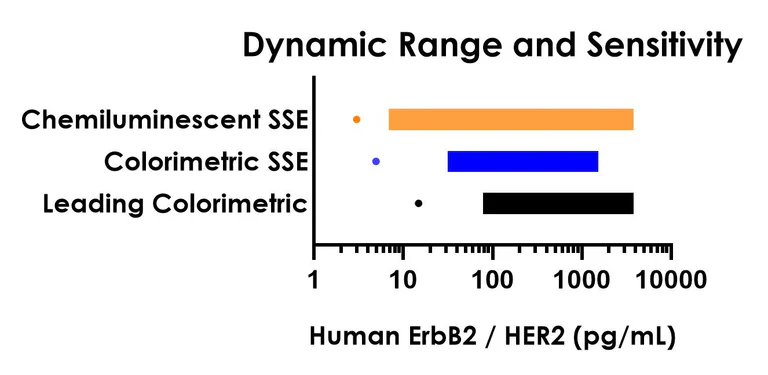

Dynamic range comparison between the Chemiluminescent Human ErbB2 / HER2 SimpleStep ELISA, colorimetric Human ErbB2 / HER2 SimpleStep ELISA (ab283881), and leading colorimetric competitor. The Chemiluminescent SimpleStep ELISA kit shows increased sensitivity and increased dynamic range.

Sandwich ELISA - Human ErbB2 / HER2 ELISA Kit, Chemiluminescent (AB326411)
  • sELISA

Supplier Data

Sandwich ELISA - Human ErbB2 / HER2 ELISA Kit, Chemiluminescent (AB326411)

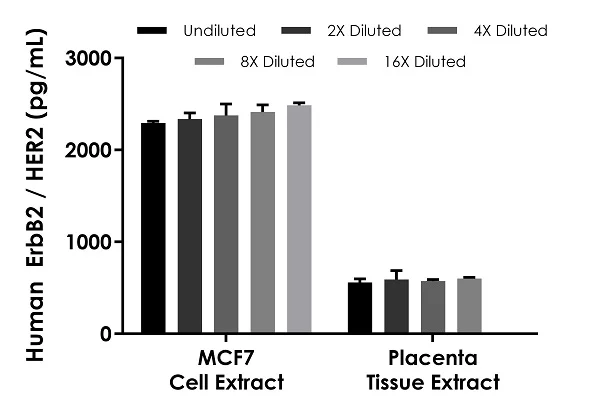

Interpolated concentrations of native ErbB2 / HER2 in human MCF7 cell extract based on a 125 µg/mL extract load and placenta tissue extract based on a 62.5 µg/mL extract load.

The concentrations of ErbB2 / HER2 were measured in duplicate and interpolated from the ErbB2 / HER2 standard curve and corrected for sample dilution. The interpolated dilution factor corrected values are plotted (mean +/- SD n=2). The mean ErbB2 / HER2 concentration was determined to be 2380.97 pg/mL in MCF7 cell extract and 581.18 pg/mL in placenta tissue extract.

Key facts

Detection method

Luminescent

Sample types

Serum, Citrate plasma, EDTA Plasma, Heparin Plasma, Cell culture media, Milk, Cell Extract, Tissue Extracts

Reacts with

Human

Assay type

Sandwich

Results type

Quantitative

Sensitivity

= 3 pg/mL

Range

6.86 - 5000 pg/mL

Assay time

55m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column

Product details

Human ErbB2 / HER2 ELISA Kit, Chemiluminescent (ab326411) is a rapid single-wash sandwich 55-min ELISA to measure Human ErbB2 / HER2 in Serum, Plasma – Citrate, Plasma – EDTA, Plasma – Heparin, Cell Culture Media, Milk, Cell Extract, Tissue Extract with a sensitivity of 3 pg/mL.

How the assay works

Human ErbB2 / HER2 ELISA Kit, Chemiluminescent (ab326411) SimpleStep Ignite™ ELISA employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step during a 30 min only incubation, significantly reducing assay time. By utilizing a chemiluminscent detection method this improves the sensitivity and dynamic range when compared to traditional colorimetric ELISAs.

Assay Specificity

Our SimpleStep Ignite™ ELISA kits use recombinant monoclonal antibodies rigorously validated to ensure the highest level of consistency and reproducibility, improved sensitivity and specificity and ease of scalability and security of supply.
Please refer to our protocol booklet for more details.

Human ErbB2 / HER2 (ab326411) protocol summary

1. Mix : add samples / standards to the wells together with the capture and detector antibody cocktail. Incubate 30 min at room temperature
2. Wash
3. Add ChemiHRP development solution - incubate for 2 min
4. Read the results on a plate reader capable of luminescence detection

Design your own immunoassay

We offer the antibody pair used in this kit in a BSA and Azide-free format, ready for conjugation:

- Anti-ERBB2 antibody [EPR23953-131] - BSA and Aside free (Capture) ab281274
- Anti-ERBB2 antibody [EPR23953-20] - BSA and Aside free (Detector) ab281124
style
left-column

Precision

[ { "reproducibilityType": "Intra", "sample": "Serum", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 3.1" }, { "reproducibilityType": "Inter", "sample": "Serum", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 3.8" } ]
style
left-column

Recovery

[ { "sample": "Milk", "range": "97 - 104 %", "average": "= 100" }, { "sample": "Serum", "range": "84 - 94 %", "average": "= 87" }, { "sample": "EDTA Plasma", "range": "88 - 104 %", "average": "= 95" }, { "sample": "Heparin Plasma", "range": "81 - 105 %", "average": "= 91" }, { "sample": "Citrate plasma", "range": "80 - 112 %", "average": "= 98" } ]
style
left-column

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab326411-1x96Tests", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB326411-CMP12", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human ErbB2 / HER2 Lyophilized Recombinant Protein", "number":"AB326411-CMP03", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated Black 96-Well Microplate", "number":"AB326411-CMP11", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human ErbB2 / HER2 Detector Antibody", "number":"AB326411-CMP02", "productcode":"" }, { "size":"1 x 10 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB326411-CMP05", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human ErbB2 / HER2 Capture Antibody", "number":"AB326411-CMP01", "productcode":"" }, { "size":"1 x 3 mL", "name":"ChemiHRP Reagent A", "number":"AB326411-CMP09", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB326411-CMP08", "productcode":"" }, { "size":"1 x 3 mL", "name":"ChemiHRP Reagent B", "number":"AB326411-CMP10", "productcode":"" }, { "size":"1 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB326411-CMP07", "productcode":"" }, { "size":"1 x 1 mL", "name":"50X Cell Extraction Enhancer Solution (ab193971)", "number":"AB326411-CMP06", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 4BI", "number":"AB326411-CMP04", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C
style
left-column
style
left-column

Product protocols

style
left-column

Target data

Protein tyrosine kinase that is part of several cell surface receptor complexes, but that apparently needs a coreceptor for ligand binding. Essential component of a neuregulin-receptor complex, although neuregulins do not interact with it alone. GP30 is a potential ligand for this receptor. Regulates outgrowth and stabilization of peripheral microtubules (MTs). Upon ERBB2 activation, the MEMO1-RHOA-DIAPH1 signaling pathway elicits the phosphorylation and thus the inhibition of GSK3B at cell membrane. This prevents the phosphorylation of APC and CLASP2, allowing its association with the cell membrane. In turn, membrane-bound APC allows the localization of MACF1 to the cell membrane, which is required for microtubule capture and stabilization.. In the nucleus is involved in transcriptional regulation. Associates with the 5'-TCAAATTC-3' sequence in the PTGS2/COX-2 promoter and activates its transcription. Implicated in transcriptional activation of CDKN1A; the function involves STAT3 and SRC. Involved in the transcription of rRNA genes by RNA Pol I and enhances protein synthesis and cell growth.
See full target information ERBB2
