AB325625

Human Factor IX/PTC ELISA Kit, Chemiluminescent

Be the first to review this product! Submit a review

|

(0 Publication)

Human Factor IX/PTC ELISA Kit, Chemiluminescent is a 55 min single-wash SimpleStep Ignite™ ELISA for the rapid quantification of Human Factor IX/PTC with higher sensitivity and broader measuring range.

- Single 30 min incubation and single -wash step for results in less than an hour
- Chemiluminescent detection allows a broad dynamic range : 13.72 - 30000 pg/ml with a sensitivity of 5.9 pg/mL
- Design your own immunoassay: we also offer the conjugation-ready antibody pair
- Patent pending

View Alternative Names

Coagulation factor IX, Christmas factor, Plasma thromboplastin component, PTC, F9

5 Images
Sandwich ELISA - Human Factor IX/PTC ELISA Kit, Chemiluminescent (AB325625)
  • sELISA

Lab

Sandwich ELISA - Human Factor IX/PTC ELISA Kit, Chemiluminescent (AB325625)

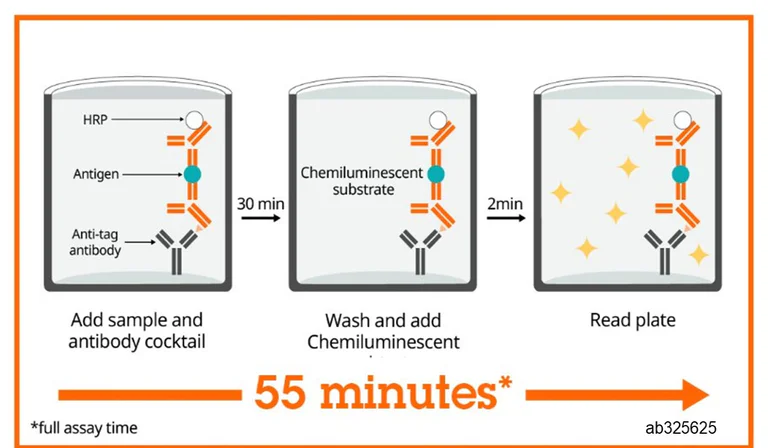

SimpleStep ELISA® Ignite technology allows the formation of the antibody-antigen complex in one single step, reducing assay time to 55 minutes. Add samples or standards and antibody mix to wells all at once, incubate, wash, and add your final substrate. See protocol for a detailed step-by-step guide.

Sandwich ELISA - Human Factor IX/PTC ELISA Kit, Chemiluminescent (AB325625)
  • sELISA

Lab

Sandwich ELISA - Human Factor IX/PTC ELISA Kit, Chemiluminescent (AB325625)

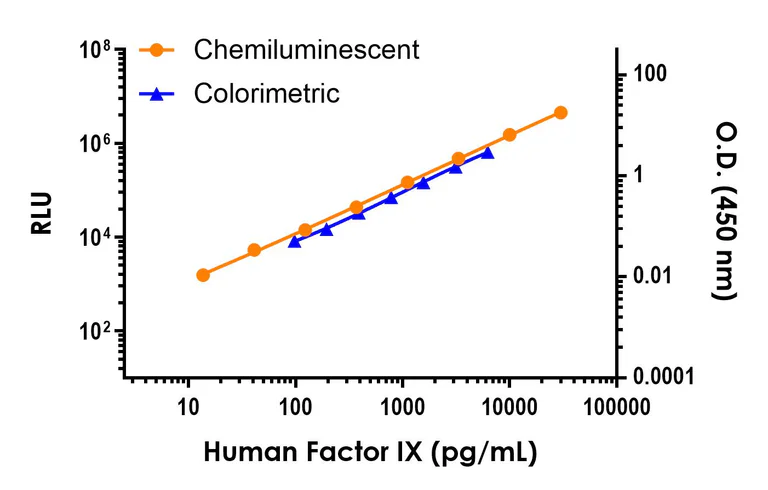

Standard curve comparison between the Chemiluminescent Human Factor IX SimpleStep ELISA and colorimetric Human Factor IX SimpleStep ELISA (ab300307) in Sample Diluent NS. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Human Factor IX/PTC ELISA Kit, Chemiluminescent (AB325625)
  • sELISA

Lab

Sandwich ELISA - Human Factor IX/PTC ELISA Kit, Chemiluminescent (AB325625)

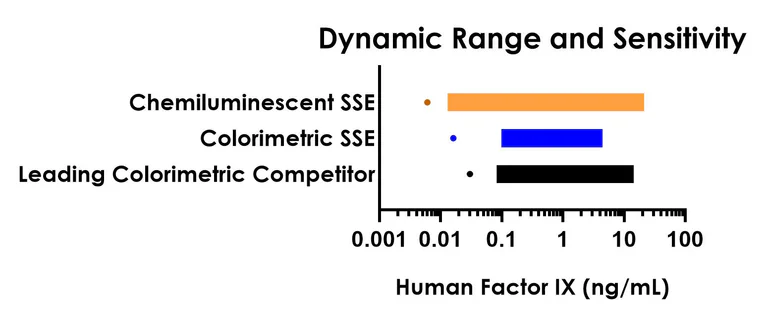

Dynamic range comparison between the Chemiluminescent Human Factor IX SimpleStep ELISA, colorimetric Human Factor IX SimpleStep ELISA (ab300307), and leading colorimetric competitor. The Chemiluminescent SimpleStep ELISA kit shows increased sensitivity and dynamic range.

Sandwich ELISA - Human Factor IX/PTC ELISA Kit, Chemiluminescent (AB325625)
  • sELISA

Lab

Sandwich ELISA - Human Factor IX/PTC ELISA Kit, Chemiluminescent (AB325625)

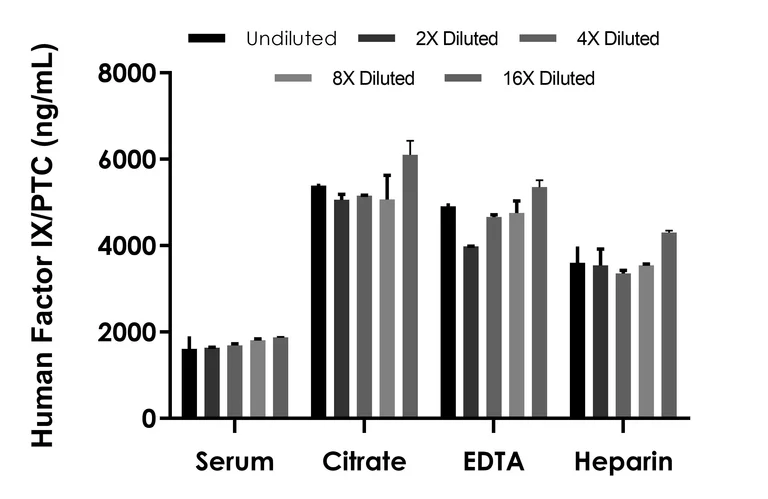

Interpolated concentration of native Factor IX/PTC was measured in duplicate at different sample concentrations. Undiluted samples are as follows : serum 0.15%, plasma (citrate) 0.075%, plasma (EDTA) 0.075%, and plasma (heparin) 0.15%. The interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2). Sample dilutions are made in Sample Diluent NS.

Sandwich ELISA - Human Factor IX/PTC ELISA Kit, Chemiluminescent (AB325625)
  • sELISA

Lab

Sandwich ELISA - Human Factor IX/PTC ELISA Kit, Chemiluminescent (AB325625)

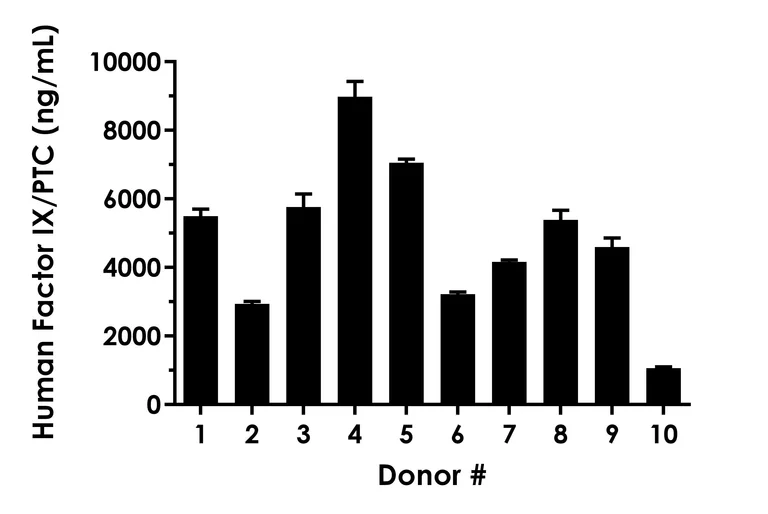

Serum of ten individual healthy human female donors was measured in duplicate. Interpolated dilution factor corrected values (to neat sample) are plotted (mean +- SD, n=2). The mean Factor IX/PTC concentration was determined to be 4,867 ng/mL with a range of 1,062 – 8,981 ng/mL.

Key facts

Detection method

Luminescent

Sample types

Serum, Citrate plasma, EDTA Plasma, Heparin Plasma

Reacts with

Human

Assay type

Sandwich

Results type

Quantitative

Sensitivity

= 5.9 pg/mL

Range

13.72 - 30000 pg/mL

Assay time

55m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column

Product details

Human Factor IX/PTC ELISA Kit, Chemiluminescent (ab325625) is a rapid single-wash sandwich 55 min ELISA to measure Human Factor IX/PTC in Serum, Citrate Plasma, EDTA Plasma, Heparin Plasma with a sensitivity of 5.9 pg/mL.

How the assay works

Human Factor IX/PTC ELISA Kit, Chemiluminescent (ab325625) SimpleStep Ignite™ ELISA employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step during a 30 min only incubation, significantly reducing assay time. By utilizing a chemiluminscent detection method this improves the sensitivity and dynamic range when compared to traditional colormetric ELISAs.

Assay Specificity

Our SimpleStep Ignite™ ELISA kits use recombinant monoclonal antibodies rigorously validated to ensure the highest level of consistency and reproducibility, improved sensitivity and specificity and ease of scalability and security of supply.
Please refer to our protocol booklet for more details.

Human Factor IX/PTC (ab325625) protocol summary

1. Mix : add samples / standards to the wells together with the capture and detector antibody cocktail. Incubate 30 min at room temperature
2. Wash
3. Add ChemiHRP development solution - incubate for 2 min
4. Read the results on a plate reader capable of luminescence detection

Design your own immunoassay

We offer the antibody pair used in this kit in a BSA and Azide-free format, ready for conjugation:

- Anti-Factor IX/PTC antibody [EPR22846-57] - BSA and Azide free (Capture) ab281281
- Anti-Factor IX/PTC antibody [EPR22846-233] - BSA and Azide free (Detector) ab281131
style
left-column

Precision

[ { "reproducibilityType": "Intra", "sample": "Serum", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 7.4" }, { "reproducibilityType": "Inter", "sample": "Serum", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 10.1" } ]
style
left-column

Recovery

[ { "sample": "Serum", "range": "92 - 113 %", "average": "= 105" }, { "sample": "Citrate plasma", "range": "111 - 119 %", "average": "= 116" }, { "sample": "EDTA Plasma", "range": "95 - 115 %", "average": "= 106" }, { "sample": "Heparin Plasma", "range": "103 - 118 %", "average": "= 112" } ]
style
left-column

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab325625-1x96Tests", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB325625-CMP10", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated Black 96-Well Microplate", "number":"AB325625-CMP09", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB325625-CMP06", "productcode":"" }, { "size":"1 x 3 mL", "name":"ChemiHRP Reagent A", "number":"AB325625-CMP07", "productcode":"" }, { "size":"1 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB325625-CMP05", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human Factor IX/PTC Lyophilized Recombinant Protein", "number":"AB325625-CMP03", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human Factor IX/PTC Detector Antibody", "number":"AB325625-CMP02", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human Factor IX/PTC Capture Antibody", "number":"AB325625-CMP01", "productcode":"" }, { "size":"1 x 3 mL", "name":"ChemiHRP Reagent B", "number":"AB325625-CMP08", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 4BI", "number":"AB325625-CMP04", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C
style
left-column
style
left-column

Product protocols

style
left-column

Target data

Factor IX is a vitamin K-dependent plasma protein that participates in the intrinsic pathway of blood coagulation by converting factor X to its active form in the presence of Ca(2+) ions, phospholipids, and factor VIIIa (PubMed : 8295821, PubMed : 2592373, PubMed : 20121197, PubMed : 20121198, PubMed : 1730085, PubMed : 19846852, PubMed : 39880037).
See full target information Coagulation factor IX
